Looking for Dm320115 Board Microchip? MICROCHIP DM320115 Evaluation Board, Curiosity Nano MPLAB X IDE, On-Board Debugger is available at Zbotic with fast shipping across India.
Pocket-sized ATmega4809 curiosity Nano evaluation kit with full program and debug capabilities. The ATMega4809 microcontroller (MCU) broadens the effectiveness of real-time control systems with a combination of intelligent hardware peripherals alongside the low-power capacity of the AVR core. Elevate your design with a high-speed ADC, Core Independent Peripherals (CIPs), and on-chip Configurable Custom Logic (CCL). Use either Studio 7 or MPLAB X IDEs as a magnifying glass to look into your MCU and step through the debug. Free, easy-to-use graphical programming tools, START and MCC allow you to intuitively program the target MCU.
Note: For more technical details go through Datasheet in the attachment section
Features:
- Single-cycle I/O access
- Two-level interrupt controller
- Two-cycle hardware multiple
- Up to 48 KB In-system self-programmable Flash memory
- 256B EEPROM
- Up to 6 KB SRAM
Package Includes:
1 x MICROCHIP DM320115 Evaluation Board, Curiosity Nano MPLAB X IDE, On-Board Debugger
Datasheet :
MICROCHIP DM320115 Evaluation Board, Curiosity Nano MPLAB X Overview

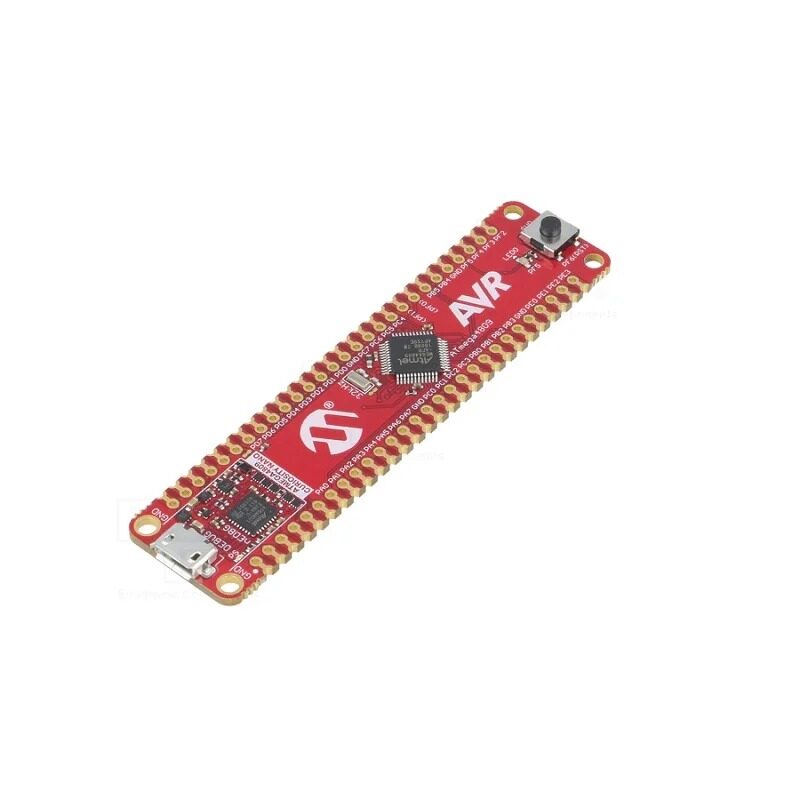

The MICROCHIP DM320115 Curiosity Nano is a compact evaluation board built around the ATmega4809 8-bit AVR microcontroller. It provides full on-board programming and debugging capabilities via MPLAB X IDE or Microchip Studio 7 for rapid prototyping and firmware development.
Key Features of MICROCHIP DM320115 Evaluation Board, Curiosity Nano MPLAB X
- Pocket-sized form factor housing the ATmega4809 MCU with 8-bit AVR core
- On-board debugger/programmer—no external hardware needed
- High-speed ADC, Core Independent Peripherals (CIPs), and Configurable Custom Logic (CCL)
- Compatible with MPLAB X IDE and Microchip Studio 7 for code development and debugging
- Integrated USB interface for power, programming, and debugging
- Support for graphical configuration with free START and MCC tools
- Genuine product, fast shipping across India from Zbotic
Applications and Use Cases
- Rapid prototyping of embedded control and automation systems
- Sensor data acquisition using the high-speed ADC channels
- Developing low-power battery-operated devices and wearables
- Implementing custom logic functions via on-chip CCL for signal conditioning
- Educational labs and student projects in microcontroller programming
- Proof-of-concept motor control or power management demonstrations
How to Use MICROCHIP DM320115 Evaluation Board, Curiosity Nano MPLAB X
Simply connect the Curiosity Nano board to your PC via the USB port to power it and activate the on-board debugger. Open MPLAB X IDE or Microchip Studio 7, select the ATmega4809 device, then import or write your application code. Use the IDE’s debug tools to set breakpoints, step through instructions, and monitor peripheral registers via START or MCC graphical configurators.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Does the evaluation board include a built-in debugger?
Yes, the Curiosity Nano DM320115 features an integrated on-board debugger/programmer, eliminating the need for external debugging tools.
Which IDEs and tools can I use with this board?
You can develop and debug firmware using MPLAB X IDE or Microchip Studio 7, and configure peripherals graphically with the free START and MCC plugins.
How is the board powered?
Power and USB connectivity are handled via the onboard USB Micro port, providing the necessary 5 V supply and enabling firmware download and debugging over a single cable.
Technical Specifications
| Brand | Microchip |
|---|---|
| SKU | AI1597 |
| Weight | 0.041 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MICROCHIP DM320115 Evaluation Board, Curiosity Nano MPLAB X IDE, On-Board Debugger is a versatile avr microcontroller board used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
