ATMEGA8515L-8PU
This microcontroller features 35 I/O pins and comes in a 40-DIP (0.600″ pitch, 15.24mm) package with through-hole mounting for easy attachment to panels. Powered by an 8-bit core and equipped with FLASH program memory, it operates within a temperature range of -40°C to 85°C (TA). Part of the AVR® ATmega series, it offers 8KB of program memory (4K x 16 bytes) and is designed for RISC-based microcontroller applications.
With a fast and efficient AVR core processor, this microcontroller is ideal for handling microprocessor tasks and interfacing with peripheral components. It features 40 pins, operates at a 3V output voltage, and has an 8MHz clock frequency. It also includes 2 timers/counters and 3 PWM channels, making it suitable for a variety of embedded projects. Note that it does not include DMA channels. For similar options, refer to the base part number ATMEGA8515.
Features:

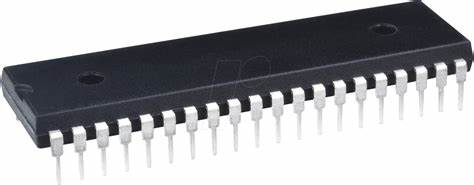

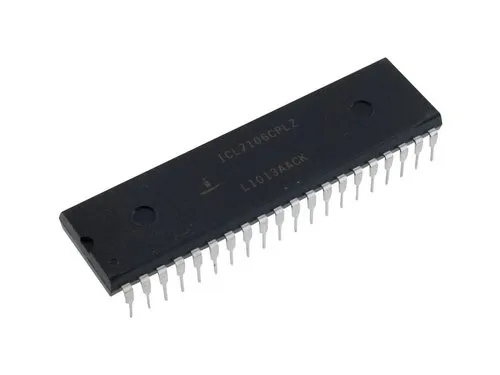

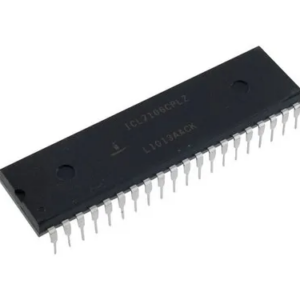

40-DIP (0.600, 15.24mm) package
Mounting type of Through Hole
Microcontrollers subcategory
Specification:
Flash (kBytes): 8 kBytes
Pin Count: 40
Max. Operating Freq. (MHz): 16 MHz
CPU: 8-bit AVR
- No of Touch Channels: 8
PACKAGE INCLUDES:
1 X ATMEGA8515L-8PU
ATMEGA8515L-8PU Overview
The ATMEGA8515L-8PU is a 40-pin DIP 8-bit AVR microcontroller featuring 8 KB of FLASH program memory and up to 16 MHz operating frequency. Designed for RISC-based embedded applications, it provides 35 general-purpose I/O pins and a temperature range of –40 °C to 85 °C for reliable performance in industrial and hobbyist projects.
Key Features of ATMEGA8515L-8PU
- 8 KB on-chip FLASH memory (4 K × 16 bytes) for program storage
- 40-pin DIP package with 35 digital I/O lines and through-hole mounting
- 8-bit AVR RISC core running up to 16 MHz with internal 8 MHz oscillator
- Includes 2 timers/counters and 3 PWM channels for precise timing and motor control
- Supports 8 touch-sensing channels for capacitive touch interfaces
- Wide operating voltage range with 3 V logic output and –40 °C to 85 °C temperature tolerance
- Fast shipping from Zbotic India—get genuine stock delivered quickly
Applications and Use Cases
- Home automation modules (lighting control, climate sensors)
- Custom keyboard or capacitive touch panels using touch-sensing channels
- Robotics projects requiring PWM-driven motor speed control
- Data acquisition systems with multiple digital inputs and timers
- Embedded learning platforms and AVR programming tutorials
- Prototyping RISC-based sensor interfaces and industrial controllers
How to Use ATMEGA8515L-8PU
Begin by inserting the ATMEGA8515L-8PU into a DIP socket or soldering it onto a PCB, then connect VCC and GND to a regulated 3 V–5 V supply. Attach an external crystal or use the internal 8 MHz oscillator, and hook up an AVR ISP programmer (e.g., USBasp) to the MOSI, MISO, SCK, RESET, VCC, and GND pins. Use Atmel Studio or avrdude to upload your compiled firmware, and leverage the timers, PWM channels, and touch inputs in your code.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which programmer works with ATMEGA8515L-8PU?
The ATMEGA8515L-8PU is compatible with standard AVR ISP programmers such as USBasp, AVRISP mkII, and Atmel-ICE. Connect via the 6-pin SPI header and use avrdude or Atmel Studio to flash your firmware.
How many I/O pins are available for my project?
This microcontroller provides 35 general-purpose digital I/O lines, plus dedicated pins for SPI, UART, and analog comparator functions, allowing you to interface with sensors, modules, and displays.
What voltage range does the ATMEGA8515L-8PU support?
The device operates from a 3 V supply for logic output, supporting a voltage range up to 5 V. Ensure your power source and peripherals match this range to avoid damage.
Technical Specifications
| Model | ATMEGA8515L-8PU |
|---|---|
| SKU | AI3356 |
| Weight | 0.007995 kg |
| Availability | In Stock |
Applications & Use Cases
The ATMEGA8515L-8PU is a versatile avr microcontroller board used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
