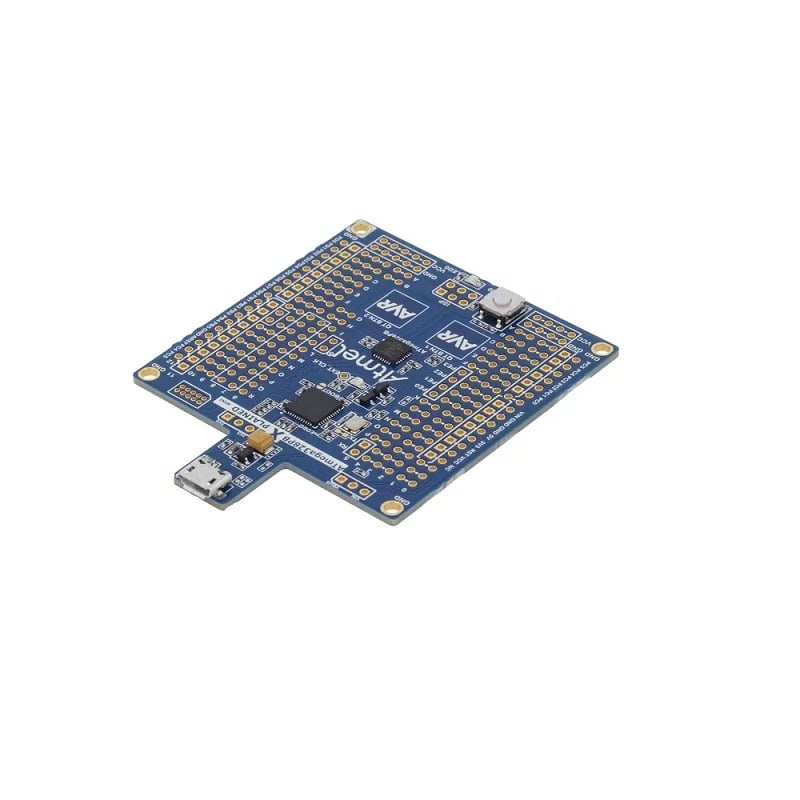

MICROCHIP ATMEGA328PB-XMINI Evaluation Kit, Mini, ATmega328PB Xplained Mini, 8-Bit

Looking for Atmega328pb-xmini Kit? MICROCHIP ATMEGA328PB-XMINI Evaluation Kit, Mini, ATmega328PB Xplained Mini, 8-Bit is available at Zbotic with fast shipping across India.

This user guide describes how to get started with the Atmel® ATmega328PB Xplained Mini board. The ATmega328PB Xplained Mini evaluation kit is a hardware platform to evaluate the Atmel ATmega328PB microcontroller. The evaluation kit comes with a fully integrated debugger that provides seamless integration with Atmel Studio 6.2 (and later versions). The kit provides access to the features of the ATmega328PB enabling easy integration of the device in a custom design.

 Note: for more technical details go through Datasheet in the attachment section

Features:

1. On-board debugger with full source-level debugging support in Atmel Studio
2.  Auto-ID for board identification in Atmel Studio
3.  Access to all signals on target MCU
4.  One green mEDBG status LED
5.  One yellow user LED
6.  One mechanical user push the button

Package Includes:

1 x MICROCHIP ATMEGA328PB-XMINI Evaluation Kit, Mini, ATmega328PB Xplained Mini, 8-Bit

Datasheet :

MICROCHIP ATMEGA328PB-XMINI Evaluation Kit, Mini, Overview

The MICROCHIP ATMEGA328PB-XMINI Evaluation Kit, Mini is a compact development board designed to evaluate the ATmega328PB 8-bit AVR microcontroller. It provides a ready-to-use hardware platform with an integrated debugger, enabling seamless code development and real-time debugging via Atmel Studio.

Key Features of MICROCHIP ATMEGA328PB-XMINI Evaluation Kit, Mini

• On-board full source-level debugger for step-by-step code analysis
• USB interface for power and programming—no external debugger needed
• Access to all ATmega328PB I/O pins through standard headers
• Supports Atmel Studio 6.2 and later for project creation and firmware updates
• Compact Xplained Mini form factor for easy integration into prototype setups
• Fast shipping from Zbotic across India—get your kit delivered quickly

Applications and Use Cases

• Rapid prototyping of 8-bit embedded systems and control applications
• Firmware development and debugging for custom sensor interfaces
• Educational demonstrations of AVR architecture in academic labs
• Low-power design evaluation for battery-operated devices
• Integration testing of peripheral drivers on the ATmega328PB MCU

How to Use MICROCHIP ATMEGA328PB-XMINI Evaluation Kit, Mini

Connect the Xplained Mini board to your PC using a micro-USB cable, then launch Atmel Studio 6.2 or later. The integrated debugger is immediately recognized—create a new AVR project, select ATmega328PB as the target, compile your code and flash it directly via USB. Use the header pins to attach external sensors or modules and monitor I/O behavior in real time with breakpoints and watch windows.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Which IDE works with the ATMEGA328PB-XMINI board?

The board is fully compatible with Atmel Studio 6.2 and later versions, providing integrated project management, compiler tools and source-level debugging.

Do I need an external debugger to program the kit?

No external debugger is required. The ATMEGA328PB-XMINI includes an on-board debugger that handles programming and debugging over USB.

How can I access the microcontroller’s I/O pins?

All ATmega328PB pins are broken out to standard 2.54 mm headers. Simply connect wires or daughter boards to these headers for GPIO, UART, SPI, I²C and ADC interfaces.
