Description:

LR900-P WITH 5dBi Antenna Telemetry Radio is a small, cheap radio with superior performance for flight controller that typically allows ranges of better than 30kilometers. And it is very suitable for Pixhawk or other Audupilot/PX4 flight controller. It will connect automatically when power up without any configuration unless you need to implement some special features.

The LR900-P works in the 915MHz, so is better to use 2.4GHz for RC LINK receiver than 915MHz receiver (BlackSheep/ELRS 915) on your drones.

Features:

• Weight: 8.8g
• Size: 25.8*41.6*11.5mm
• Tx Power: 30dBm(1000mW)
• Frequency Band: 890-915MHz
• Max Communication Distance: 50KM
• Base on LoRa modulation technology to obtain excellent anti-interference performance
• Frequency hopping spread spectrum (FHSS)
• Using transparent transmission to compatible with any data and protocol not just mavlink
• CP2102 USB to UART IC, compatible with QGroundControl on Android

Data transmission:

• Transmission Rate: 3.2K Byte/s(down) 1.6K Byte/s(up)
• Maximum Single-package Length: 8192 Byte
• Uart Baudrate for JST-GH Interface: 9600; 19200; 38400; 57600 (default); 115200
• Uart Baudrate for USB Interface: 57600 (default); 115200

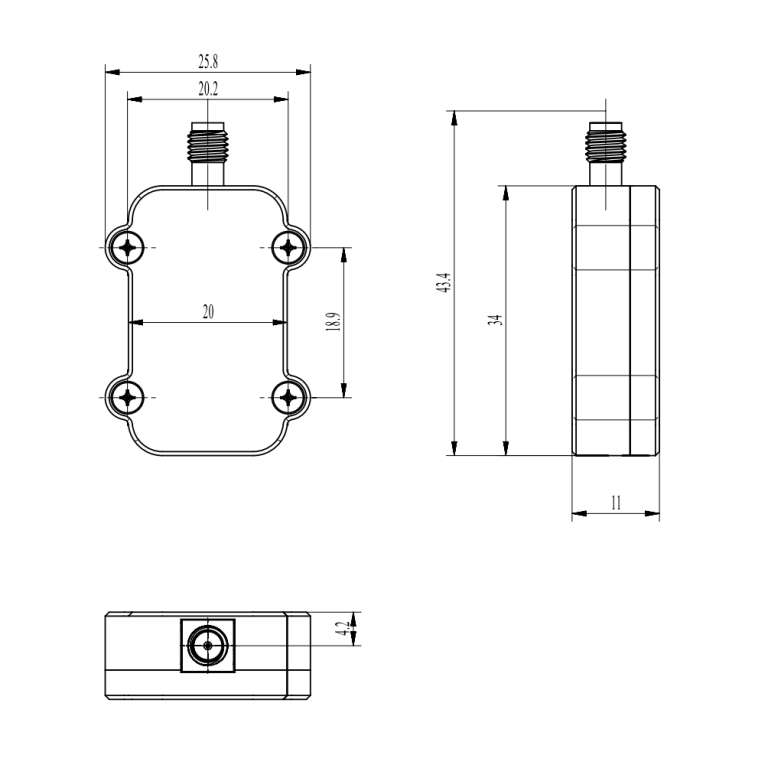

Physical Dimensions :

Specification:

• Supply Voltage: 5V DC (from USB or JST-GH)
• Average Transmit Current: 400mA at 30dBm (LR900-P)

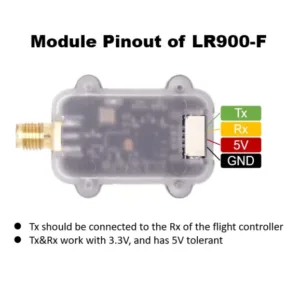

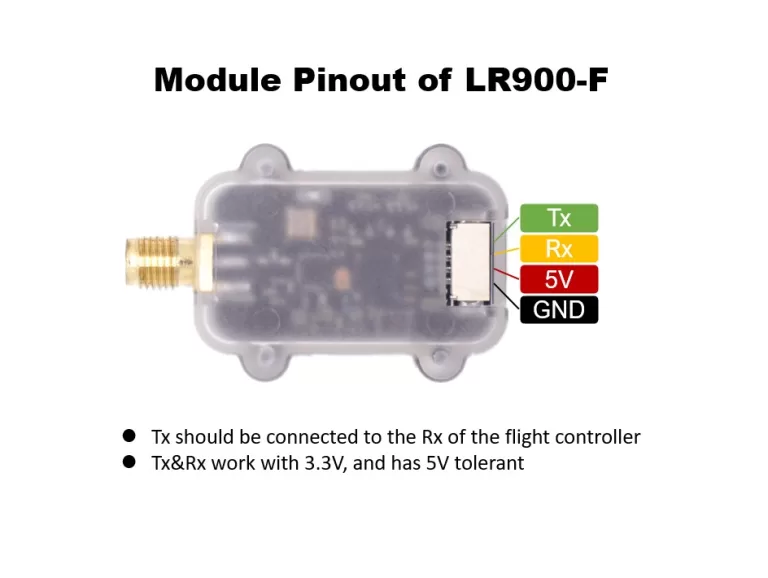

• Serial Interface: 3.3V UART JST-GH1.25-4P
• USB Interface: USB-Type-C (CP2102)
• Antenna Interface: SMA (Female)

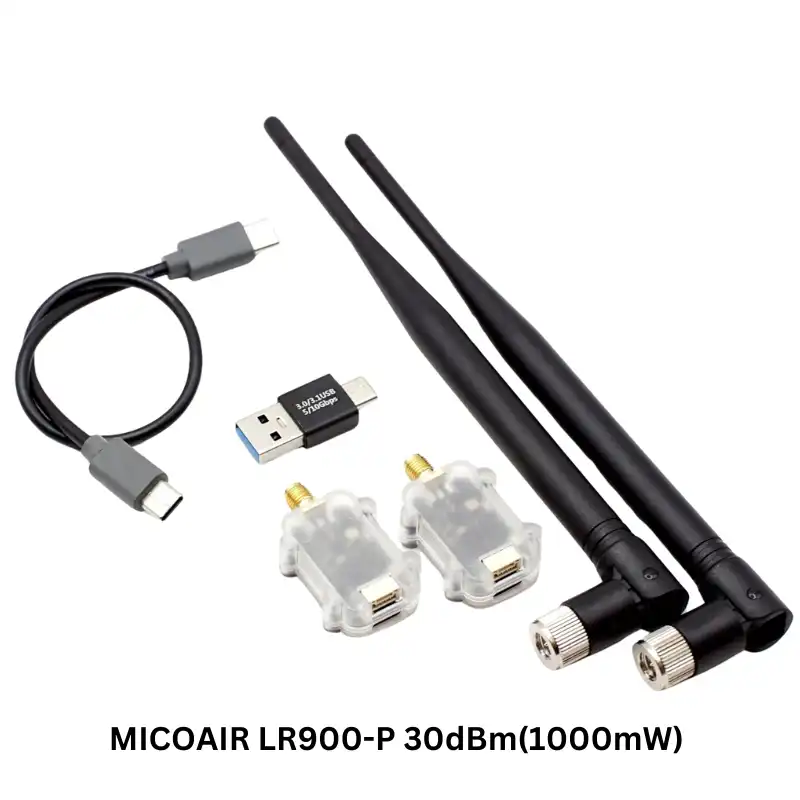

Package Include :

• MicoAir LR900-P Telemetry Radio Module x 2
• USBA to USB-Type-C x 1

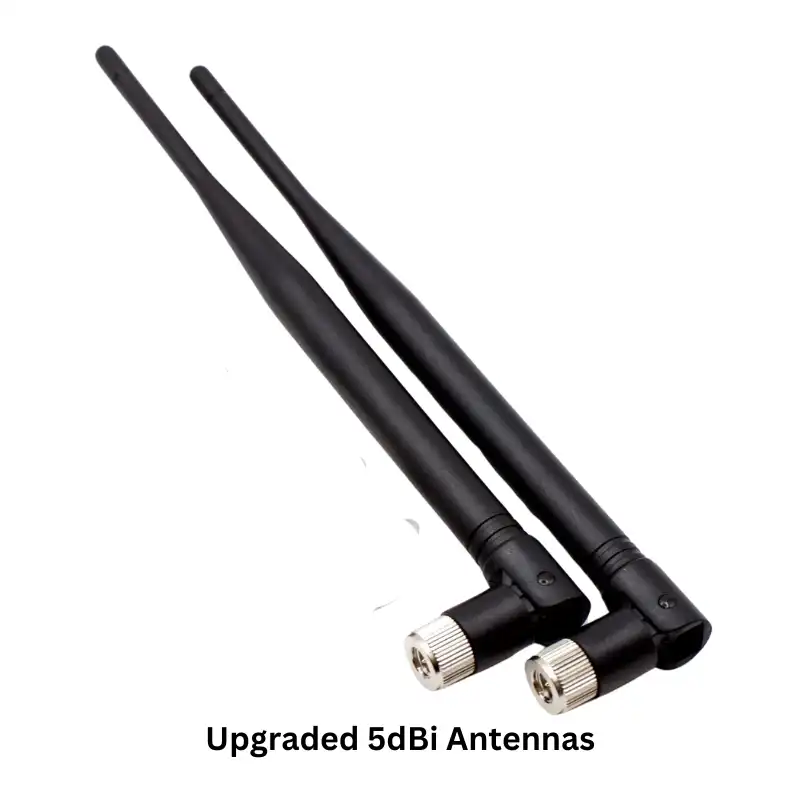

• 900Mhz 5dBi Antenna x 2
• GH 1.25-4P to SH1.0-4P Cable 20cm (For MicoAir405/743) x 1
• GH 1.25-4P to MX1.25-6P Cable 20cm (For Pixhawk1/2) x 1
• GH 1.25-4P to GH1.25-6P Cable 20cm (For Pixhawk4/5/6) x 1
