Description:

The MicoAir LR900-F Long-Range Telemetry Radio Module with 2 dBi Antenna is designed for wireless communication between UAV drones and ground control systems. Operating in the 900 MHz frequency band, it can support telemetry data transmission for compatible flight controllers, ground stations, and unmanned aerial vehicle applications. The included 2 dBi antenna helps establish a wireless communication link for transmitting flight data and monitoring drone status. It is suitable for applications requiring reliable telemetry connectivity, subject to compatible hardware and regional frequency regulations.

Key Features

• Long-range wireless telemetry communication.

• 900 MHz frequency-band model.

• Includes a 2 dBi antenna.

• Designed for UAV and drone telemetry systems.

• Supports communication between compatible onboard equipment and ground stations.

• Suitable for flight-data monitoring and remote telemetry applications.



The LR900-F/P Telemetry Radio is a small, cheap radio with superior performance for flight controller. And it is very suitable for Pixhawk or other Audupilot/PX4 flight controller. It will connect automatically when power up without any configuration unless you need to implement some special features.

The LR900-F/P works in the 915MHz, so is better to use 2.4GHz receiver than 915MHz receiver (BlackSheep/ELRS 915) on your drones.

Features

• Works in 915MHz (890-915MHz)
• Small size and light weight (8g)
• Transmit power up to 500mW(LR900-F) / 1000mW (LR900-P)
• Base on LoRa modulation technology to obtain excellent anti-interference performance
• Frequency hopping spread spectrum (FHSS)
• Using transparent transmission to compatible with any data and protocol not just mavlink
• CP2102 USB to UART IC, compatible with QGroundControl on Android

Data Transmission

• Transmission Rate: 2.1K Byte/s (default); 1.1K Byte/s; 0.4K Byte/s; 3.2K Byte/s(down) 1.6K Byte/s(up) in FHSS mode
• Maximum Single-package Length: 20K Byte
• Uart Baudrate for JST-GH Interface: 9600; 19200; 38400; 57600 (default); 115200
• Uart Baudrate for USB Interface: 57600 (default); 115200

Physical

• Dimensions: 43.4 x 25.8 x 11mm (without antenna)
• Weight: 8g

Electrical

• Supply Voltage: 5V DC (from USB or JST-GH)
• Average Transmit Current: 200 mA at 27dBm (LR900-F) / 400mA at 30dBm (LR900-P)

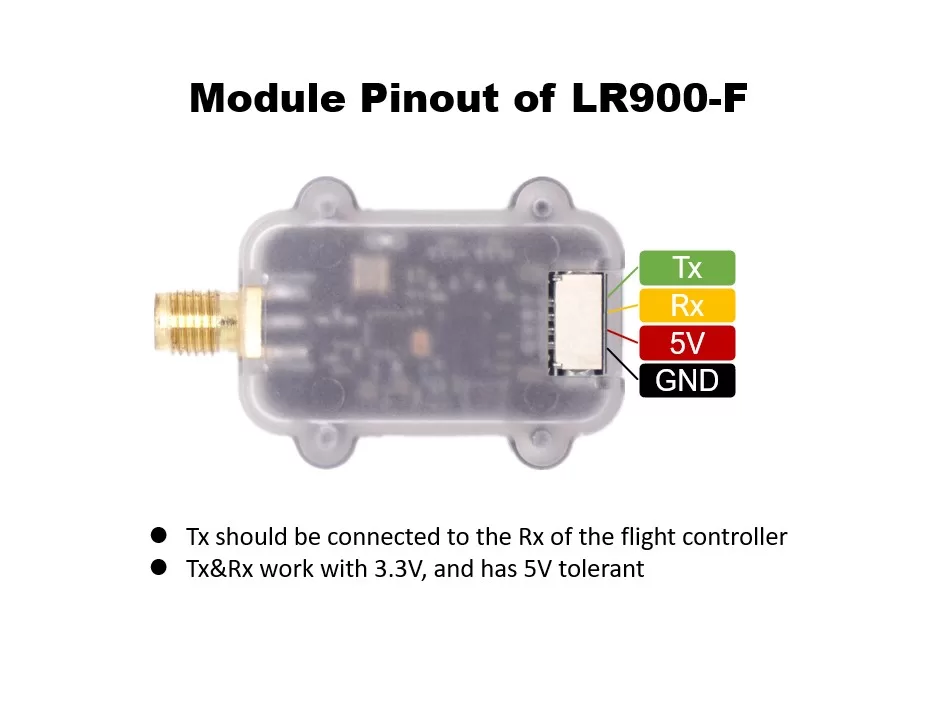

• Serial Interface: 3.3V UART JST-GH1.25-4P
• USB Interface: USB-Type-C (CP2102)
• Antenna Interface: SMA (Female)

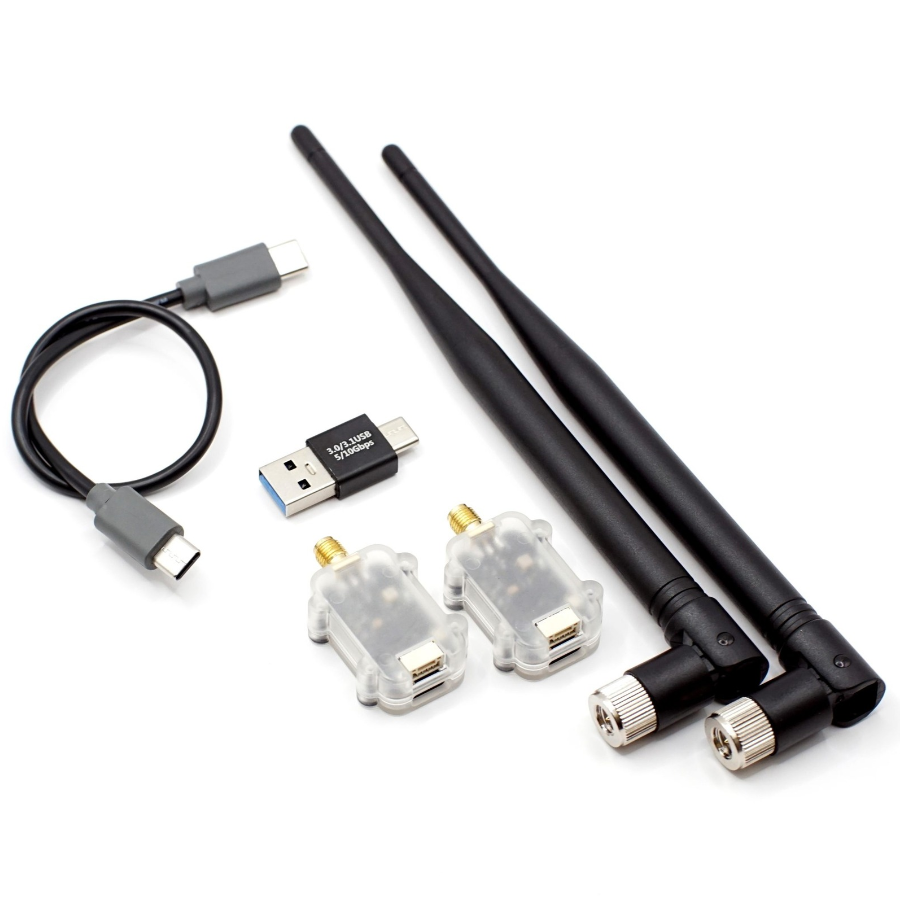

Pacakge Includes:

1xMicoAir LR900-F Long-Range Telemetry Radio Module with 2 dBi Antenna
