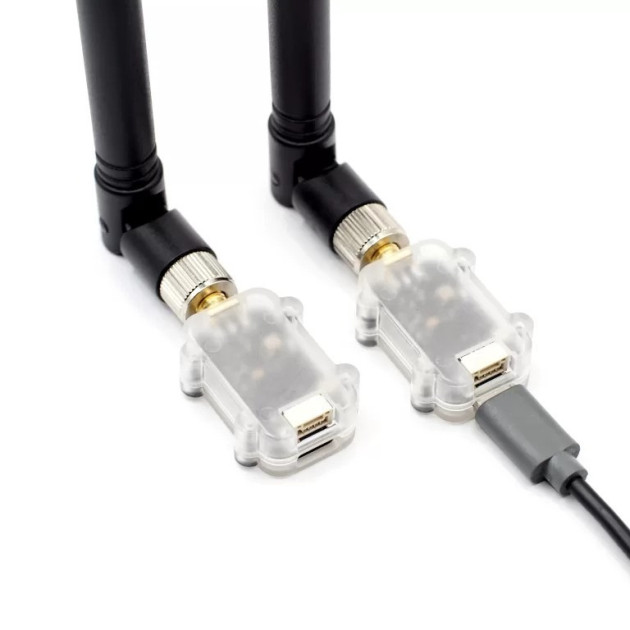

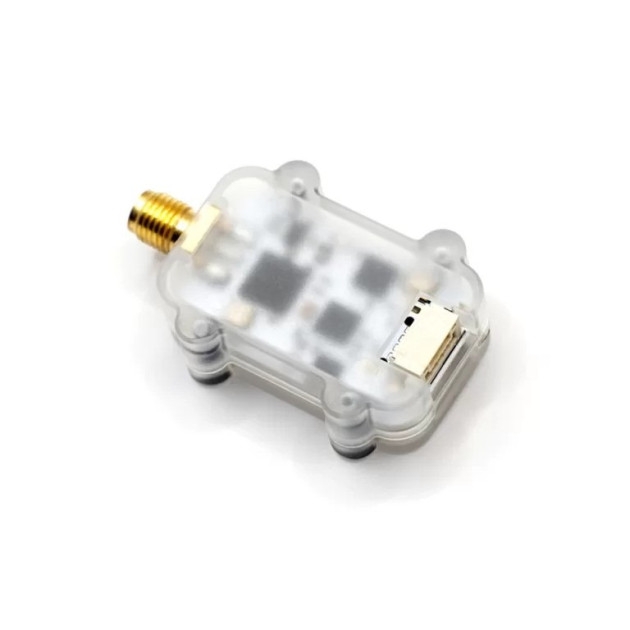

MicoAir LR868-F Long-Range Telemetry Radio Module with 2 dBi Antenna
Description:

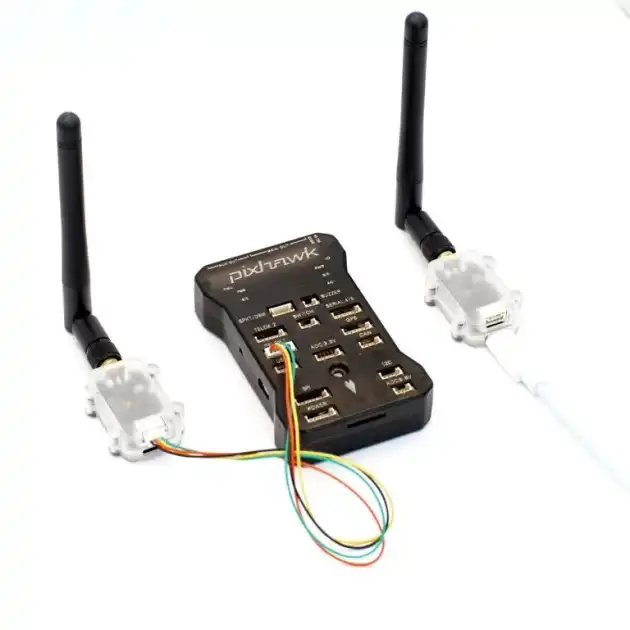

The MicoAir LR868-F is a long-range wireless telemetry radio designed for UAVs, drones, and robotics applications. It enables reliable two-way communication between a flight controller and a ground station, supporting remote monitoring, mission planning, and flight data transmission. The included 2 dBi antenna provides wireless connectivity for compatible telemetry systems.
MicoAir LR868-F is a pair of telemetry modules with an output power of 500 mW operating in the 868 MHz band. The module is based on LoRa modulation, making it highly resistant to interference and suitable for long-range communication up to 30 km. The data rate is adjustable from 0.4 KB/s to 3.2 KB/s. It is typically used for Mavlink protocol transmission from a flight controller, but it can transmit any data via UART.

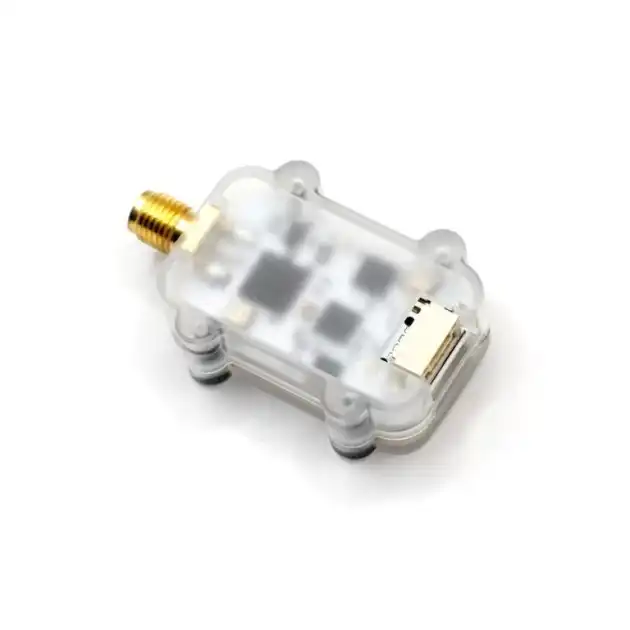

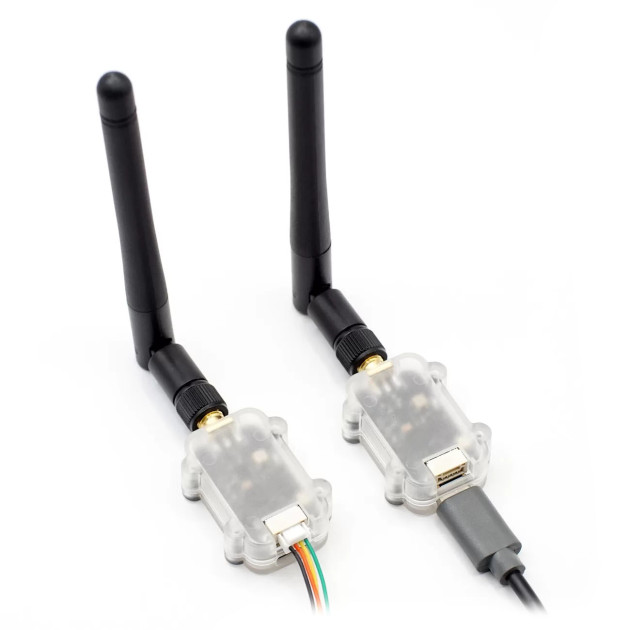

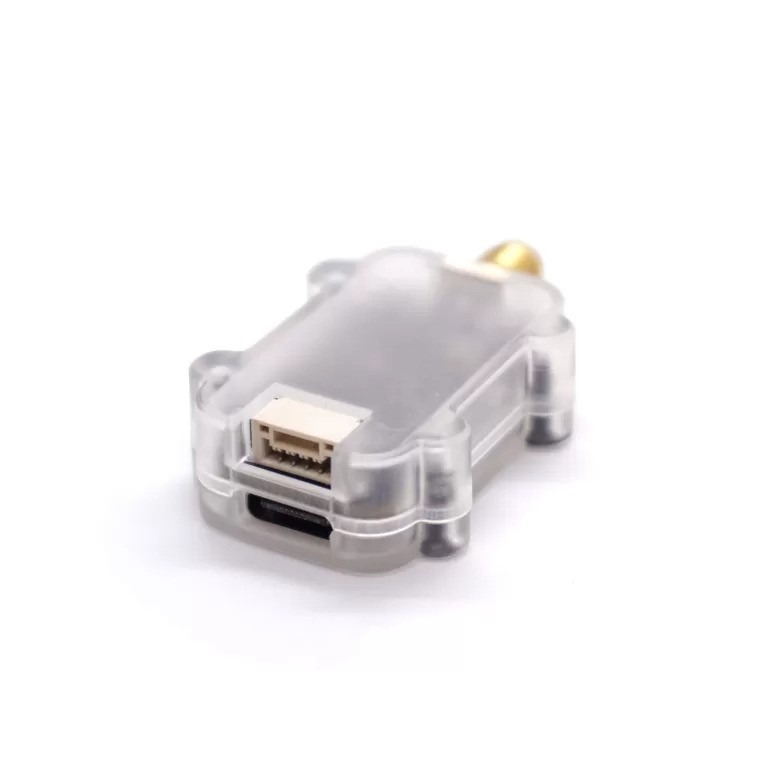

The telemetry module features a JST-GH connector for connection to the flight controller and a USB-C connector for connection to a computer, smartphone, or tablet. The connection status is indicated by a green LED that remains steadily lit when a link is established. Module parameters can be configured via the MicoAssistant application. The telemetry modules come with 2 dBi antennas.
Specification:
| Specification | Details |
|---|---|
| Brand | MicoAir |
| Model | LR868-F |
| Product Type | Long-Range Telemetry Radio Module |
| Communication Technology | LoRa / FHSS |
| Operating Frequency | 868 MHz band |
| Maximum Transmit Power | 500 mW (27 dBm) |
| Antenna Gain | 2 dBi |
| Communication Range | Up to 30 km (line-of-sight, depending on conditions) |
| Default Data Rate | 2.1 KB/s |
| Power Supply | 5 V DC |
| Serial Interface | UART |
| USB Interface | USB Type-C |
| USB-to-UART Chip | CP2102 |
| Antenna Connector | SMA |

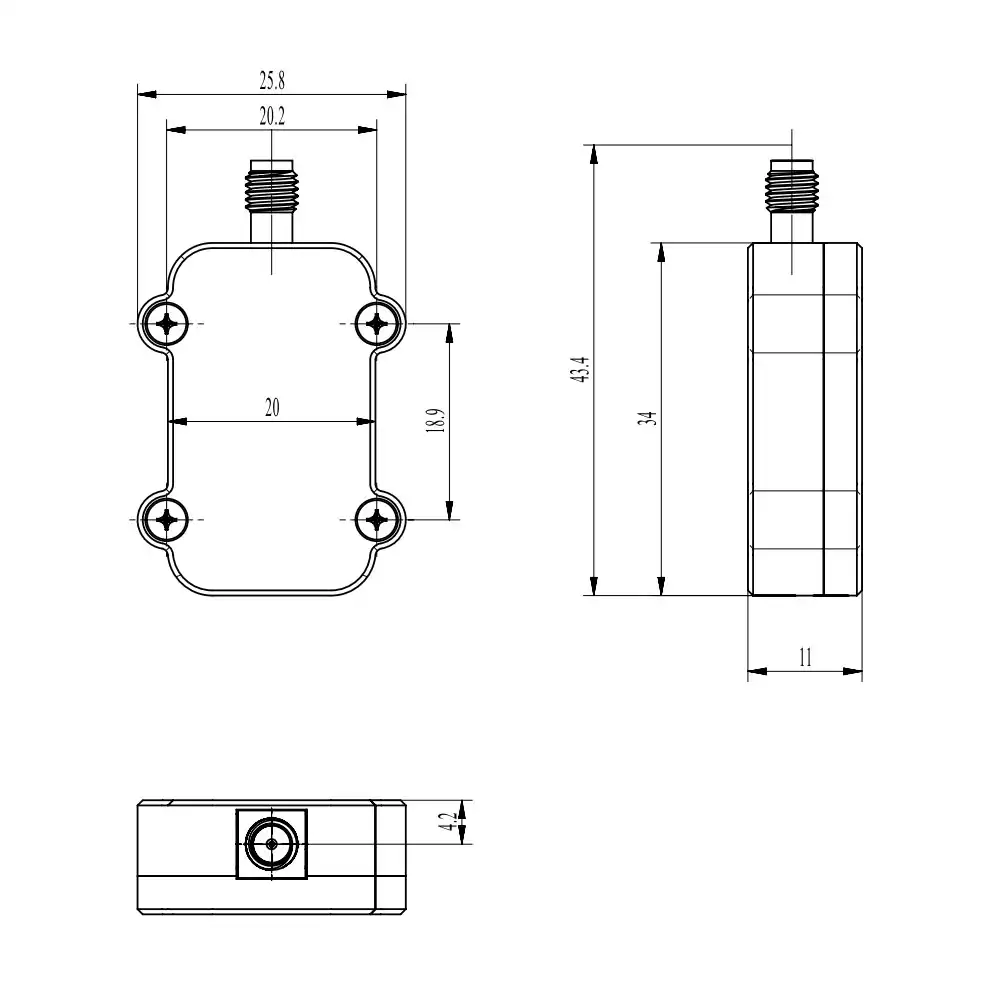

| Dimensions | 43.4 × 25.8 × 11 mm |
| Weight | Approximately 8 g |
| Compatible Firmware | ArduPilot / PX4 |
| Application | UAV telemetry and ground-station communication |
Key Features :
- Input voltage: 5V
- Frequency band: 868MHz
- Modulation: LoRa + FHSS
- LoRa baud rate: 2.1kB/s (default), 1.1kB/s, 0.4kB/s
- FHSS baud rate: 3.2kB/s (down) 1.6kB/s (up)
- Maximum packet length: 8192B
- JST-GH baud rate: 9600, 19200, 38400, 57600 (default), 115200
- USB baud rate: 57600 (default), 115200
- Transmitting power: 500mW

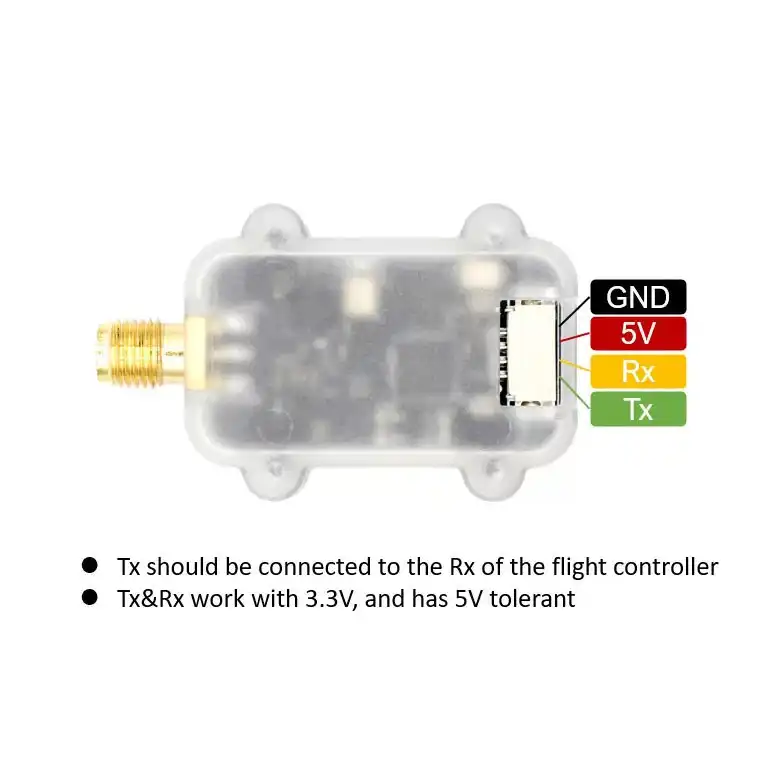

- Connector: JST-GH1.25 4P, USB-C (CP2102)
- Antenna connector: SMA

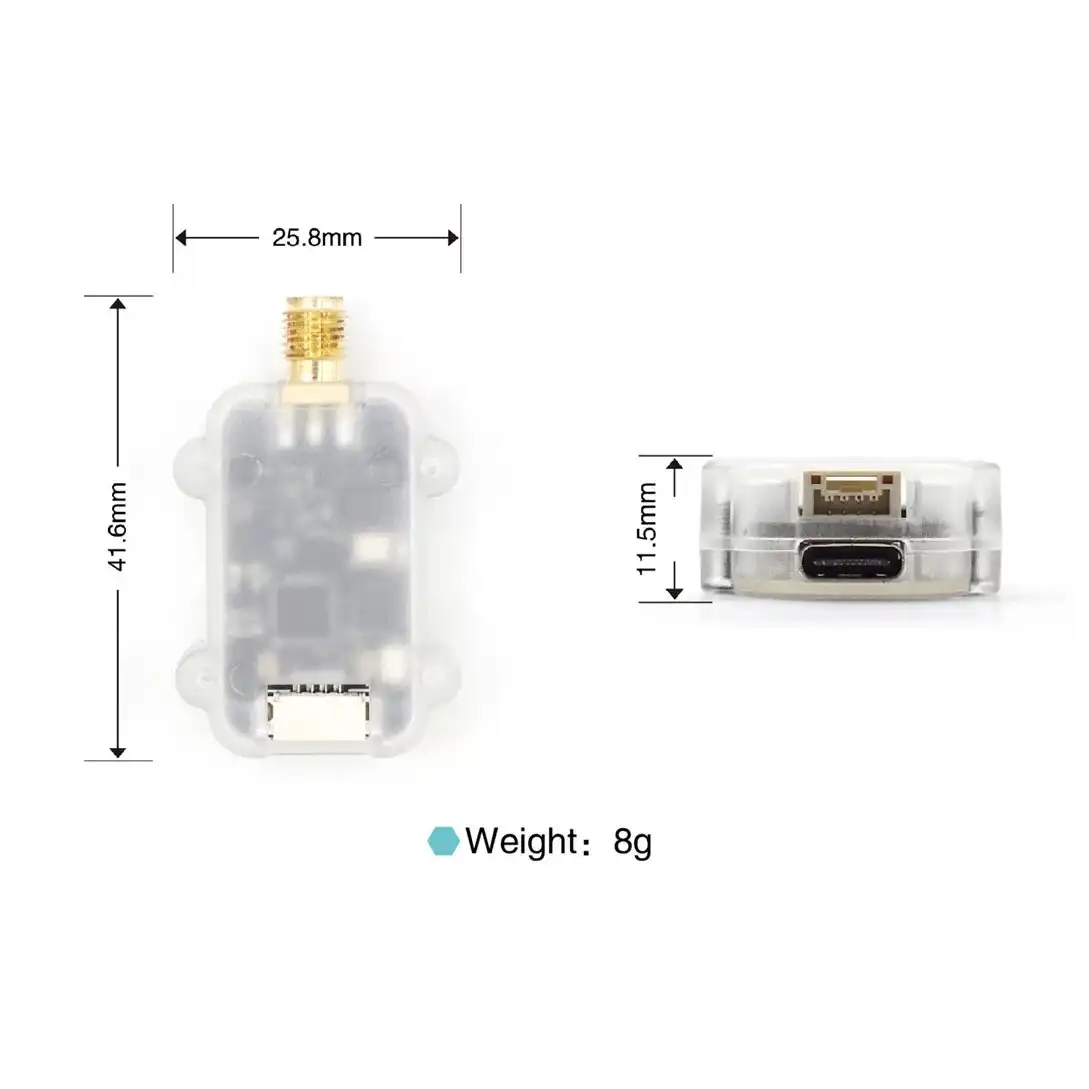

- Size: 43.4×25.8x11mm
- Weight: 8g

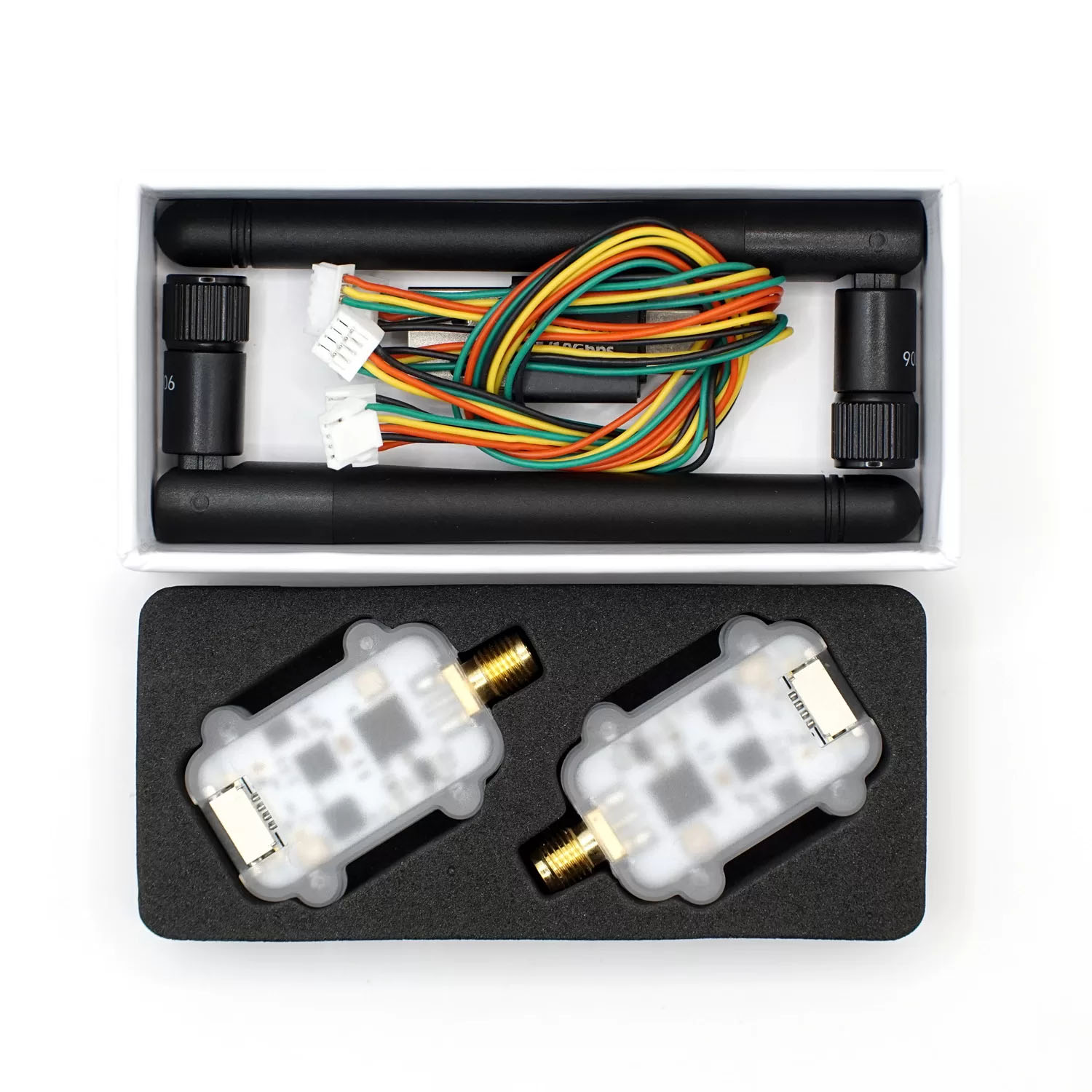

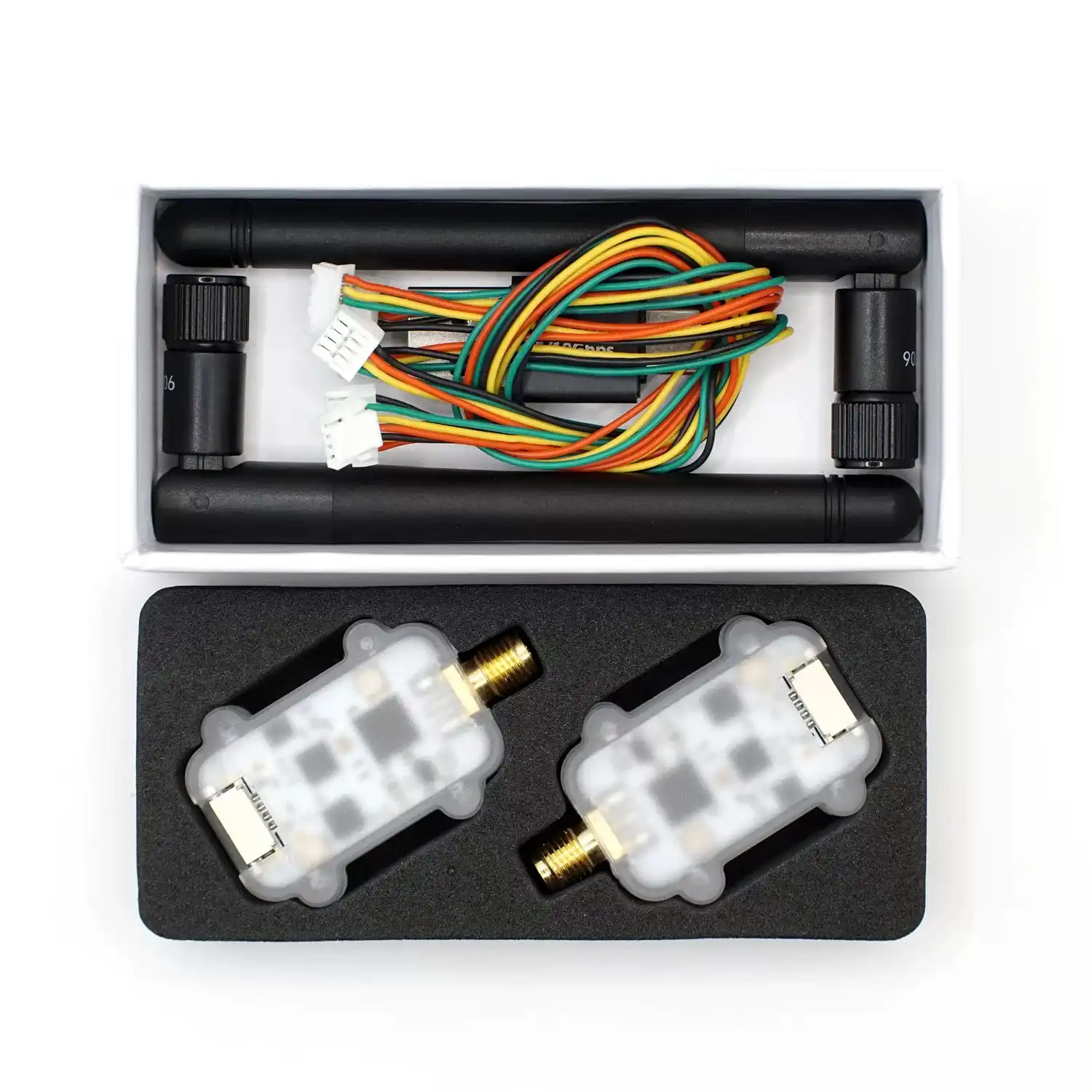

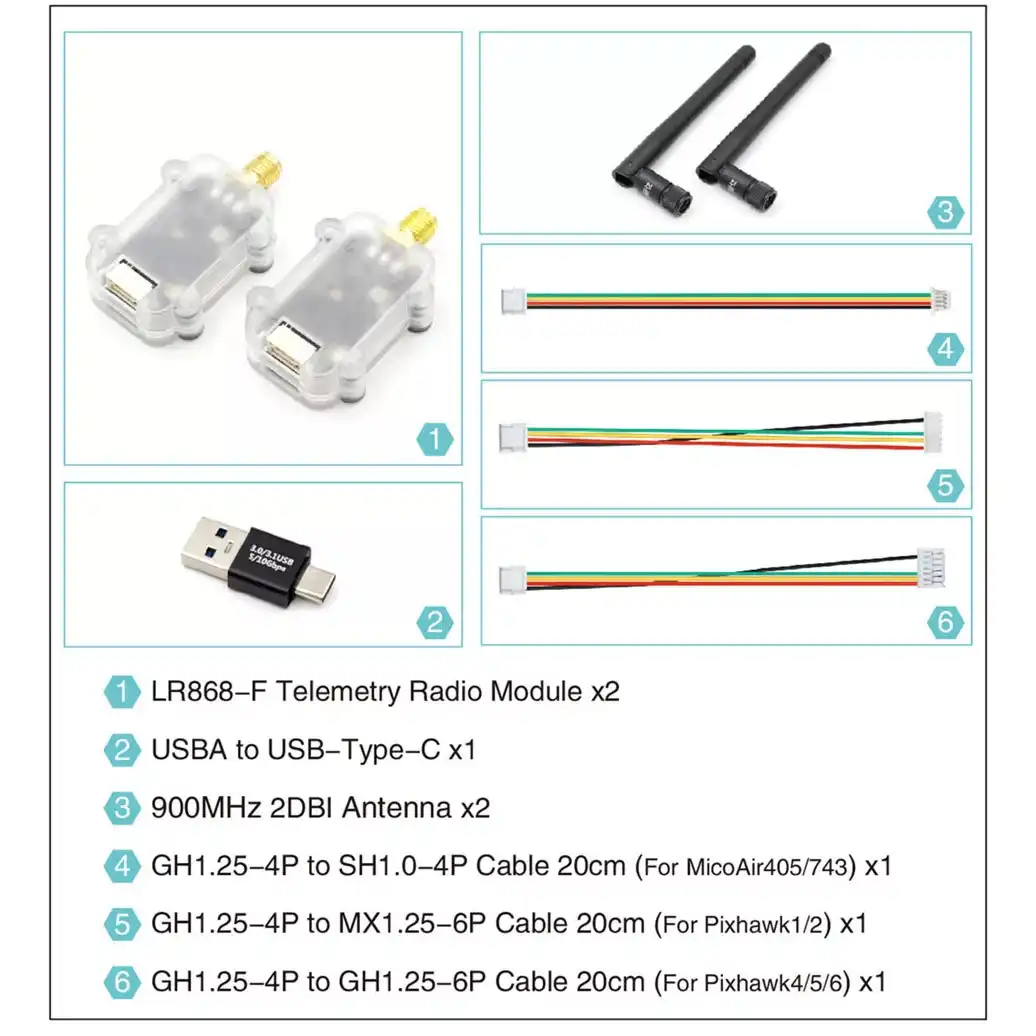

Package Includes :
- 2x Telemetry Module
- 2x 868MHz Antenna
- 1x Cable Set
- 1x USB-A to USB-C Adapter
Technical Specifications
| Brand | MicoAir |
|---|---|
| Model | LR868-F |
| SKU | AI8322 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MicoAir LR868-F Long-Range Telemetry Radio Module with 2 dBi Antenna is a versatile antenna used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
