Description:
This low-cost, micro-sized metal gear RC servo provides a holding torque of 1.80kg.cm at 4.8V, making it perfect for student robotic projects involving arms or linkages. The main advantage of an RC servo over a DC brush motor is its precise control over the rotation angle.
Specification:
- Compatible with Arduino Servo library.
- Metal gears
- Operating Voltage: 4.8 – 6VDC
- Speed at 4.80V(no load): 0.1 s/60°
- Torque at 4.80V : 1.8 kg.cm (~0.1765 N.m)

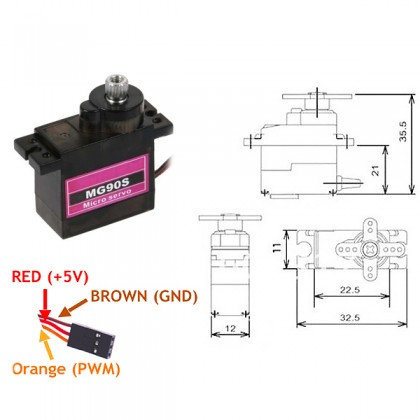

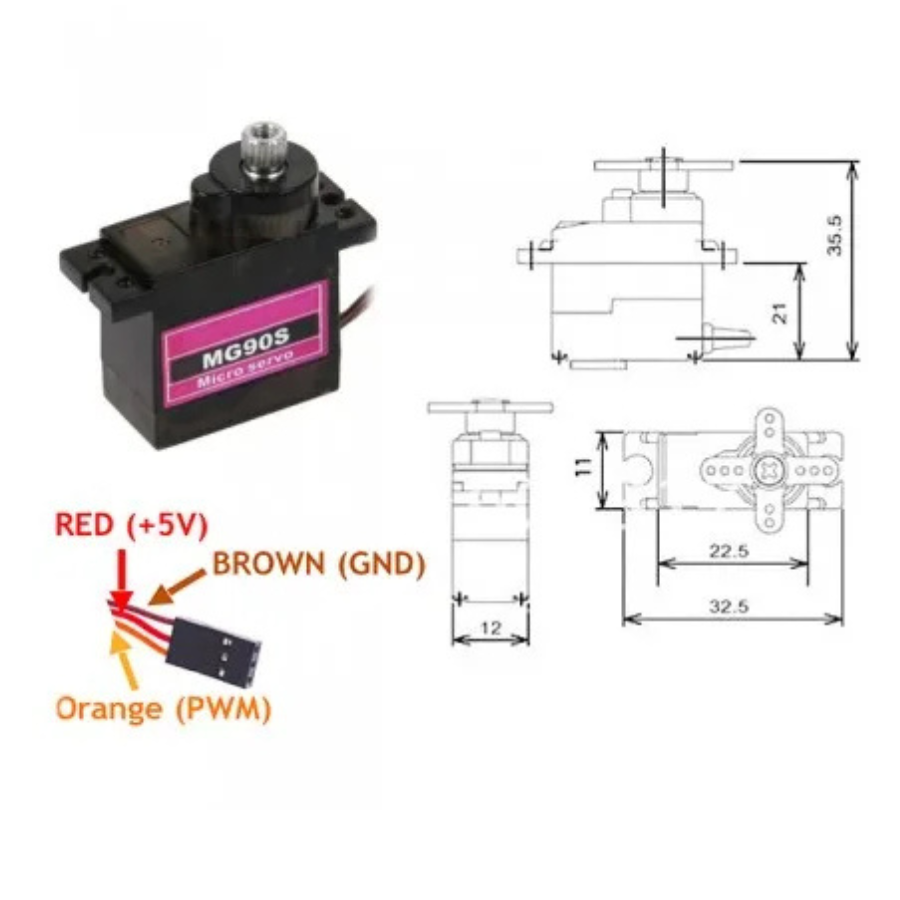

- Size: 32.5 x 12 x 35.5 mm (LxWxH)
- Weight: 16g
- Rotation angle: 180 degree
- Wiring:
- Brown = GND
- RED = 5V
- Orange = Signal
Packing list:

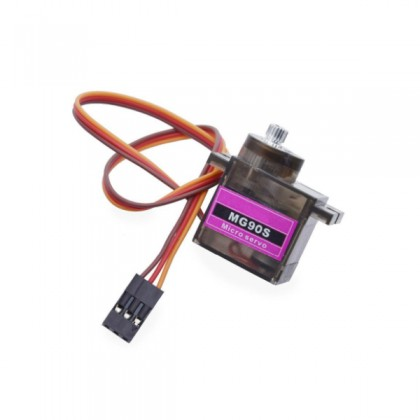

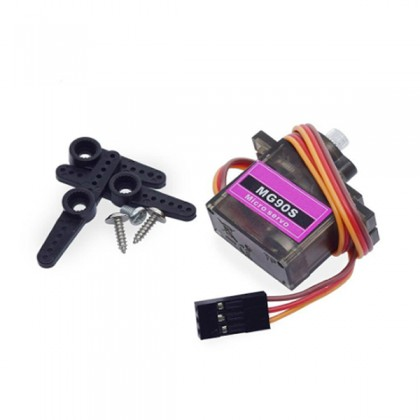

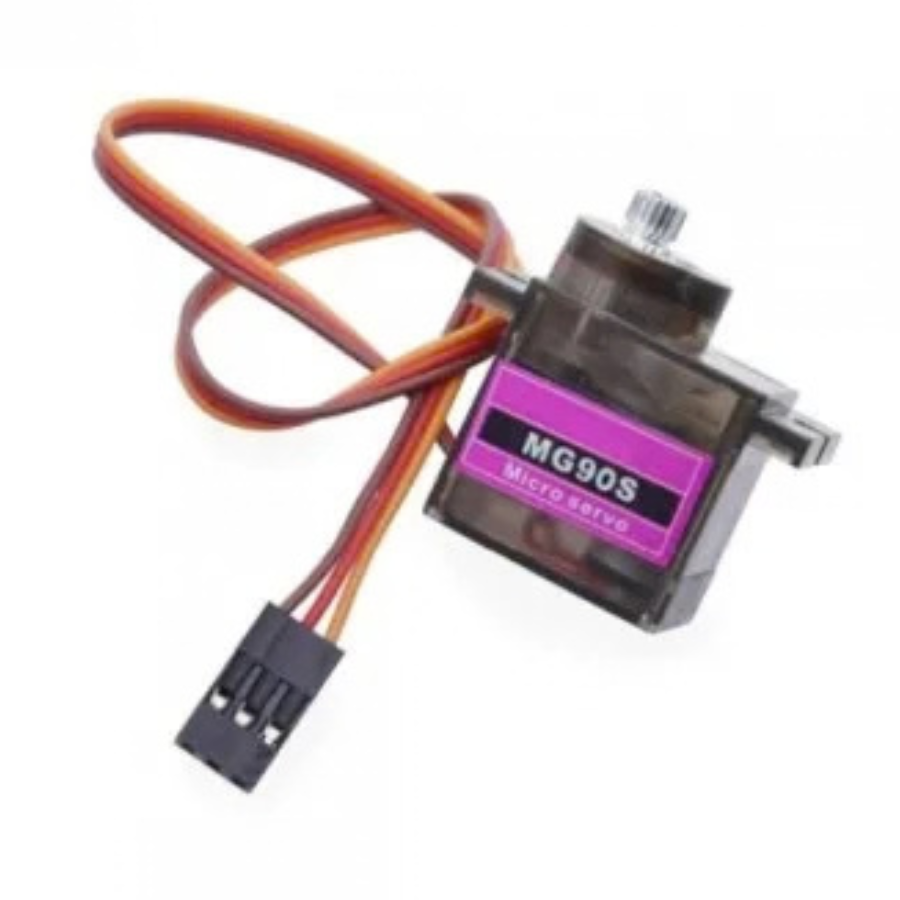

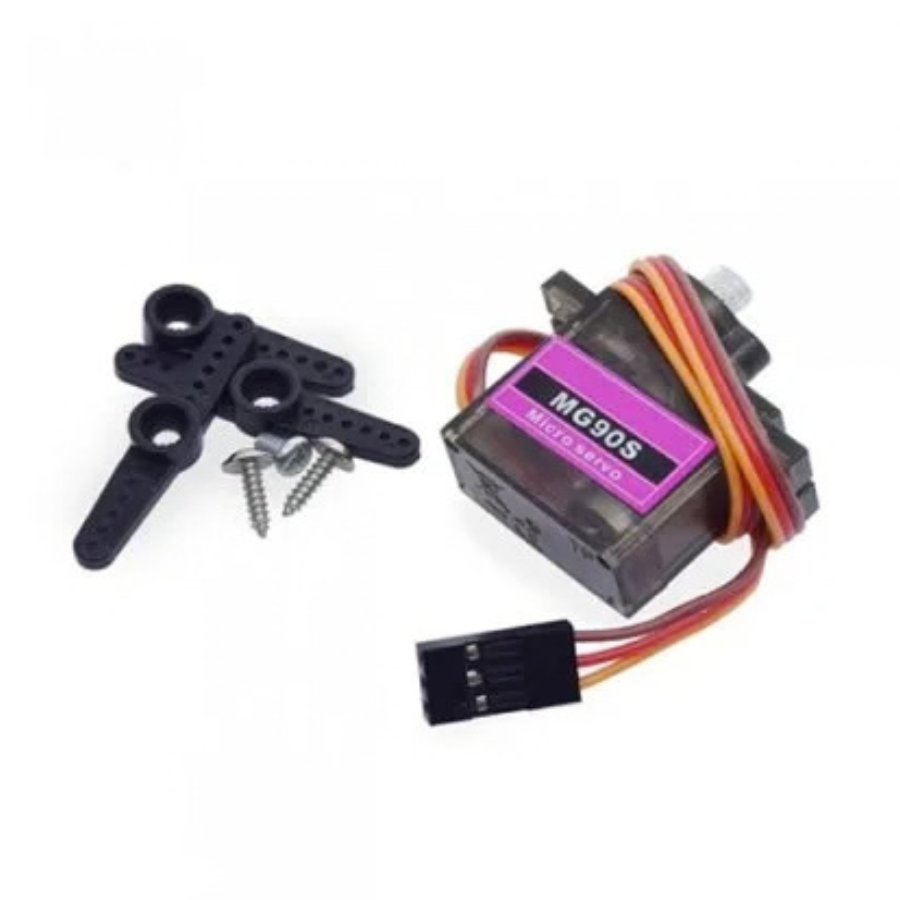

- 1x MG90S 9g Servo Metal Gear 180 degrees
Linear Actuator with Feedback: Position Control Projects India
Linear actuators convert rotary motor motion into straight-line push-pull movement. They are indispensable for solar panel trackers, motorised...
Read More →
Gear Reduction Motor: How to Calculate Output Speed & Torque
If you've ever built a robot arm, an automated sliding door, or a motorised camera gimbal, you've probably...
Read More →
Stepper Motor for CNC Router: Torque Requirements & Selection Guide
Choosing the correct stepper motor for a CNC router is one of the most important decisions in the...
Read More →Technical Specifications
| Model | MG90S |
|---|---|
| Max Temperature | 180°C |
| SKU | AI4619 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The MG90S 9g Servo Metal Gear 180 degrees :Superior Quality is a versatile towerpro and other servo motors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
