PRODUCT DESCRIPTION

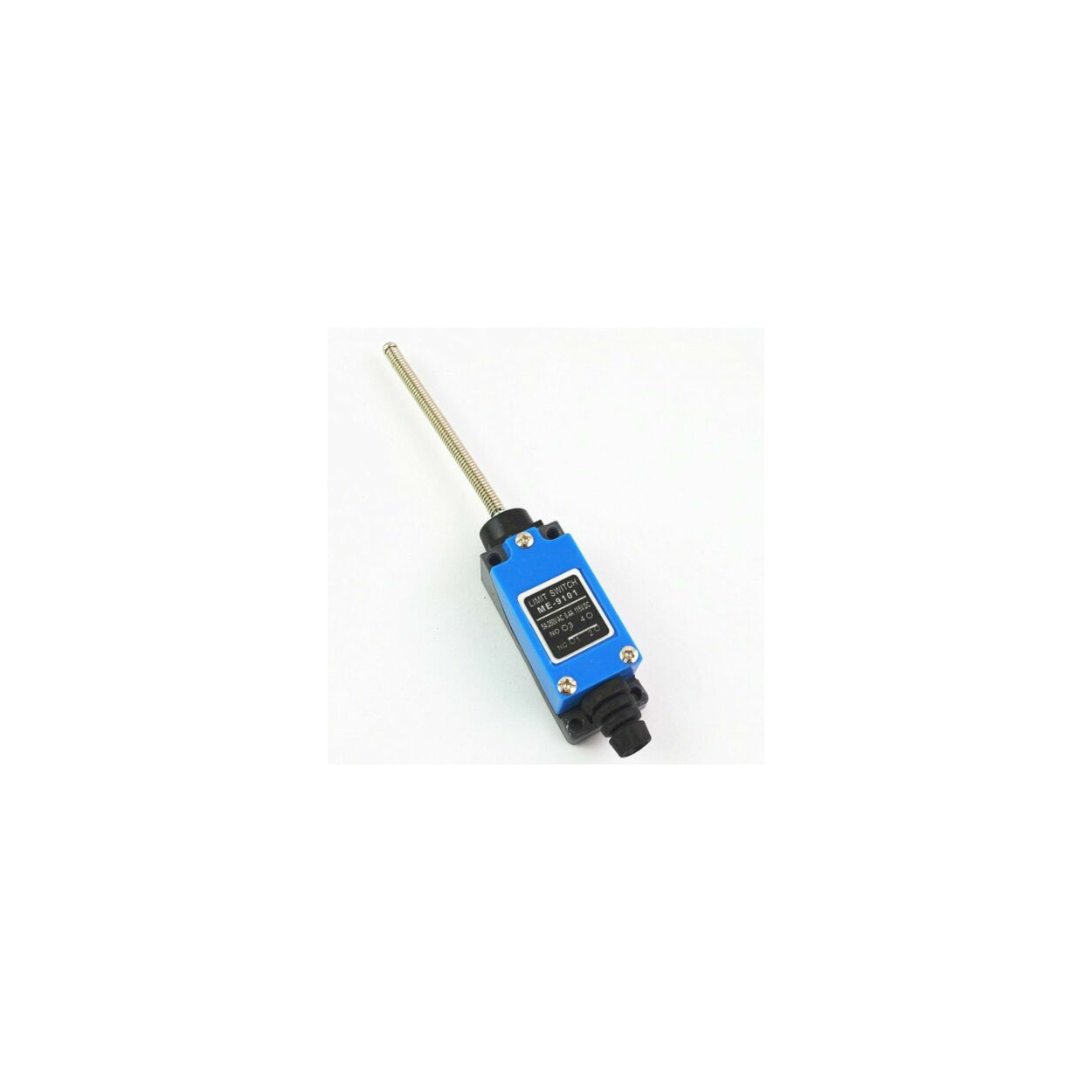

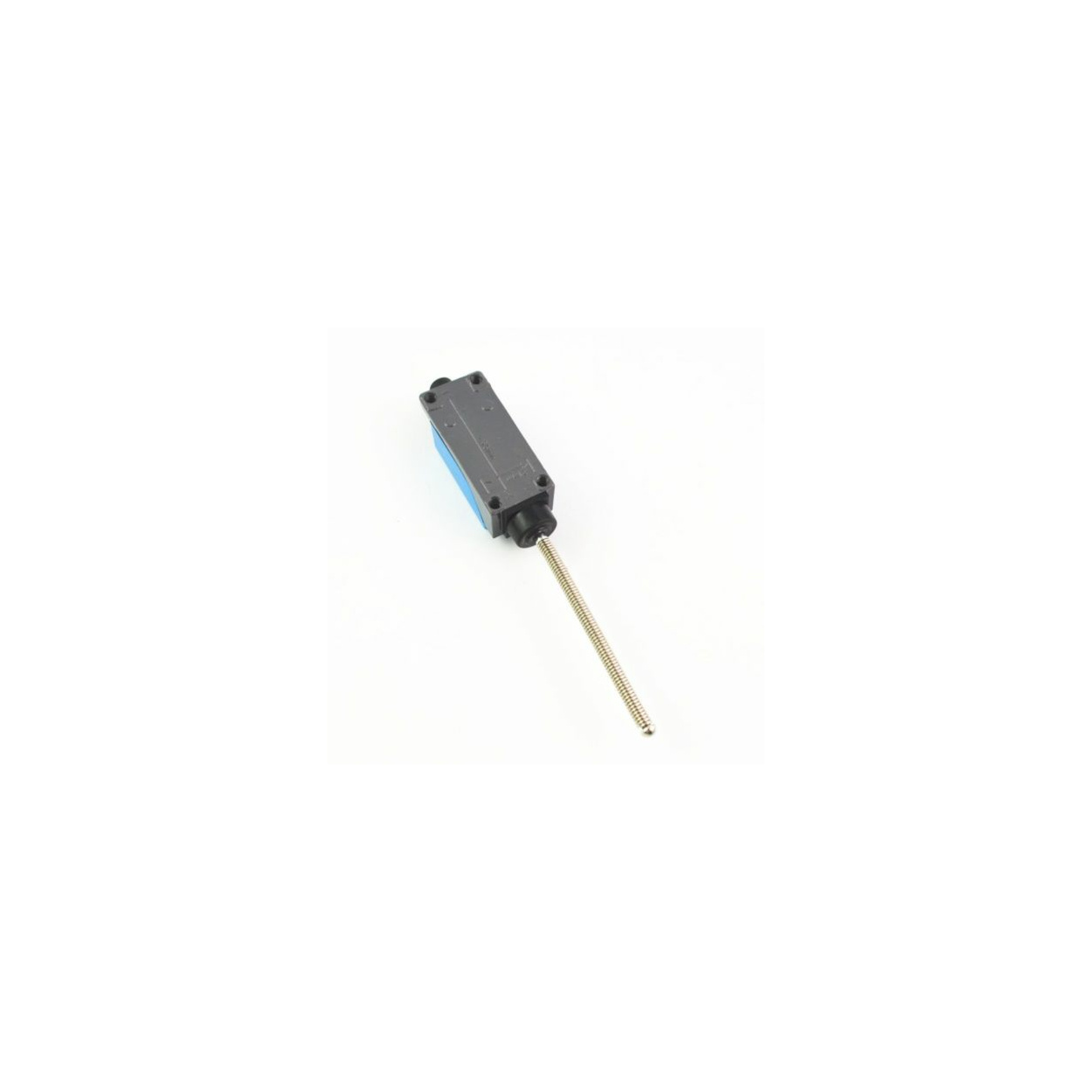

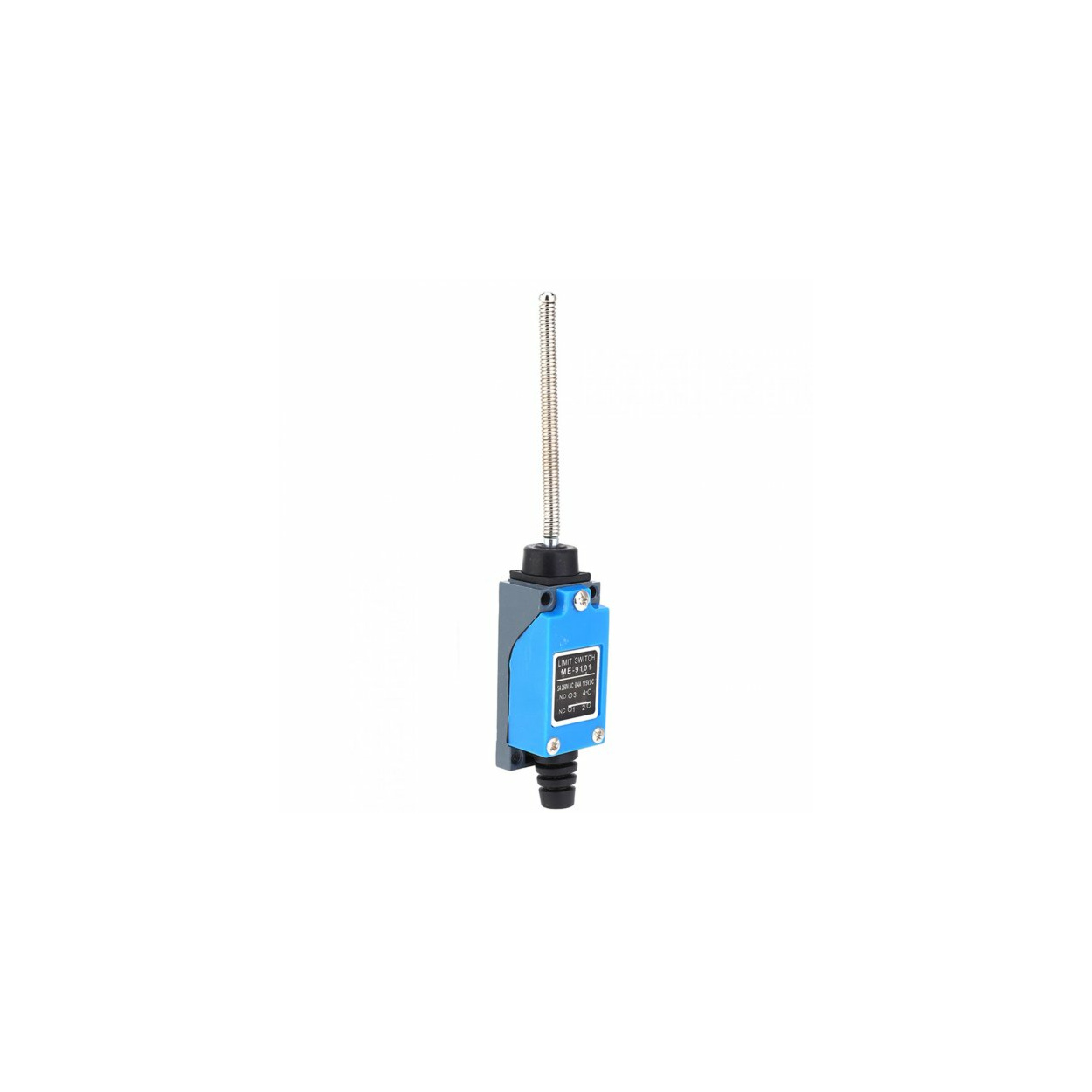

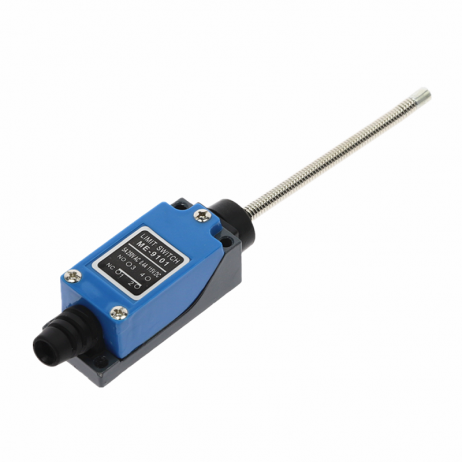

The ME-9101 Rotary Adjustable Roller Mini Limit Switch, commonly referred to as the POSITION SWITCH, is a widely utilized small current main electrical device. It triggers the contact action by interacting with the moving components of production machinery or a segmented control circuit to fulfill a specific control purpose.
This Limit Switch is perfectly suited for use as an electrical control switch in mechanical and other industrial sectors. It is capable of monitoring the positions of moving machine parts and plant equipment. It is crucial to check the Voltage Rating to confirm compatibility with the voltage in your area to ensure the proper functioning of the Limit Switch.
Features:
- The actuator is activated only when pressed and released. The actuator has a rotary lever arm that can be adjusted in length and angle, and a roller at the end. The actuator has four contacts: two normally closed and two normally open. The actuator is dust-tight and water-resistant.
Specifications:
- Model: ME-9101
Voltage Rating: AC380V, 6(2)A or AC250V, 10(4)A
Actuator Action: Momentary
Material: Resin, Plastic, Metal
Roller Dimension: 1.8 cm x 0.7 cm
IP Rating: IP66
Weight (g): 92
Package Includes:
1 x ME-9101 Rotary Adjustable Roller Mini Limit Switch
Technical Specifications
| Model | ME-9101 |
|---|---|
| Interface / Protocol | BLE |
| SKU | AI3317 |
| Weight | 0.08 kg |
| Availability | In Stock |
Applications & Use Cases
The ME-9101 Rotary Adjustable Roller Mini Limit Switch is a versatile limit switch used across a wide range of applications including 3D printer maintenance, printer upgrades, custom printer builds, and replacement parts.
Common use cases:
- Replacing a worn-out nozzle or extruder gear
- Upgrading to a direct drive extruder
- Building a custom CoreXY printer
This product is ideal for 3D printer owners and custom printer builders.
Technical Tip: Keep spare nozzles, PTFE tubes, and belts on hand. Regular maintenance significantly extends printer life and print quality.
