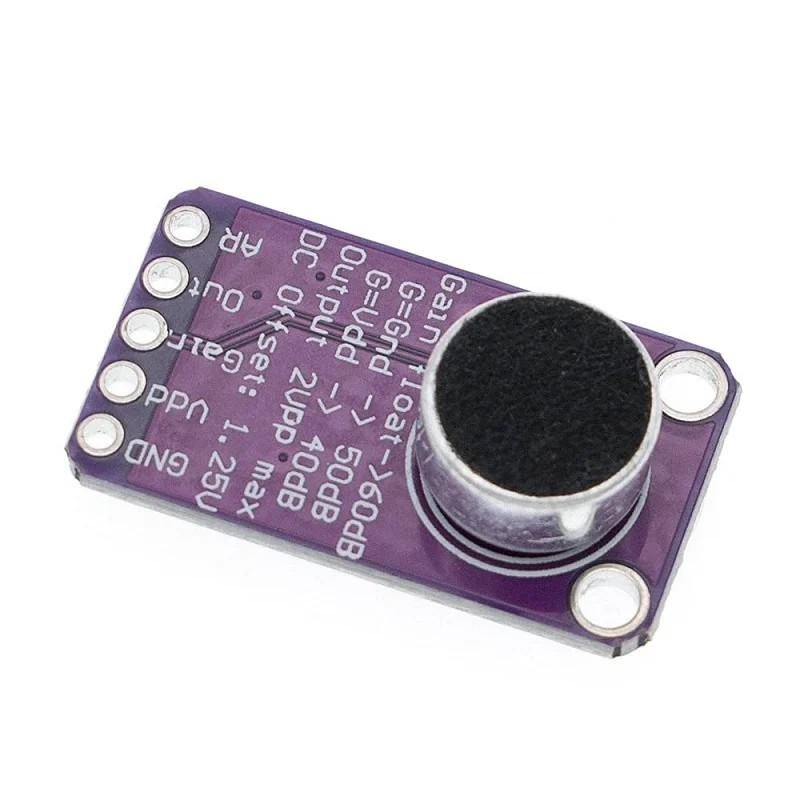

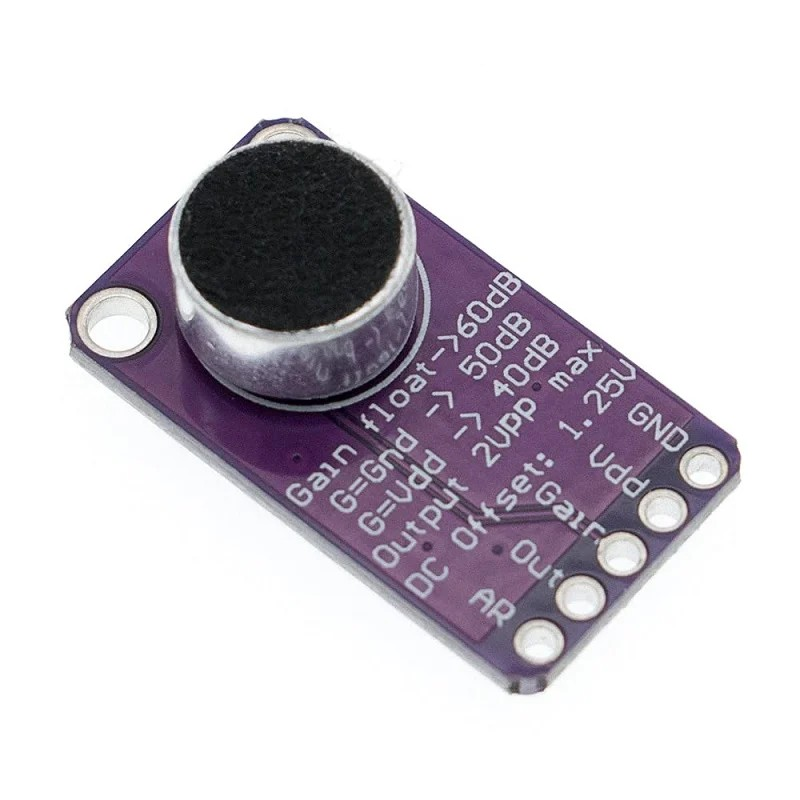

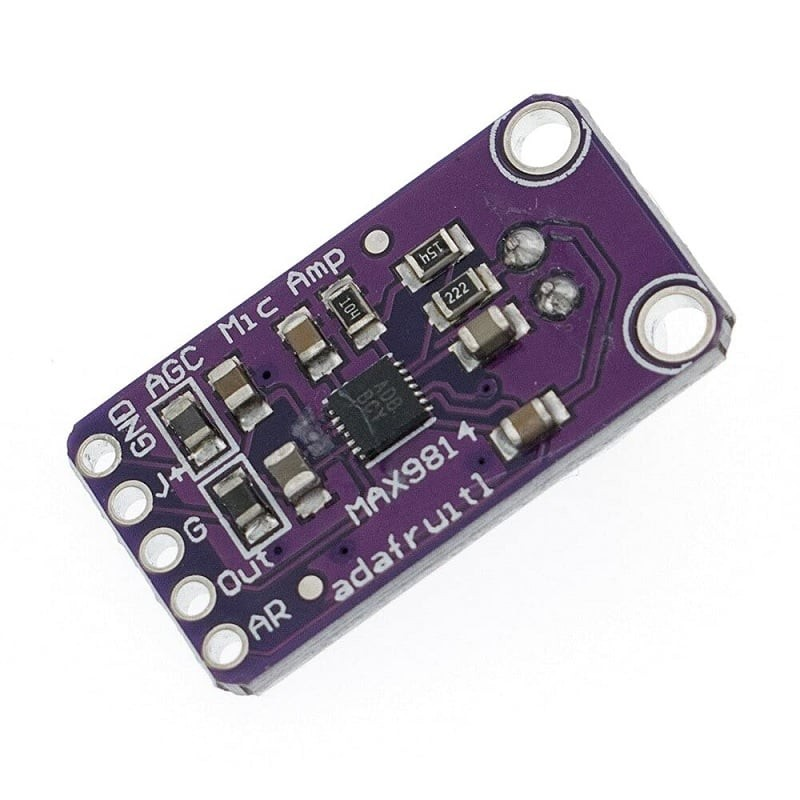

The MAX9814 High-Performance Microphone AGC Amplifier, model CMA-4544PF-W, is a cutting-edge audio solution designed for capturing and amplifying sound with exceptional clarity. Equipped with an Automatic Gain Control (AGC) system, it automatically adjusts the amplification to accommodate varying audio input levels, ensuring consistent, high-quality output. The compact module features the MAX9814 amplifier chip, renowned for its precision and reliability. Its user-friendly design makes it ideal for a wide range of applications, from voice recording to audio surveillance. The CMA-4544PF-W delivers a reliable, efficient, and compact solution for integrating superior audio performance into electronic projects and devices.
Features:
- Automatic Gain Control (AGC)
- Programmable action time
- Programmable action and release time ratio
- Low-power shutdown mode
- Built-in 2 Volt low noise microphone bias
- Low Input-Referred Noise Density of 30nV/
- Low THD: 0.04% (typical)
Specification
| Operating Voltage (VDC) | 2.7 to 5.5 |
|---|---|
| Current (mA): | 3 |
| Output | 2Vpp on 1.25V bias |
| Frequency Response | 20Hz – 20 KHz |
Package Includes:

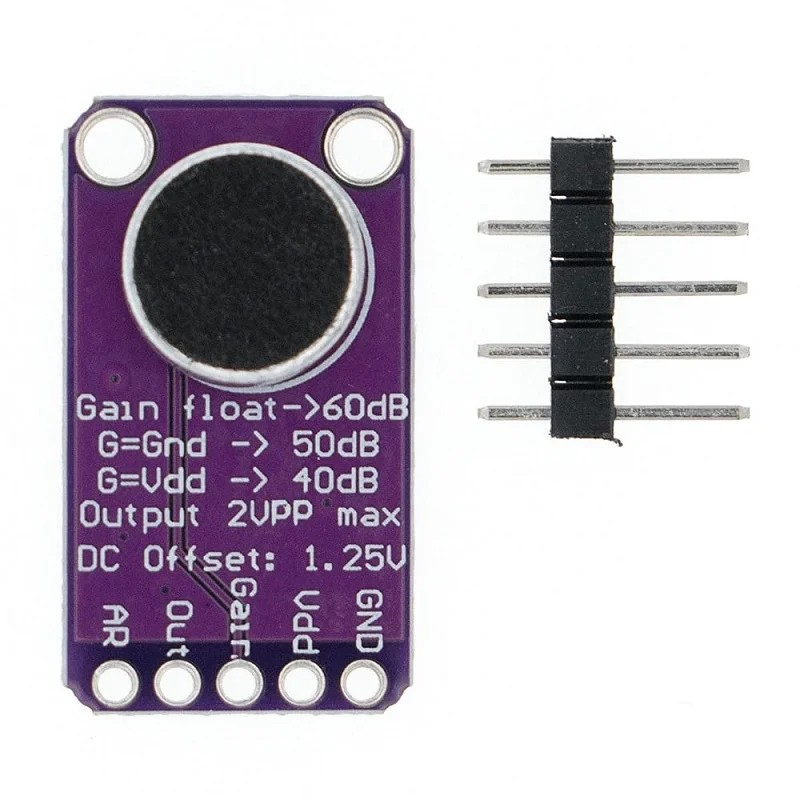

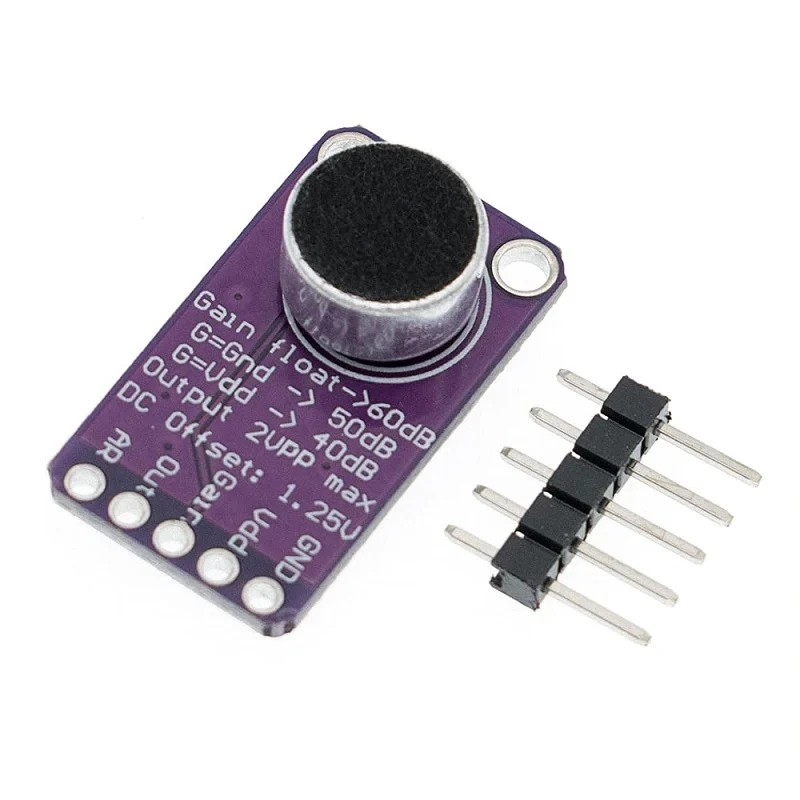

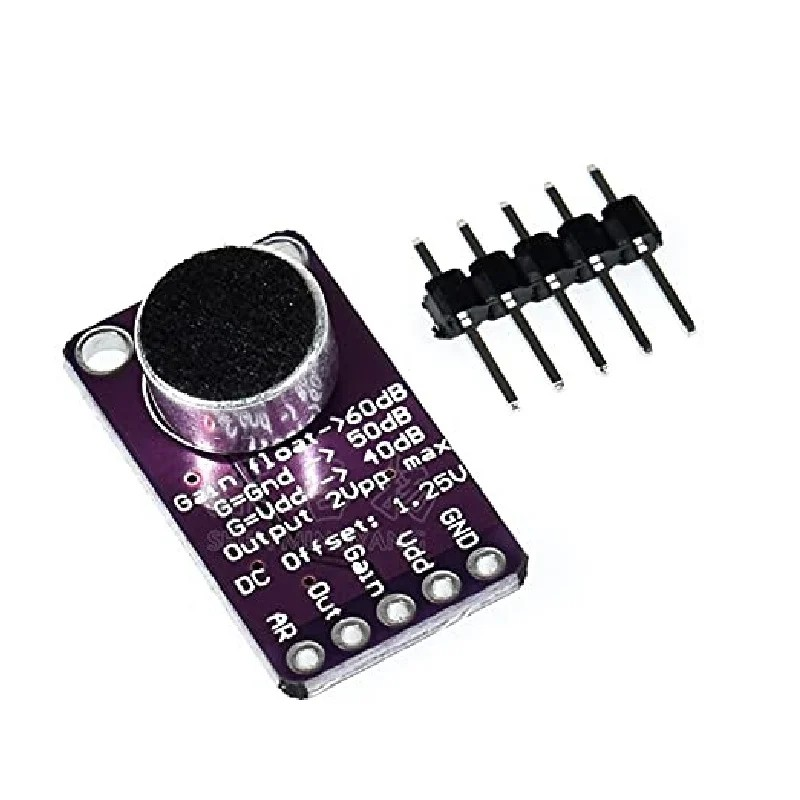

1 x MAX9814 High-Performance Microphone AGC Amplifier Module CMA- 4544PF-W
Tutorial:
Technical Specifications
| Model | MAX9814 |
|---|---|
| Package Quantity | 9814 pcs |
| SKU | AI6301 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The MAX9814 High Performance Microphone AGC Amplifier Module CMA- 4544PF-W is a versatile audio amplifier module used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
