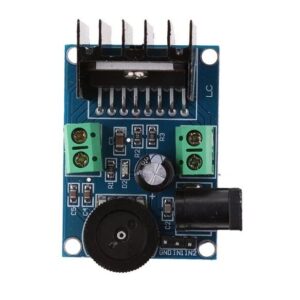

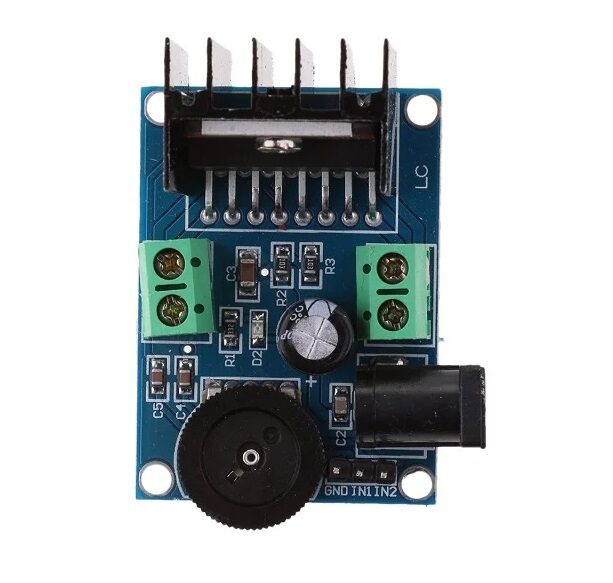

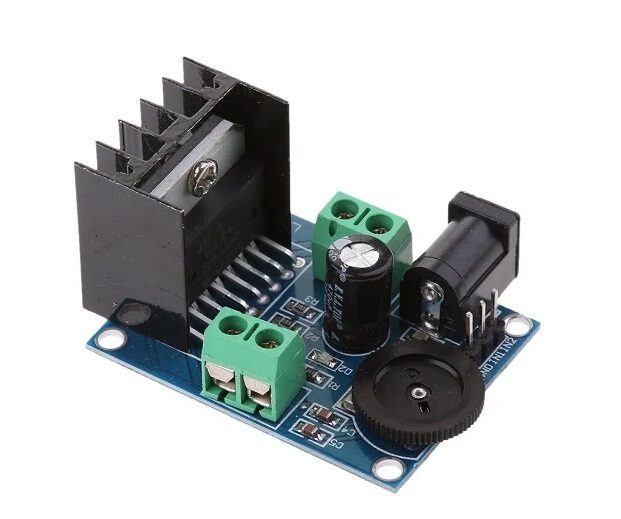

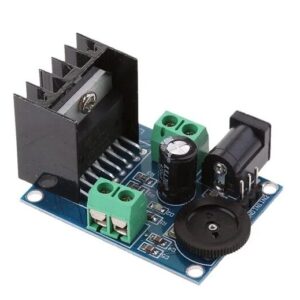

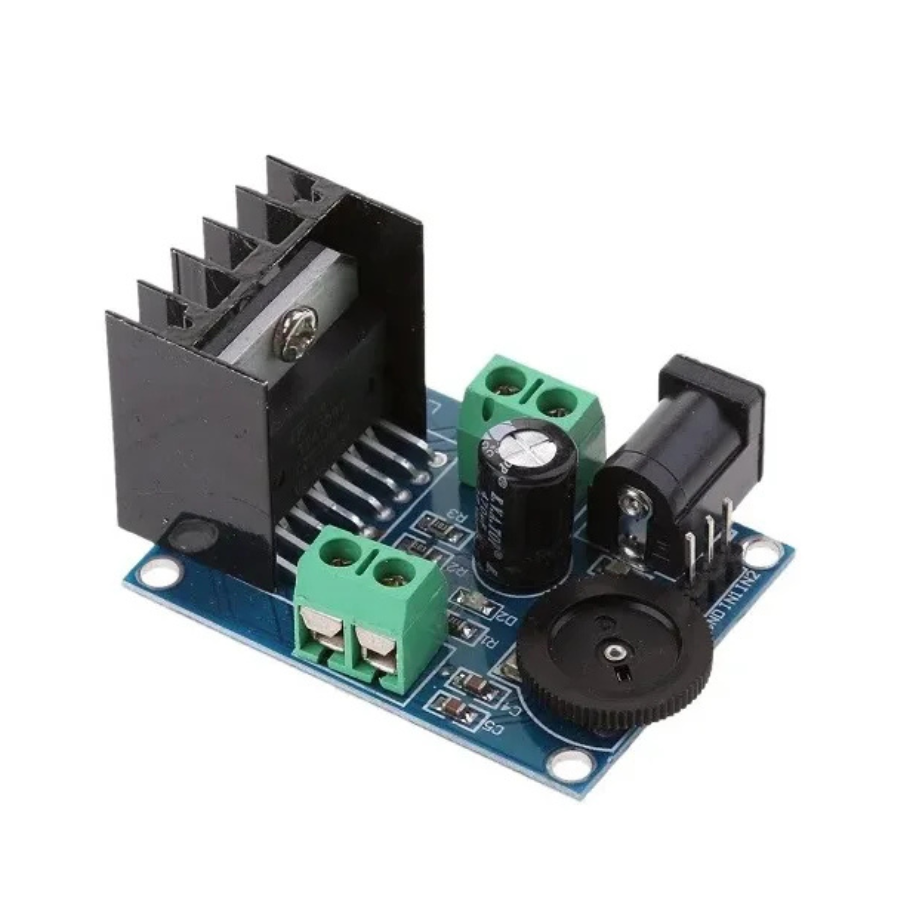

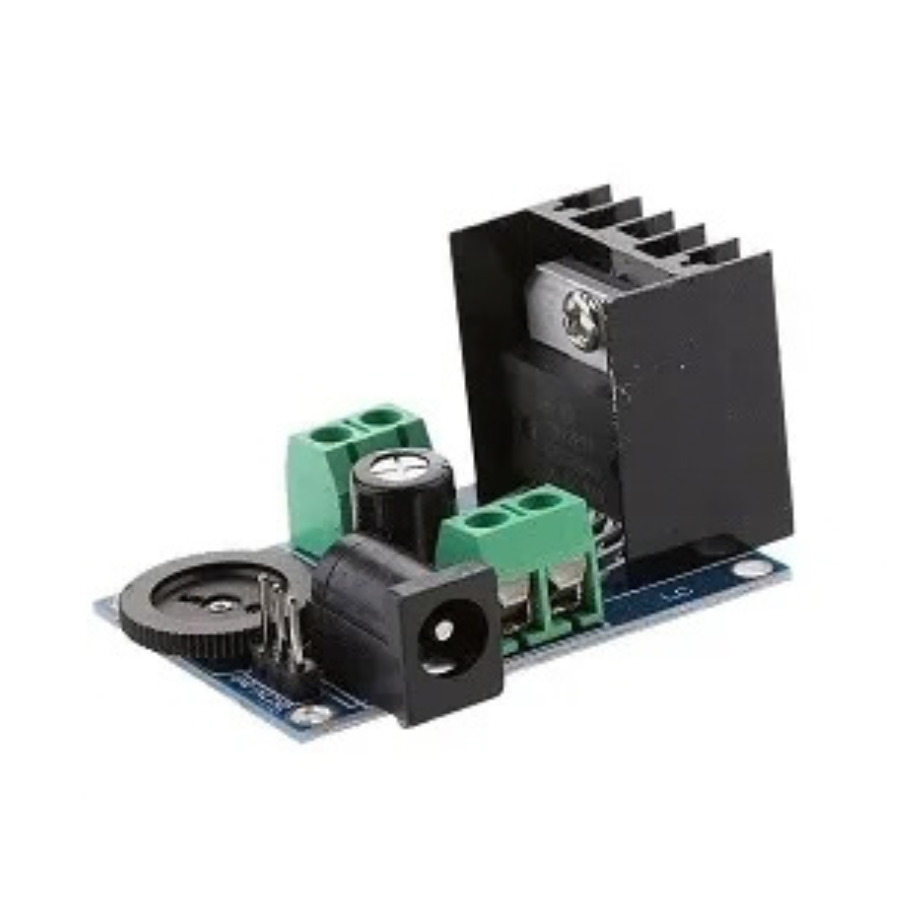

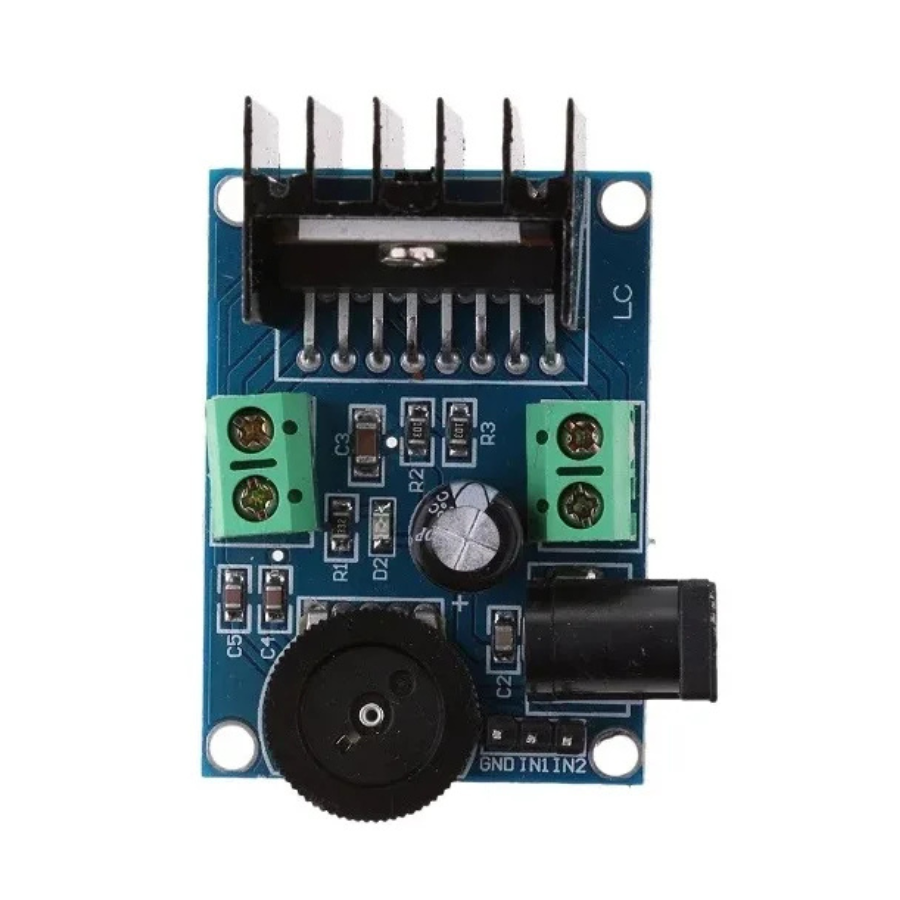

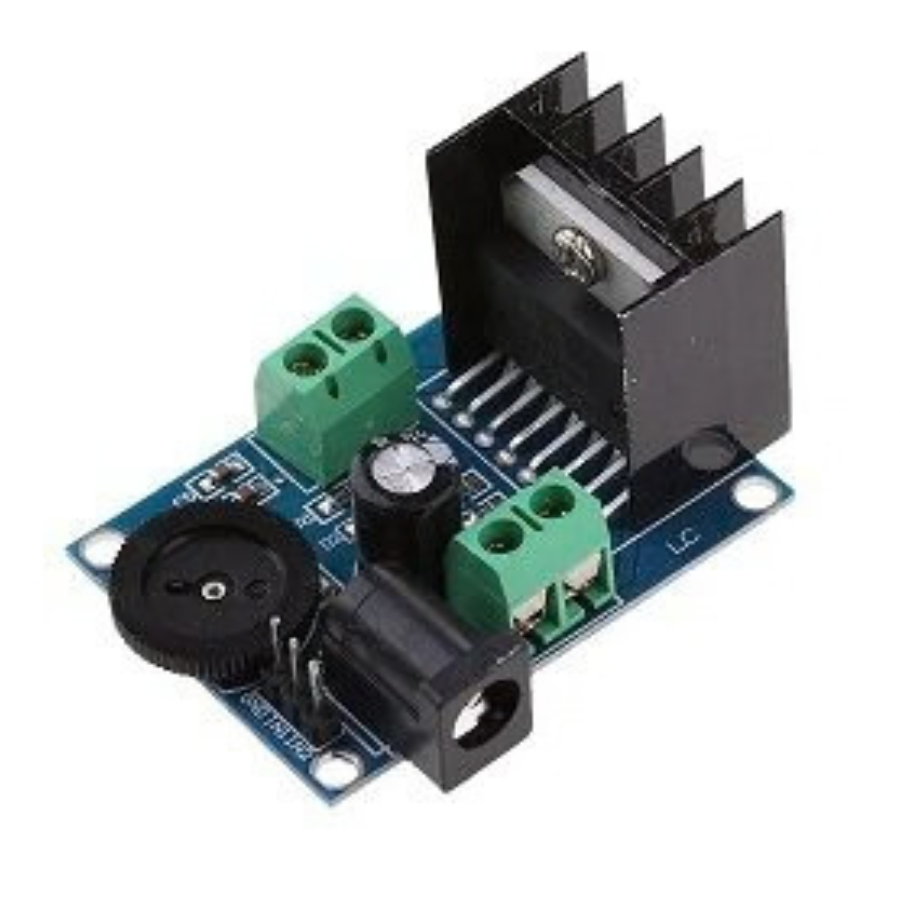

TDA7297 Dual Audio Amplifier Module
Construct your own music system using the TDA7297 Dual Channel Digital Power Amplifier Module, a newly designed audio amplifier board of fine quality that is practical to install and use, and also performs well. It features a high-efficiency Class D audio power amplifier, utilizing the latest and original TDA7297 core technology with a BTL bridge circuit that is more efficient than its predecessors.
The product incorporates a dual power supply transformer with a dynamic range from 6V to 18V, ensuring high efficiency and a small quiescent current. Moreover, it comes with excellent protection functions, including overvoltage protection and an output current limit.
Features:
- A strong TDA7297 chip is a digital power amplifier chip, with low idle loss characteristics, which makes it work well and quickly.
- Onboard, front-facing IC to improve the input sensitivity, high-definition sound quality.
- It can be used for car vehicle computer speaker, family audio and video, and empty square.
- This product has the characteristics of loud sound, the capacitance is large, excellent sound quality.

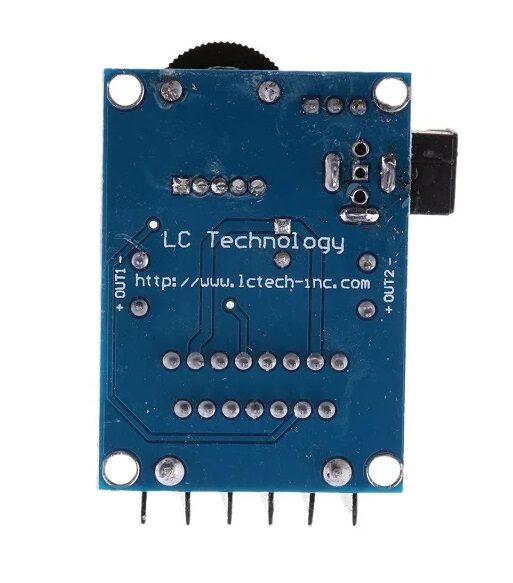

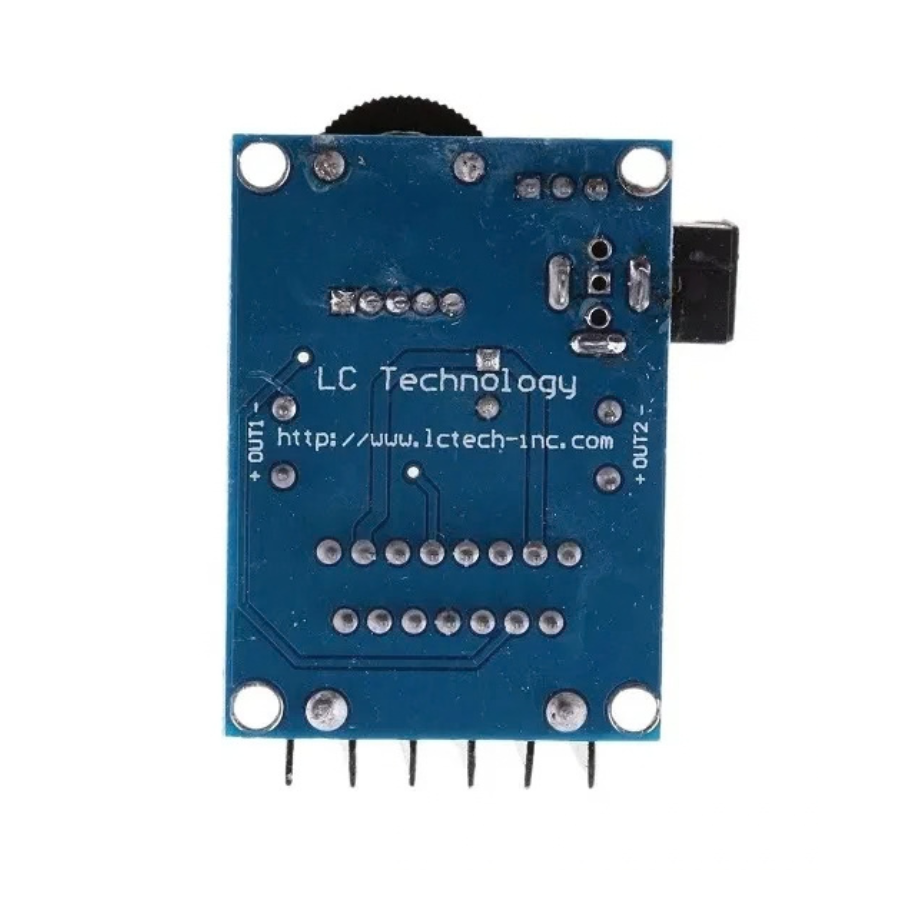

- There is no solder joint on the back of the circuit board, the chip capacitors, and the solder board together, so there is no possibility of a short circuit.
Specifications:
| Model | TDA7297 |
|---|---|
| Operating Voltage Range (VDC) | 6 to 18 |
| Output Power (W) | 2*15W |
| Length (mm): | 45 |
| Width (mm): | 33 |
| Height (mm): | 27 |
| Weight (g): | 24 |
Package Includes:
1 x TDA7297 Power Amplifier Module Audio amplifier module Double Channel 10- 50W
Technical Specifications
| Model | TDA7297 |
|---|---|
| SKU | AI1152 |
| Weight | 0.020001 kg |
| Availability | Out of Stock |
Applications & Use Cases
The TDA7297 Dual Audio Amplifier Module is a versatile audio amplifier module used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
