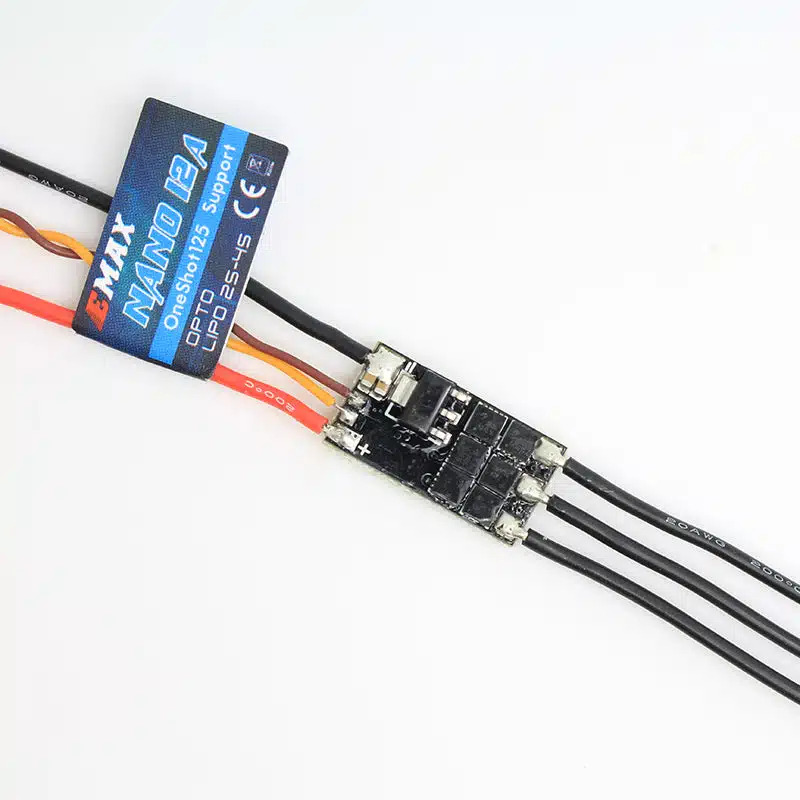

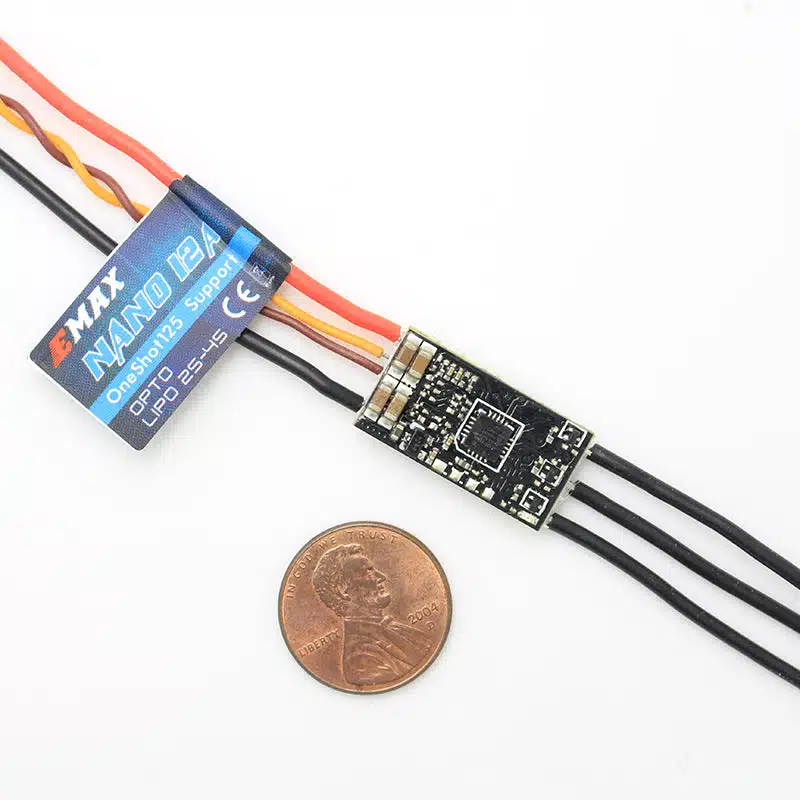

EMAX Nano Series ESCs are developed for racing multicopters, based on BLHeli firmware and support OneShot125. They are compatible with Skyline32, Naze32, Pixhawk, CC3D, and other mainstream Flight Controllers. They use authentic electronic components to ensure high quality and enhance the current endurance ability.
- Support Oneshot125, active braking (damped light), quick throttle response
- Smaller and lighter than most of multirotor ESCs
- Compatible with Skyline32, Naze32, Pixhawk, CC3D, and other mainstream Flight Controllers
- Opto designed, with twisted-pair wire for throttle signal line, strong anti-jamming capability
- Support SimonK and BLHeli
Features:
- Use authentic electronic components to ensure high quality and enhance the current endurance ability of the ESC.
- Based on BLHeli firmware, optimized for high performance with great linearity and much quicker throttle response.
- Specially designed for multirotors, and compatible with fixed-wing aircraft and helicopters.
- Multiple protection features including Low-voltage cut-off protection / over-heat protection / throttle signal loss protection.
- Throttle range can be configured and is fully compatible with all receivers, providing smooth, linear, and precise throttle response.
- All parameters can be programmed via using a program card or a transmitter, including default settings.
Specification:
| Item Type: | Brushless ESC |
|---|---|
| Model Name | EMAX Nano Series 12A |
| Burst Current (A) | 15 |
| Constant Current (A) | 12 |
| BEC (Y/N): | NO |
| Compatible LiPO Batteries: | 2S to 4S |
| Color: | Black |
Package Includes:
1 x EMAX Nano Series ESC 12A V2-active braking 3S-4S
Drone Surveying: Ground Control Points and Mapping
Table of Contents Understanding Drone Surveying Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical Tips...
Read More →
Fixed Wing Drone for Beginners: Parts, Build & First Flight
Fixed Wing Drone for Beginners: Parts, Build & First Flight When most people think of drones, they picture...
Read More →
FPV LiDAR Mapping Drone: Build a Surveying Quadcopter in India (2026 Guide)
LiDAR-equipped drones are transforming how India conducts land surveys, infrastructure inspections, and agricultural mapping. Whether you are a...
Read More →Technical Specifications
| Brand | Emax |
|---|---|
| Current Rating | 12A |
| Cell Configuration | 3S |
| SKU | AI7445 |
| Weight | 0.03 kg |
| Availability | In Stock |
Applications & Use Cases
The EMAX Nano Series ESC 12A V2-active braking 3S-4S is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
