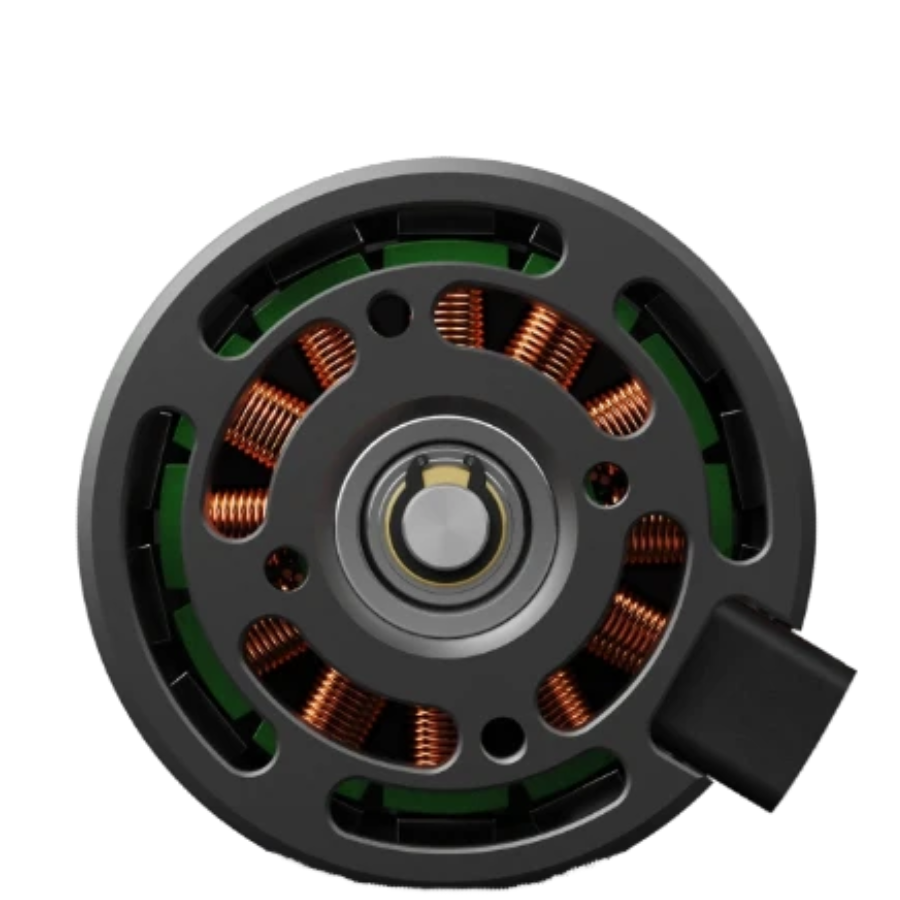

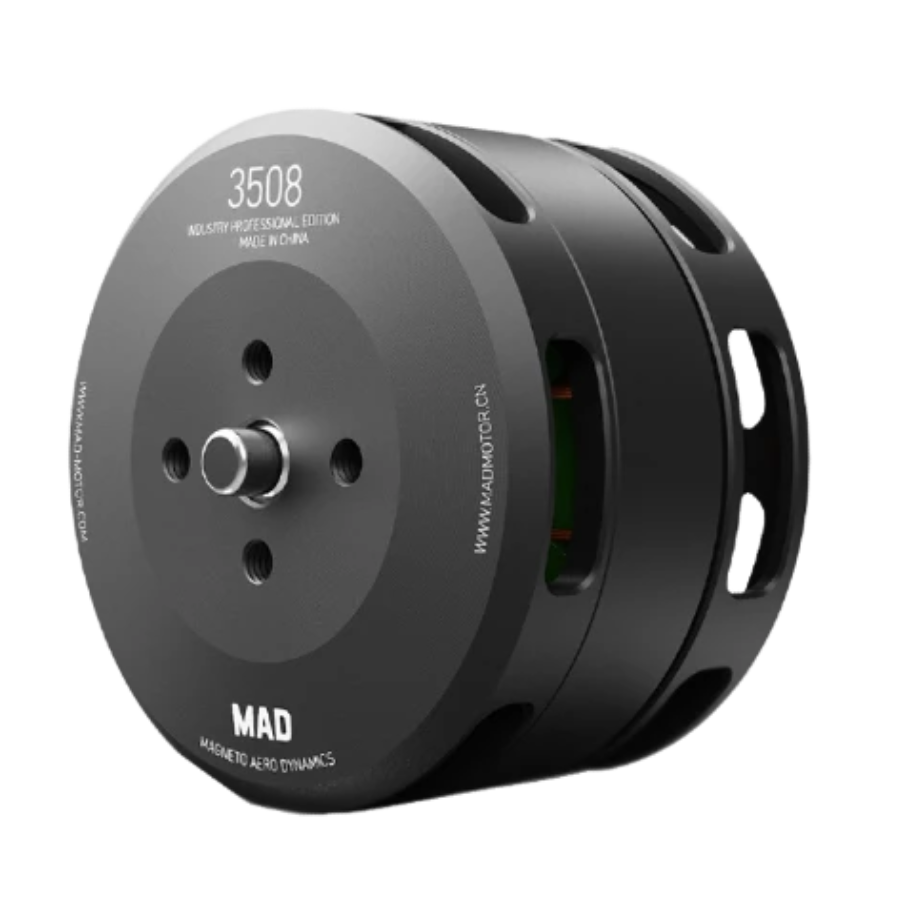

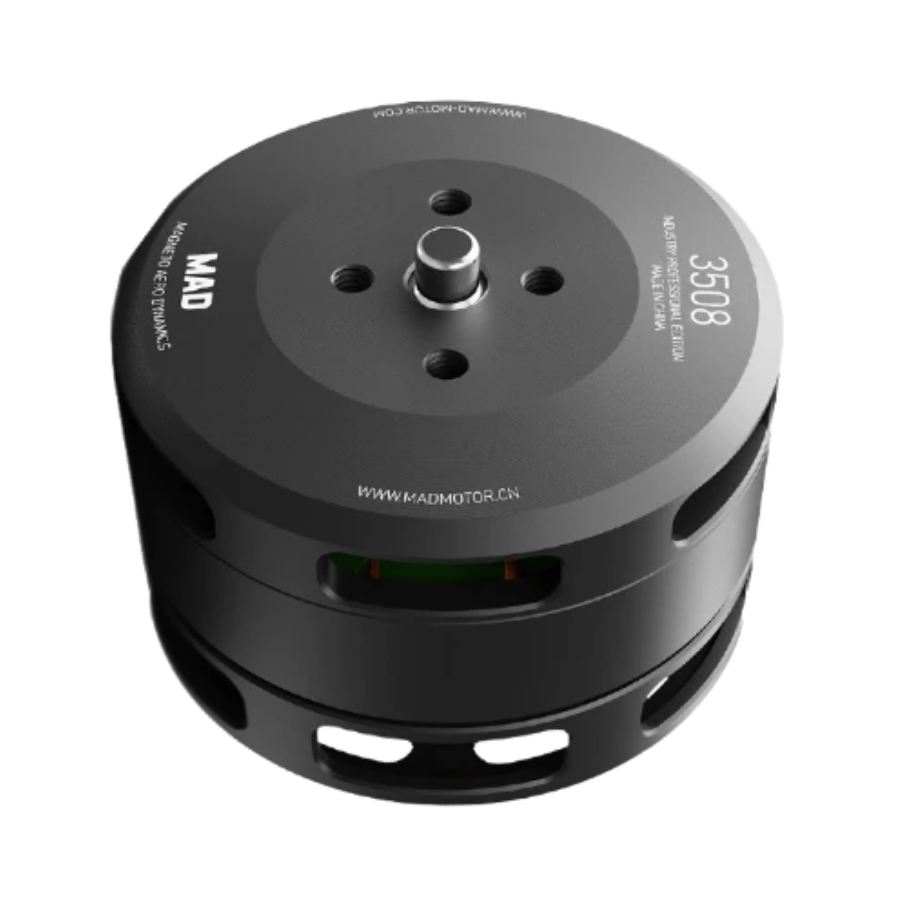

MAD CO 3508 IPE Brushless Drone Motor 700KV (Pack Of 2)
Description:
The MAD CO 3508 IPE Brushless Drone Motor 700KV is engineered for precision, power, and endurance. Optimized for professional drone applications, it features a corrosion-resistant stator, high-temperature magnets (rated 150°C), and centrifugal heat dissipation for superior thermal management. Despite weighing just 99g, it delivers a thrust of up to 1.8kg with minimal vibration, making it ideal for payload-heavy missions like cinematography, agriculture, and industrial inspections. Built to IP35 protection standards and balanced to within 5 mg (rotor) and 10 mg (motor), it ensures smooth operation, long life, and reliable performance in demanding conditions.
Features:
- 1800g max thrust with 13–16” props
- Only 99g – ultra-light yet powerful
- Anticorrosive stator & 150°C-rated magnets
- IP35-rated protection & centrifugal heat dissipation
- Highly balanced (≤5 mg rotor, ≤10 mg motor)
- Precision mounting for secure propeller fit
Application:
- Cinematic drones – For stable heavy camera setups
- Industrial UAVs – Ideal for inspections & mapping
- Agricultural drones – For spraying & crop monitoring
- Heavy-lift multirotors – Quad, Hexa, or Octocopters
- R&D projects – Reliable for testing & prototyping
- Payload drones – Lifts up to 700g per motor
Specification:
| Item Type: | Drone motor |
|---|---|
| Model No: | 3508 |
| Motor KV (RPM/V): | 700 |
| Motor Type: | IPE Brushless Drone Motor |
| Compatible LiPO Batteries: | 4S LiPo |
| No-load current (A) | 0.57A @ 10V |
| Max Current (A) | 21.3 |
| Max Power Output (W) | 332 |
| Torque: | 0.29 Nm |
| Max Thrust | 1.8 kg |
| Shaft Diameter (mm): | 5 |
| Bearing | 685ZZ*1, 695ZZ*1 |
| Mounting Hole(mm) | D:12 M3×2, D:15 M3×2 |
| Motor Size (mm): | D:42.5 × 30.5 |
| Motor Outer Diameter(mm) | 42.5 |
Package Includes:
1 x MAD CO 3508 IPE brushless drone motor 700KV (Pack Of 2)
2 x Propeller Plate
6 x 3.5mm Bullet Connector
2 x 04-6 Adapter Ring
6 x Heat Shrinkable Tube
8 x M3*6 Motor Screws
4 x M3*10 Propeller Screws
2 x Sticker
Drone Tool Kit: Essential Tools for Building and Repair
Table of Contents Understanding Drone Tool Kit Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
Drone Motor KV Rating Calculator and Selection Guide
Understanding the drone motor KV rating and how to calculate the right motor for your build is fundamental...
Read More →
DC Motor Back-EMF Protection: Flyback Diode Circuit Guide
Every DC motor project has a hidden danger that can silently destroy transistors, microcontrollers, and motor driver ICs:...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| KV Rating | 700KV |
| Package Quantity | 2 pcs |
| SKU | AI8101 |
| Weight | 0.356 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MAD CO 3508 IPE Brushless Drone Motor 700KV (Pack Of 2) is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
