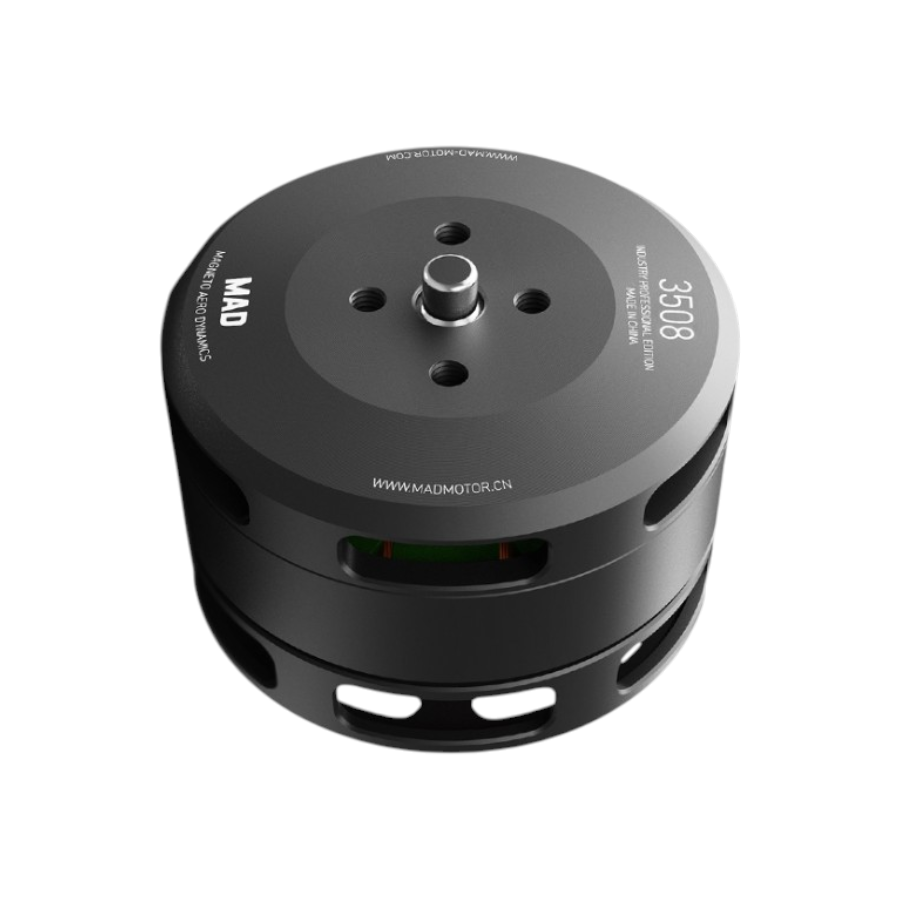

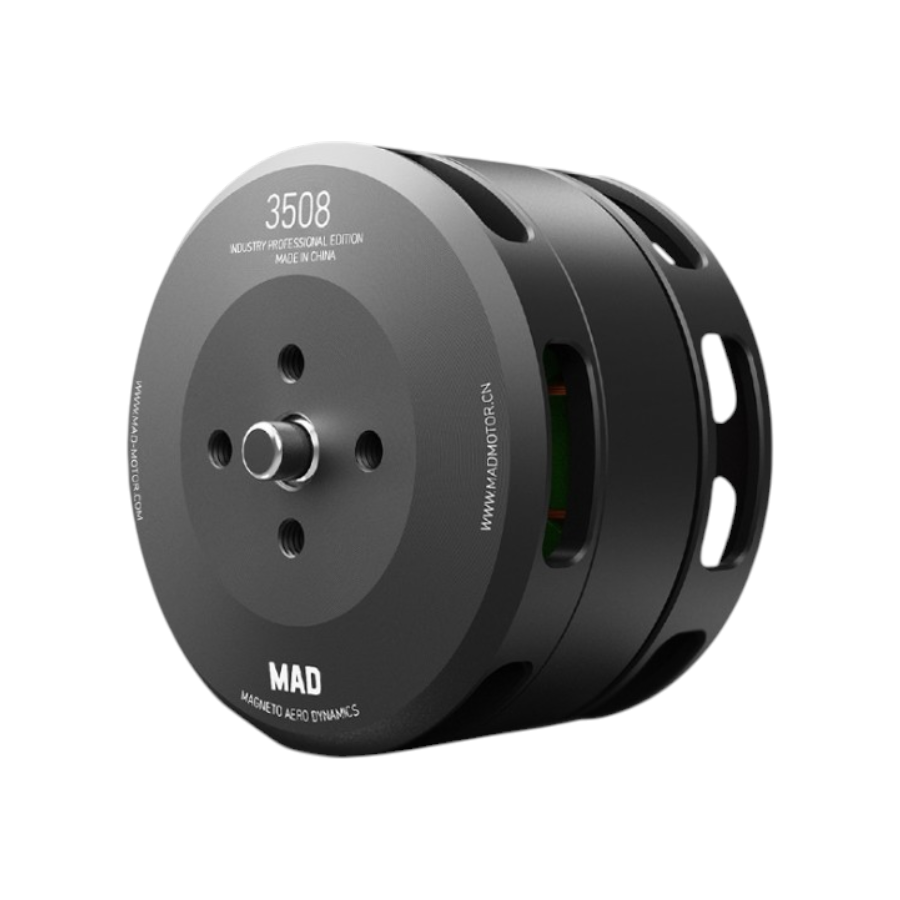

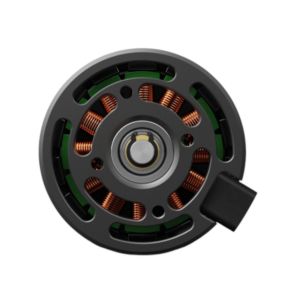

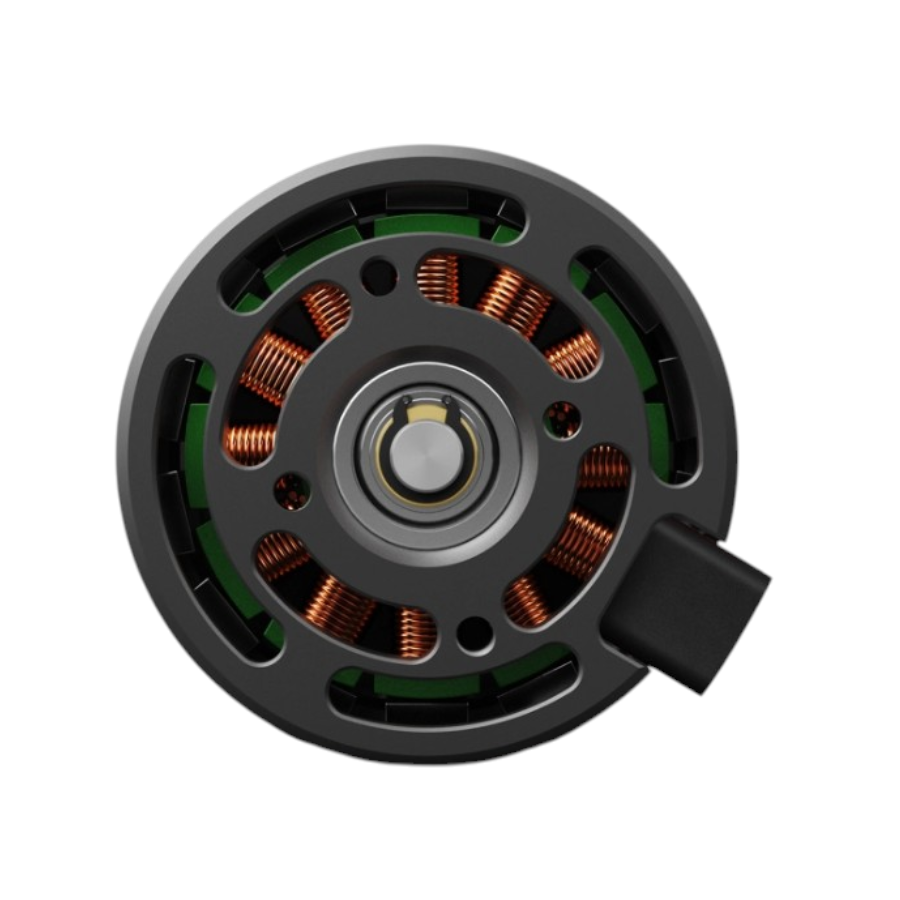

MAD CO 3508 IPE Brushless Drone Motor 580KV (Pack Of 2)
Description:
The MAD 3508 IPE 580KV brushless Drone Motor is engineered for high-performance drone applications where reliability and power are crucial. Weighing just 97g, it offers an impressive max thrust of 1.6kg per motor while maintaining excellent efficiency above 82%. Ideal for heavy-lift cinematic, industrial, and agricultural drones, this Drone Motor runs on a 4S LiPo battery and pairs best with 13–16″ carbon fiber propellers. Precision-balanced for minimal vibration and long-term durability, it’s designed for both efficiency and performance. Perfect for quadcopters, hexacopters, or octocopters, this motor ensures stable flight even under demanding loads and conditions.
Features:
- Lightweight at only 97g per motor
- High thrust: Up to 1.6kg per motor
- Efficiency > 82% for extended flight times
- Suitable for 4S LiPo battery systems
- Precision-balanced for smooth, vibration-free operation
- Ideal for cinematic, industrial, and agricultural UAVs
Application:
- Cinematic drones – For stable heavy camera setups
- Industrial UAVs – Ideal for inspections & mapping
- Agricultural drones – For spraying & crop monitoring
- Heavy-lift multirotors – Quad, Hexa, or Octocopters
- R&D projects – Reliable for testing & prototyping
- Payload drones – Lifts up to 700g per motor
Specifications:
| Item Type: | Drone motor |
|---|---|
| Model No: | 3508 |
| Motor KV (RPM/V): | 580 |
| Motor Type: | IPE Brushless Drone Motor |
| Compatible LiPO Batteries: | 4S LiPo |
| No-load current (A) | 0.67A @ 20V |
| Max Current (A) | 17.7 |
| Max Power Output (W) | 277 |
| Torque: | 0.29 Nm |
| Max Thrust | 1.6kg |
| Shaft Diameter (mm): | 5 |
| Bearing | 685ZZ*1, 695ZZ*1 |
| Mounting Hole(mm) | D:12 M3×2, D:15 M3×2 |
| Motor Size (mm): | D:42.5 × 30.5 |
| Motor Outer Diameter(mm) | 42.5 |
| Weight (g): | 97(Each) |
Package Includes:
1 x MAD CO 3508 IPE brushless drone motor 580KV (Pack Of 2)
2 x Propeller Plate
6 x 3.5mm Bullet Connector
2 x 04-6 Adapter Ring
6 x Heat Shrinkable Tube
8 x M3*6 Motor Screws
4 x M3*10 Propeller Screws
2 x Sticker
