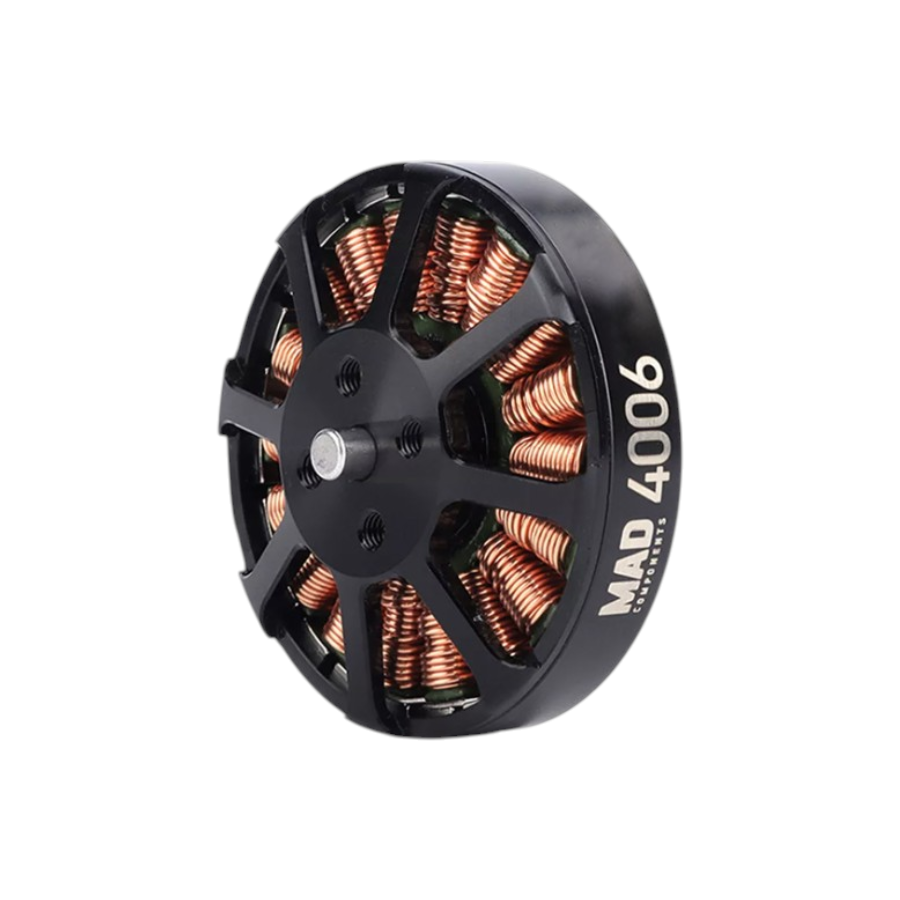

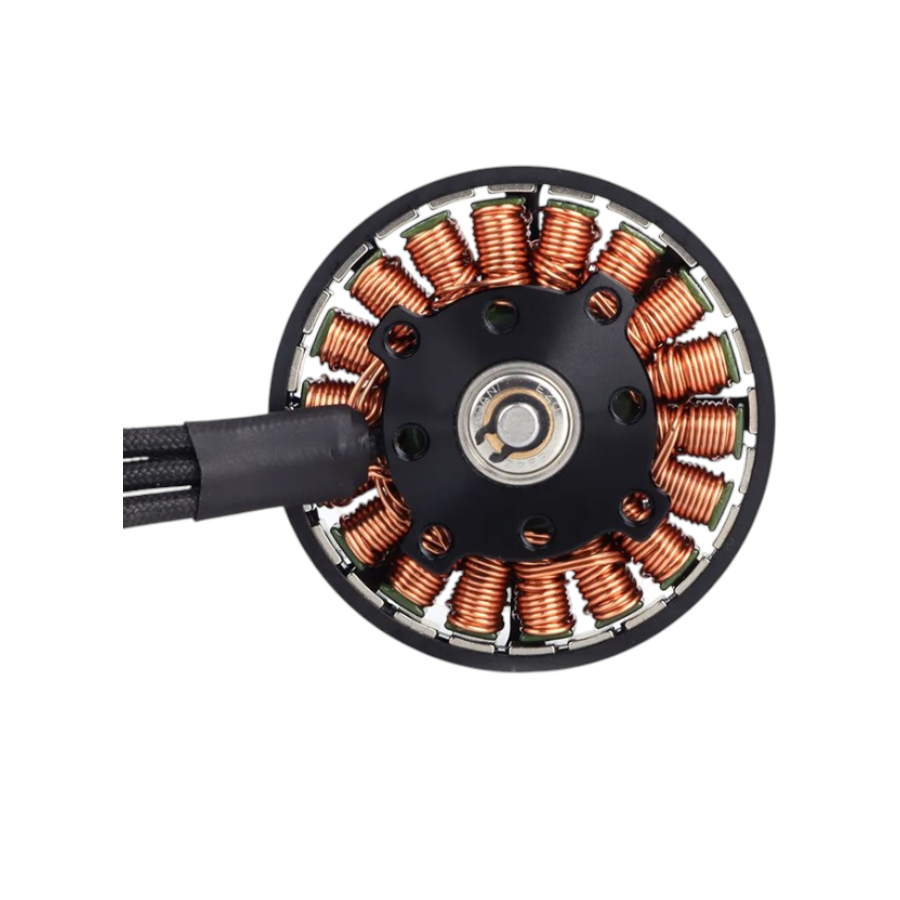

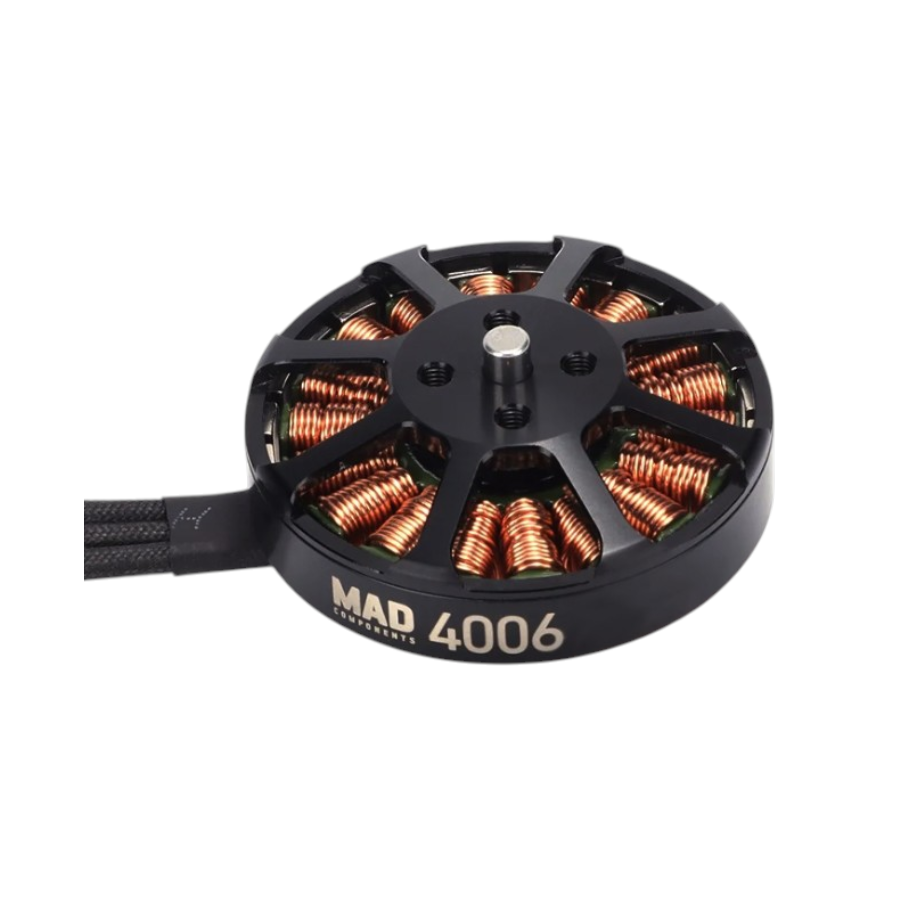

MAD 4006 EEE Brushless Motor 320KV (Pack Of 2)
Description:
Introducing the MAD 4006 EEE Brushless Motor (320 KV) – Pack of 2, crafted for aerial professionals needing reliable performance with minimal weight. Each motor is engineered to deliver up to 2.2 kg of thrust while maintaining an ultra-light 72 g body—ideal for industrial mapping, cinematography, inspection, agricultural surveying, and high-intensity FPV builds.
Designed for stealthy efficiency, these motors sport a fine-tuned, low-RPM, high-torque design, optimized for smooth, long-endurance flights on 6S–8S LiPo systems. The precision-balanced rotor ensures vibration stays under 5 mg for rock-steady lift and capture.
Dimensional Diagram:
Features:
- Ultra-lightweight – Only 72 g per motor, maximizing aerial agility and flight time.
- High thrust output – Up to 2.2 kg thrust to handle professional-grade payloads.
- Superior efficiency – Industry-leading thrust-to-weight ratio of 30.5:1.
- Low-vibration performance – Precision-balanced rotor keeps vibration below 5 mg.
- 6S–8S LiPo optimized – Designed for extended endurance with efficient power
Applications:
- Professional cinematography drones (Red Komodo, Sony FX3 payloads)
- Industrial inspection platforms (LiDAR/thermal imaging systems)
- Advanced FPV racing (hybrid cinewhoop builds)
- Agricultural monitoring (multispectral sensor arrays)
Specifications:
| Model No: | 4006 |
|---|---|
| Motor KV (RPM/V): | 320 |
| Motor Type: | EEE Brushless Motor |
| Compatible LiPO Batteries: | Supports 6S–8S |
| Shaft Diameter (mm): | 4 |
| Max. Power (W) | 269 |
| Maximum Thrust (gm) | 2200 |
| Cable Length (cm): | 15 |
| No-load current (A) | ~0.35 A @ 20 V |
| Bearing | 694ZZ*2 |
| Propeller Mount Holes | D:12 M3×4 |
| Motor Mount Holes | D:19 M3×4, D:25 M3×4 |
| Motor Size (mm): | D:44.5 × 24.1 |
| Weight (g): | 90(each) |

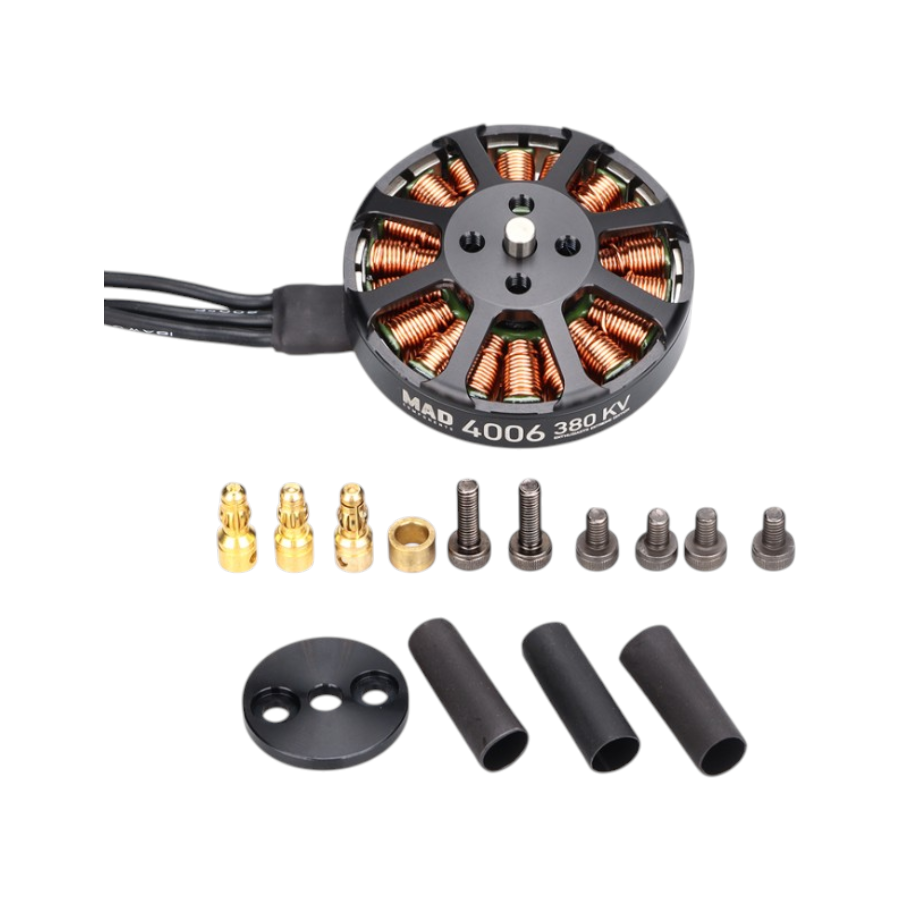

Package Includes:
2 x MAD 4006 EEE Brushless Motor 320KV
2 x Propeller Plate
6 x 3.5mm Bullet Connector
2 x 04-6 Adapter Ring
6 x Heat Shrinkable Tube
8 x M3*6 Motor Screws
4 x M3*10 Propeller Screws
2 x Sticker
Drone Obstacle Avoidance: Optical Flow and Lidar Sensors Explained
Table of ContentsIntroductionWhat Is Drone Obstacle Avoidance?Optical Flow Sensors: How They WorkLidar Sensors for DronesOptical Flow vs Lidar:...
Read More →
Drone Winch System: Pick and Place Payload Delivery UAV
Drone Winch System: Pick and Place Payload Delivery UAV The idea of drones that can autonomously pick up...
Read More →
BEC and Voltage Regulator on Drones: Power Distribution Guide
Table of ContentsWhat is a BEC? Understanding Battery Eliminator CircuitsLinear vs Switching BEC: Which One for Your Drone?Power...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| KV Rating | 320KV |
| Package Quantity | 2 pcs |
| SKU | AI8100 |
| Weight | 0.306 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MAD 4006 EEE Brushless Motor 320KV (Pack Of 2) is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine MAD COMPONENTS product sourced from authorized channels
