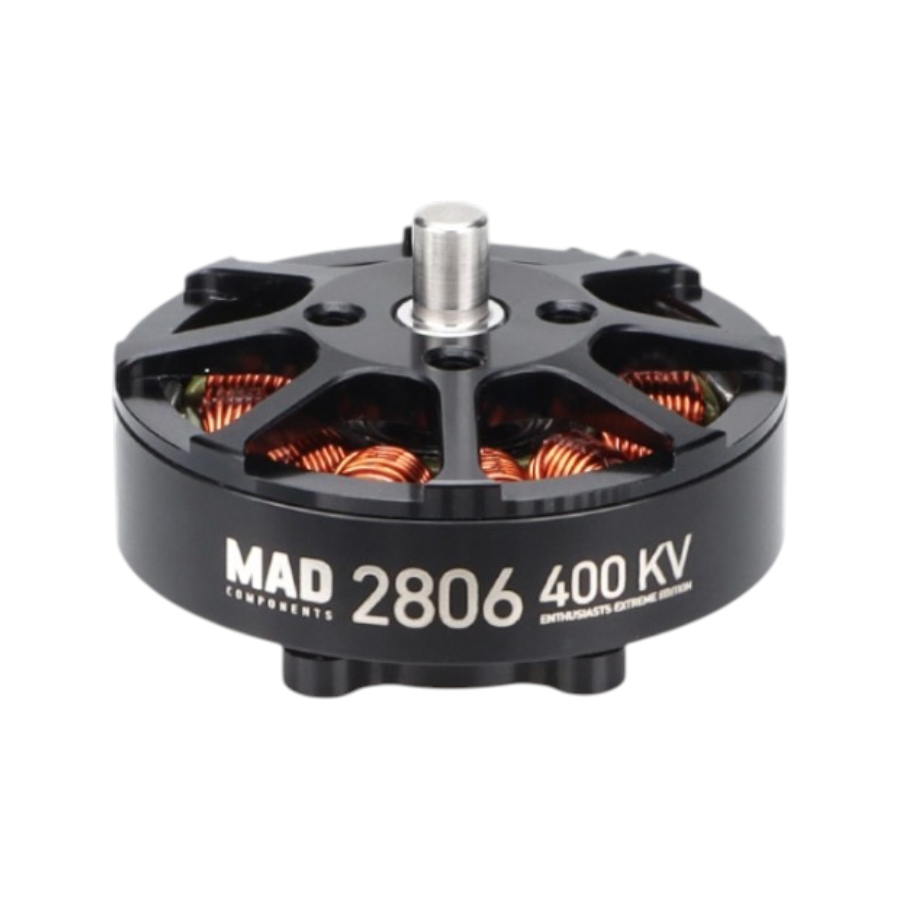

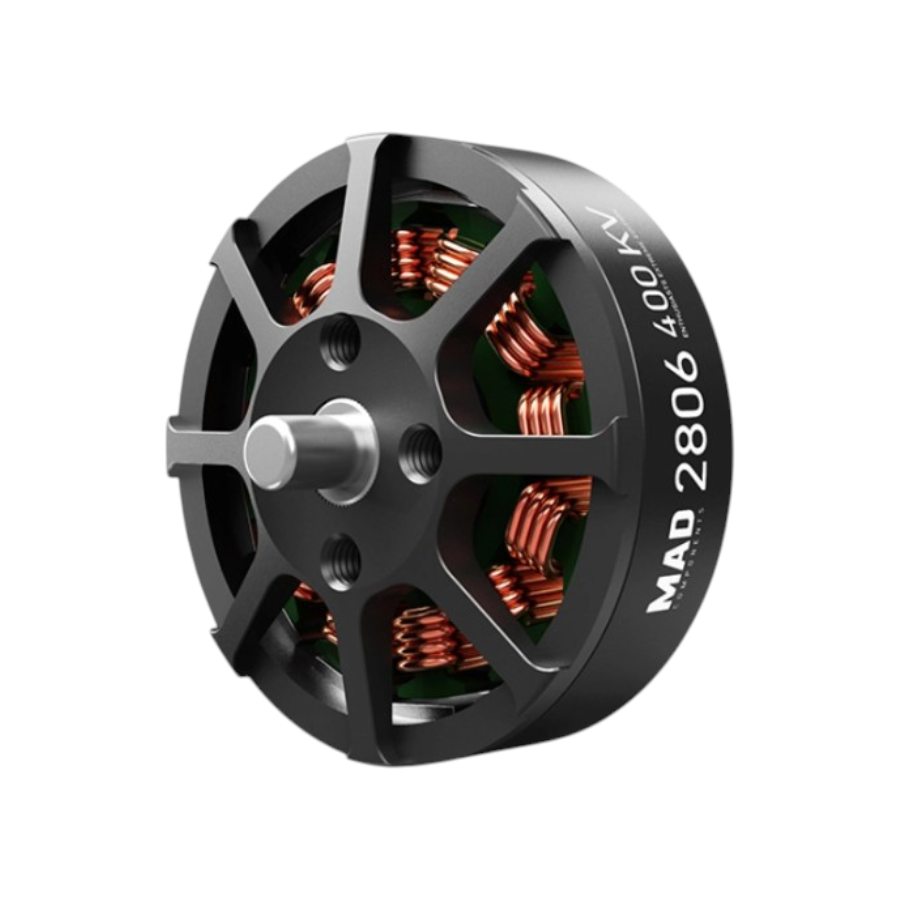

MAD 2806 EEE Drone Motor 400KV (Pack Of 2)
Description:
The MAD 2806 EEE Drone Motor 400KV is engineered for drone enthusiasts who demand both performance and efficiency. Weighing only 44g, this motor is tailored for lightweight UAVs, offering smooth flight dynamics and reliable hovering thrust between 300–400g. With a maximum thrust of 1.1kg, it’s ideal for quadcopters used in training, mapping, or endurance flights.
Designed with high-temperature resistance up to 45°C, an internal resistance of 597mΩ, and a low no-load current of 0.22A, this motor ensures long flight durations with reduced power loss. Optimized for 12×4.0 to 13×4.4 props and supporting 2–6S LiPo batteries, it provides exceptional flexibility for builders and tinkerers alike. The motor delivers over 74% efficiency, aided by precision EZO bearings and rugged construction that supports rainproof operations.
Dimensional Diagram:
Features:
- Passed 500V insulation test
- 50 mm extended enameled cable
- 400KV rating for smooth throttle response
- Efficient thrust: 300–400g hover, 1.1kg max
- Supports 2S to 6S LiPo batteries
- Rainproof and durable construction
- Precision EZO 694ZZ bearings for smooth rotation
- Compatible with 12×4.0 and 13×4.4 propellers
- Operates efficiently at up to 45°C
Specifications:
| Motor KV (RPM/V): | 400KV |
|---|---|
| Model No: | 2806 |
| Motor Type: | Brushless Outrunner |
| Model: | MAD 2806 EEE |
| Compatible LiPO Batteries: | 6S (22.2V) |
| Framework | 2806 |
| Shaft Diameter (mm): | 4 |
| Motor Outer Diameter(mm) | 35 |
| Max. Efficiency Current (A) | 20 to 30 |
| Max. Power (W) | ~850 |
| Maximum Thrust (gm) | Up to 1700g (with 8″ props on 6S) |
| No-load current (A) | 0.22 @ 20V |
| No-Load Current (mA) | 220 |
| Operating Temperature (°C): | Max 45°C |
| Motor Size (mm): | D:35 × 19.8 |
| Weight (g): | 44(Each) |

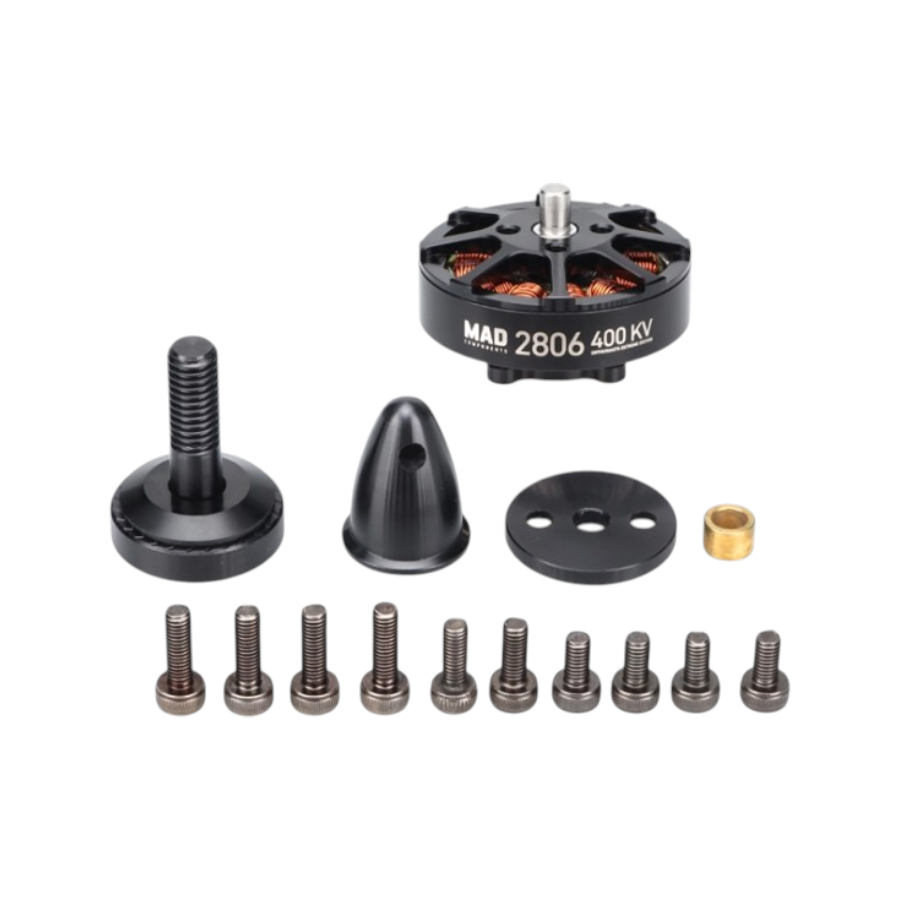

Package Includes:
2 x MAD EEE 2806 Drone motor 400KV
1 x Accessory Set(As shown in image)
Z-Axis Leadscrew Motor for CNC: Pitch, Nut & Drive Explained
The Z-axis on any CNC machine is arguably the most critical axis to get right. It controls cutting...
Read More →
Betaflight Configuration: Complete Setup Guide for FPV
Table of Contents What is Betaflight and Why It Matters Installing Betaflight Configurator First-Time Firmware Flashing Ports and...
Read More →
Drone Thermal Camera Guide: FLIR, InfiRay & Budget Options in India
Drone Thermal Camera Guide: FLIR, InfiRay & Budget Options in India Thermal cameras on drones are no longer...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| KV Rating | 400KV |
| Package Quantity | 2 pcs |
| SKU | AI8080 |
| Weight | 0.328 kg |
| Availability | In Stock |
Applications & Use Cases
The MAD 2806 EEE Drone Motor 400KV (Pack Of 2) is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
