MAD 2806 EEE Brushless drone motor 650KV (Pack Of 4)
Description:
The MAD 2806 EEE 650KV Brushless Motor is engineered for professional-grade aerial mapping, long-range surveying, and drone training applications. Designed for endurance and precision, it offers high torque output with ultra-low power loss. Crafted using aerospace-grade 6061-T6 aluminum alloy and premium EZO bearings, it delivers smooth, stable, and vibration-free performance even under high loads.
Its advanced hollow design ensures optimal heat dissipation and reduced weight, while its optimized magnetic circuit boosts overall efficiency beyond 78%. Ideal for quadcopters, hexacopters, and octocopters, this motor supports reliable performance on 4S/6S LiPo setups with a max thrust of 1.2kg per rotor. Perfect for serious drone enthusiasts, trainers, and commercial UAV applications requiring consistent output and operational stability.
Dimensional Diagram:
Features:
- 650KV Motor – Ideal balance of speed and torque
- Ultra-Light (45g) – Reduces overall drone payload
- 6061-T6 Aluminum Alloy – Aerospace-grade housing
- High-Efficiency (78%+) – Optimized power consumption

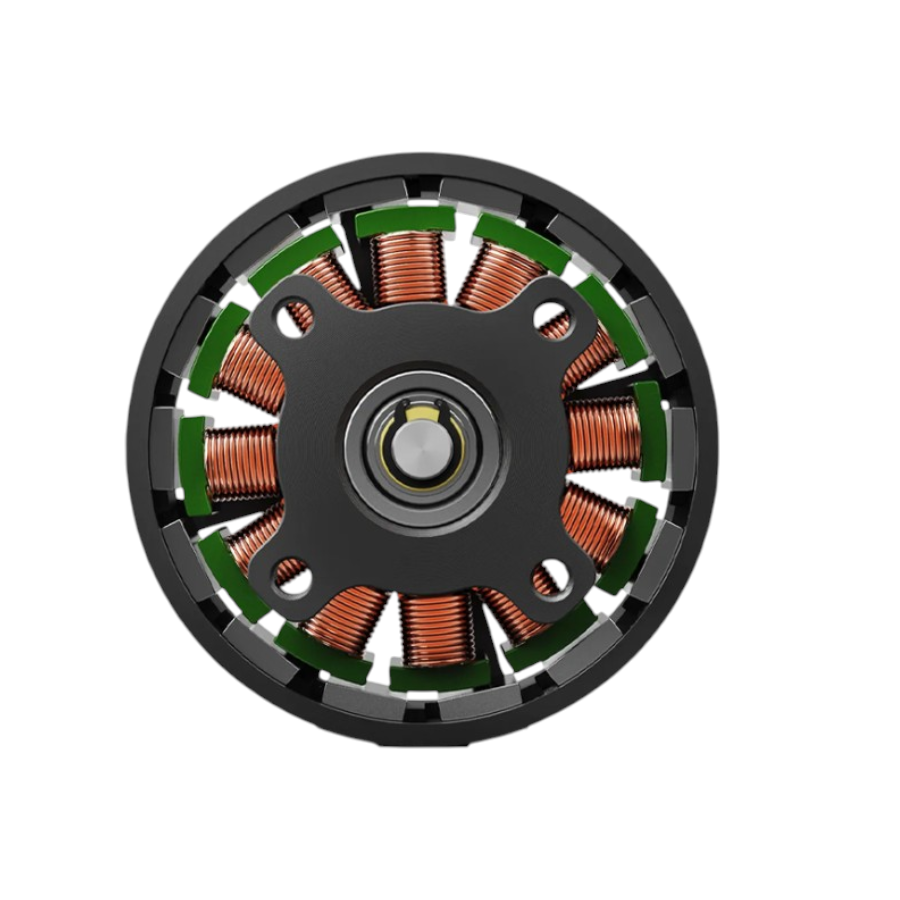

- 12N14P Stator Design – Ensures smoother torque delivery
- Rain-Protected Build – Fly in light rain without worry
- Premium EZO Bearings – Smooth and durable motor operation
- Optimized Cooling – Centrifugal heat dissipation system
Specifications:
| Motor KV (RPM/V): | 650 |
|---|---|
| Motor Type: | Brushless |
| Model No: | 2806 |
| Compatible LiPO Batteries: | 4S-6S |
| Framework | Quadcopter, Hexacopter, Octocopter |
| Shaft Diameter (mm): | 4 |
| Motor Outer Diameter(mm) | 35 |
| Max. Efficiency Current (A) | 5 to 14 |
| Max. Power (W) | 200 |
| Maximum Thrust (gm) | 1200 |
| No-load current (A) | 0.47 @ 20V |
| No-Load Current (mA) | 470 |
| No of poles | 14 |
| Operating Temperature (°C): | -10 to 65 |
| Motor Size (mm): | D:35 × 19.8 |
| Weight (g): | 45 |
Package Includes:
4 x MAD 2806 EEE Brushless drone motor 650KV
1 x Accesory Set
FPV Drone LiPo Battery Maintenance: Storage and Longevity Guide
FPV Drone LiPo Battery Maintenance: Storage and Longevity Guide Your LiPo batteries are quite possibly the most expensive...
Read More →
FPV Drone Crash Repair Guide: Fix Arms, Motors and ESCs Like a Pro
Table of ContentsPost-Crash Assessment: What to Check FirstRepairing and Replacing Broken ArmsDiagnosing Motor DamageMotor Replacement Step-by-StepDiagnosing ESC DamageESC...
Read More →
Drone Racing League: Start Competing in India
Table of Contents Understanding Drone Racing League Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| KV Rating | 650KV |
| Package Quantity | 4 pcs |
| SKU | AI8107 |
| Weight | 000.45 kg |
| Availability | In Stock |
Applications & Use Cases
The MAD 2806 EEE Brushless drone motor 650KV (Pack Of 4) is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
