This is the 24V variant of the LY-01 DC24V 0.3A 7.2W Electromagnetic Lock in Solenoids and Electromagnets. Available at ₹568.76 (₹482.00 + GST) with free shipping across India.

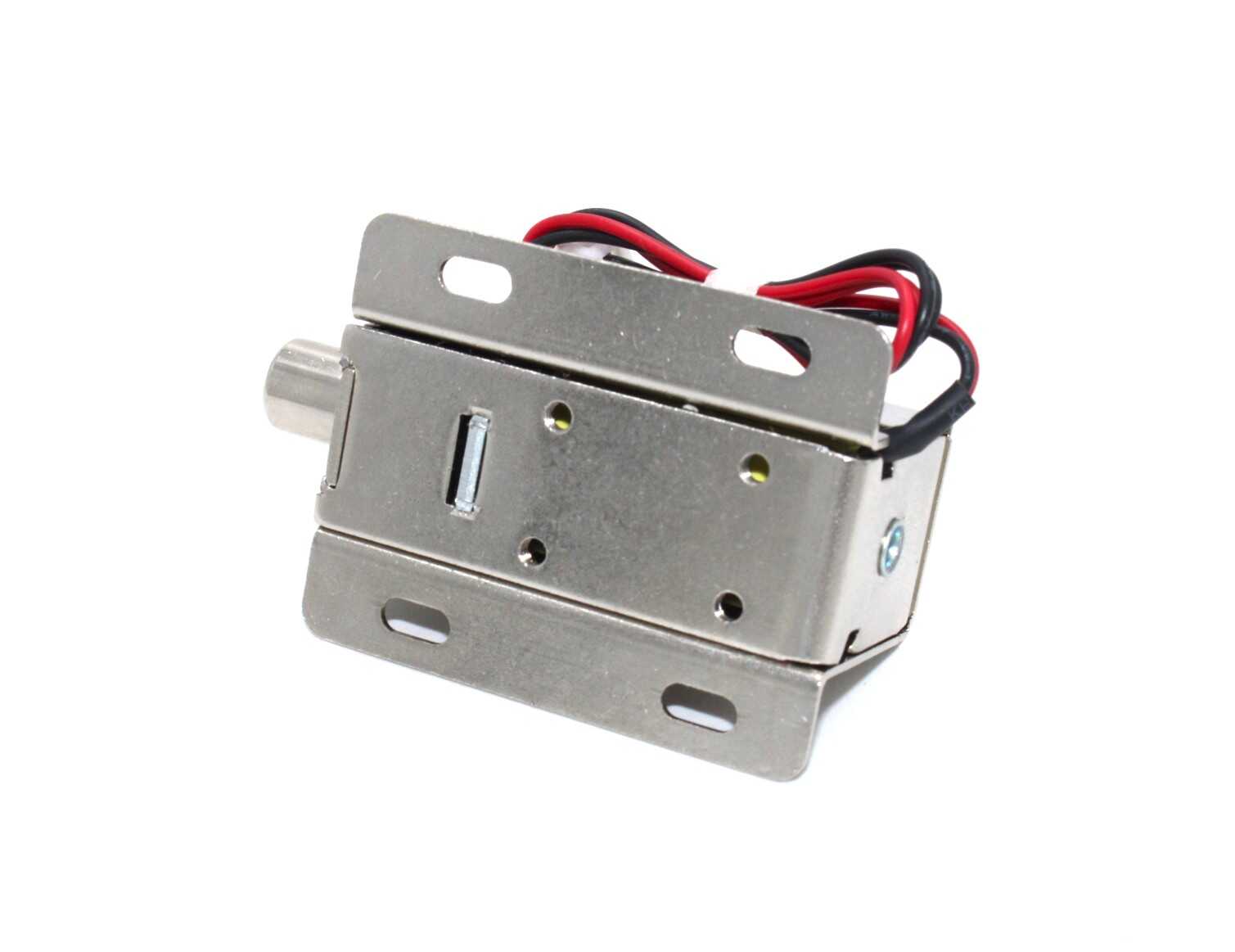

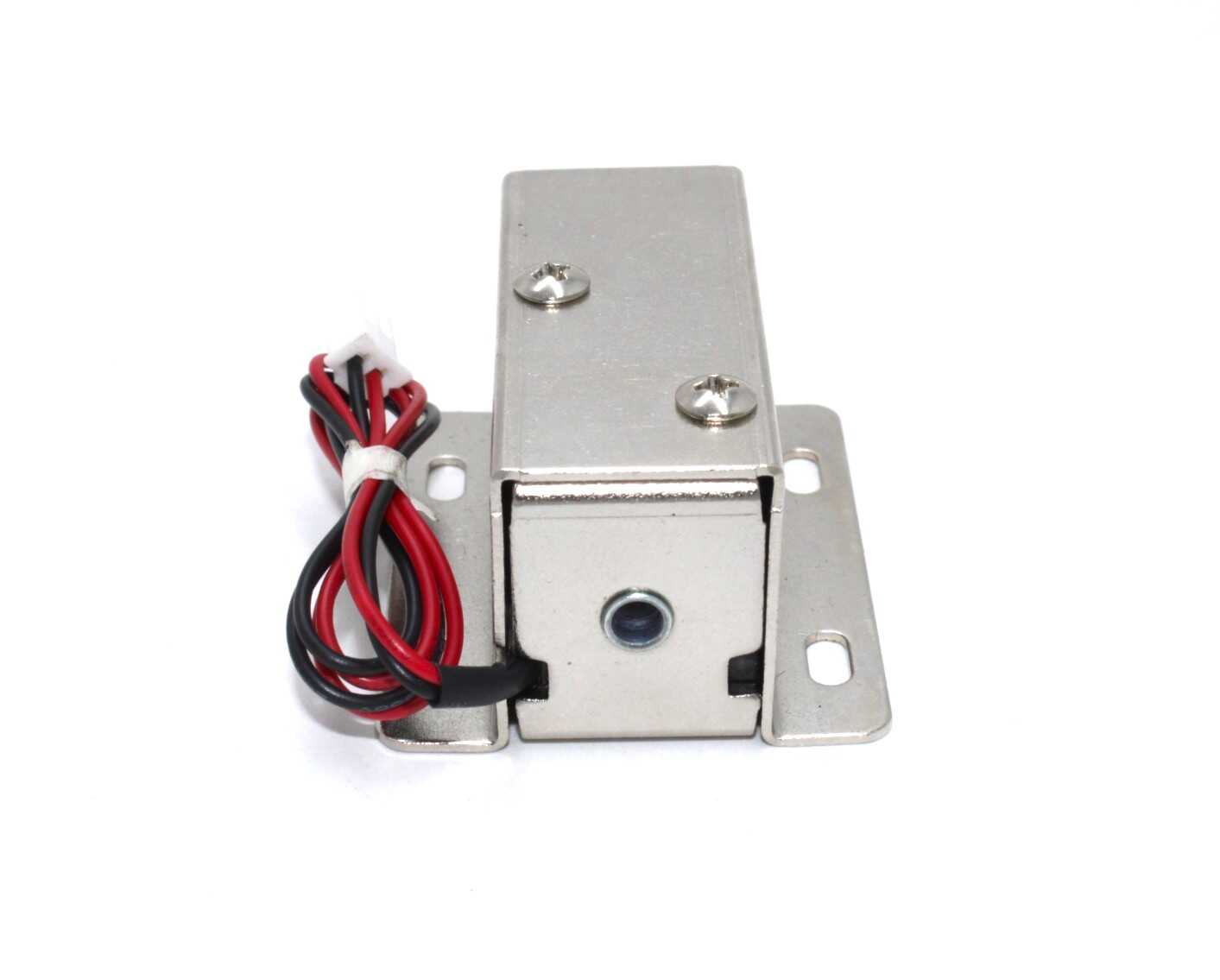

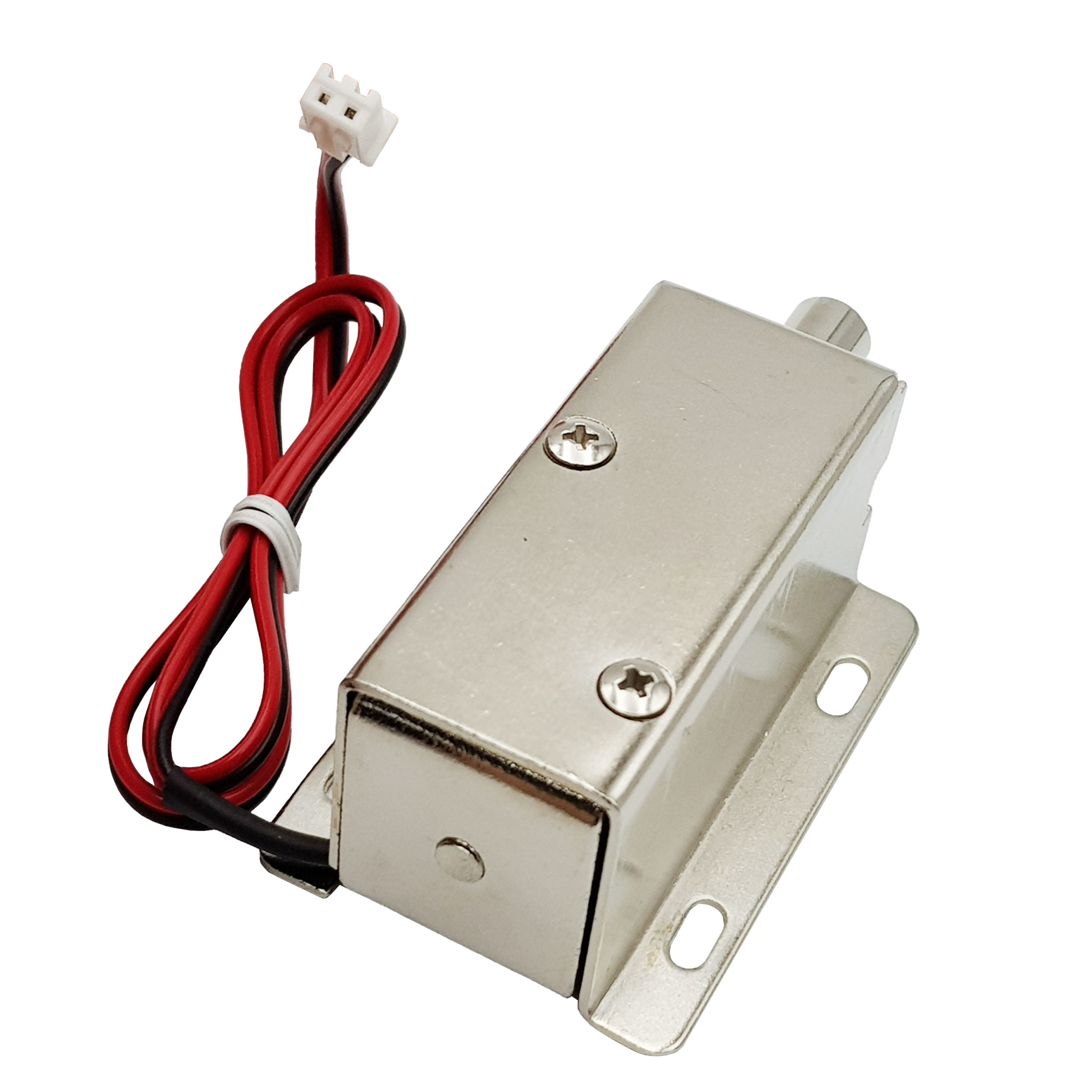

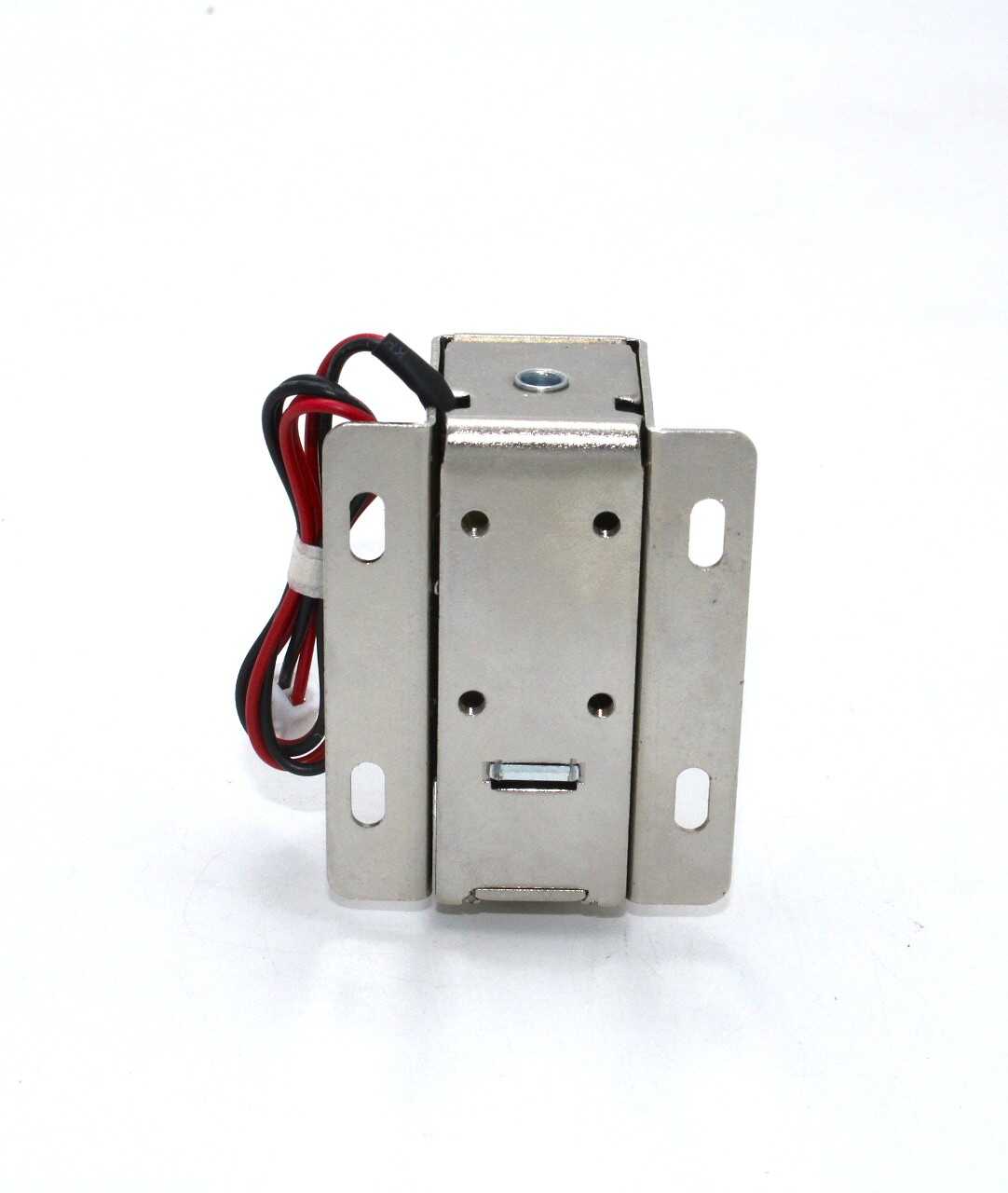

LY-01 DC24V 0.3A 7.2W Electromagnetic Lock
This electromagnetic lock boasts a sleek and compact design paired with a straightforward structure, ensuring stability and durability in prolonged use. It features a lock state feedback signal output, enabling seamless monitoring of the lock’s open or closed status. Designed to withstand prolonged or frequent operation, it offers versatility across a wide range of applications.
Feature:
- The lock body is made of high-quality industrial iron material, which is not easy to deform and durable.
- Internal coil international standard pure copper coil production
- Can work frequently for a long time (recommended that the continuous power-on time does not exceed 24 hours)
- Electro-zinc-nickel alloy treatment, 72 hours salt spray test, good anti-rust and anti-corrosion effect
PACKAGE INCLUDES
1 X LY-01 DC24V 0.3A 7.2W Electromagnetic Lock
Note: It Can be Electrified for A Long Time
LY-01 DC24V 0.3A 7.2W Electromagnetic Lock Overview
The LY-01 DC24V 0.3A 7.2W Electromagnetic Lock is a compact, high-performance locking device designed for secure access control in cabinets, doors, cabinets, and industrial enclosures. Its simple structure and durable construction make it ideal for applications requiring frequent operation and reliable lock status monitoring.
Key Features of LY-01 DC24V 0.3A 7.2W Electromagnetic Lock
- Operates on 24V DC with a low current draw of 0.3A and 7.2W power consumption
- Durable industrial iron body prevents deformation and ensures long service life
- International standard pure copper coil for stable electromagnetic performance
- Built-in lock state feedback signal output for real-time open/closed monitoring
- Electro-zinc-nickel alloy surface treatment passes 72-hour salt spray test for corrosion resistance
- Designed for frequent or prolonged operation (recommend continuous power-on time ≤24 hours)
- Fast shipping from Zbotic – dispatch within 24 hours for in-stock items
Applications and Use Cases
- Access control systems for office and commercial doors
- Securing server racks and IT cabinets in data centers
- Locking display cases and storage cabinets in retail environments
- Integration into automatic sliding doors and turnstiles
- Industrial enclosures and control panels requiring status feedback
- Electric gates and barriers with remote monitoring capabilities
How to Use LY-01 DC24V 0.3A 7.2W Electromagnetic Lock
Mount the electromagnetic lock on a clean, flat surface using the included bracket, then wire the DC24V power input and feedback signal line to your access control panel. Align the armature plate on the mating surface, tighten all fasteners, and test locking/unlocking operations. Verify that the feedback output correctly indicates open or closed status in your control system before finalizing installation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I connect the lock to a 24V DC supply?
Connect the positive (+) and negative (–) terminals of your 24V DC power source to the lock’s input wires, ensuring proper polarity. Secure connections with insulated crimps or terminal blocks to prevent shorts and voltage drops.
What does the lock state feedback signal indicate?
The built-in feedback output provides a dry contact or open-collector signal that changes state when the armature plate is fully attracted. Use this signal in your control panel to confirm whether the lock is engaged or released.
Can the LY-01 run continuously without damage?
The LY-01 is designed for frequent and prolonged operation, but it is recommended to limit continuous power-on time to 24 hours to avoid coil overheating. For round-the-clock locking, implement periodic power-off intervals.
Technical Specifications
| Model | LY-01 |
|---|---|
| Operating Voltage | 24V |
| Current Rating | 0.3A |
| Power Rating | 7.2W |
| SKU | AI3963 |
| Weight | 0.1911 kg |
| Availability | In Stock |
Applications & Use Cases
The LY-01 DC24V 0.3A 7.2W Electromagnetic Lock is a versatile solenoids and electromagnets used across a wide range of applications including door locks, valve control, pick-and-place machines, pinball machines, and industrial automation.
Common use cases:
- Building an electronic door lock
- Controlling a water valve remotely
- Actuating a mechanism in an automation line
This product is ideal for automation engineers and mechanical design enthusiasts.
Technical Tip: Solenoids draw significant current — use a MOSFET or relay to drive them, never directly from a microcontroller pin. Add a flyback diode for back-EMF protection.
