This is the 12V variant of the 1240-12V DC 12V 1.7A 20.6W 1kg Holding Solenoid for Electric Door Lock in Solenoids and Electromagnets. Available at ₹886.18 (₹751.00 + GST) with free shipping across India.
Looking for 12v Ic? 1240-12V DC 12V 1.7A 20.6W 1kg Holding Solenoid for Electric Door Lock is available at Zbotic with fast shipping across India.
If you’re looking to electronically control the locking mechanism of doors, drawers, or any other moving part, this solenoid lock is the perfect solution. You can easily interface this electromagnetic lock with a microcontroller such as Arduino or Raspberry Pi using a simple relay or a one-channel relay driver module.
Solenoids operate on the principle of electromagnetism: they consist of a coil of copper wire with an armature (a metal slug) in the center. When the coil is energized, the slug is pulled into the center of the coil, allowing the solenoid to exert pulling force.
This 1240 12V DC 1.7A 20.6W 1kg Holding Solenoid for Electric Door Lock is suitable for locking vending machines, storage shelves, file cabinets, and more. It features a hidden unlocking method for emergencies. The lock operates by disconnecting the circuit, unlocking instantly upon power-on. With its steady, durable, and energy-saving design, this solenoid lock boasts a long lifespan and superior anti-theft and shockproof features compared to other lock types.

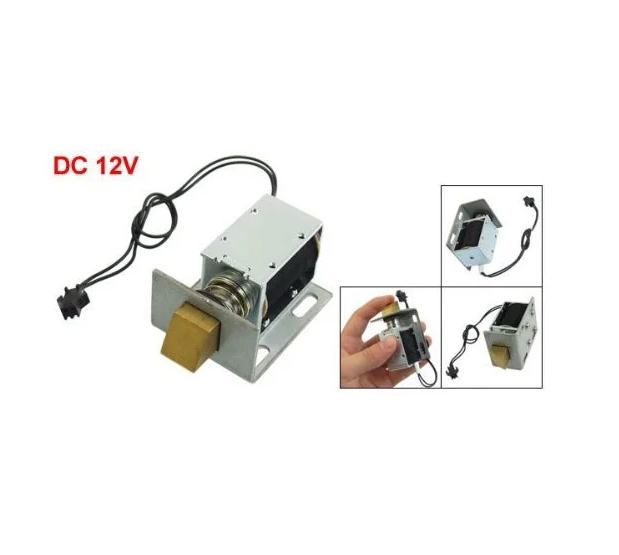

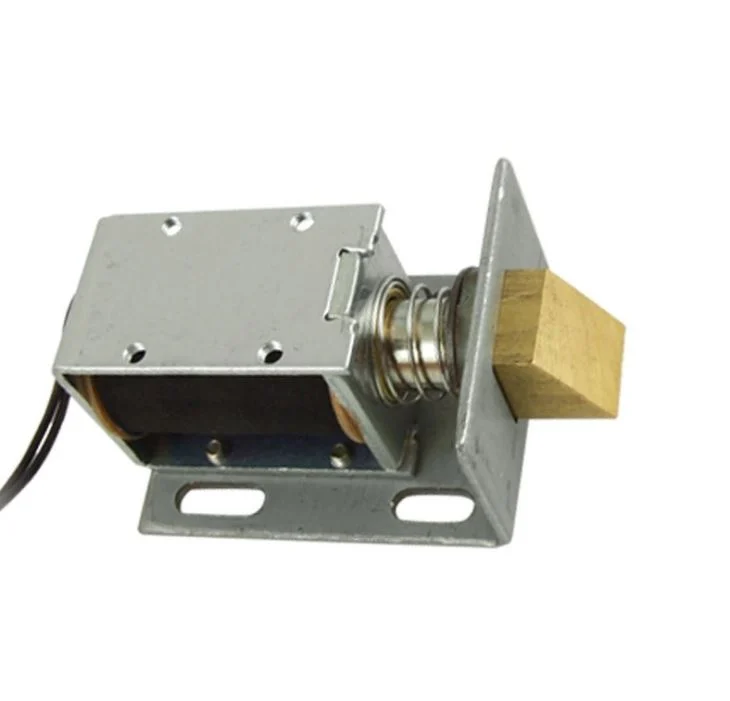

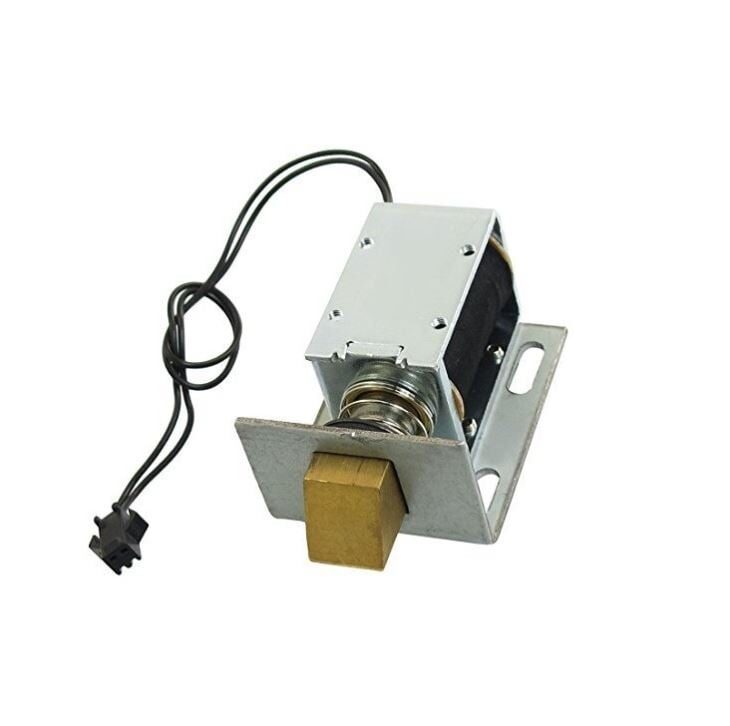

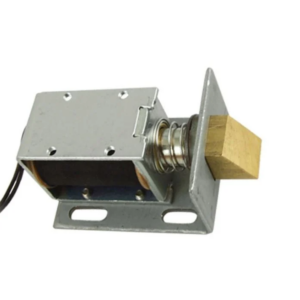

Once the wires are connected and current is supplied, the electric lock can control the door’s opening and closing. This particular solenoid lock is robust, featuring a slug with a slanted cut and a reliable mounting bracket. Essentially, it serves as an electronic lock for basic cabinets, safes, or doors. By default, the lock remains active, preventing the door from opening as the solenoid slug obstructs it. No power is consumed in this state. Applying 9-12 Volt DC current causes the slug to retract, allowing the door to open effortlessly.
Applications: Applied to the cabinet lock, locker locks, file cabinet locks, luggage locks, electric locks, door locks, solenoid locks, drawer, newspaper boxes lock, sauna lock, locker electromagnetic locks, electric locks, newspaper boxes, sauna Electronics lock
We Have a diverse range of solenoid door locks with variable power ratings and different Plunger patterns(See Pictures for your reference). Choose from them precisely which best suits to your requirement from the Category.
Features:
- Iron Body Material
- High quality ultra-compact electric lock.
- Rustproof, durable, safe, convenient to use.
- Suction which tightly sucks the iron, thus locking the door.
- Designed with the open frame type and mount board, high power.
- Easy to install for the electric door lock or other automatic door lock systems with the mounting board
- Applicable for being installed in the escape door or fire door electronic controlled system.
- Adopts the principle of electric magnetism, when the current through the silicon, the electromagnetic lock will achieve a strong.
Package Includes:
1 x 1240-12V DC 12V 1.7A 20.6W 1kg Holding Solenoid for Electric Door Lock
1240-12V DC 12V 1.7A 20.6W 1kg Holding Solenoid for Overview
The 1240-12V DC 12V 1.7A 20.6W 1kg Holding Solenoid is an ultra-compact electromagnetic lock designed for electric door locking systems. Constructed with a rustproof iron body and open frame mounting board, it delivers a reliable 1 kg holding force at 12 V DC for secure door, drawer, or cabinet latching.
Key Features of 1240-12V DC 12V 1.7A 20.6W 1kg Holding Solenoid for
- 12V DC, 1.7 A Coil: Efficient 20.6 W power consumption for consistent performance.
- 1 kg Holding Force: Strong electromagnetic pull ideal for lightweight door and latch applications.
- Rustproof Iron Body: Durable construction resists corrosion in indoor and semi-outdoor environments.
- Open Frame & Mount Board: Pre-drilled mounting plate simplifies installation on escape or fire door systems.
- Ultra-Compact Design: Slim profile fits tight spaces in electronic controlled locks.
- Fast Shipping: Genuine product dispatched quickly from Zbotic warehouses across India.
Applications and Use Cases
- Electronic door locks for residential or office entrance systems
- Escape door and fire door locking in commercial buildings
- Secure drawers, cabinets, and small storage compartments
- Arduino or Raspberry Pi projects requiring controlled latching mechanisms
- Access control panels in vending machines or kiosks
- Automated locking for lockers and safes with low holding force requirements
How to Use 1240-12V DC 12V 1.7A 20.6W 1kg Holding Solenoid for
Mount the solenoid’s open frame board to your door or housing using suitable screws, align the plunger face against the strike plate, then wire the coil to a 12 V DC supply through a relay or driver module. Activate the relay to energize the coil, causing the solenoid slug to pull in and lock. De-energizing releases the latch for automatic unlocking.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I run this solenoid continuously?
Yes, the 1240-12V DC solenoid is rated for continuous operation at 12 V DC and 1.7 A. Ensure proper ventilation around the coil to avoid overheating during prolonged use.
What mounting hardware do I need?
The product includes an open frame mounting board with pre-drilled holes. Use M4 or equivalent screws (not supplied) to secure the board to metal or wood surfaces.
How do I interface this solenoid with an Arduino?
Use a 12 V DC power supply, a suitable N-PN transistor or one-channel relay driver module, and a flyback diode across the coil. Control the transistor or relay input from an Arduino digital pin to switch the solenoid on and off safely.
Technical Specifications
| Operating Voltage | 12V |
|---|---|
| Current Rating | 1.7A |
| Power Rating | 20.6W |
| SKU | AI2338 |
| Weight | 0.27 kg |
| Availability | In Stock |
Applications & Use Cases
The 1240-12V DC 12V 1.7A 20.6W 1kg Holding Solenoid for Electric Door Lock is a versatile solenoids and electromagnets used across a wide range of applications including door locks, valve control, pick-and-place machines, pinball machines, and industrial automation.
Common use cases:
- Building an electronic door lock
- Controlling a water valve remotely
- Actuating a mechanism in an automation line
This product is ideal for automation engineers and mechanical design enthusiasts.
Technical Tip: Solenoids draw significant current — use a MOSFET or relay to drive them, never directly from a microcontroller pin. Add a flyback diode for back-EMF protection.
