This is the Red variant of the LM2596 DC-DC Adjustable Step-down Module with Digital Display Voltmeter （Red Button Switch) in Buck Converter. Available at ₹140.42 (₹119.00 + GST) with free shipping across India.
Looking for Lm2596 Module Red? LM2596 DC-DC Adjustable Step-down Module with Digital Display Voltmeter （Red Button Switch) is available at Zbotic with fast shipping across India.

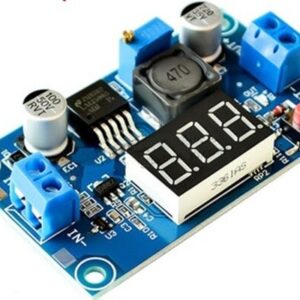

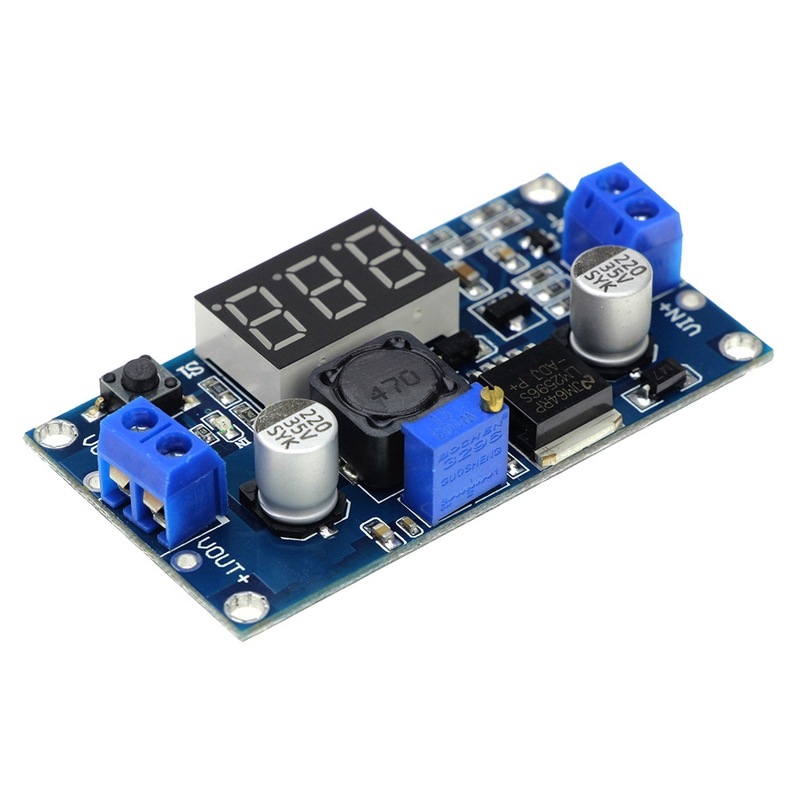

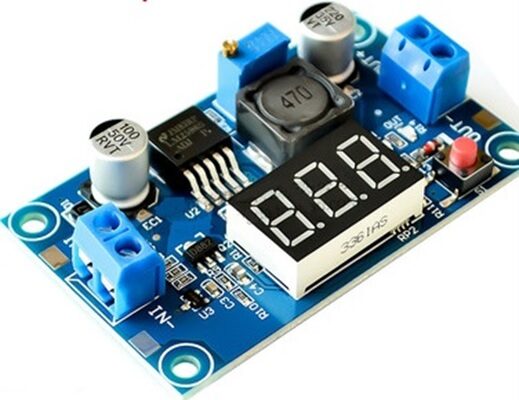

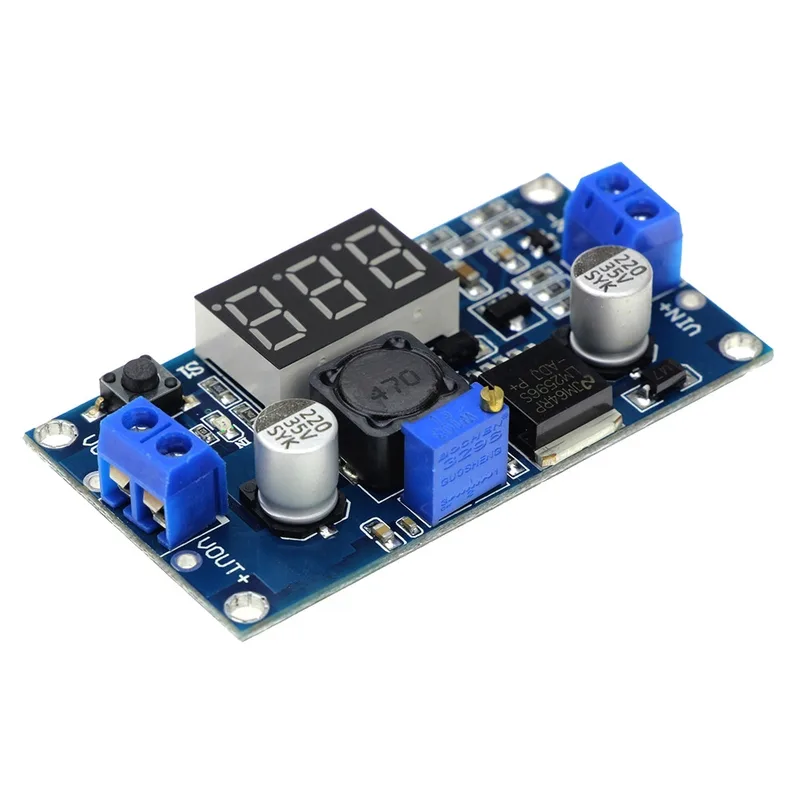

LM2596 DC-DC Adjustable Step-down Module with Digital Display Voltmeter （Red Button Switch)
The LM2596 DC-DC Adjustable Step-Down Module with Digital Display Voltmeter offers a highly functional design with advanced features for efficient voltage regulation. It includes a red button switch and a built-in voltmeter that has an accuracy of ±0.1V, covering a voltage range of 0-40V (please ensure the input voltage is above 4V for accurate voltmeter readings). The module allows users to toggle between measuring input and output voltage with a touch key, which also activates a light display to indicate the measured voltage.
A useful power-off memory function stores the last measured voltage, so the setting is retained when power is restored. For added convenience, a 3-second press of the touch button turns off the LED display, which can easily be reactivated with another touch. The module features screw terminals for easy wiring, eliminating the need for soldering.
With an input voltage range of 4.0-40V and a continuous adjustable output voltage range of 1.25V to 37V (ensuring the input is higher than the output by approximately 1.5V), it provides stable performance. The module supports a maximum output current of 3A, with stable operation at 2A, and runs efficiently at an internal oscillation frequency of 150KHz. Red LEDs indicate the current switching status, making it easy to monitor operation.
Specification:
| Specification | Value |
|---|---|
| Input Voltage Range | 4.0V – 40V |
| Output Voltage Range | 1.25V – 37V (adjustable) |
| Output Current | Up to 3A (maximum), 2A (normal operating) |
| Input-Output Voltage Difference | ≥ 1.5V |
| Displayed Voltage Range | 0V – 40V |
| Voltage Meter Error | ±0.1V |
| Voltmeter Accuracy | ±0.1V |
| Display Type | Digital LED |
| Switching Frequency | 150KHz |
| Efficiency | High efficiency |
| Switching LEDs | Red |
| Features | Power-off memory, touch button switch |
PACKAGE INCLUDES
1 X LM2596 DC-DC Adjustable Step-down Module with Digital Display Voltmeter
（Red Button Switch）
LM2596 DC-DC Adjustable Step-down Module with Digital Overview
The LM2596 DC-DC Adjustable Step-down Module with Digital Display Voltmeter is a compact buck converter designed to step down higher DC voltages to a stable lower voltage. It features a built-in digital voltmeter and a red button switch for easy toggling between input and output voltage readings, making precise voltage regulation straightforward for electronics projects.
Key Features of LM2596 DC-DC Adjustable Step-down Module with Digital
- Adjustable Output: Onboard potentiometer lets you set output voltage precisely within the module’s range.
- Built-in Voltmeter: Digital display shows voltage from 0 to 40 V with ±0.1 V accuracy.
- Red Button Switch: Touch key toggles display between input and output voltage and activates backlight.
- Wide Input Range: Accepts input voltages above 4 V up to 40 V for versatile power sources.
- Compact Design: Small form factor easily integrates into DIY electronics and prototyping boards.
- Fast Shipping from Zbotic: Dispatched within 24 hours across India for non backordered items.
Applications and Use Cases
- Powering microcontroller boards (Arduino, ESP32) with stable supply voltages.
- Adjustable bench power supply for electronics testing and troubleshooting.
- Battery charging circuits where precise voltage control is required.
- LED strip drivers requiring specific constant voltages.
- Portable projects running from car batteries, solar panels or other DC sources.
- Prototyping custom modules that need regulated DC voltages.
How to Use LM2596 DC-DC Adjustable Step-down Module with Digital
Connect your DC input source (4–40 V) to the VIN and GND terminals, then link your load to the VOUT and GND terminals. Power on the module, press the red button to display either input or output voltage, and adjust the onboard potentiometer until the digital readout shows your desired output level. Always verify connections and monitor the display for stable readings before connecting sensitive devices.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I toggle between input and output voltage display?
Press the red button switch once to toggle the digital meter between showing the input voltage and the output voltage. The backlight will activate during measurement.
What is the acceptable input voltage range?
The module requires a minimum input of 4 V for accurate voltmeter readings and supports up to 40 V. Ensure your source stays within this range to avoid damage.
How do I adjust the output voltage?
Use the small potentiometer screw on the module. While observing the output voltage on the display, turn the potentiometer clockwise to increase voltage or counterclockwise to decrease it until you reach your target level.
Technical Specifications
| Model | LM2596 |
|---|---|
| Interface / Protocol | BLE |
| Color | Red |
| SKU | AI3855 |
| Weight | 0.0299 kg |
| Availability | Out of Stock |
Applications & Use Cases
The LM2596 DC-DC Adjustable Step-down Module with Digital Display Voltmeter （Red Button Switch) is a versatile buck converter used across a wide range of applications including voltage step-down for electronics, battery-powered projects, LED driver circuits, microcontroller power supply, and solar power regulation.
Common use cases:
- Converting 12V car battery to 5V for USB devices
- Powering a Raspberry Pi from a drone battery
- Regulating solar panel output for charging
This product is ideal for electronics hobbyists, IoT developers, and power supply designers.
Technical Tip: Buck converters are more efficient than linear regulators (LM7805). Choose one rated for at least 1.5x your required current. Ensure input voltage is at least 2V above output.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
