This is the 24V variant of the LM2596 DC-DC 24V 40V to 12V DC Step-down Power Module in Buck Boost Voltage Regulators. Available at ₹134.52 (₹114.00 + GST) with free shipping across India.

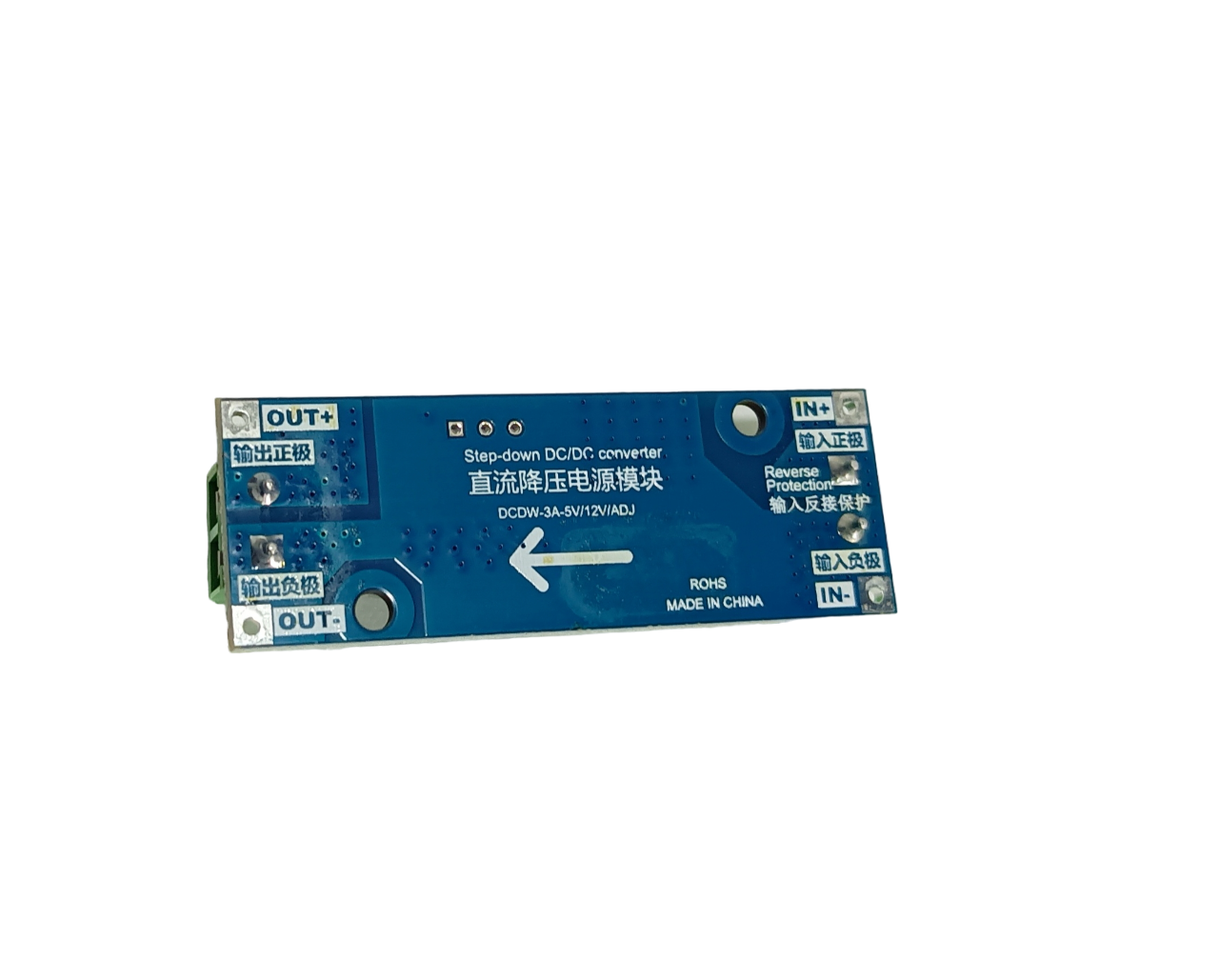

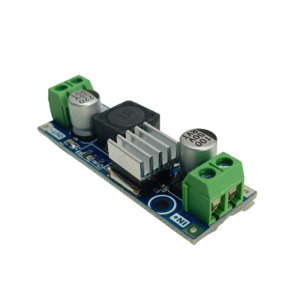

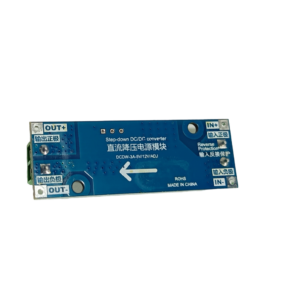

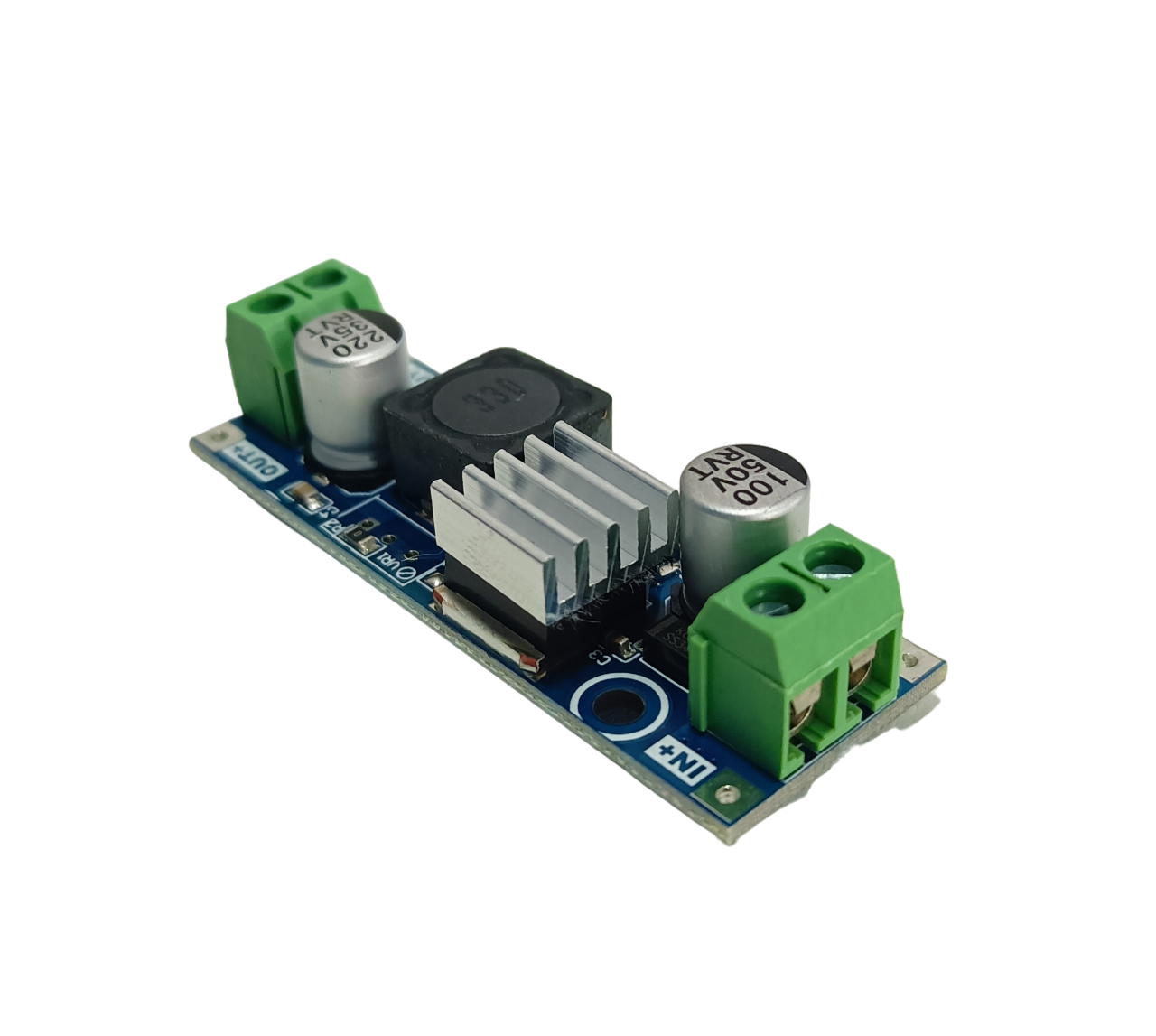

LM2596 DC-DC 24V 40V to 12V DC Step-down Power Module
Enhance your electronics projects with the LM2596 DC-DC Step-down Power Module. This versatile voltage regulator offers a wide input voltage range of 3.2V to 35V, making it compatible with various power sources. It features an adjustable output voltage range from 1.25V to 30V and can deliver a maximum output current of 3A, providing the flexibility needed for a wide range of applications.
The LM2596 is equipped with high-frequency X7R bypass capacitors at both the input and output terminals, ensuring excellent electromagnetic compatibility and stable power delivery. With a maximum efficiency of 92%, it delivers reliable performance with minimal energy loss.
Safety is built in, with protection against reverse polarity connection to prevent damage to the module. Note that this is a step-down module, so the input voltage must always be higher than the output voltage.
The module’s compact design makes it easy to integrate into your projects, and it offers a charge adjustment rate of less than 1% when used with a 12V input, 5V output, and 1A current. For outputs below 2A, the module can run without a heatsink, but for outputs exceeding 2.5A or 10W, a heatsink is recommended for prolonged use.
Upgrade your electronics projects with the reliable, adjustable power regulation of the LM2596 DC-DC Step-down Power Module for efficient and safe power management.
Specifications:
| Specification | Description |
|---|---|
| Input Voltage Range | DC 3.2V to 35V |
| Output Voltage Range | DC 1.25V to 30V |
| Maximum Output Current | 3A |
| Maximum Efficiency | 92% |
| Input/Output Protection | Guards against reverse polarity |
| Charge Adjustment Rate | Less than 1% (measured with 12V input, 5V output, 1A current) |
| Bypass Capacitors | High-frequency X7R capacitors at input and output terminals |
| Cooling Requirement | Outputs below 2A can operate without a radiator; for outputs exceeding 2.5A or 10W, a heatsink is recommended for prolonged operation |
| Module Type | Step-down |
| Note | Input voltage must be at least 1.5V higher than the output voltage; this is a step-down module. |
PACKAGE INCLUDES:
1 X LM2596 DC-DC 24V 40V to 12V DC Step-down Power Module
Technical Specifications
| Model | LM2596 |
|---|---|
| Voltage Range | 12V - 40V |
| SKU | AI4262 |
| Weight | 0.02 kg |
| Availability | Out of Stock |
Applications & Use Cases
The LM2596 DC-DC 24V 40V to 12V DC Step-down Power Module is a versatile buck boost voltage regulators used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
