Looking for Kp Original 503040 Battery? KP Original 503040 600mAh 3.7Vsingle cell Rechargeable LiPo Battery is available at Zbotic with fast shipping across India.

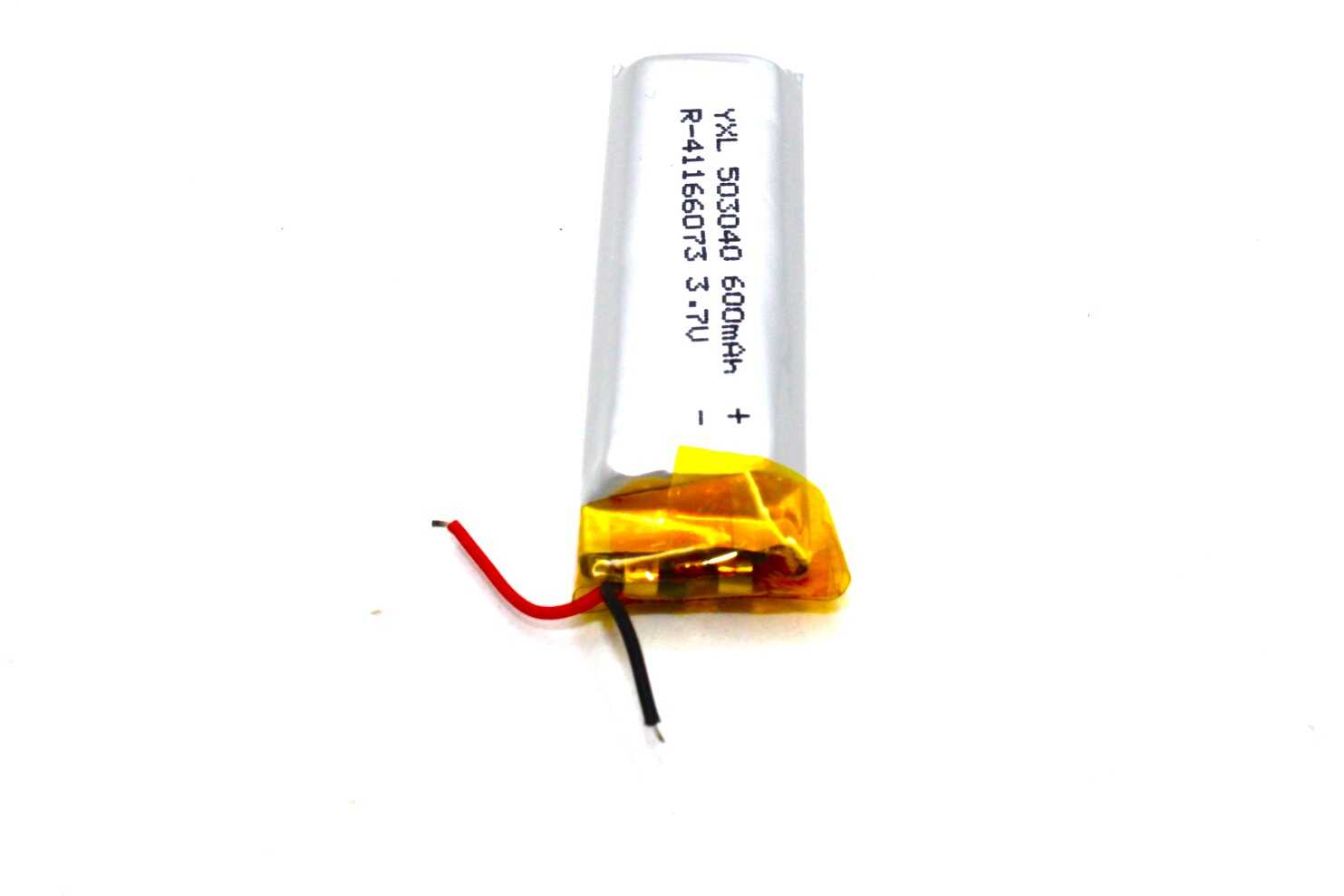

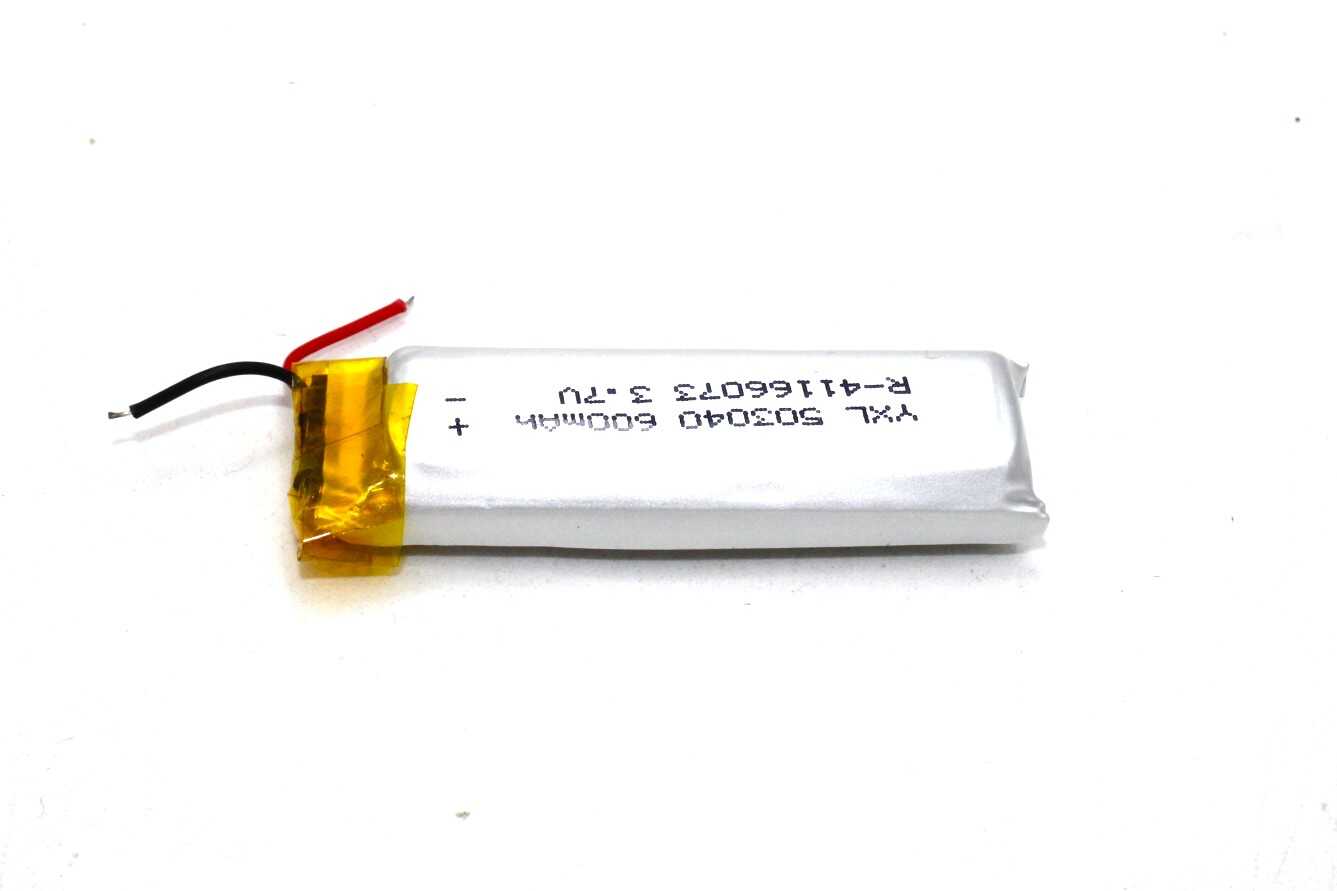

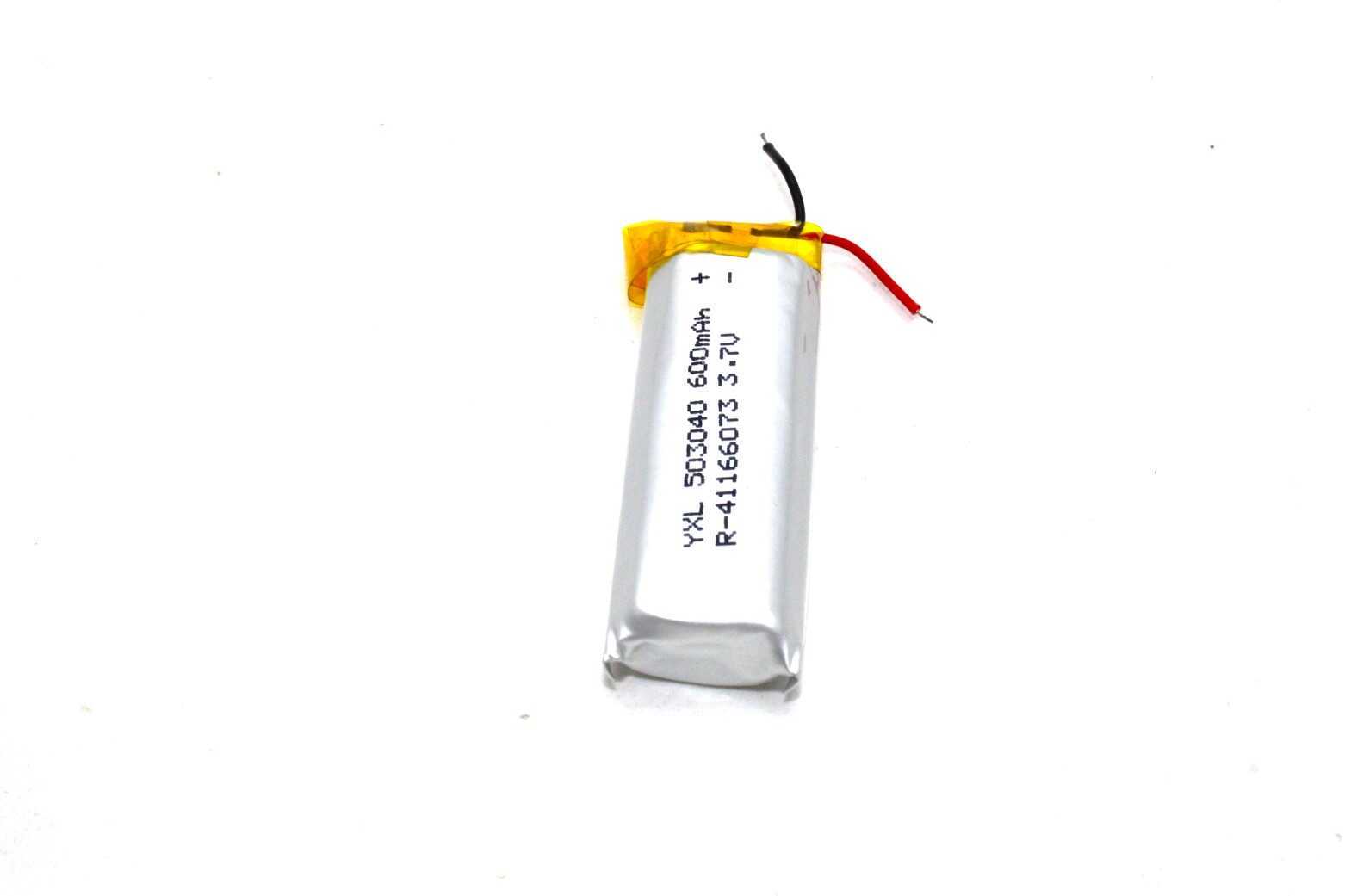

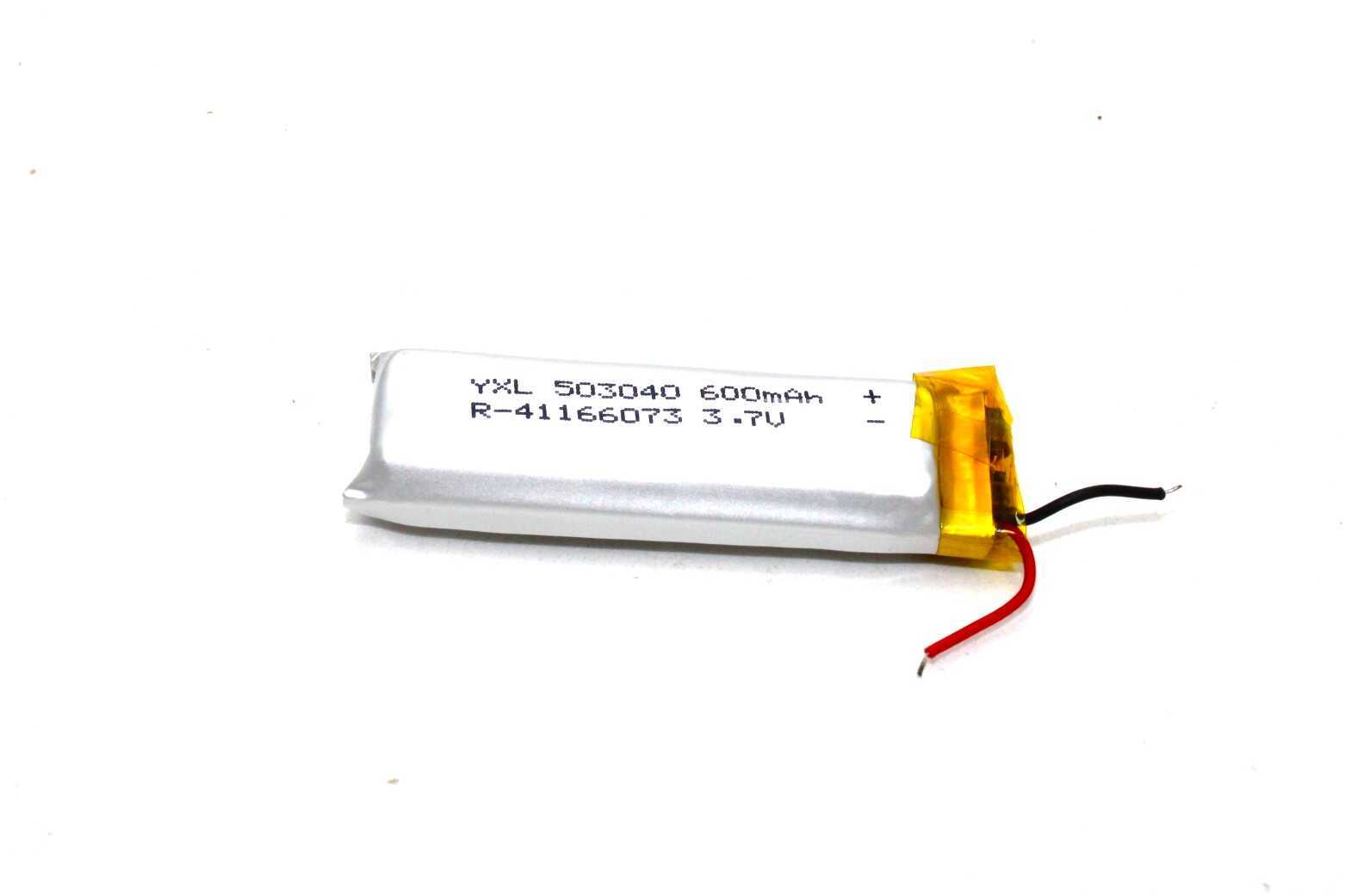

KP Original 503040 600mAh 3.7Vsingle cell Rechargeable LiPo Battery
Description:
Introducing the 503040 3.7V Lithium Polymer (LiPo) rechargeable battery, featuring a robust capacity of 600mAh designed for various applications. This compact and efficient battery offers dependable energy storage for wearables, IoT devices, and portable electronics. Engineered with safety and performance at its core, the 503040 LiPo battery is the ideal power source for your next project.
Technical Specifications:
- Model Number: 503040
- Type: Lithium Polymer (LiPo)
- Nominal Voltage: 3.7V
- Capacity: 600mAh
- Dimensions:
- Length: 46 mm
- Width: 13.5 mm
- Height: 8 mm (thickness)
- Weight: Approximately 25 grams
- Discharge Rate: 1C (maximum continuous)
- Charge Rate: Up to 1C (maximum)
- Charging Voltage: 4.2V ± 0.05V
- Discharge Cut-off Voltage: 3.0V
- Cycle Life: Approximately 300-500 cycles (dependent on usage and care)
- Connector Type: JST or Custom connector options available
- Operating Temperature Range:
- Charge: 0°C to 45°C
- Discharge: -20°C to 60°C
- Storage Conditions: Store at 40-60% charge in a cool, dry environment to maximize battery life.
- Safety Features:
- Overcharge protection
- Over-discharge protection
- Short-circuit protection
- Built-in thermal protection
Application Areas:
- Wearable technologies (fitness trackers, smartwatches)
- Wireless audio devices (Bluetooth headphones, speakers)
- Drones and remote-controlled devices
- Portable sensors and cameras
- Internet of Things (IoT) applications
Package Includes:
- 1 x KP Original 503040 600mAh 3.7Vsingle cell Rechargeable LiPo Battery
KP Original 503040 600mAh 3.7Vsingle cell Rechargeable LiPo Overview
The KP Original 503040 is a single-cell Lithium Polymer rechargeable battery delivering a nominal 3.7V and 600mAh of capacity in a compact 46×13.5×8 mm package. Weighing just 25 g and rated for a 1C continuous discharge, it’s ideal for powering small electronic gadgets and portable projects that demand a reliable, lightweight power source.
Key Features of KP Original 503040 600mAh 3.7Vsingle cell Rechargeable LiPo
- 600mAh Capacity: Delivers sustained power for extended runtime in compact devices.
- Nominal 3.7V Output: Matches standard single-cell LiPo voltage requirements.
- 1C Continuous Discharge: Supports up to 600mA draw for steady performance.
- Compact & Lightweight: 46×13.5×8 mm dimensions at ~25 g for space-constrained designs.
- Rechargeable Chemistry: Lithium Polymer cell optimized for repeated charge cycles.
- Genuine Product: Sourced directly from KP Original, backed by fast shipping from Zbotic.
Applications and Use Cases
- Wearable fitness trackers and medical monitoring patches
- IoT sensor nodes and Bluetooth Low Energy beacons
- Portable audio recorders and mini voice transmitters
- Microcontroller projects and development boards (Arduino Nano, ESP32-PICO)
- Small hobby robotics and micro-drone power packs
- GPS asset trackers and handheld telemetry devices
How to Use KP Original 503040 600mAh 3.7Vsingle cell Rechargeable LiPo
Before first use, charge the battery with a dedicated single-cell LiPo charger set to a maximum charging current of 0.6A (1C). Observe correct polarity when connecting to your device’s power input or protection circuit. Secure the battery inside your enclosure, avoiding sharp bends or punctures, and monitor voltage during discharge to prevent over-discharge below 3.0V.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which charger is compatible with the 503040 LiPo battery?
Use any single-cell LiPo charger with CC/CV capability, set to charge at or below 0.6A (1C). Chargers designed for 3.7V LiPo cells will safely bring the battery to full capacity.
What is the expected runtime under load?
At its 1C rating (600 mA continuous draw), you can expect roughly 1 hour of runtime. Lower current draws (for example, 300 mA) will proportionally extend usage to about 2 hours.
Can multiple 503040 cells be connected in parallel for increased capacity?
Yes. You can parallel two or more identical 503040 cells to double or triple capacity. Ensure all cells are at the same voltage before wiring and use a balanced charging solution afterward.
Wind Charge Controller: Dump Load and Braking Circuit
A wind charge controller manages battery charging from a wind turbine while protecting the system from overvoltage and...
Read More →
Energy Harvesting: Powering IoT Devices from Ambient Sources
Energy Harvesting: Powering IoT Devices from Ambient Sources What if your IoT sensor never needed a battery change?...
Read More →
Supercapacitor Guide: When to Use Instead of Batteries
Table of ContentsWhat Are Supercapacitors Supercapacitors vs Batteries Types and Specifications When to Use Supercapacitors Charging and Discharging...
Read More →Technical Specifications
| Brand | KP |
|---|---|
| Battery Capacity | 600mAh |
| Interface / Protocol | BLE |
| SKU | AI6786 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The KP Original 503040 600mAh 3.7Vsingle cell Rechargeable LiPo Battery is a versatile single cell micro lipo battery used across a wide range of applications including FPV drones, RC vehicles, portable electronics, robotics, and airsoft guns.
Common use cases:
- Powering an FPV racing drone
- Running a high-current RC car
- Portable power for field robotics
This product is ideal for drone pilots, RC enthusiasts, and robotics builders.
Technical Tip: Never discharge below 3.5V per cell. Store at 3.8V per cell. Always use a balance charger and never leave charging unattended. Use a LiPo bag for safety.
