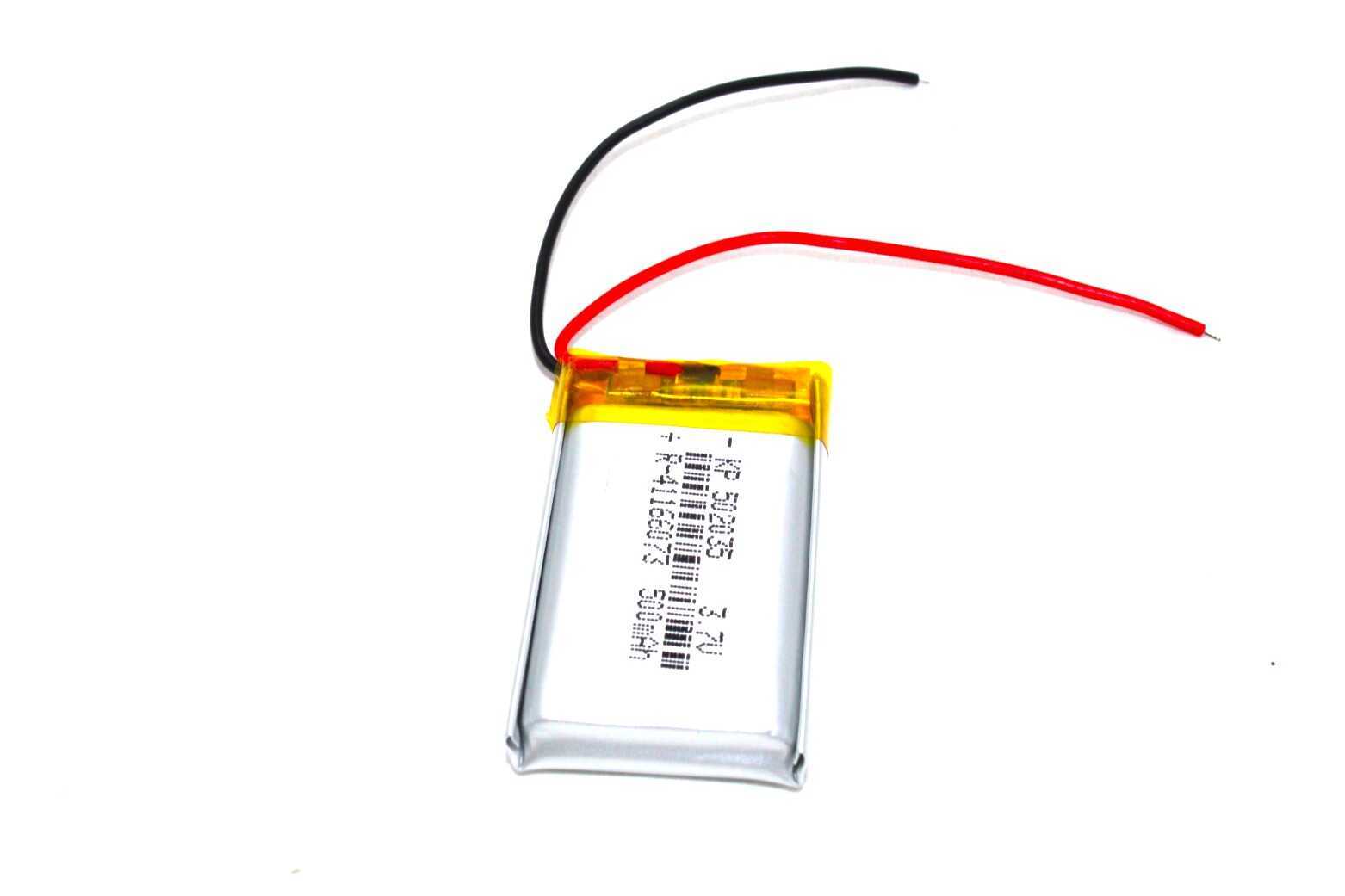

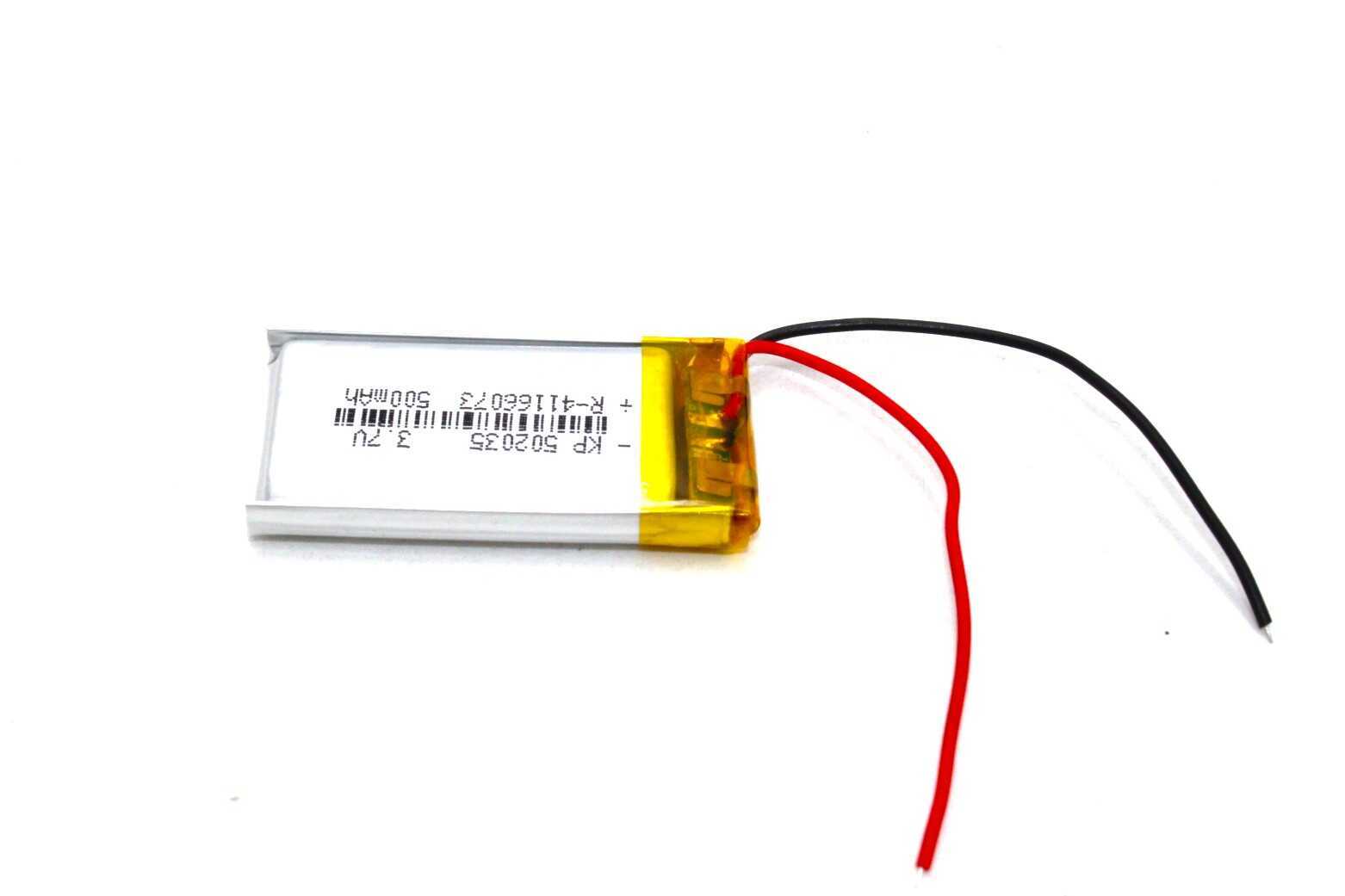

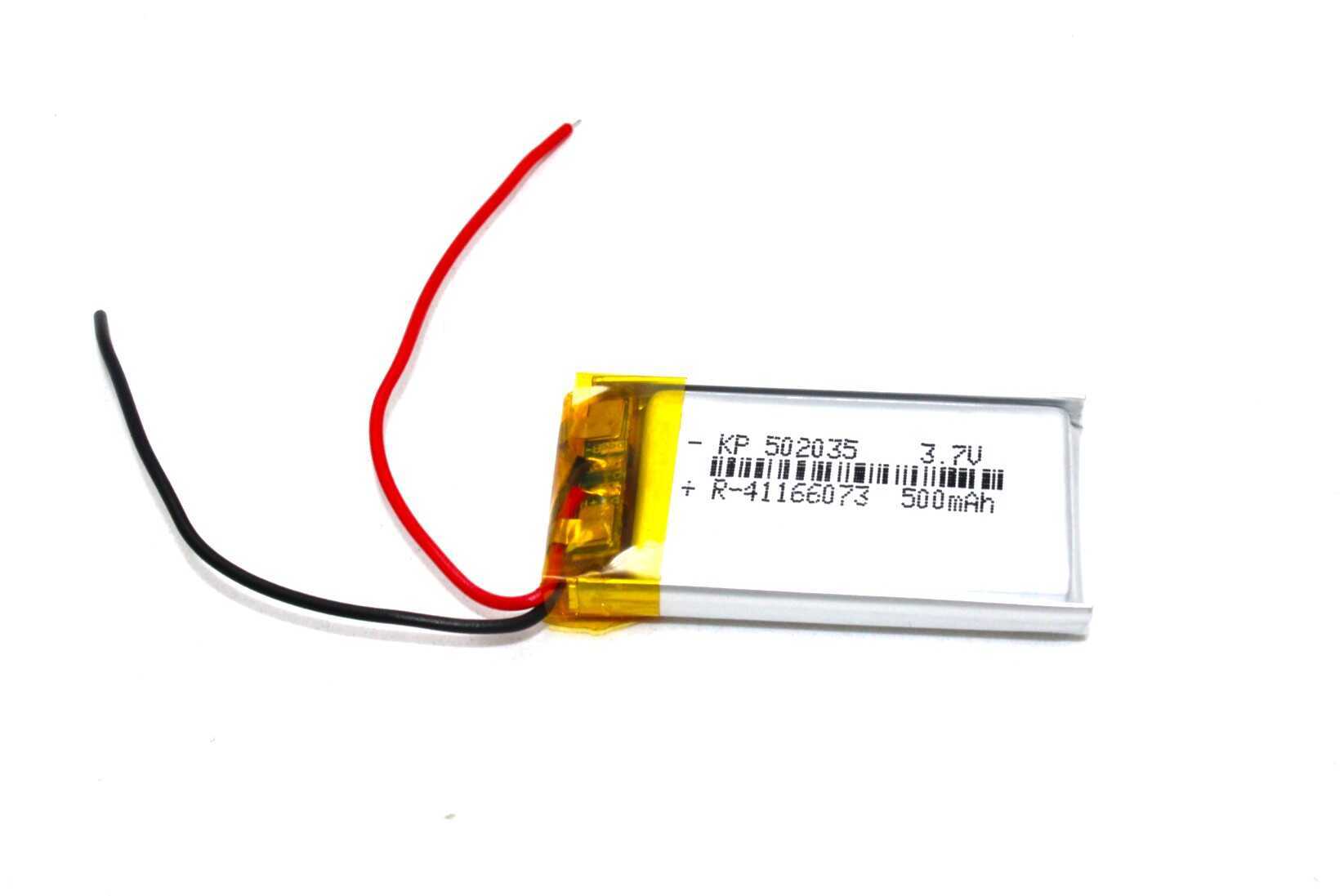

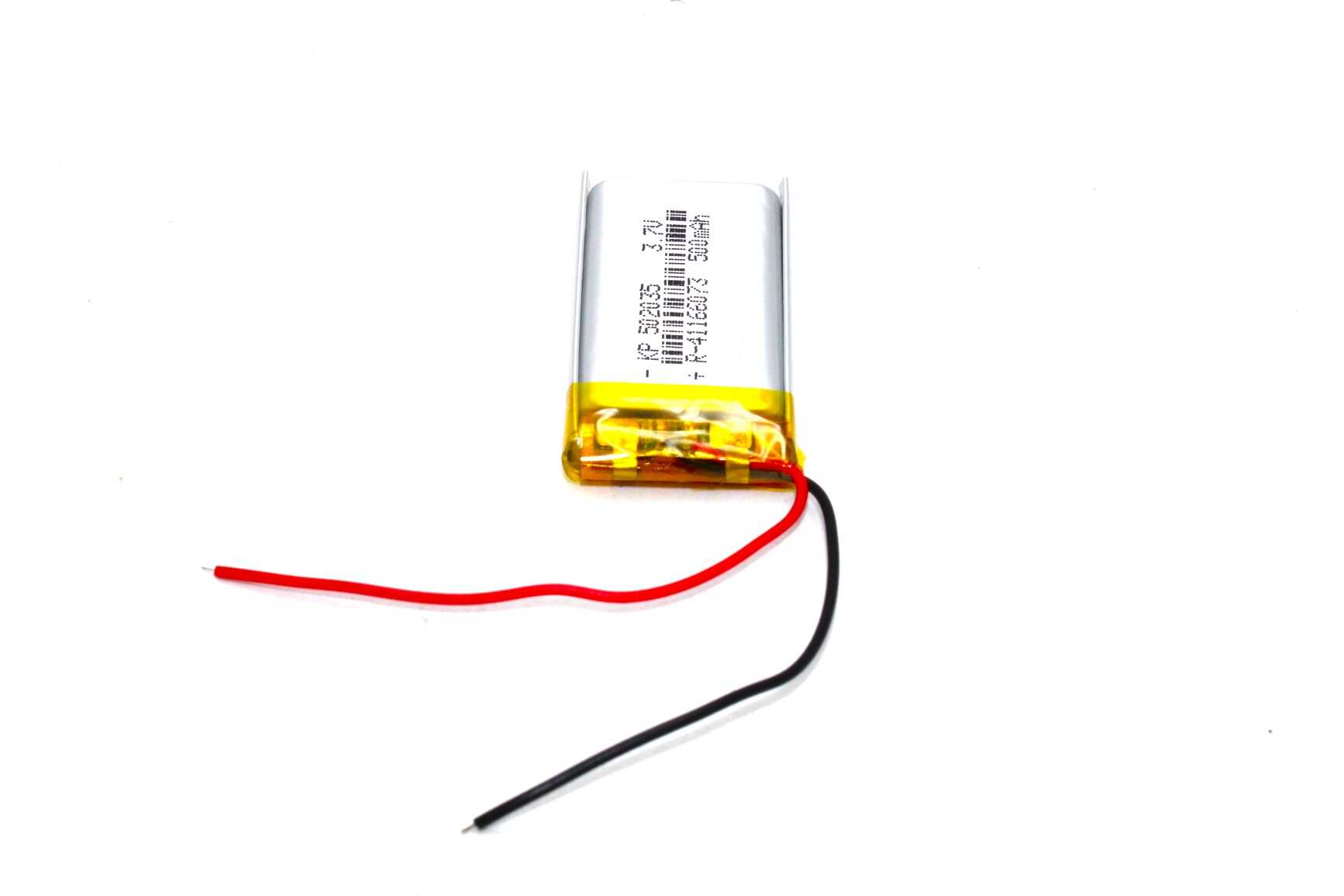

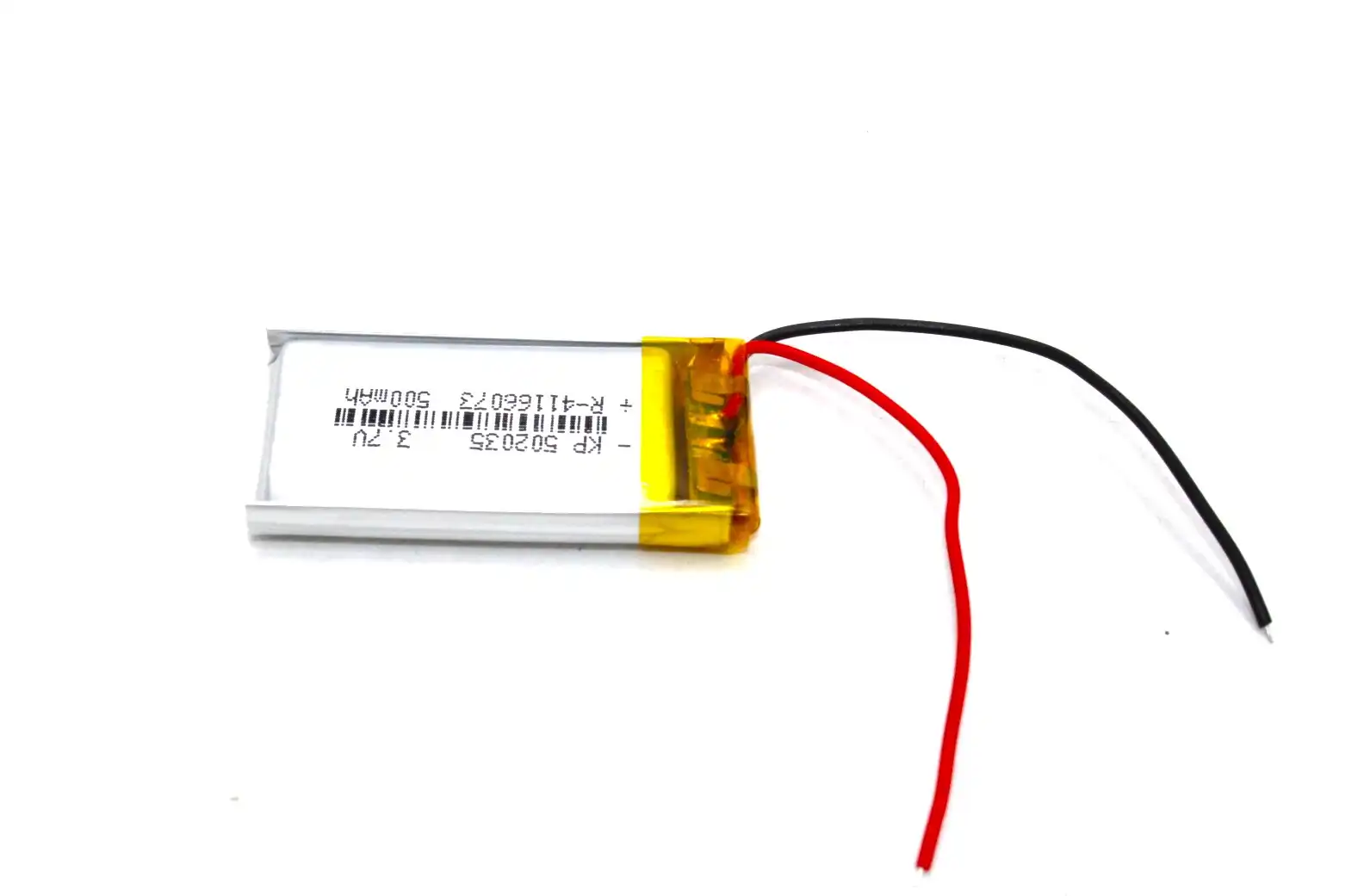

502035 3.7V 500mAh Lithium Polymer (LiPo) Rechargeable Battery
Product Description:
Discover the compact and efficient 502035 3.7V Lithium Polymer (LiPo) rechargeable battery, designed to provide a reliable power source for your electronic devices. With a capacity of 500mAh, this lightweight battery is perfect for applications such as wearable tech, drones, and other portable electronics. The 502035 LiPo battery excels in delivering consistent performance, making it an excellent choice for developers and enthusiasts alike.
Technical Specifications:
- Model Number: 502035
- Type: Lithium Polymer (LiPo)
- Nominal Voltage: 3.7V
- Capacity: 500mAh
- Dimensions:
- Length: 40 mm
- Width: 21 mm
- Height: 5.2 mm (thickness)
- Weight: Approximately 15 grams
- Discharge Rate: 1C (maximum continuous)
- Charge Rate: Up to 1C (maximum)
- Charging Voltage: 4.2V ± 0.05V
- Discharge Cut-off Voltage: 3.0V
- Cycle Life: Approximately 300-500 cycles (dependent on charge/discharge practices)
- Connector Type: JST connector (custom options available on request)
- Operating Temperature Range:
- Charge: 0°C to 45°C
- Discharge: -20°C to 60°C
- Storage Conditions: Store at 40-60% charge in a cool, dry place for optimal performance.
- Safety Features:
- Overcharge protection
- Over-discharge protection
- Short-circuit protection
- Thermal protection systems
Application Areas:
- Wearable devices (fitness trackers, smart jewelry)
- Internet of Things (IoT) applications
- Portable consumer electronics (smart speakers, remote controls)
- Robotics and electronic DIY projects
- Medical devices (portable monitoring systems)
Package Includes:
- 1 x 502035 500mAh 3.7V LiPo Battery
Fast Charging Explained: QC, PD, and VOOC Standards
Table of ContentsFast Charging Standards Overview Qualcomm Quick Charge (QC) USB Power Delivery (PD) VOOC and Proprietary Standards...
Read More →
Charging Profile Stages: CC CV Float for Lead Acid Battery Explained
Charging Profile Stages: CC CV Float for Lead Acid Battery Explained Whether you are building a solar charge...
Read More →
Solar Charge Profile: Absorb, Float, and Equalize
Understanding the solar charge profile -- absorb, float, and equalise stages -- is essential for correctly configuring solar...
Read More →Technical Specifications
| Brand | KP |
|---|---|
| Battery Capacity | 500mAh |
| Interface / Protocol | BLE |
| SKU | AI6797 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The KP Original 502035 500mAh 3.7Vsingle cell Rechargeable LiPo Battery is a versatile single cell micro lipo battery used across a wide range of applications including FPV drones, RC vehicles, portable electronics, robotics, and airsoft guns.
Common use cases:
- Powering an FPV racing drone
- Running a high-current RC car
- Portable power for field robotics
This product is ideal for drone pilots, RC enthusiasts, and robotics builders.
Technical Tip: Never discharge below 3.5V per cell. Store at 3.8V per cell. Always use a balance charger and never leave charging unattended. Use a LiPo bag for safety.
