Looking for Kp Original 501235 Battery? KP Original 501235 350mAh 3.7Vsingle cell Rechargeable LiPo Battery is available at Zbotic with fast shipping across India.

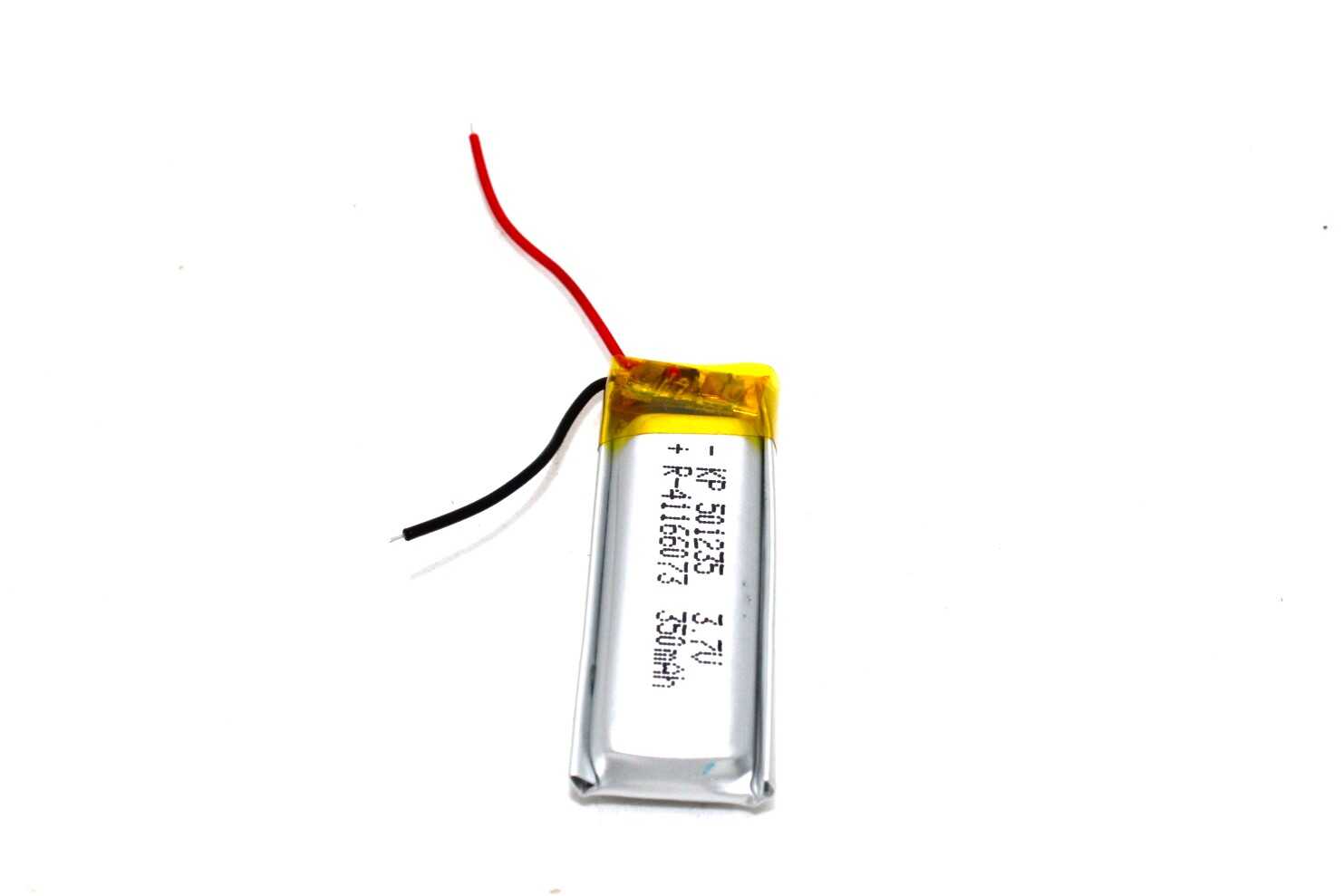

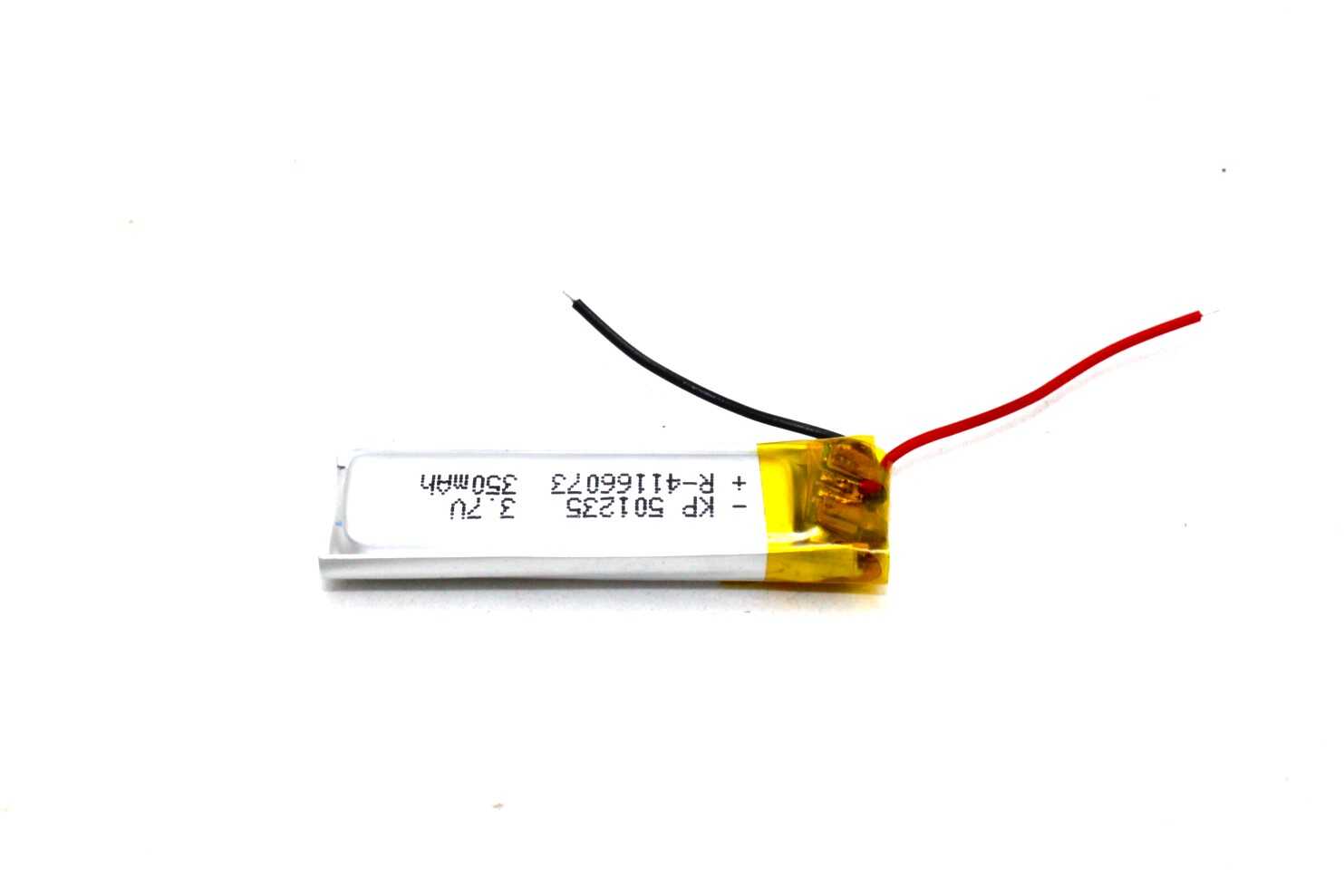

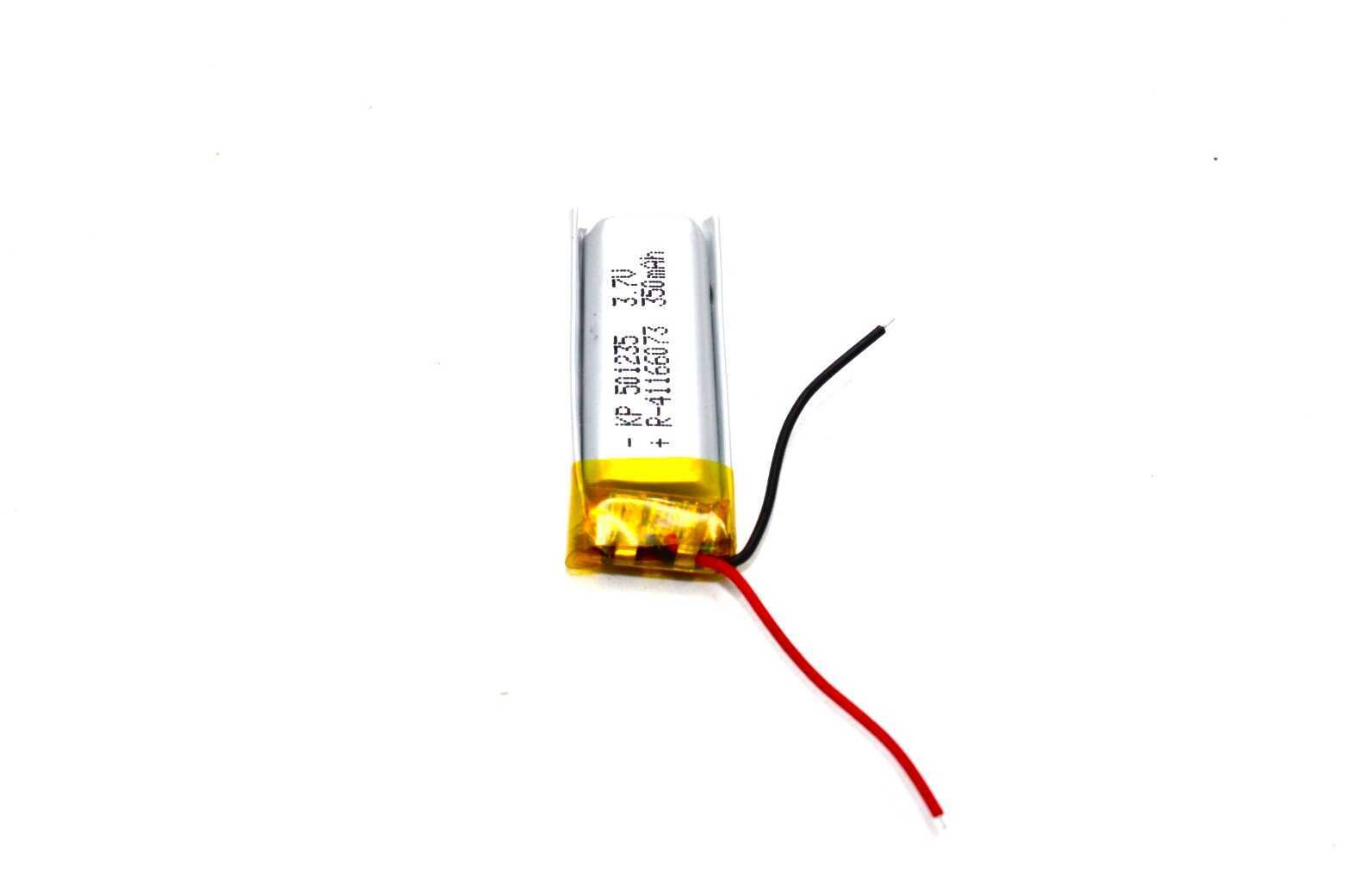

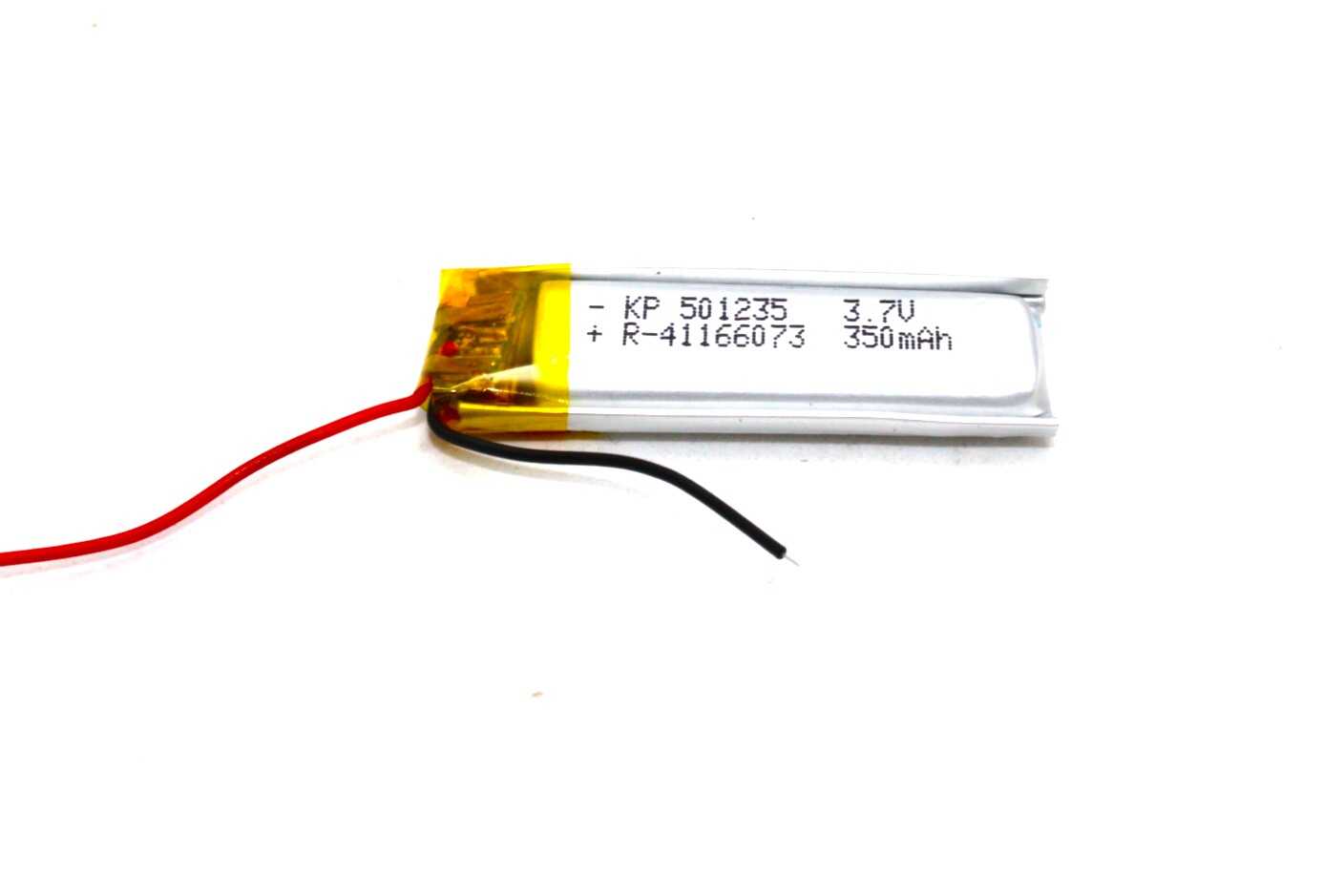

KP Original 501235 350mAh 3.7Vsingle cell Rechargeable LiPo Battery
Product Description:
The 501235 3.7V Lithium Polymer (LiPo) rechargeable battery is a compact and efficient power source designed for various applications. Offering a capacity of 350mAh, this battery is particularly well-suited for small electronics, wearables, and IoT devices. With excellent performance, reliability, and safety features, the 501235 LiPo battery enhances the functionality of your electronic projects.
Technical Specifications:
- Model Number: 501235
- Type: Lithium Polymer (LiPo)
- Nominal Voltage: 3.7V
- Capacity: 350mAh
- Dimensions:
- 37mm x 13mm x 5.0mm (L.B.H.)
- Weight: Approximately 15 grams
- Discharge Rate: 1C (maximum continuous)
- Charge Rate: Up to 1C (maximum)
- Charging Voltage: 4.2V ± 0.05V
- Discharge Cut-off Voltage: 3.0V
- Cycle Life: Approximately 300-500 cycles (based on usage and care)
- Connector Type: JST or other custom connector options available
- Operating Temperature Range:
- Charge: 0°C to 45°C
- Discharge: -20°C to 60°C
- Storage Conditions: Recommend storing at 40-60% charge in a cool, dry environment to optimize battery life.
- Safety Features:
- Overcharge protection
- Over-discharge protection
- Short-circuit protection
- Integrated thermal protection
Application Areas:
- Wearable devices (fitness bands, smartwatches)
- Wireless audio products (Bluetooth earpieces, speakers)
- Remote-controlled devices and drones
- Small electronic gadgets and sensors
- Internet of Things (IoT) solutions
Package Includes:
- 1 x KP Original 501235 350mAh 3.7Vsingle cell Rechargeable LiPo Battery
KP Original 501235 350mAh 3.7Vsingle cell Rechargeable LiPo Overview
The KP Original 501235 is a single-cell 3.7V lithium polymer (LiPo) rechargeable battery offering 350mAh of capacity in a compact 37×13×5mm form factor. Designed for lightweight power applications, it delivers reliable energy for microelectronics, wearables and low-power IoT devices.
Key Features of KP Original 501235 350mAh 3.7Vsingle cell Rechargeable LiPo
- Nominal voltage: 3.7V for consistent voltage output
- 350mAh capacity to run small electronics for extended periods
- Ultra-compact dimensions (37×13×5mm) and lightweight (~15g)
- 1C continuous discharge rate (maximum 350mA draw)
- Lithium Polymer chemistry ensures high energy density
- Genuine KP Original battery with fast shipping from Zbotic across India
Applications and Use Cases
- Arduino, ESP8266/ESP32 and other microcontroller development boards
- Wearable devices like fitness trackers and health monitors
- Portable IoT sensor nodes for home automation and environmental monitoring
- Small Bluetooth beacons, RFID tags and wireless peripherals
- Lightweight robotics modules and micro drones with low current draw
- Handheld prototypes such as digital thermometers or mini cameras
How to Use KP Original 501235 350mAh 3.7Vsingle cell Rechargeable LiPo
Connect the 501235 cell to a compatible 1-cell LiPo charger that supports CC/CV charging up to 4.2V, setting the charge current to 350mA or below. Observe polarity markings when wiring to your device or protection circuit, avoid deep discharge below 3.0V, and store the battery at around half charge if unused for extended periods.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum continuous current this battery can supply?
The KP 501235 is rated at a 1C discharge rate, meaning it can continuously deliver up to 350mA without damage under normal operating conditions.
Which charger should I use for safe charging?
Use any 1-cell LiPo charger with CC/CV profile up to 4.2V. Set the charging current to 350mA or lower to match the battery’s capacity and monitor the process to prevent overcharge.
Does the 501235 LiPo include built-in protection?
No, this model is a bare LiPo pouch cell without an integrated protection circuit. For safety, pair it with an external protection board or use a charger that provides overcharge, over-discharge and short-circuit safeguards.
Battery Calendar Aging: How Storage Affects Capacity
Table of ContentsWhat Is Calendar Aging Temperature and Aging Relationship State of Charge and Storage Life Optimal Storage...
Read More →
Power Factor Meter: Measure and Display PF with Arduino
A power factor meter measures the phase relationship between voltage and current in AC circuits, revealing how efficiently...
Read More →
Grid Tied Inverter: Feed Solar Power to Grid India
A grid tied inverter converts DC solar power into AC electricity synchronised with the utility grid, allowing you...
Read More →Technical Specifications
| Brand | KP |
|---|---|
| Battery Capacity | 350mAh |
| Interface / Protocol | BLE |
| SKU | AI6773 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The KP Original 501235 350mAh 3.7Vsingle cell Rechargeable LiPo Battery is a versatile single cell micro lipo battery used across a wide range of applications including FPV drones, RC vehicles, portable electronics, robotics, and airsoft guns.
Common use cases:
- Powering an FPV racing drone
- Running a high-current RC car
- Portable power for field robotics
This product is ideal for drone pilots, RC enthusiasts, and robotics builders.
Technical Tip: Never discharge below 3.5V per cell. Store at 3.8V per cell. Always use a balance charger and never leave charging unattended. Use a LiPo bag for safety.
