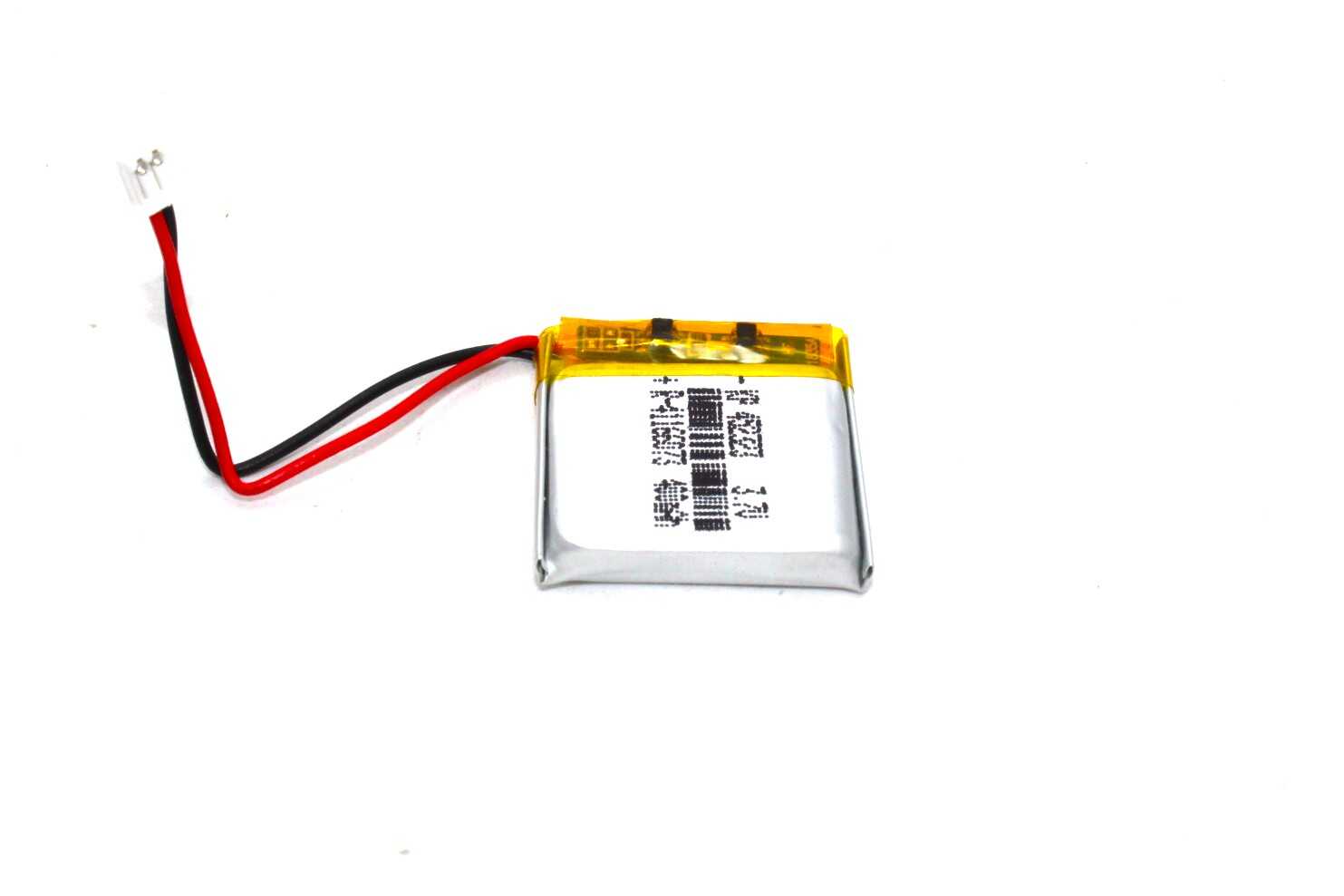

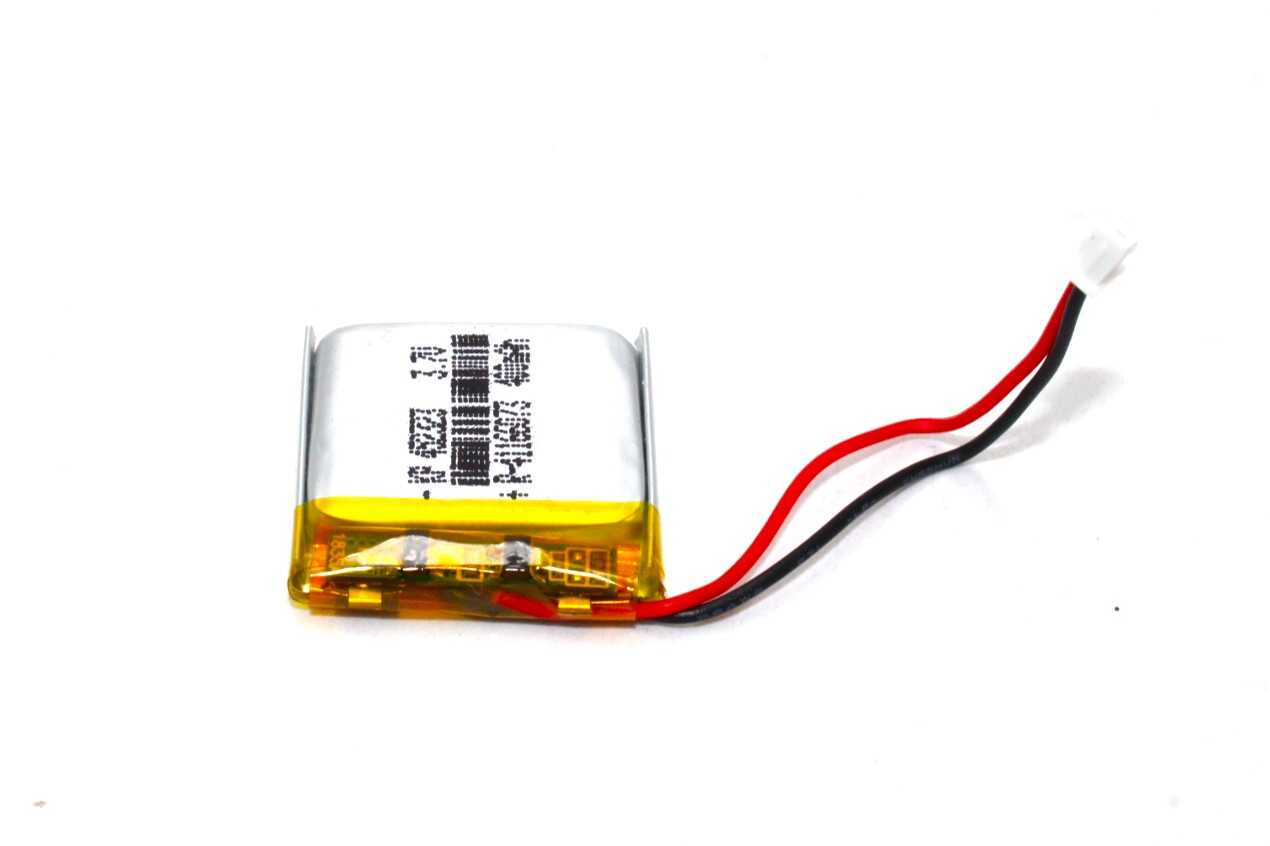

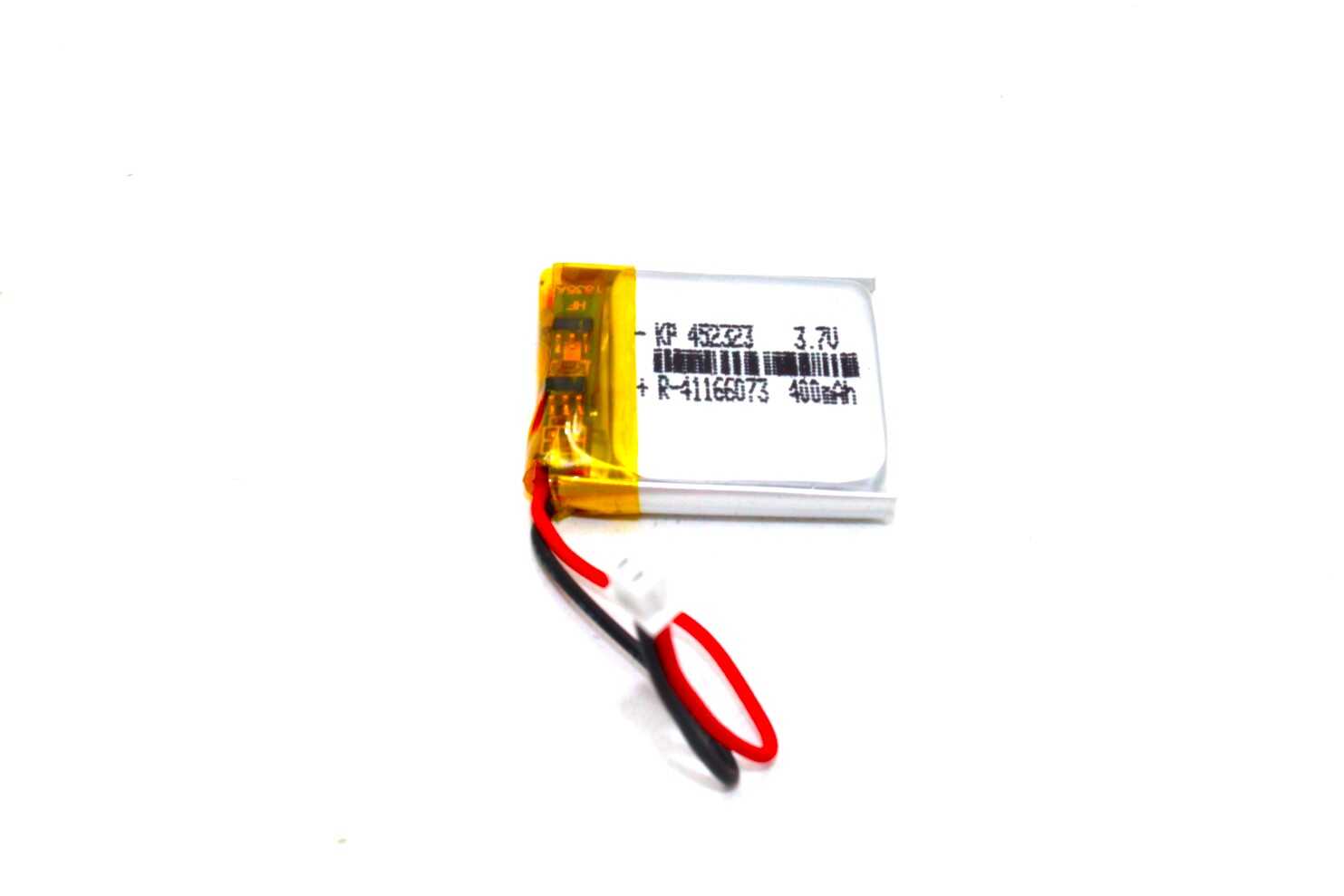

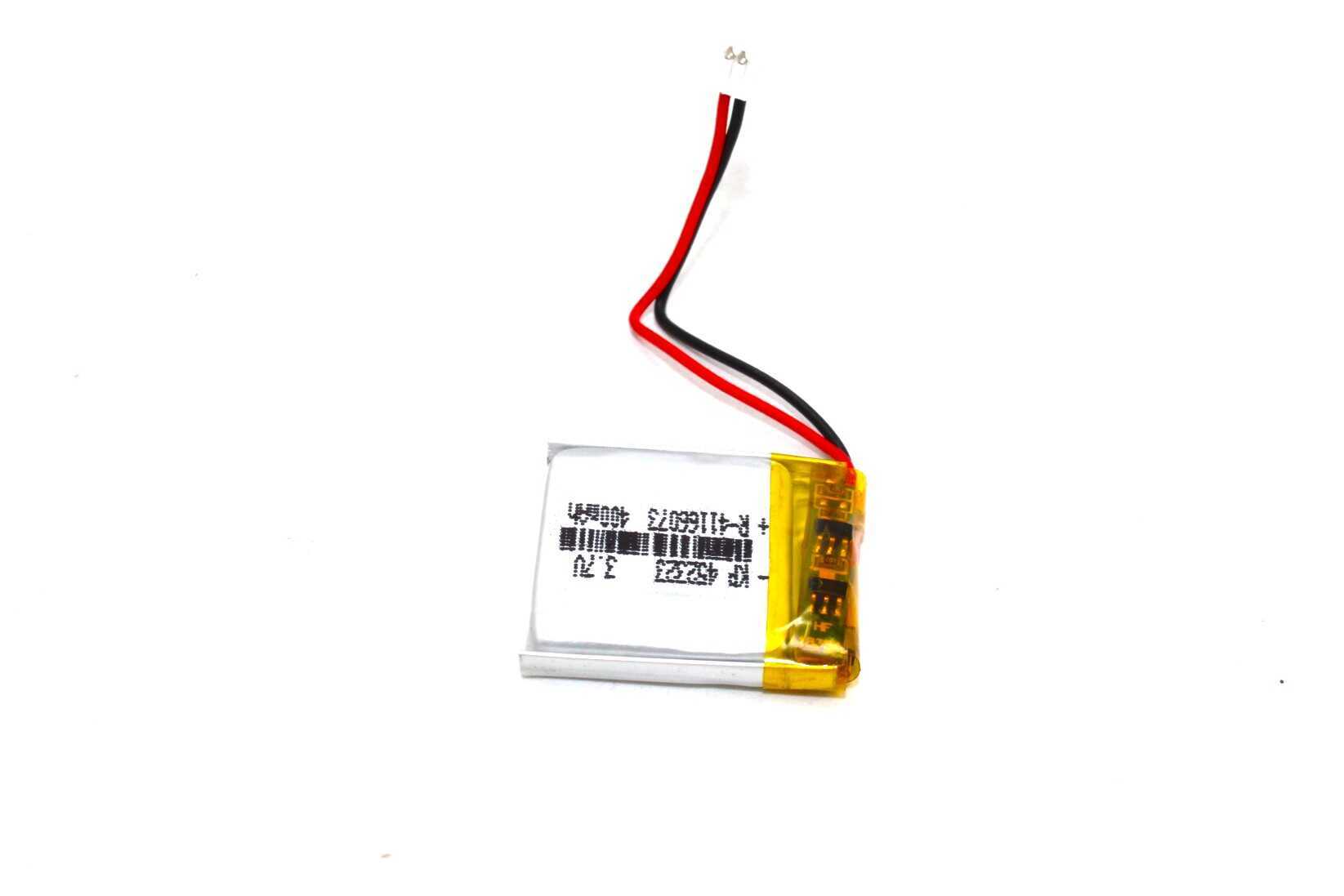

The 452323 3.7V Lithium Polymer (LiPo) rechargeable battery is designed to provide reliable and efficient power for a range of compact electronic applications. With a capacity of 400mAh, this lightweight battery is an ideal choice for wearables, remote devices, and various consumer electronics. Built with advanced safety features, it ensures long-lasting performance and reliability.
Technical Specifications:
- Model Number: 452323
- Type: Lithium Polymer (LiPo)
- Nominal Voltage: 3.7V
- Capacity: 400mAh
- Dimensions:
- Length: 25 mm
- Width: 23 mm
- Height: 5 mm (thickness)
- Weight: Approximately 15 grams
- Discharge Rate: 1C (maximum continuous discharge rate)
- Charge Rate: Up to 1C (maximum charge rate)
- Charging Voltage: 4.2V ± 0.05V
- Discharge Cut-off Voltage: 3.0V
- Cycle Life: Approximately 300-500 cycles (depends on usage conditions)
- Connector Type: JST or alternative connector options available
- Operating Temperature Range:
- Charge: 0°C to 45°C
- Discharge: -20°C to 60°C
- Storage Conditions: Store at 40-60% state of charge in a cool, dry location for optimal lifespan.
- Safety Features:
- Overcharge protection
- Over-discharge protection
- Short-circuit protection
- Thermal protection
Application Areas:
- Wearable technology (smartwatches, fitness trackers)
- Bluetooth audio devices (headsets, portable speakers)
- Small drones and RC devices
- Internet of Things (IoT) products
- Medical devices and handheld electronics
Package Includes:
- 1 x 452323 400mAh 3.7V LiPo Battery
Lithium Polymer vs Lithium Ion: Battery Tech Comparison for Makers
Table of Contents Understanding the Chemistry: Li-Po vs Li-ion Form Factor and Physical Differences Performance Comparison: Discharge Rate,...
Read More →
Thermoelectric Harvester: Power from Waste Heat
A thermoelectric harvester converts temperature differences into electrical energy using the Seebeck effect, enabling power generation from waste...
Read More →
Battery Capacity mAh vs Wh: Understanding the Difference Explained
Battery Capacity mAh vs Wh: Understanding the Difference Explained One of the most common points of confusion for...
Read More →Technical Specifications
| Brand | KP |
|---|---|
| Battery Capacity | 400mAh |
| Interface / Protocol | BLE |
| SKU | AI6776 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The KP Original 452323 400mAh 3.7Vsingle cell Rechargeable LiPo Battery is a versatile single cell micro lipo battery used across a wide range of applications including FPV drones, RC vehicles, portable electronics, robotics, and airsoft guns.
Common use cases:
- Powering an FPV racing drone
- Running a high-current RC car
- Portable power for field robotics
This product is ideal for drone pilots, RC enthusiasts, and robotics builders.
Technical Tip: Never discharge below 3.5V per cell. Store at 3.8V per cell. Always use a balance charger and never leave charging unattended. Use a LiPo bag for safety.
