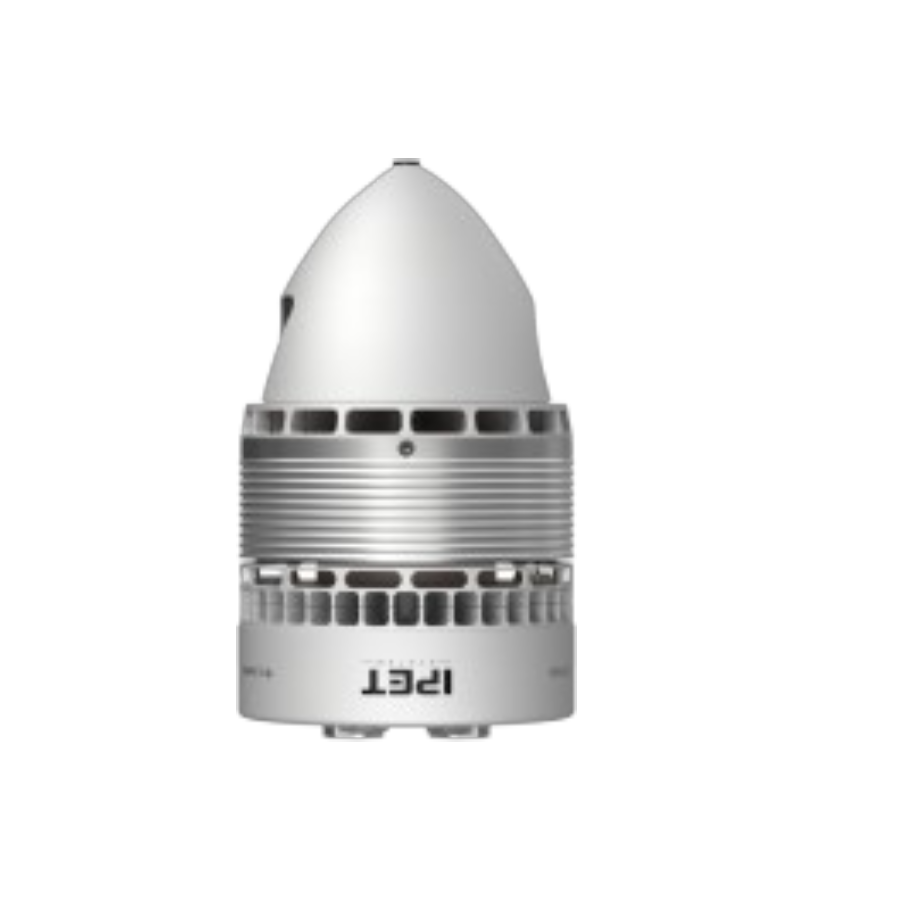

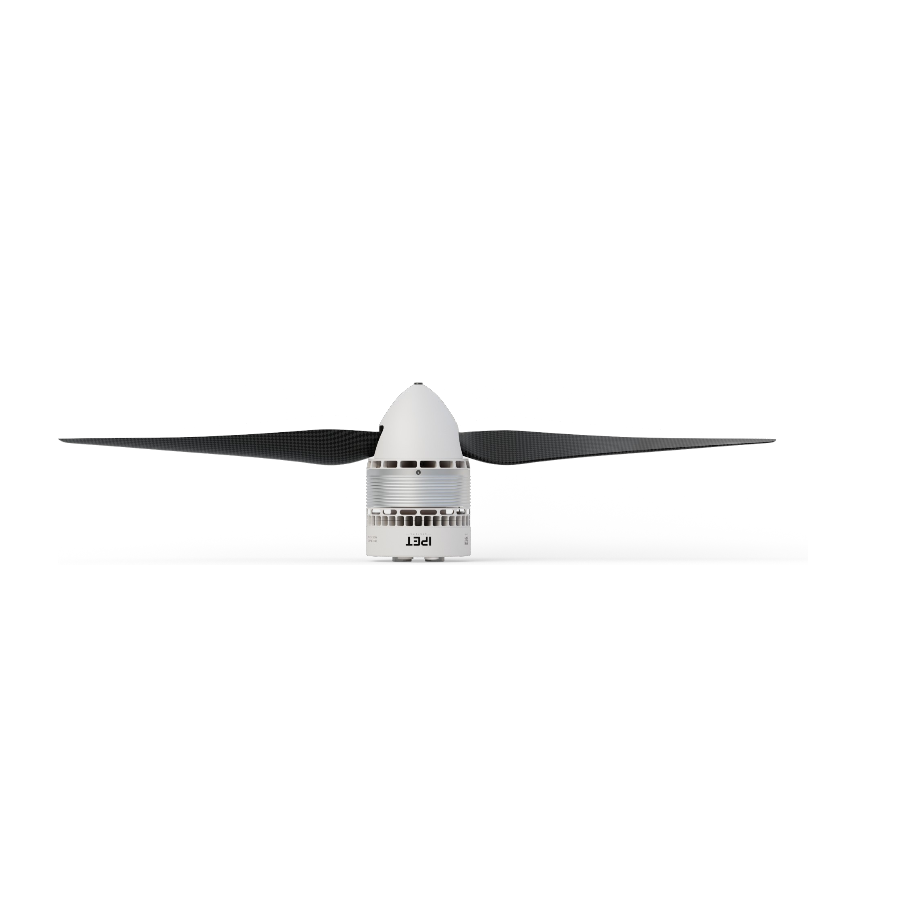

IPET IV7224 160KV Integrated Propulsion System (Made in Singapore)
Description:
The IPET IV7224 160KV Integrated Propulsion System is a high-efficiency integrated electric propulsion solution designed for fixed-wing and VTOL UAVs with 28–32 kg maximum take-off weight (MTOW). It combines a 160KV motor and a 14S 150A FOC ESC into a compact all-in-one unit, reducing wiring complexity, weight, and installation time. The system supports 12–14S LiPo batteries and delivers up to 6200W maximum power with 24×10, 24×12, or 22×10 propeller options. It features shared motor-ESC cooling channels, adaptive propeller locking, real-time health monitoring, and advanced safety protections for reliable long-endurance UAV operations. Developed by IPET System in Singapore.
Features:
- Integrated all-in-one propulsion design with motor and ESC combined into a compact unit.
- Designed for fixed-wing and VTOL UAVs with 28–32 kg maximum take-off weight (MTOW).
- High-efficiency 160KV motor paired with a 14S 150A FOC ESC for smooth and stable operation.
- Supports 12–14S LiPo batteries for high-power drone applications.
- Delivers up to 6200W maximum output power.

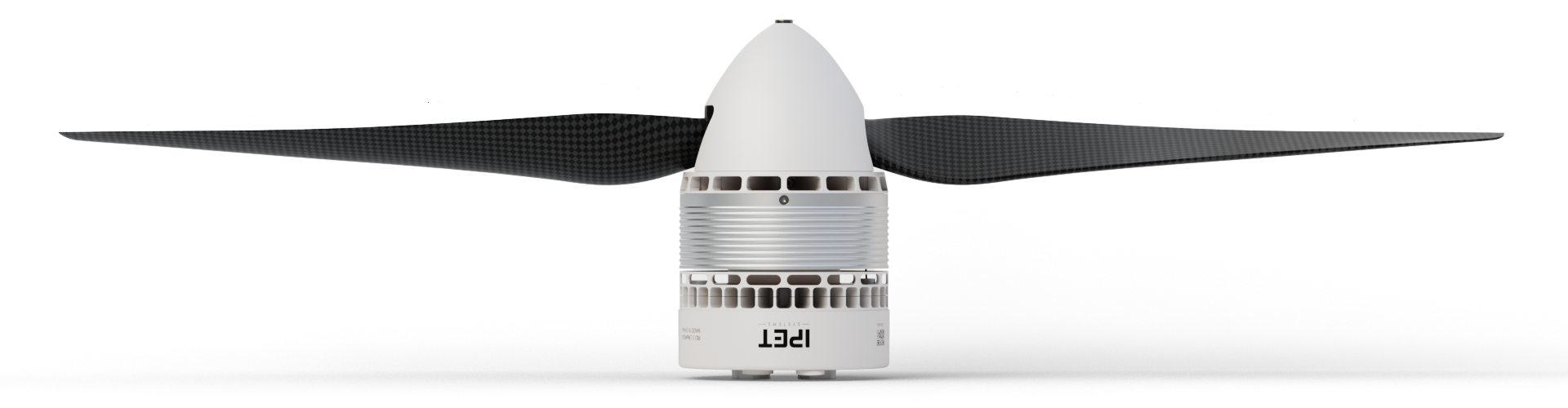

- Compatible with 24×10, 24×12, and 22×10 propeller options.
- Shared cooling channel design improves heat dissipation and continuous high-power performance.
- Adaptive propeller locking system helps prevent blade-ground contact and improves safety.
- Stainless-steel anti-loosening bolt structure enhances reliability and durability.
- Real-time monitoring of RPM, motor temperature, and system status using built-in sensors.
- Advanced protection against overcurrent, overtemperature, overvoltage, stalling, and throttle signal loss.
- Supports both PWM and CAN signal input for flexible UAV integration.
System Specs :
| Model No. | IV7 (7215) KV170 |
| Setup | IV7215 Motor+14S FOC IV150A ESC |
| Propeller | 22*10、19*12、20*10 |
| Voltage | 12~14S (LiPo) |
| Max. Continuous Power | 665W |
| Power Cables | Silicone wires-red/black-10AWG-1800mm |
| Signal wires | Shielded wire – black-OD4.2-5C-1200mm -JP-3P*2-black blank white-green yellow grey |
| Weight | 1100g±2% |
| IP | IPX5 |
| Recommended ambient temperature | -30℃～60℃ |
| Model No. | IV7 (7215) KV200 |
| Setup | IV7215 Motor+14S FOC IV150A ESC |
| Propeller | 19*12、20*10 |
| Voltage | 12S (LiPo) |
| Max. Continuous Power | 684W |
| Power Cables | Silicone wires-red/black-10AWG-1800mm |
| Signal wires | Shielded wire – black-OD4.2-5C-1200mm -JP-3P*2-black blank white-green yellow grey |
| Weight | 1100g±2% |
| IP | IPX5 |
| Recommended ambient temperature | -30℃～60℃ |

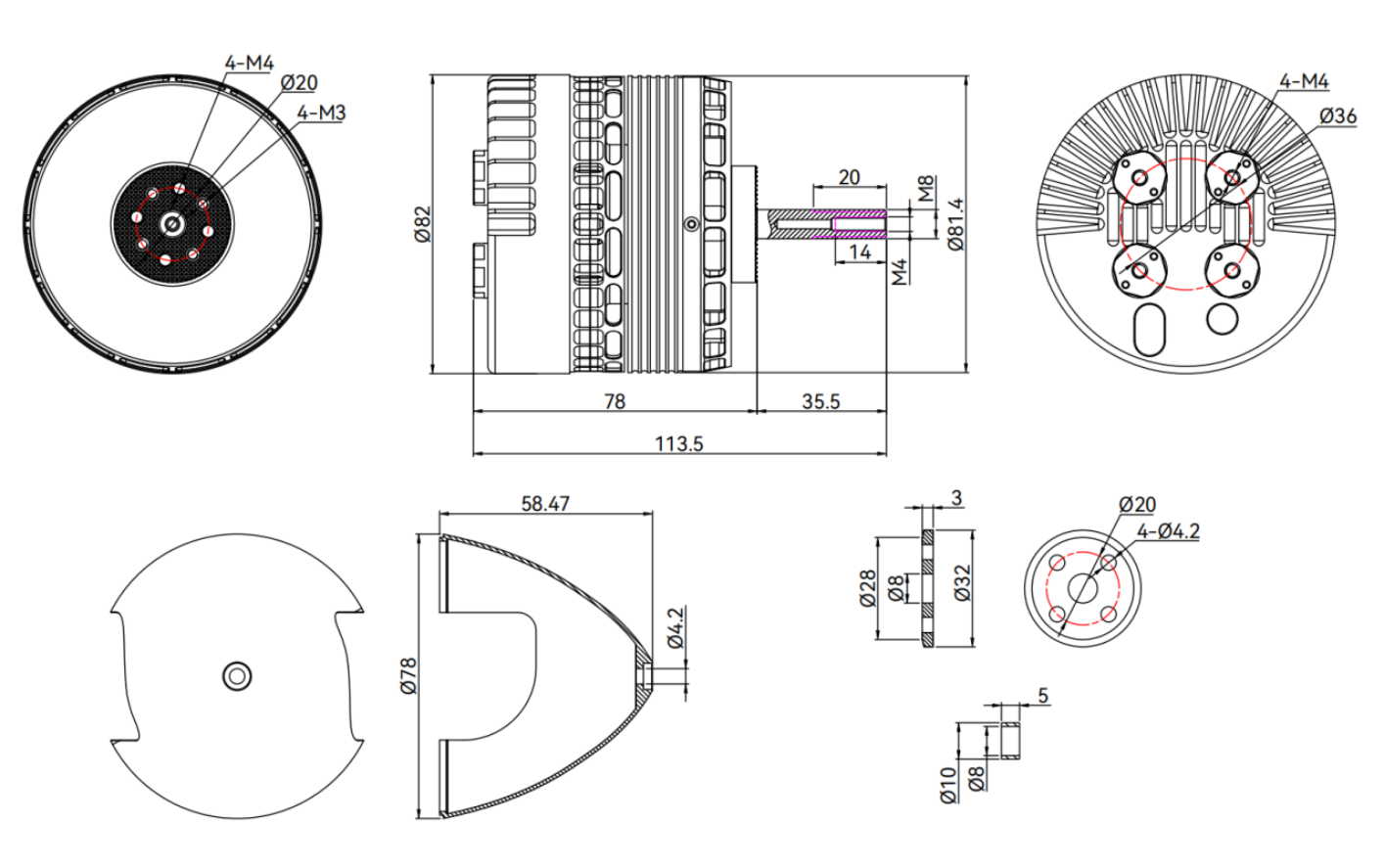

Motor Specs:
| Stator size | 72*15mm |
| KV | 170 |
| Stator size | 72*15mm |
| KV | 200 |
ESC Specs:
| Throttle Pos. Range | 1040~1940us (Fixed) |
| Protocol | DroneCAN、 UAVCAN |
| Control Method | PWM/CAN |
| Throttle Refresh Rate | 50-500Hz |
| Max. voltage | 60V |
| Peak Output Current(last for 3s) | 150A(Open environment with temperature ≤60℃) |
| BEC | No |
| Throttle Response Speed | 300ms |
Package Includes:
1xIPET IV7224 160KV Integrated Propulsion System (Made in Singapore)
