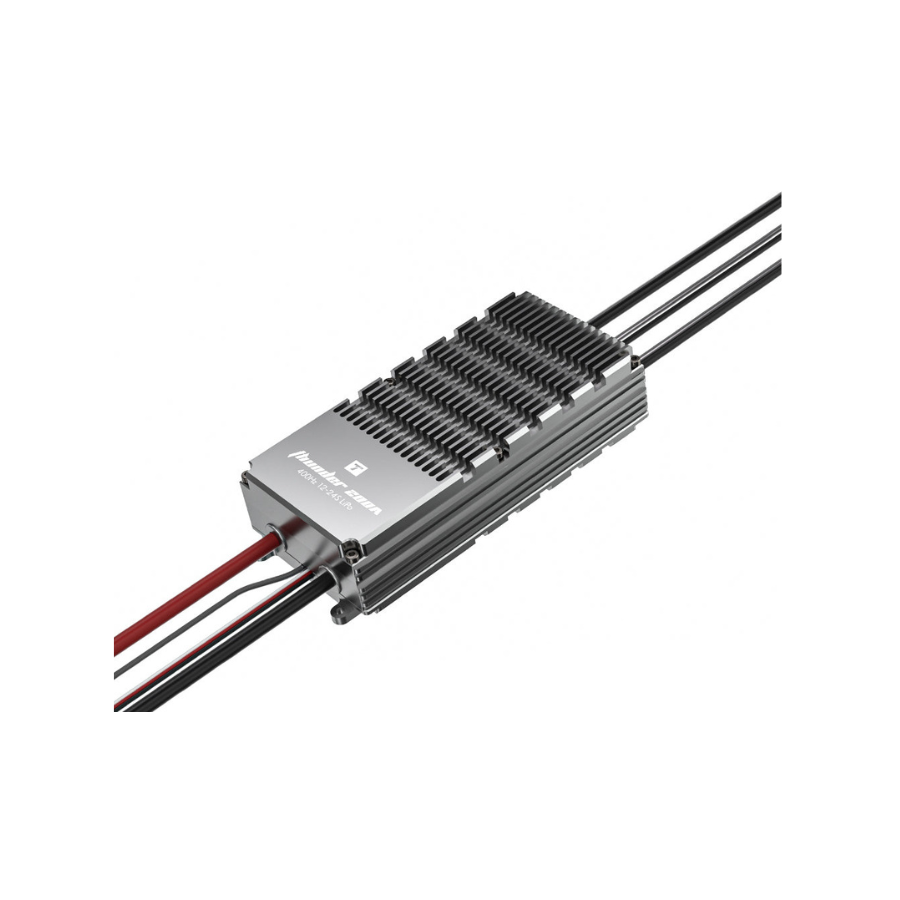

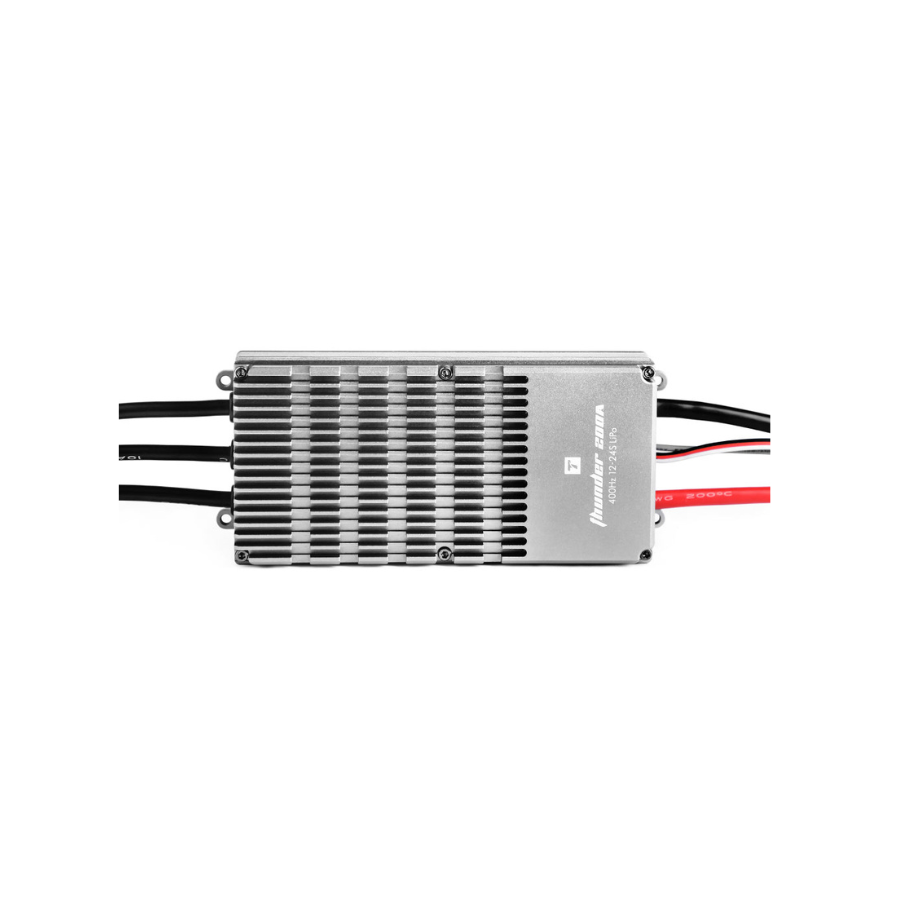

T-Motor Thunder 12~24S 200A High Power UAVs ESC
Description:
The T-Motor THUNDER 200A 24S is a flagship industrial ESC engineered for extreme heavy-lift UAV and VTOL applications. Featuring support for 12–24S LiPo batteries, 200 A continuous current, 300 A peak current, CAN/UART communication, IP54 protection, and advanced thermal management, it delivers exceptional power, reliability, and efficiency for professional drone propulsion systems.
Key Features:
- Supports 12S–24S LiPo batteries (up to 104.4 V)
- Delivers 200 A continuous current
- Handles 300 A peak current
- Designed specifically for high-power heavy-lift drones
- Full-metal industrial aluminum housing
- Multi-MOSFET parallel drive technology for lower heat generation
- Stacked thermal design for superior cooling performance
- Supports PWM, CAN, and UART-TTL data feedback
- Shielded cables for excellent anti-interference performance
- Power-on self-test function
- Overvoltage protection
- Overcurrent protection
- Overtemperature protection
- Throttle signal loss protection
- IP54 waterproof and dustproof design
- Optional IP67 customization
- Compatible with electric propeller locking systems
- Rigorously tested under high-voltage and full-power load conditions.
Applications:
- Heavy-Lift Multirotor Drones
- Cargo Delivery UAVs
- Large Agricultural Spraying Drones
- Logistics and Transportation Drones
- Industrial Inspection UAVs
- Large VTOL Aircraft
- Long-Endurance UAV Systems
- Professional Commercial Drone Platforms
- Research and Development UAVs.
Specifications:
| Parameter | Specification |
|---|---|
| Model | THUNDER 200A 24S |
| ESC Type | High-Power Industrial UAV ESC |
| Input Voltage | 12S–24S LiPo (60–100 V, Max. 104.4 V) |
| Continuous Current | 200 A |
| Peak Current | 300 A |
| Control Protocol | PWM, CAN, UART-TTL (Optional) |
| PWM Frequency | 400 Hz |
| Waterproof Rating | IP54 (Optional IP67 Customization) |
| Weight | 620 ± 10 g |

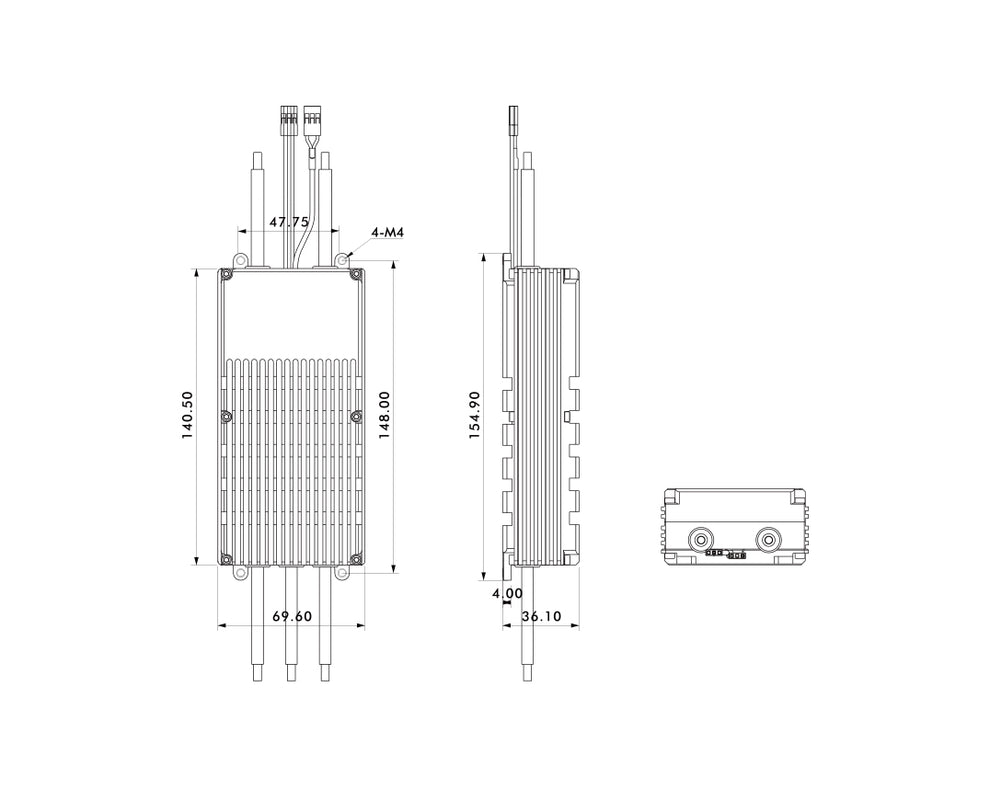

| Dimensions (L × W × H) | 154.9 × 69.6 × 36.1 mm |
| Housing Material | Full Metal Industrial Aluminum Alloy |
| Cooling Method | Stacked Aluminum Heat Dissipation Structure |
| Operating Temperature | -20°C to +65°C |
| Protection Functions | Overvoltage, Overcurrent, Overtemperature, Throttle Signal Loss, Power-on Self-Test |
| Application Type | Heavy-Lift Multirotors, VTOL Aircraft, Industrial UAVs |
Package Includes:
- 1 x Thunder 12~24S 200A UAV ESC
- 1 x Accessories kit
