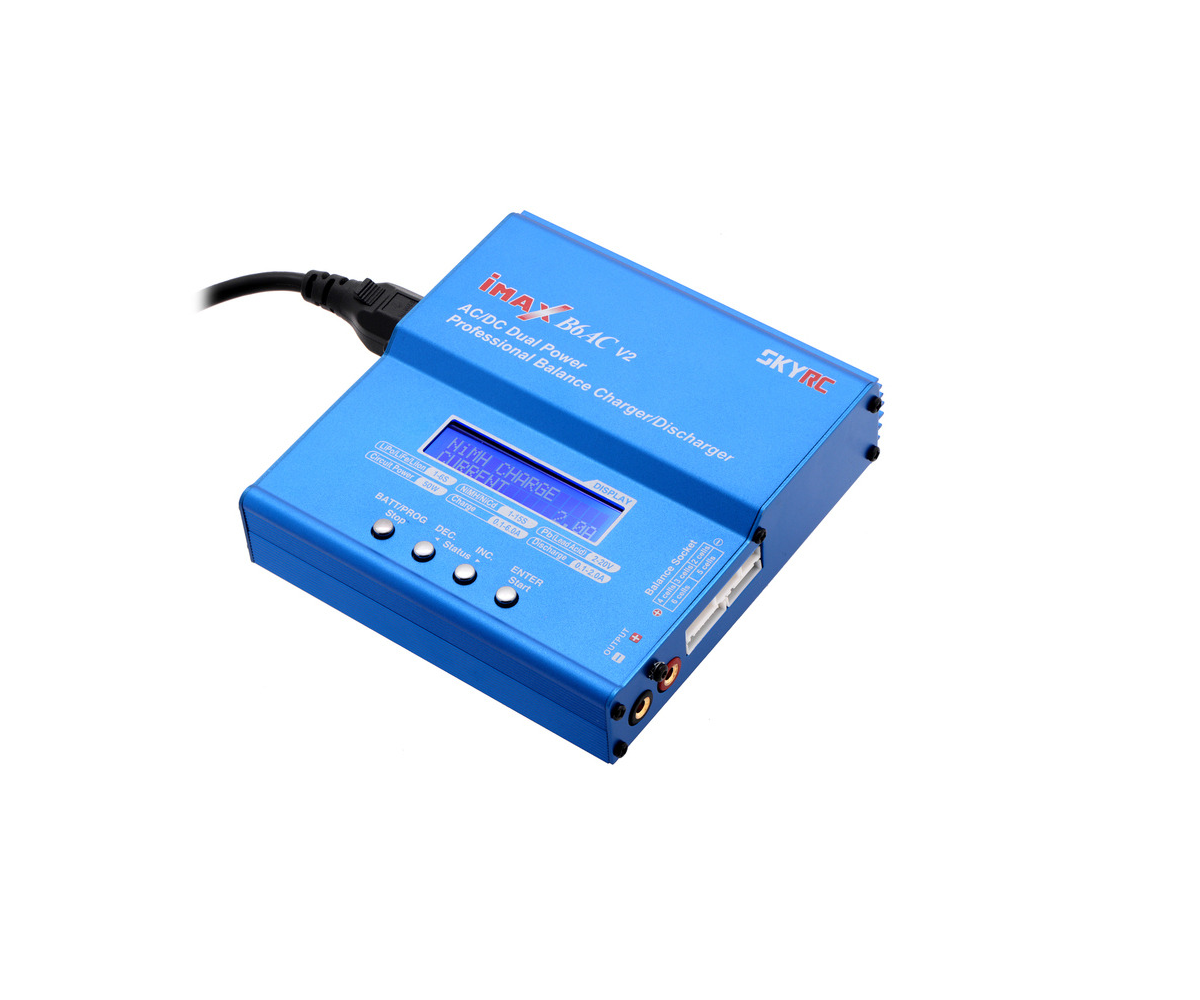

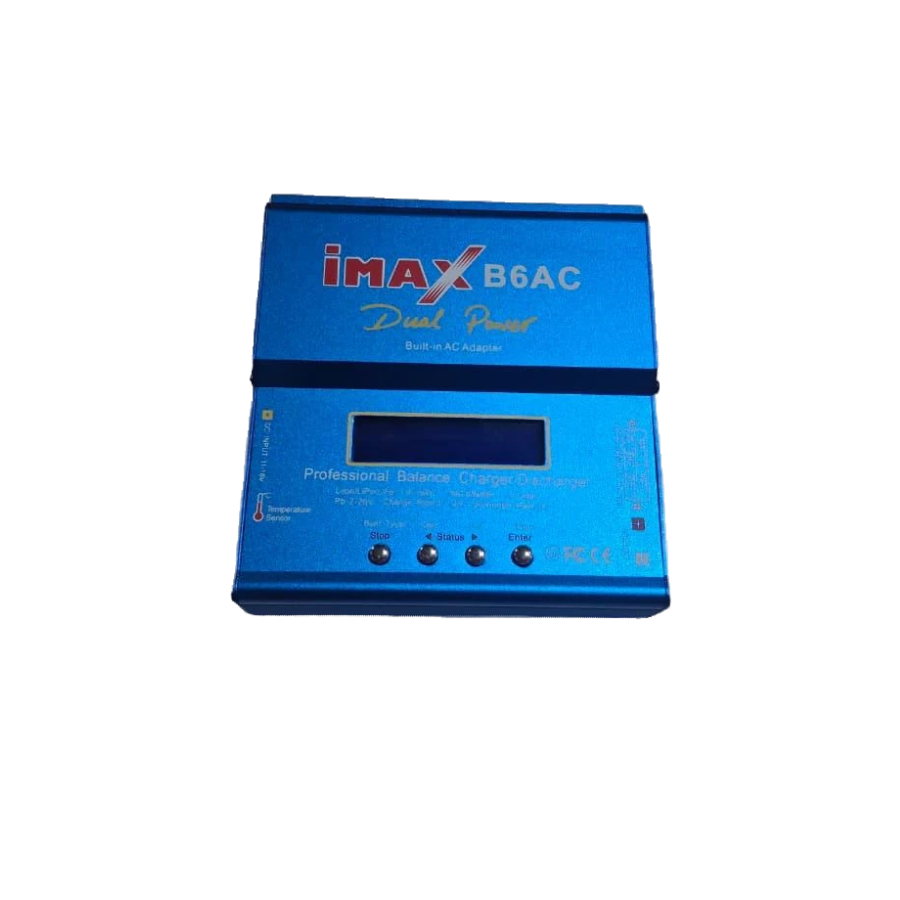

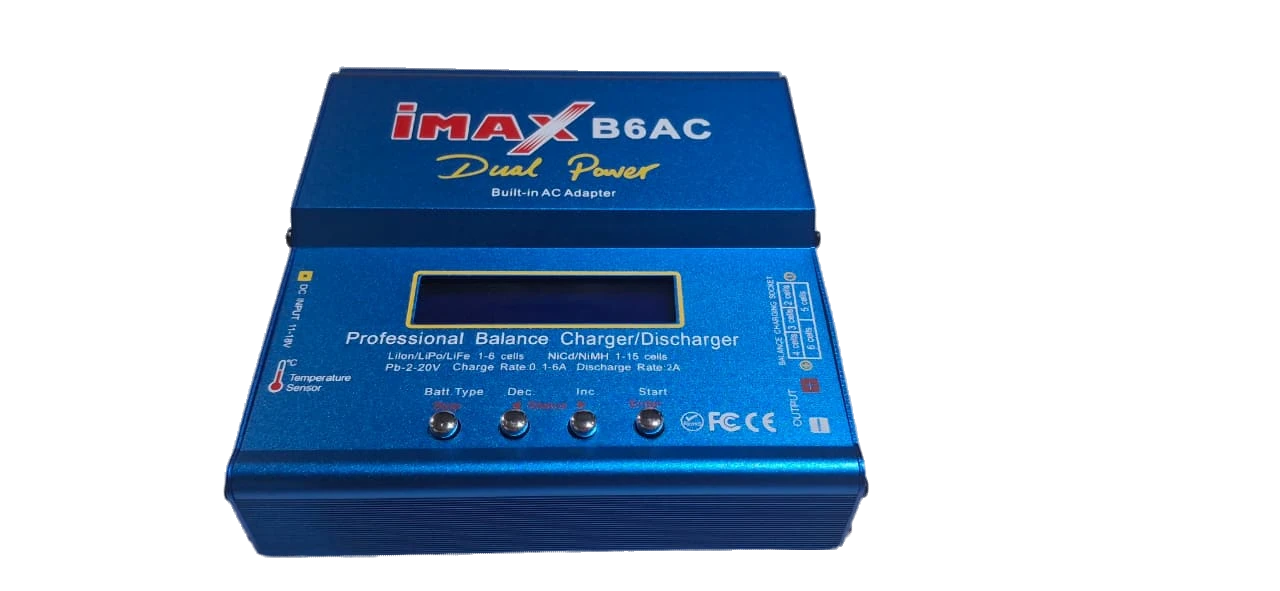

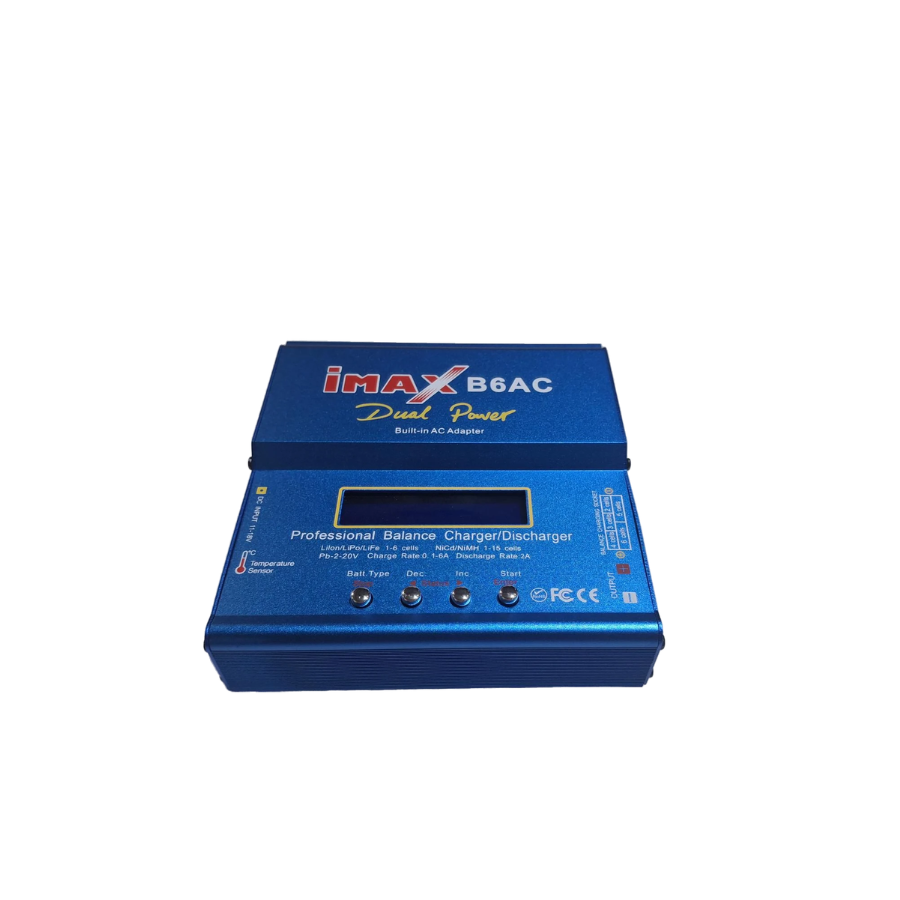

IMAX B6AC Charger/Discharger 1-6 Cells
The iMAX-B6AC can charge and discharge NiMH, NiCd, Pb, LiPo, Li-ion, and LiFe batteries with individual cell balancing for up to 6 lithium cells. It features a built-in adapter that can be powered from 100–240 VAC, or it can alternatively be powered via an 11–18 VDC input. With its versatile charging capabilities and advanced features like input power monitoring, delta-peak sensitivity, cyclic charging and discharging, and more, the iMAX-B6AC is a great addition to the workbench of any RC, DIY, or robot enthusiast. This is not a genuine iMAX B6. It is a copy charger offered at a lower price.
Note:

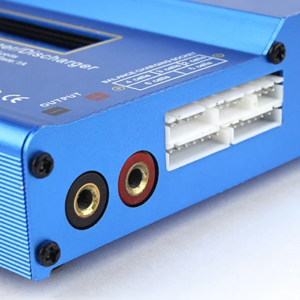

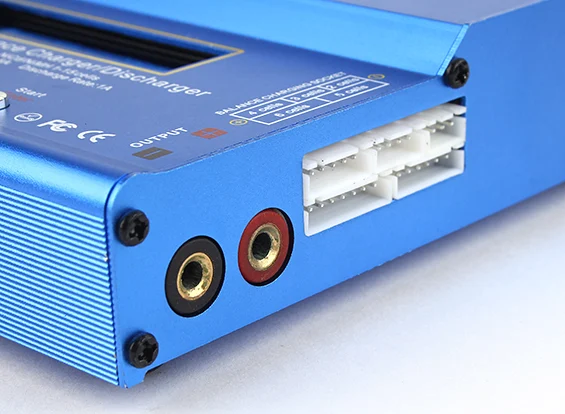

- This charger has a JST-XH charge plug, which makes it compatible with Zippy, HXT, TURNIGY, and any pack with a JST adapter. This package does not include a JST-XH connector
- This is a copy of the original charger, It may differ in some features than the original charger and data provided in the product datasheet in the attachment.
Features:

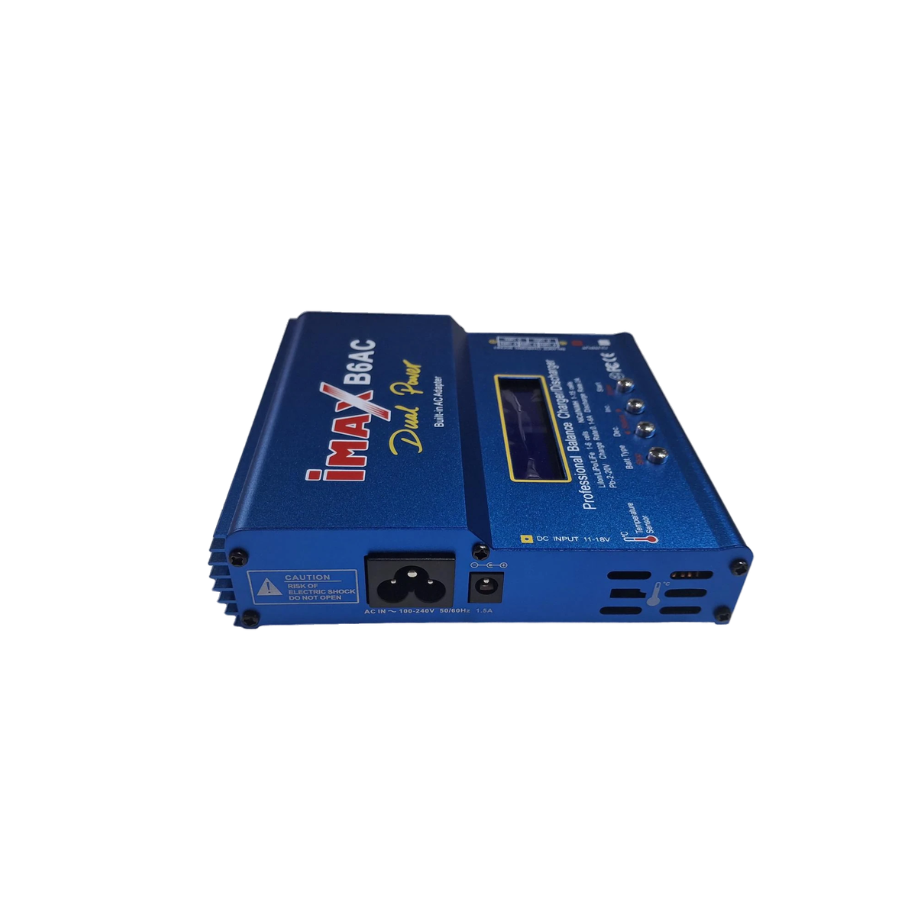

- AC 100~240v or 12V DC input
- The cables come with a fitted fuse.
- Microprocessor controlled
- Li-ion, LiPo, and LiFe capable
- Input voltage monitoring. (Protects car batteries at the field)
- Battery break-in and cycling feature
- Data storage (Store up to 5 packs in memory)
- Internal resistance checker to see pack health
- Delta-peak sensitivity
- Individual cell balancing
- EU Plug to IEC C13 which is used in devices such as ac adapters, digital cameras, camcorders, monitors, printers, Direct TV and more!
-

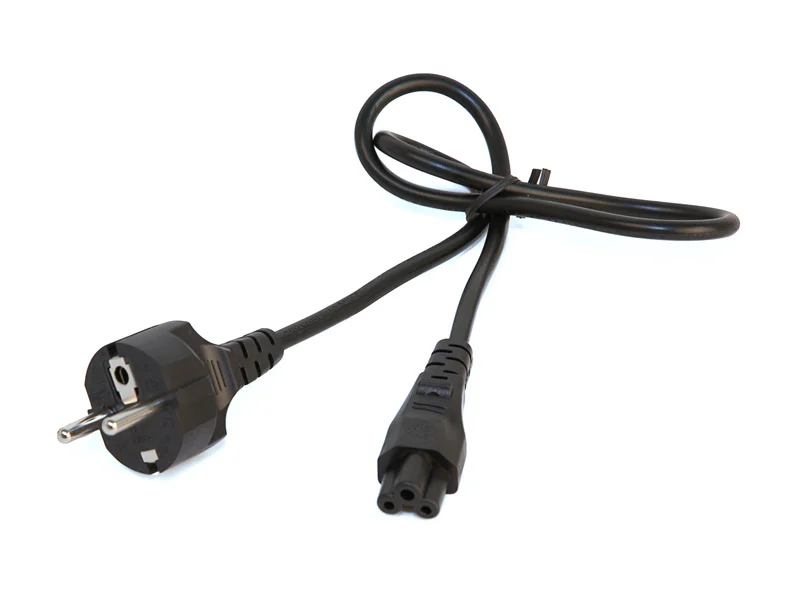

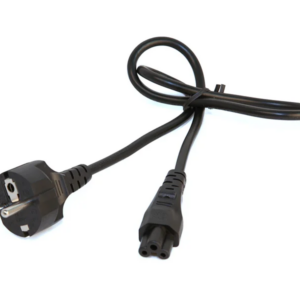

Power Supply Cord Details:
- Total length: 1 meter.
- Voltage : 100 – 250 VAC
- Current : 2.5A Max.
- Plug Type: 1. Female End Type: IEC(To Charger)
2. Male End Type: EU plug (To Power Distribution Board).
Specification:
| DC Input Voltage Range (V) | 11 ~ 18 |
|---|---|
| Charge Current Range (A) | 0.1 ~ 5 |
| Dischage Current Range (A) | 0.1 ~ 1.0 |
| Drain Current for Balancing Li-Po’s (mA/Cell) | 300 |
| Li-ion/Po cell count | 1 ~ 6 |
| NiCd/NiMH cell count | 1 ~ 15 Cells |
| Pb battery voltage | 2 ~ 20 |
| Dimensions (mm) LxWxH | 133 x 87 x 33 |
| Weight (g): | 624 |
| Power | Discharge: 80w(new version) Charge: 10W(new version) |

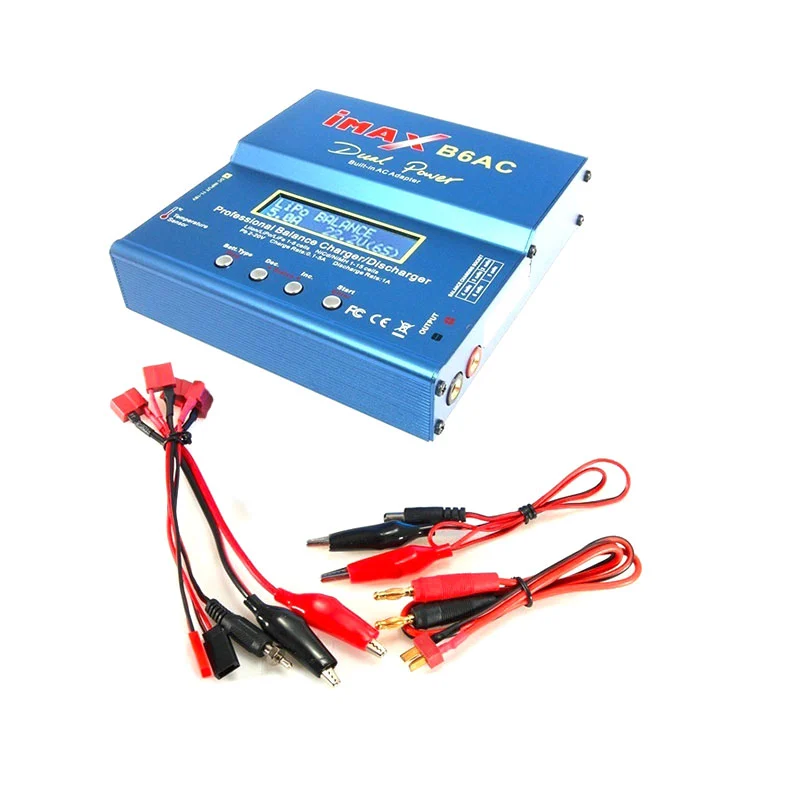

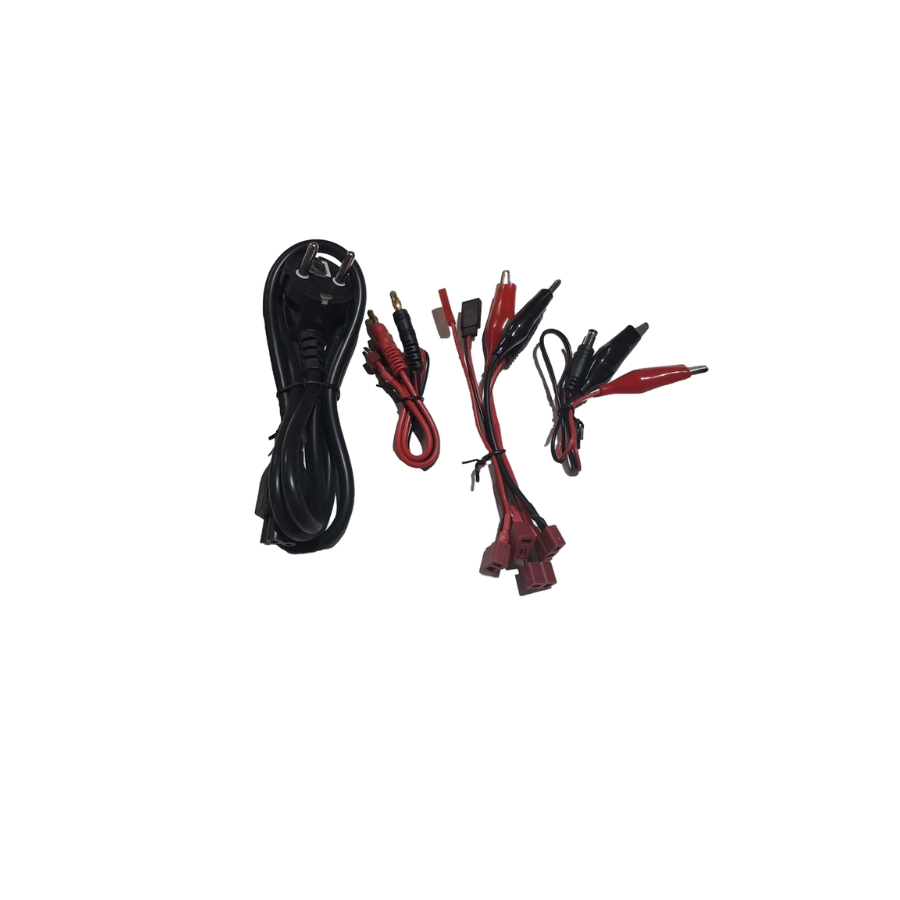

Package Includes:
1 x Imax B6 AC Dual Power Battery Charger.
1 x 100 – 250V Power Supply Cord.
1 x T plug with banana connector charging cable.
1 x DC cable with Alligator Clip charging connector.
1 x T plug with Alligator Clip connector charging cable.
1 x T plug with Futaba connector charging cable.
1 x T plug with JST connector charging cable.
1 x English manual.
IMAX B6AC Charger/Discharger 1-6 Cells Overview
The IMAX B6AC Charger/Discharger 1-6 Cells is a versatile bench-top charger designed to handle NiMH, NiCd, Pb, LiPo, Li-ion, and LiFe batteries up to six cells. It offers both AC (100–240 V) and DC (11–18 V) inputs, making it ideal for workshop or field use.
Key Features of IMAX B6AC Charger/Discharger 1-6 Cells
- Dual power input: built-in AC adapter (100–240 V) or external 11–18 V DC connection
- Supports charge/discharge for 1–6 cell LiPo, Li-ion, LiFe, NiMH, NiCd, and Pb batteries
- Microprocessor control with delta-peak sensitivity, battery break-in, and cycling modes
- Individual cell balancing and internal resistance checker for pack health monitoring
- Input voltage monitoring protects your car battery during field charging
- Data storage for up to five battery profiles; includes fitted fuse-protected cables; genuine product, fast shipping from Zbotic
Applications and Use Cases
- Charging LiPo packs for RC drones, cars, and airplanes
- Conditioning and cycling NiMH/NiCd batteries for remote controls and servos
- Maintenance of LiFe packs used in robotics and DIY electronics
- Field charging via 12 V DC connection to a car battery
- Testing and balancing multi-cell batteries in a workshop or lab
How to Use IMAX B6AC Charger/Discharger 1-6 Cells

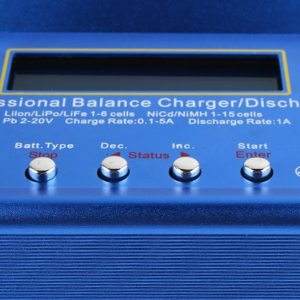

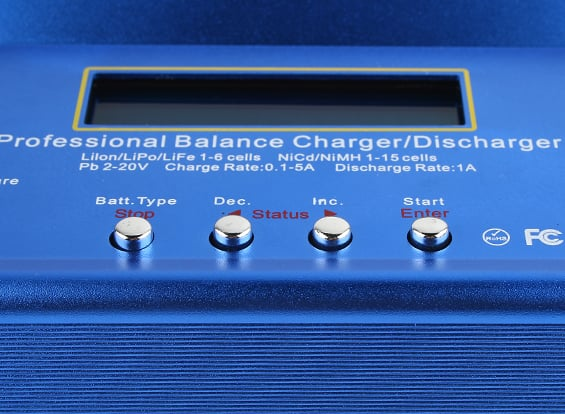

Connect the charger to AC mains or a DC power source, then attach your battery’s main and JST-XH balance connectors. Use the front-panel controls to select battery type, cell count, and charge/discharge current. Review stored profiles if needed, then start the process. Monitor status on the LCD display and stop or adjust as required.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What battery balance connector does this charger use?
The IMAX B6AC uses a JST-XH balance connector, compatible with Zippy, HXT, TURNIGY, and other packs equipped with a JST adapter.
Can I charge batteries in the field from my car?
Yes. Simply connect a 12–18 V DC source (such as a car battery) via the supplied cables. The charger’s input voltage monitoring protects your vehicle battery from over-discharge.
How do I check the health of my battery pack?
Use the internal resistance checker mode to measure individual cell impedance. Higher resistance indicates aged or damaged cells, helping you decide when to replace or cycle the pack.
