3S 100A LiFePO4 Battery Balance Charging BMS Protection PCB Board-White
This protection board is designed for 3S lithium batteries and is suitable for a wide range of applications. Its configuration can be adjusted to meet different requirements. The board is equipped with a specialized chip that ensures reliable performance, incorporating essential protective features such as over-current, over-discharge, overcharge, disconnection, and cell balancing.

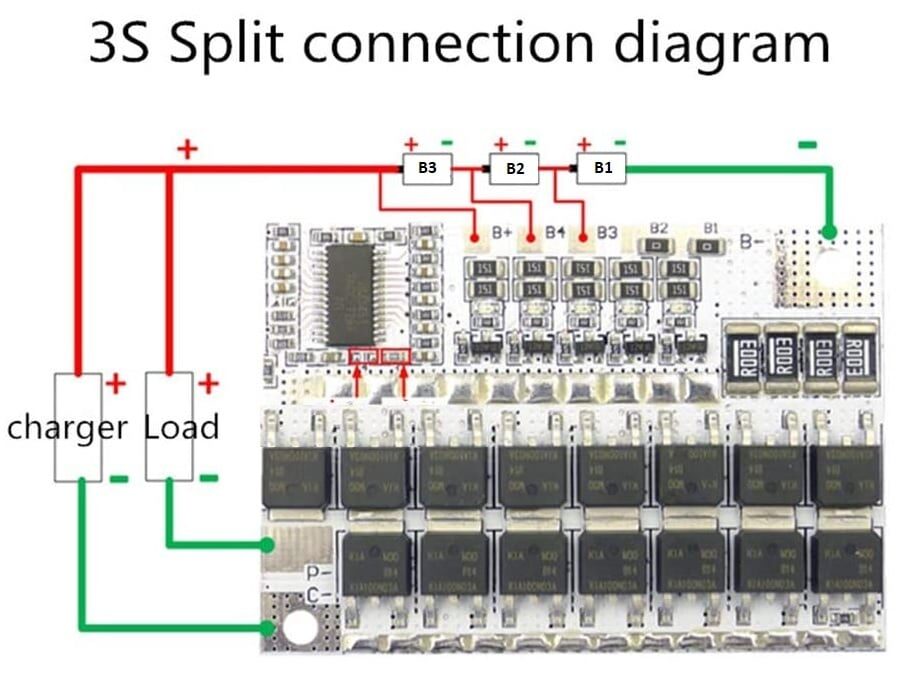

The board operates in both “same port” and “different port” modes. It includes 15 high-power, ultra-low resistance MOSFETs—eight for discharge and seven for charge. In “same port” mode, the board supports both discharge and charge currents of up to 60A. In “different port” mode, it allows for a discharge current of 80A and a charge current of 60A. The protection board is compatible with a variety of battery types, including LMO, ternary lithium, LCO (3.7V), and other lithium-based battery packs.
Features:
- Temperature protects: Yes
- Disconnect protect: Yes
- Shortage protection: Yes
- Shortage delay: 100-600 uS
- Shortage protect recovery: YES
- Charging Current: 60A
- Current Balance: Yes
specification
| Single-cell battery overcharge protect voltage: | 4.21-4.29 V |
|---|---|
| Single-cell battery overcharge protect recover voltage: | 4.14-4.24V |
| Overcharge protect delay | 1.5-2.5S |
| Single-cell battery over-discharge protect voltage: | 2.72-2.88 V |
| Overcharge protect Current | 100A |
| Over-discharge protect Current | 100A |
| Over-discharge protect delay | 0.5-1.5S |
| Temperature protect | Yes |
| Disconnect protect | Yes |
| Shortage delay | 100-600 uS |
| Charging Current | 60A |
| Ampere balance (Current) | 60MA |
| Voltage balance accuracy | 4.14-4.24V |
Package Includes:
1 x White 4S 100A LiFePO4 Lithium Battery Protection PCB Board
DC-DC Converter Efficiency: Synchronous vs Asynchronous Buck
When engineers and makers talk about DC-DC converter efficiency in synchronous versus asynchronous buck topologies, the conversation gets...
Read More →
Multi-Chemistry Charger: NiMH, Li-Ion, and LiFePO4
A multi-chemistry charger can safely charge NiMH, Li-Ion, and LiFePO4 batteries by switching between fundamentally different charging algorithms....
Read More →
BMS 3S vs 4S vs 6S: How to Choose for Your Battery Pack
Choosing the wrong Battery Management System (BMS) is one of the most common and costly mistakes in DIY...
Read More →Technical Specifications
| Current Rating | 100A |
|---|---|
| Cell Configuration | 3S |
| Color | White |
| SKU | AI3335 |
| Weight | 0.02 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 3S 100A LiFePO4 Battery Balance Charging BMS Protection PCB Board-White is a versatile battery protection board used across a wide range of applications including lithium battery pack protection, power bank builds, e-bike battery management, solar energy storage, and UPS systems.
Common use cases:
- Building a custom lithium battery pack
- Adding overcharge/overdischarge protection
- Creating a DIY power bank
This product is ideal for battery pack builders and power electronics engineers.
Technical Tip: BMS boards prevent overcharge, overdischarge, overcurrent, and short circuit. Match cell count (S) and max current rating to your battery pack.
