The X500 V2 Frame Kit boasts a complete carbon fiber twill structure, with carbon fiber tube arms anchored by newly developed, fiber-reinforced nylon connectors. These connectors feature handy notches on both the motor and body sides to simplify the installation process. The landing gear consists of carbon fiber tubes, measuring 16mm and 10mm in diameter, coupled with reinforced and thickened connectors.

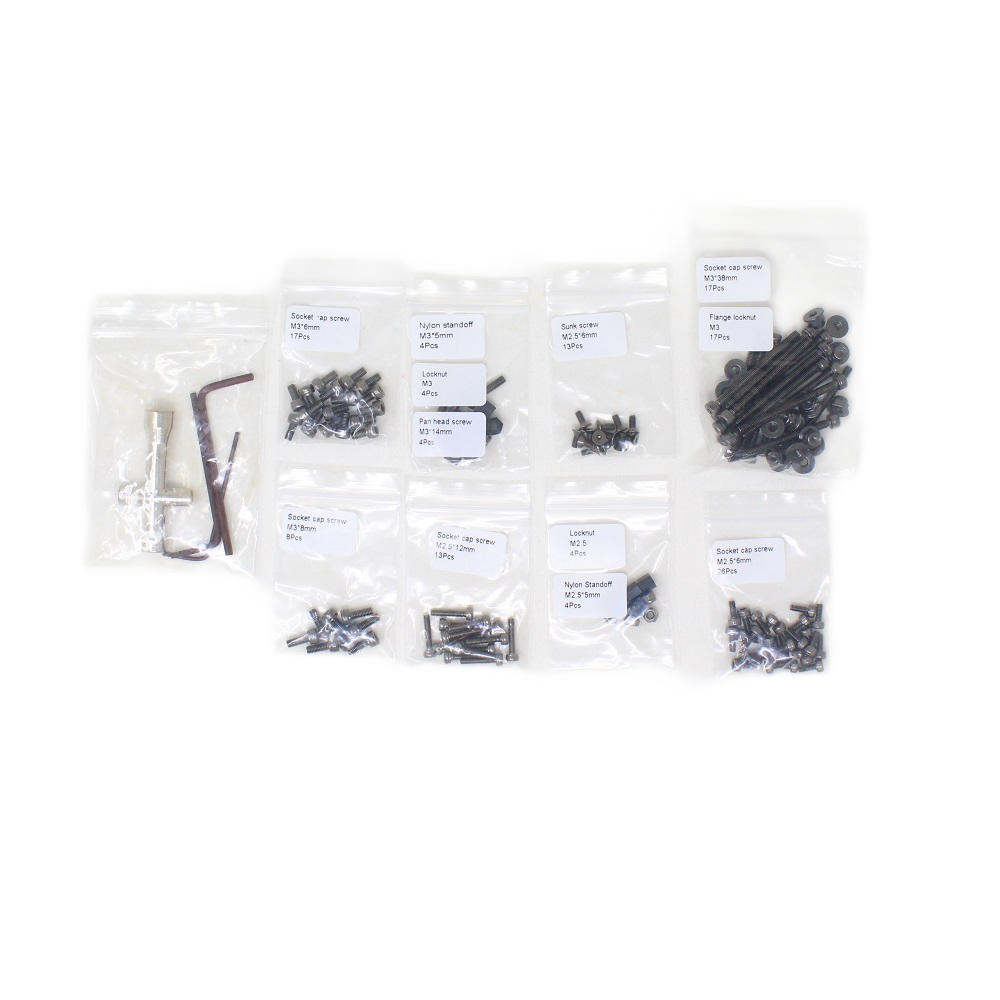

The space between the upper and lower carbon fiber plates has been increased to enhance accessibility. The platform board now comes with pre-drilled holes for GPS and widely-used companion computers such as the Raspberry Pi 4 and Jetson Nano. The battery mounting board is not only adjustable but also enlarged to fit bigger batteries for longer flight times. The rail mounting system is ready to accommodate various camera mounts and gimbals for diverse applications. Moreover, an optional mount is available for different depth cameras, like the Intel RealSense series and Structure Core Depth Cameras (available separately). The kit is complete with all the necessary tools for assembly.
Note: for assembly manual, check attachment section.
Features:
Easy to use
500 mm wheelbase
Adjustable battery mounting board
Good quality product
Package Includes:

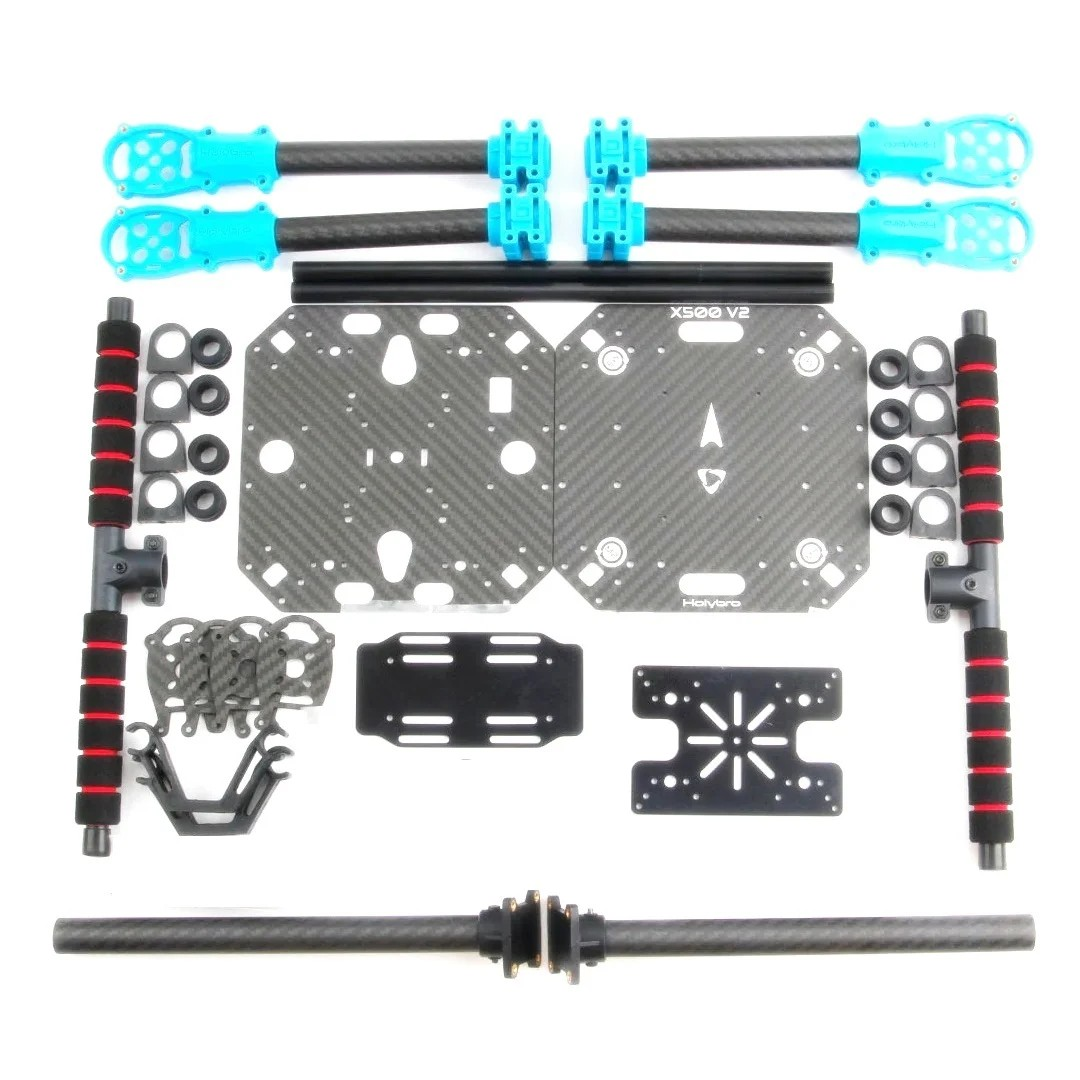

1 x Holybro X500 V2 Frame Kit (parts as shown in product image)
Body – Full Carbon Fiber Top & Bottom plate (144 x 144mm, 2mm thick)
Arm – High strength & ultra-lightweight 16mm carbon fiber tubes with newly designed fiber-reinforced nylon connectors
Landing gear – 16mm & 10mm diameter carbon fiber tubes with strengthened & improved plastic tee connectors.
Platform board – With mounting holes for GPS & popular companion computers such as the Raspberry Pi 4 & Jetson Nano
Dual 10mm Ø rod x 250 mm long rail mounting system
The Holybro X500 V2 Frame Kit is a 500 mm wheelbase carbon fiber drone frame designed for custom multirotor builds. It features a durable twill carbon fiber structure with reinforced nylon connectors, making it ideal for payload integration and extended flight applications.
Key Features of Holybro X500 V2 Frame Kit
Complete carbon fiber twill plates and tube arm structure for lightweight strength
Fiber-reinforced nylon connectors with notches on motor and body sides for tool-free alignment
Landing gear with 16 mm and 10 mm carbon fiber tubes plus thickened connectors for shock absorption
Increased gap between upper and lower plates to simplify electronics installation
Pre-drilled mounting holes for GPS modules and companion computers like Raspberry Pi 4 and Jetson Nano
Adjustable, enlarged battery mounting board to accommodate larger LiPo packs
Motor mount pattern 16×16 mm, frame size 144×144 mm, landing gear height 215 mm
Fast shipping from Zbotic within 24 hours with full tracking
Applications and Use Cases
Aerial photography and videography platforms with high-stability carbon structure
Long-endurance research and mapping drones requiring larger batteries
FPV freestyle rigs benefiting from robust landing gear and quick assembly
Custom inspection multirotors for agriculture, infrastructure, and energy sectors
Education and prototyping with easy access for sensors, flight controllers, and companion computers
Payload-carrying builds such as LiDAR or thermal imaging systems
How to Use Holybro X500 V2 Frame Kit
Begin by connecting the carbon fiber tube arms to the upper and lower plates using the reinforced nylon connectors, ensuring the notches align for a snug fit. Install motors onto the 16×16 mm mount pattern, then attach the landing gear assemblies. Slide in the enlarged battery board and secure your LiPo pack, then mount your flight controller, GPS, and companion computer using the pre-drilled holes. Finalize wiring, attach propellers, and perform a pre-flight check.
Why Buy from Zbotic?
Genuine Products: All items sourced from authorized distributors
Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
Free Shipping: Free delivery on qualifying orders
COD Available: Cash on Delivery, UPI, cards, net banking
Technical Support: Expert help for setup and troubleshooting
Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the wheelbase of the X500 V2 Frame Kit?
The frame kit has a 500 mm wheelbase, providing a stable platform for medium-to-large multirotor builds.
Can I mount a Jetson Nano or Raspberry Pi 4 on this frame?
Yes, the upper plate features pre-drilled holes specifically for popular companion computers like the Raspberry Pi 4 and Jetson Nano.
What is the landing gear height?
The kit includes landing gear that lifts the frame to 215 mm off the ground, ensuring ample clearance for payloads and propellers.
The Holybro X500 V2 Frame Kit is a versatile drone frame and accessories used across a wide range of applications including FPV racing builds, freestyle drones, cinematic drones, and agricultural spraying platforms.
Common use cases:
Building a new racing quad
Replacing a broken frame arm after a crash
Mounting a camera gimbal on a custom platform
This product is ideal for FPV builders, drone racing enthusiasts, and commercial drone operators.
Technical Tip: Carbon fiber frames offer the best strength-to-weight ratio. Ensure motor-to-motor distance matches your propeller size.
Shipping & Delivery
Free shipping on orders above ₹999 across India
Dispatched within 1-3 business days
Expected delivery: 3-7 business days depending on location
Secure packaging to ensure safe transit of electronic components
Genuine Holybro product sourced from authorized channels
Weight
1.0296 kg
