27mm * 27mm Insulating sheet For PDB And FC

This is the 27mm variant of the 27mm * 27mm Insulating sheet For PDB And FC in Drone Frame and Accessories. Available at ₹73.16 (₹62.00 + GST) with free shipping across India.

Looking for 27mm Insulating Sheet? 27mm * 27mm Insulating sheet For PDB And FC is available at Zbotic with fast shipping across India.

Description:

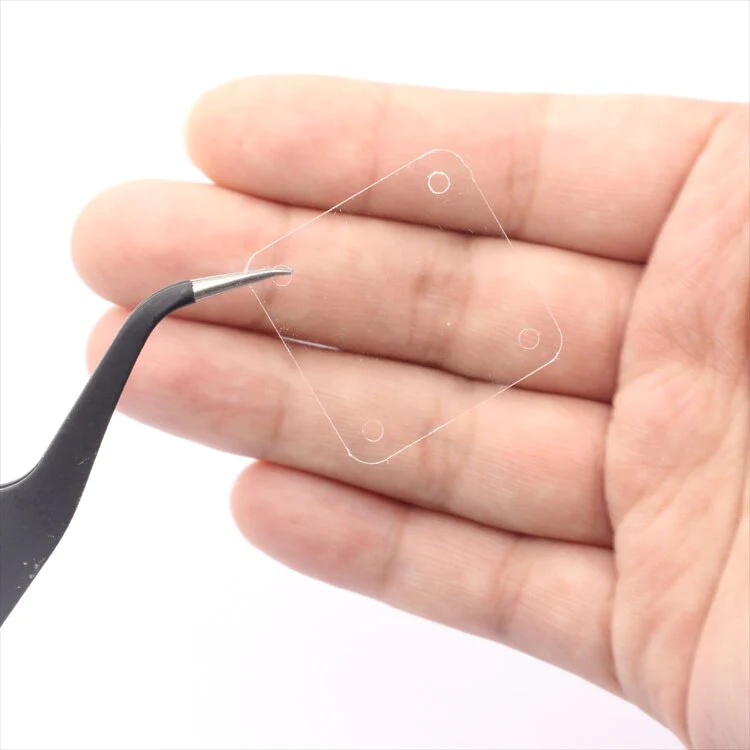

This 27 mm × 27 mm insulating sheet is specially designed for drone electronics. It provides a safe, non-conductive barrier between a power distribution board (PDB) and a flight controller (FC), especially useful when mounting on conductive frames or surfaces (such as carbon fiber) that could otherwise cause shorts.

By inserting this insulating sheet, you preserve electrical isolation while maintaining compact stacking of components. Its slim profile ensures that it adds negligible weight and volume but greatly improves safety. The pad is often used with the 20 × 20 mm mounting patterns common in smaller or micro flight controllers.

Features:

• Standard size 27 × 27 mm, suitable for many compact flight controller rigs
• Made of insulating (non-conductive) material to prevent shorts
• Thin profile — minimal addition to thickness/stack height
• Lightweight — suitable for UAV / drone builds
• Can be trimmed or adjusted for tight fits
• Helps ensure electrical safety when mounting over conductive surfaces
• Compatible with common PDB / FC configurations

Specifications:

Package Include:

• 1 x 27mm * 27mm Insulating sheet For PDB And FC

27mm * 27mm Insulating sheet For PDB And FC Overview

The 27mm × 27mm Insulating sheet for PDB and FC is a slim, non-conductive barrier designed to sit between your power distribution board and flight controller in drone assemblies. It prevents electrical shorts on conductive mounting surfaces like carbon fiber frames without adding noticeable weight or bulk.

Key Features of 27mm * 27mm Insulating sheet For PDB And FC

• Exact 27 mm × 27 mm dimensions for snug placement between PDB and FC
• Thin, lightweight material preserves compact electronic stacking
• Non-conductive barrier prevents short circuits on carbon fiber or metal frames
• Easy to cut or trim for slight size adjustments
• Ideal fit for 20 × 20 mm mounting patterns on micro and mini flight controllers
• Fast shipping across India from Zbotic ensures quick build start-up

Applications and Use Cases

• Preventing shorts on carbon fiber drone frames during FPV racing builds
• Stacking flight controllers on power distribution boards in micro quadcopters
• Insulating electronics in DIY drone prototypes and custom multicopters
• Using with 20 × 20 mm FC mounting holes in ultralight build projects
• Protecting board traces during field repairs or experimental setups
• Trimming down for sensor module isolation in robotics and RC vehicles

How to Use 27mm * 27mm Insulating sheet For PDB And FC

Align the 27 × 27 mm insulating sheet over the PDB mounting holes, place your flight controller on top, then secure both using standard nylon or metal standoffs. Trim the pad edges if necessary to match your build tolerances, ensuring the barrier fully covers any conductive points between the boards.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Can I use this sheet with any flight controller?

Yes, the 27 × 27 mm sheet is compatible with most flight controllers that follow the 20 × 20 mm mounting hole pattern, and can be trimmed slightly for non-standard board sizes.

How thick is the insulating sheet?

The sheet features a slim profile, typically under 1 mm thickness, providing reliable electrical isolation without impacting stack height or adding significant weight.

Will it prevent shorts on carbon fiber frames?

Absolutely. This non-conductive pad acts as a protective barrier to keep conductive frames like carbon fiber from touching copper pads or solder joints on your PDB and FC.
