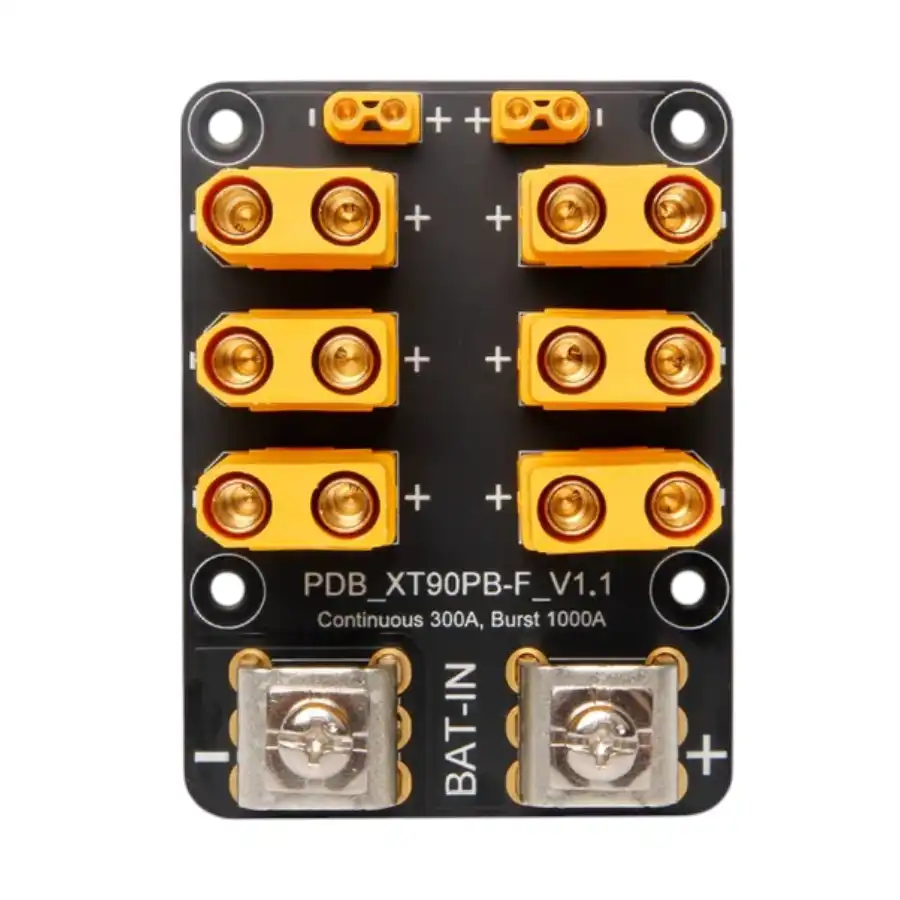

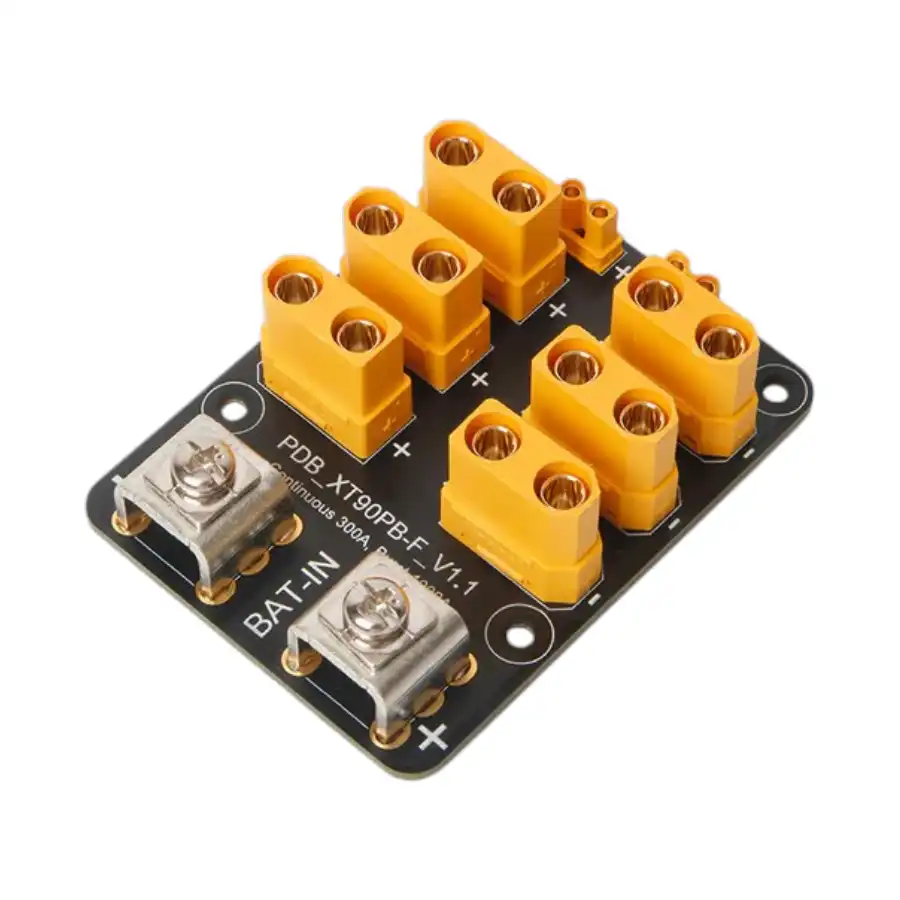

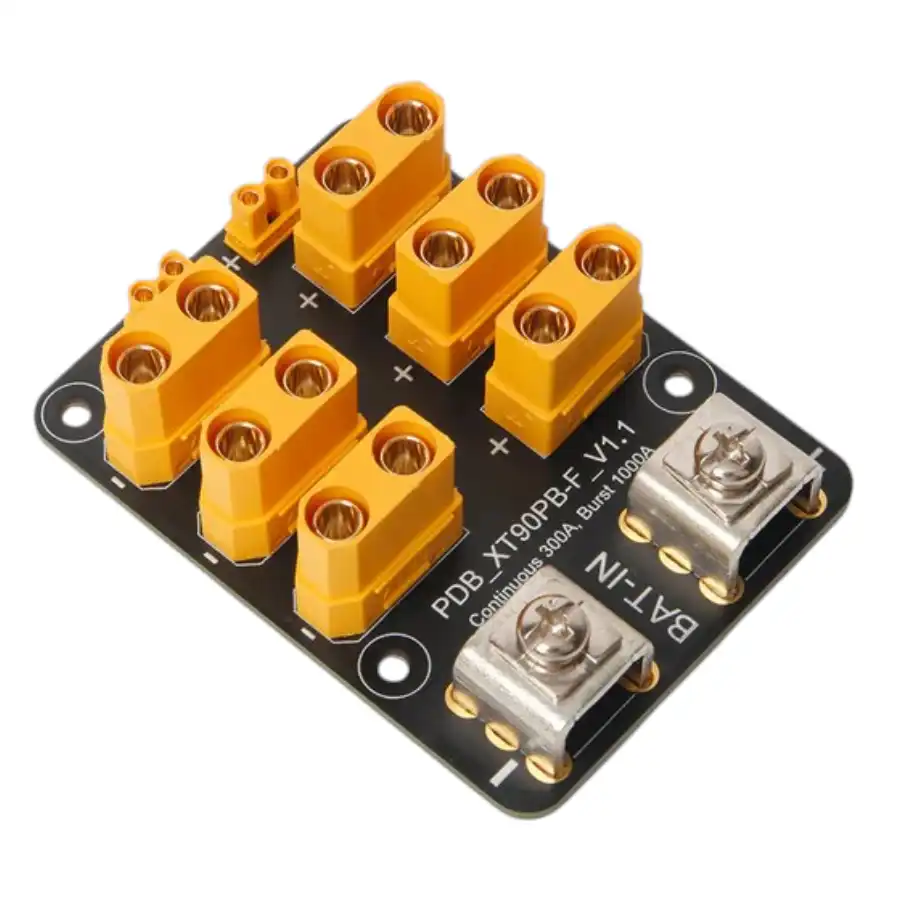

Holybro PDB 300A (Top Entry)
Description:
This Power Distribution Board (PDB) 300A is designed to handle high-current applications, making it ideal for demanding power setups. It is compatible with PM08 series power modules and supports various high-current, multi-output configurations. The board utilizes 10 oz copper, ensuring superior thermal management and conductivity under heavy current loads.
Two connector configurations are available, You choose the orientation that best suits your project needs.
- Pre-soldered with
- 6 upward-facing XT90
- 2 upward-facing XT30 connectors.
- High current screw terminals
Feature:
- Pre-soldered with XT90 & XT30
- Continuous Current: 300A
- Burst Current: 1000A
- 10 Oz Copper PCB Design
- M3 Mounting holes
Dimensions:
Power Distribution Board (PDB) 300A – Top Entry
Specification:
| Parameter | Specification |
|---|---|
| Product Name | Power Distribution Board (PDB) 300A – Top Entry |
| Continuous Current | 300A |
| Burst Current | 1000A |
| PCB Copper Thickness | 10 oz Copper |

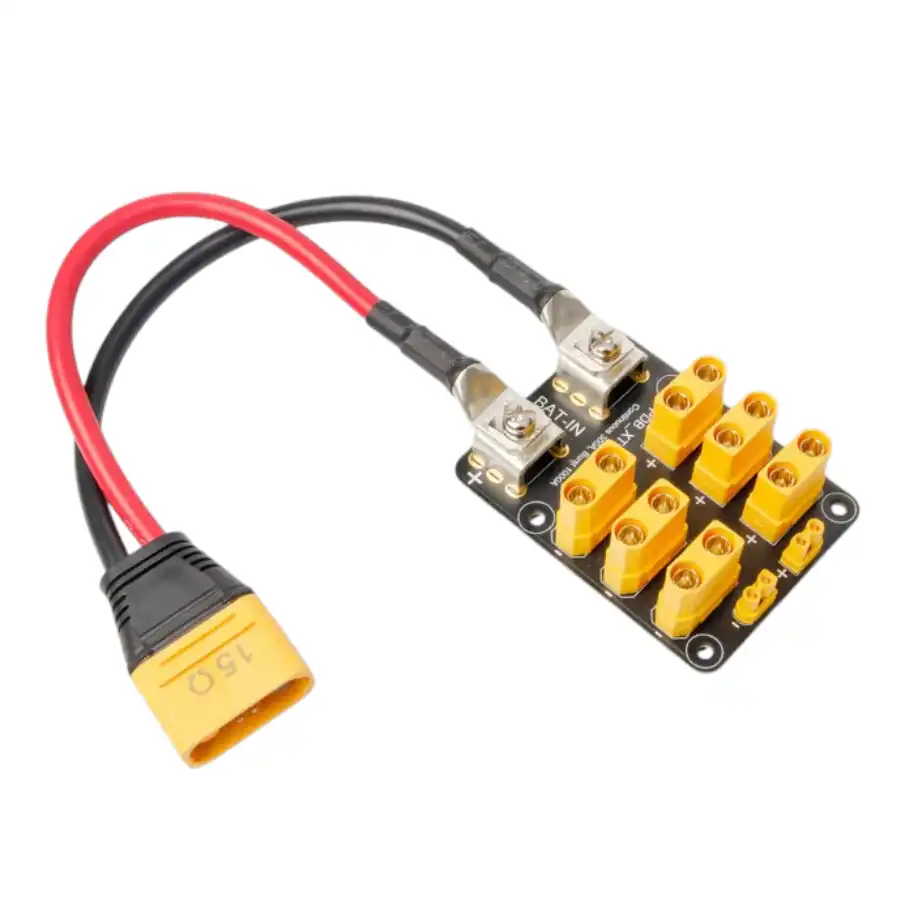

| Input Connector | High-Current Screw Terminal Block |
| XT90 Outputs | 5 × Top-Entry XT90 Connectors (Pre-soldered) |
| XT30 Outputs | 2 × Top-Entry XT30 Connectors (Pre-soldered) |
| Connector Orientation | Top Entry |
| Mounting Hole Size | M3 |
| PCB Material | Heavy-Duty FR4 with 10 oz Copper |

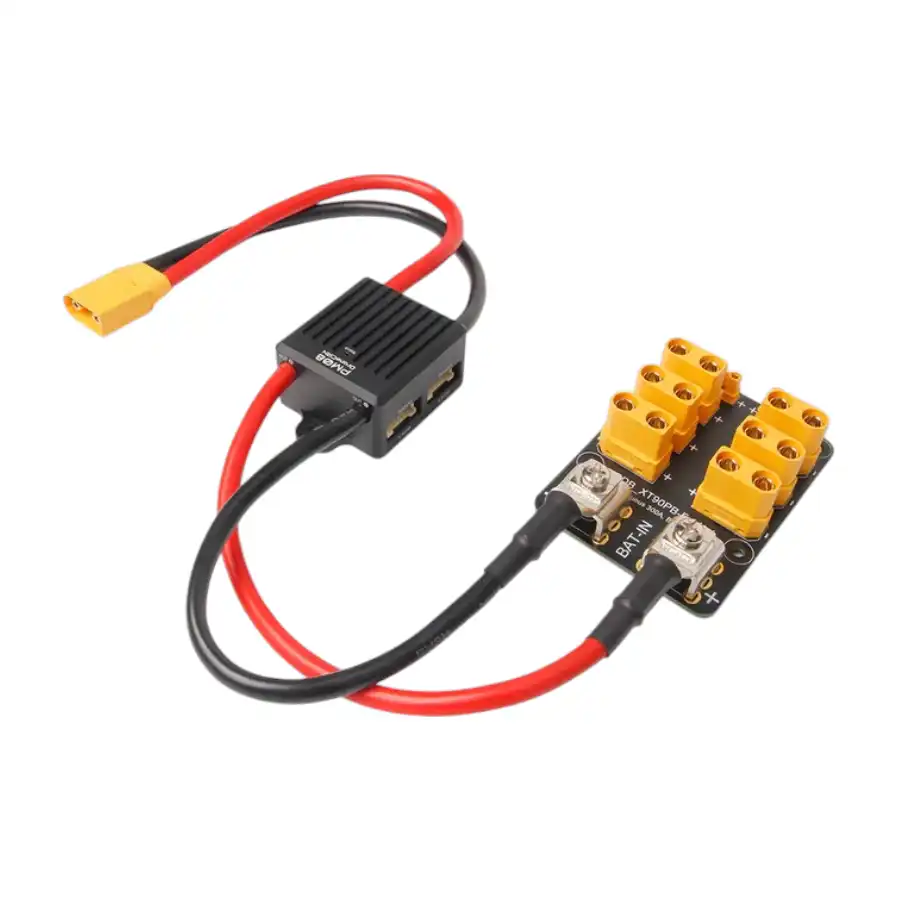

| Compatible Power Module | PM08 Series Power Module |
| Power Distribution | ESCs, Flight Controllers, Cameras, GPS & Accessories |
| Operating Voltage | Supports 3–14S LiPo Battery Systems |
| Installation | Direct Frame Mount |
| Applications | UAVs, Multirotors, eVTOL, Industrial Drones, Robotics |

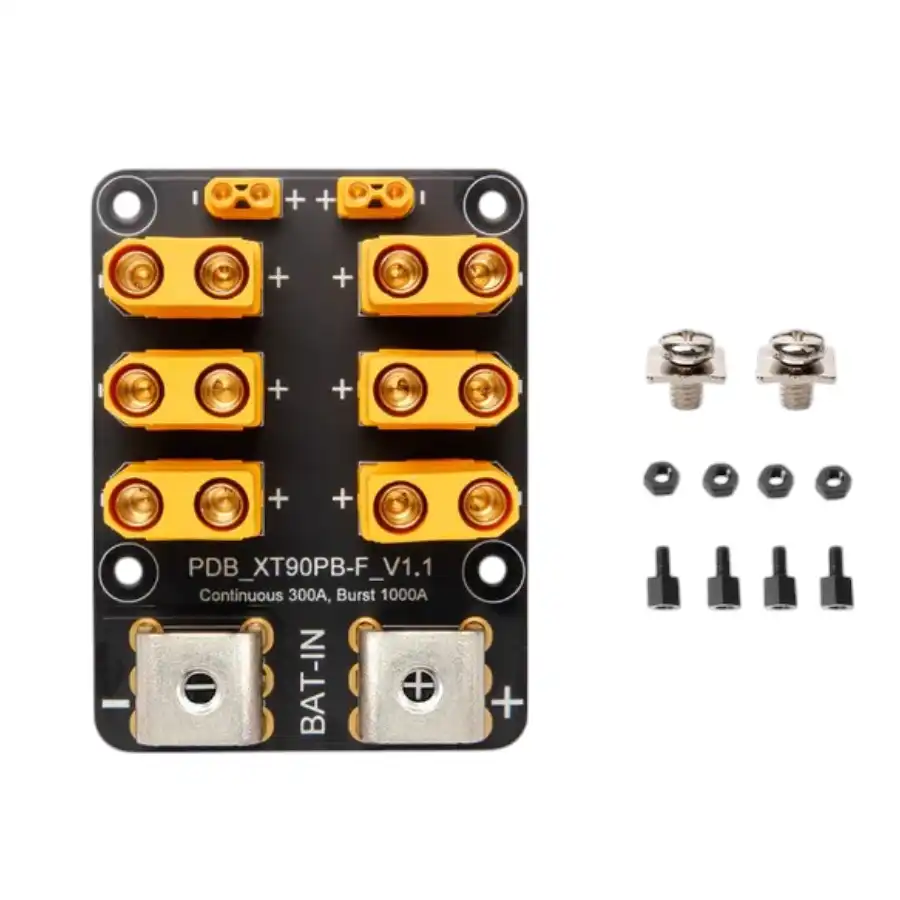

Package Include :
1x Holybro PDB 300A (Top Entry)
