RadioMaster RP2 V2 ExpressLRS 2.4ghz Nano Receiver:
The RadioMaster RP series receivers are built-in a TCXO (temperature-compensated crystal oscillator) now, which ensures reliable, stable, and accurate signal reception, allowing for superior performance in demanding environments and enhancing the flight experience.

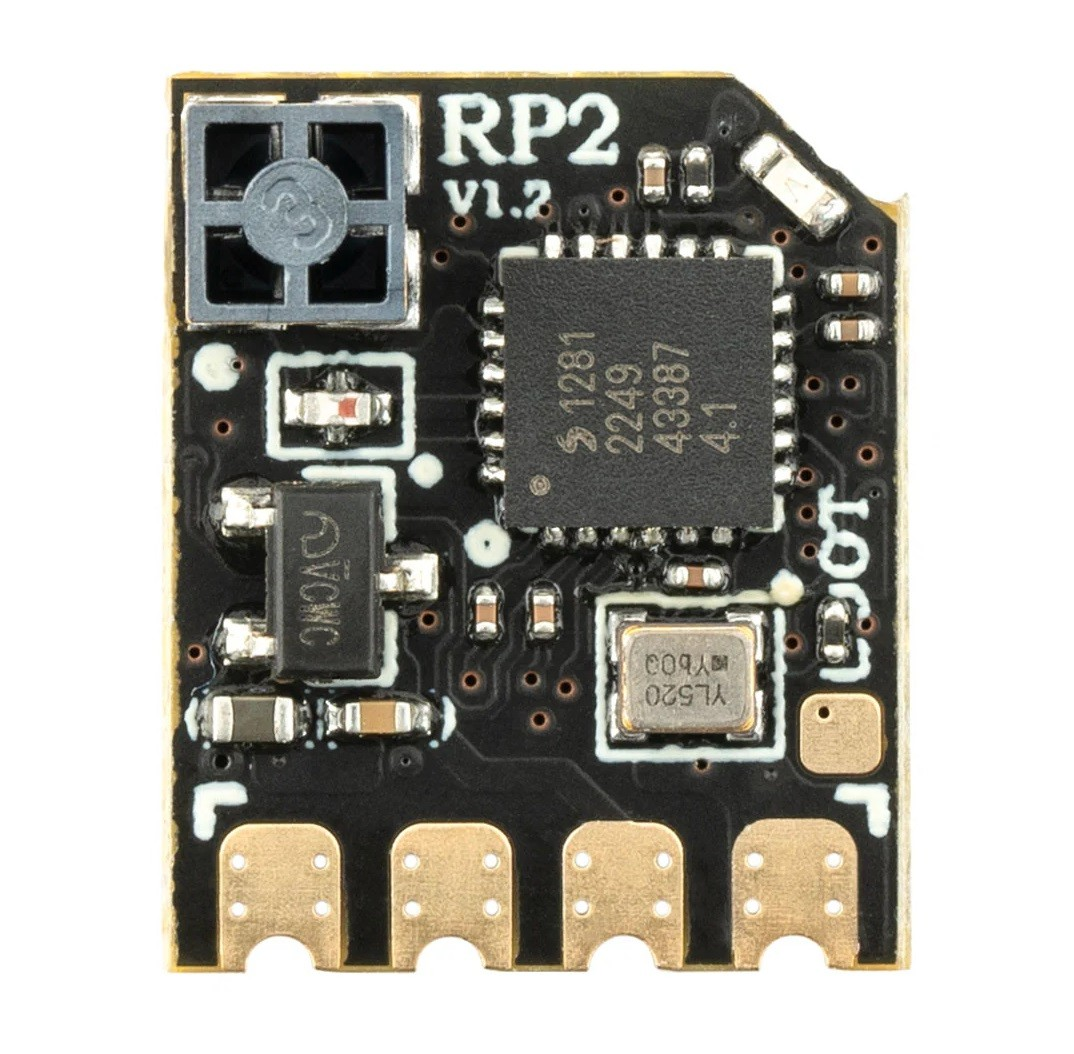

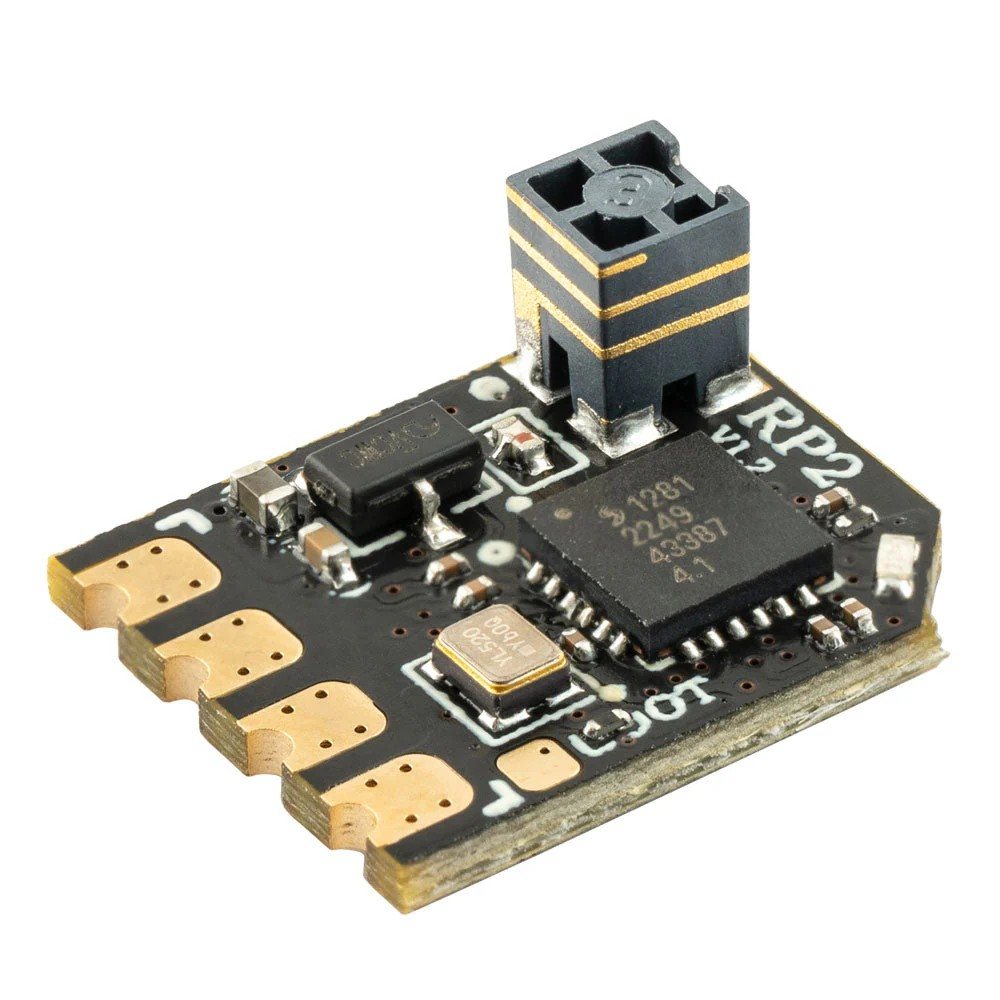

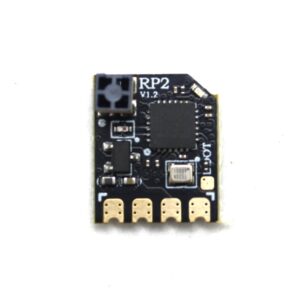

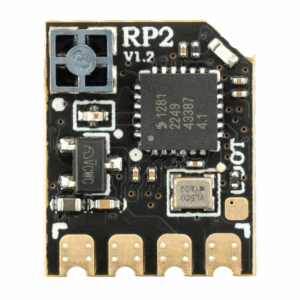

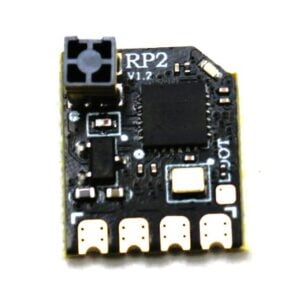

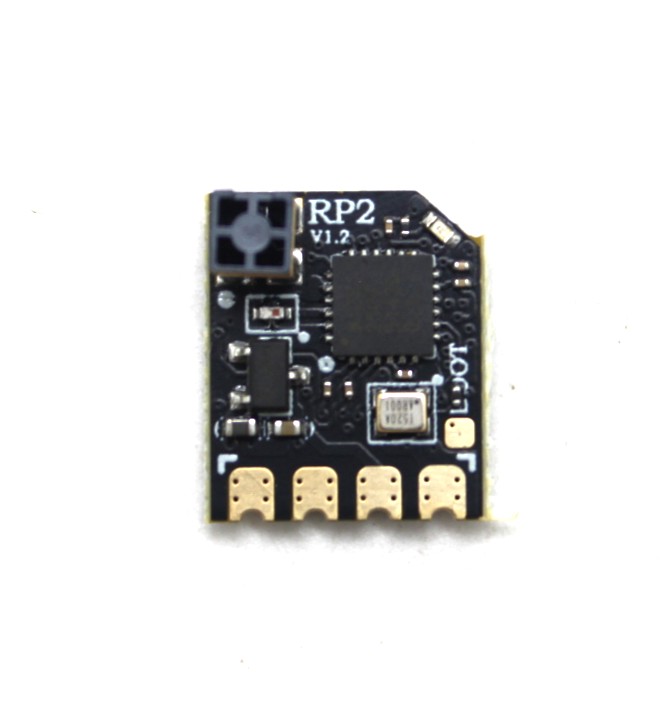

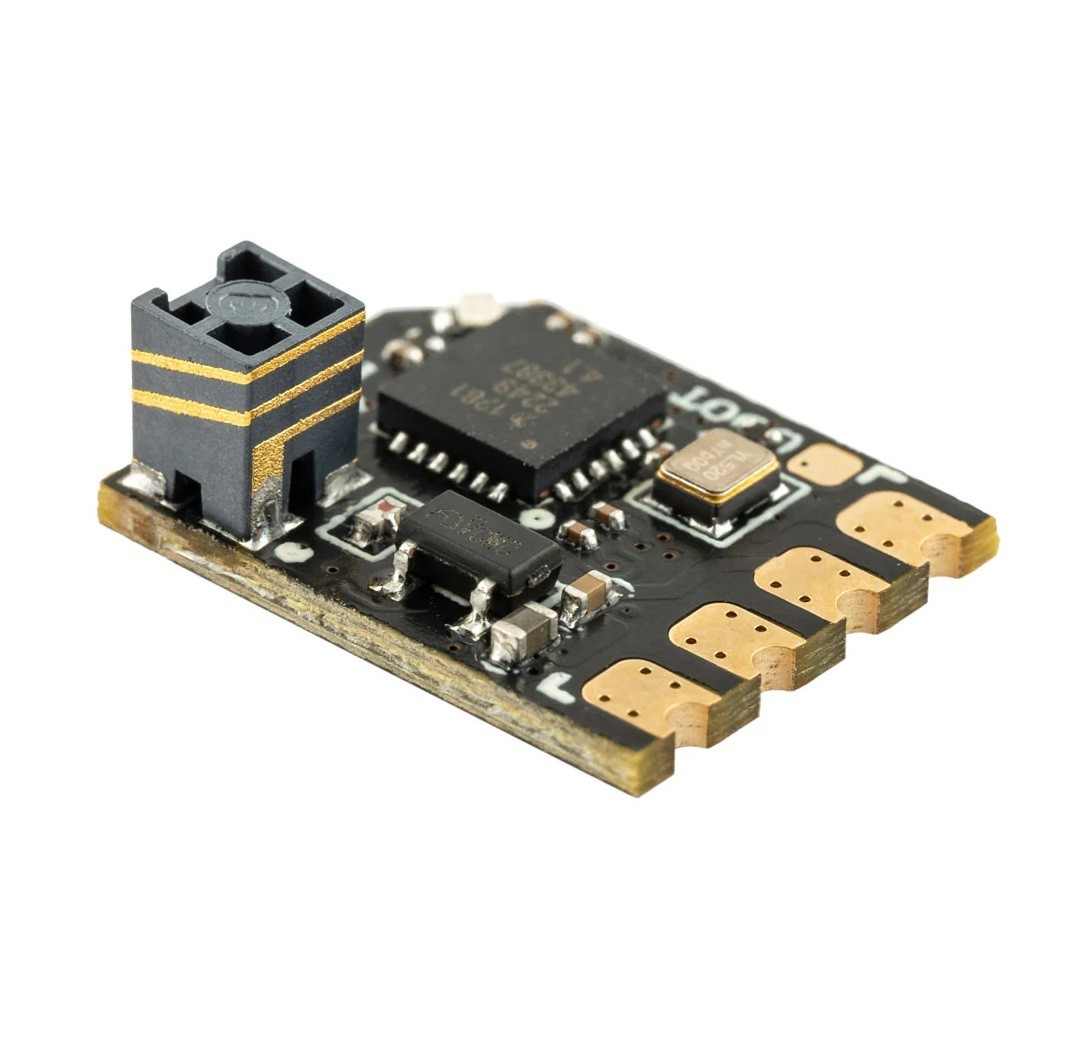

The RP1 and RP2 2.4GHz ELRS nano series receivers are open-source receivers based on ExpressLRS. The Nano receivers, first developed by Jye Smith from the ExpressLRS development team, feature ESP8285 MCU and SX1280 RF chip. The RP1 has a UFL antenna socket for full-range antenna use. The RP2 has a built-in ceramic antenna which is super light and small in size and ideal for racing.
The RP1 and RP2 feature WIFI built in so you can upgrade firmware by WIFI and configure the Receiver via the built-in WebUI with your PC or mobile phone.
Due to the low-latency and high-refresh-rate RF module, the RP1 and RP2 are ideal for FPV races or Long Range. Suitable for many models due to the ultra-light and Nano size, these receivers can fit just about anywhere!
Features:

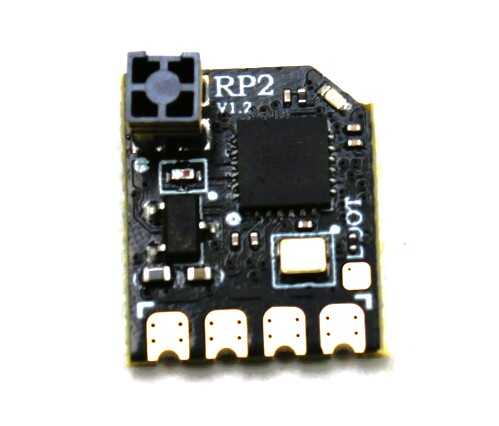

- Improved PCB design is better for heat dissipation.
- LED on the top side of PCB.
- Solder pads are improved and easier to solder to.
- Built-in a TCXO (temperature compensated crystal oscillator)
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
- Firmware Version: ExpressLRS v2.4 pre-installed
- FW Target: RadioMaster RP1/2 2400 RX
- Maximum receive refresh rate: 500Hz/F1000Hz
- Minimum receiver refresh rate: 25Hz
Specification
| Item Type: | Receiver |
|---|---|
| Frequency (GHz): | 2.4 |
| MCU Type | EPS8285 |
| Antenna Type: | On Board SMT Antenna |
| Operating Voltage (V): | 5V |
| Interface: | CRSF |
| Length (mm): | 13 |
| Width (mm): | 11 |
| Height (mm): | 7 |
| Weight (g): | 0.55g (On Board antenna) |

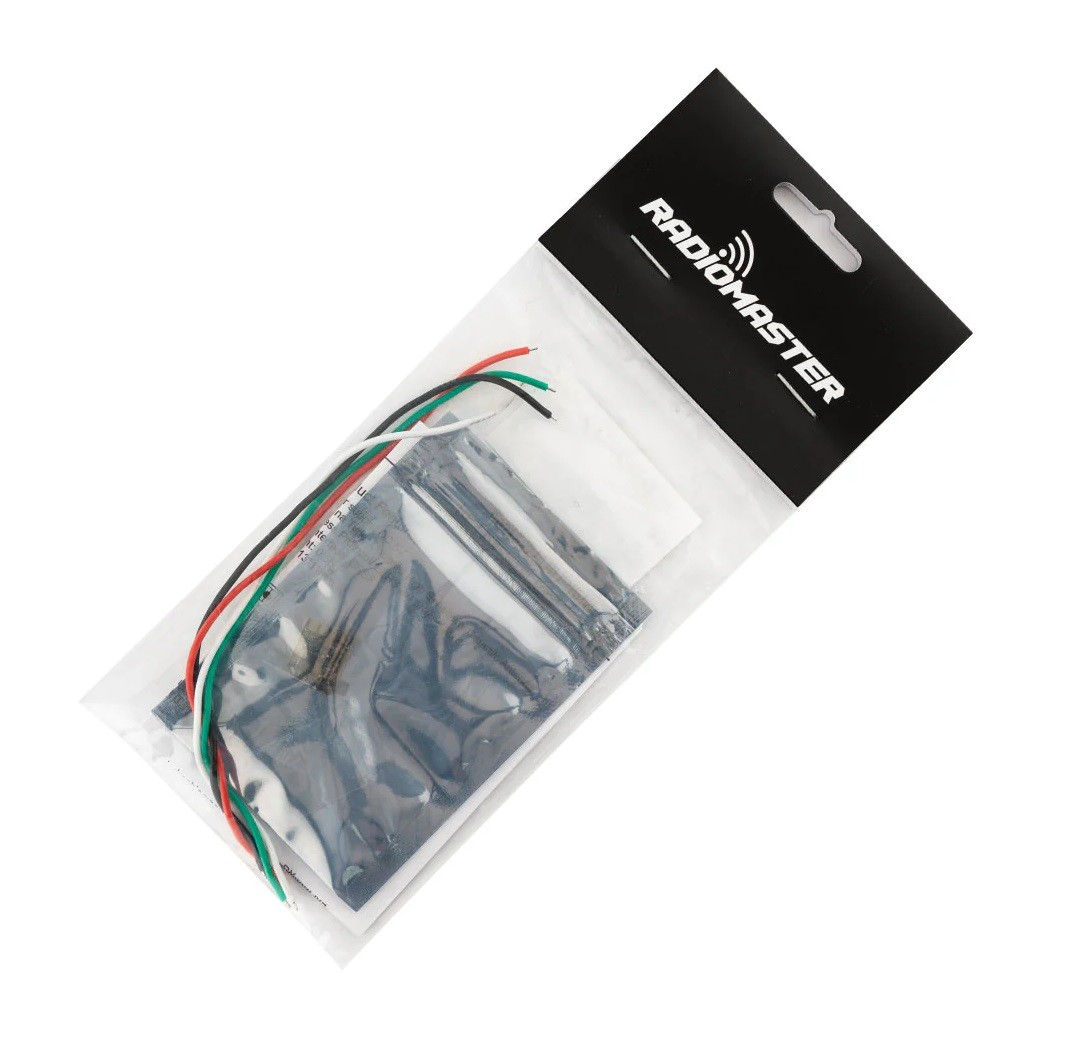

Package Includes:

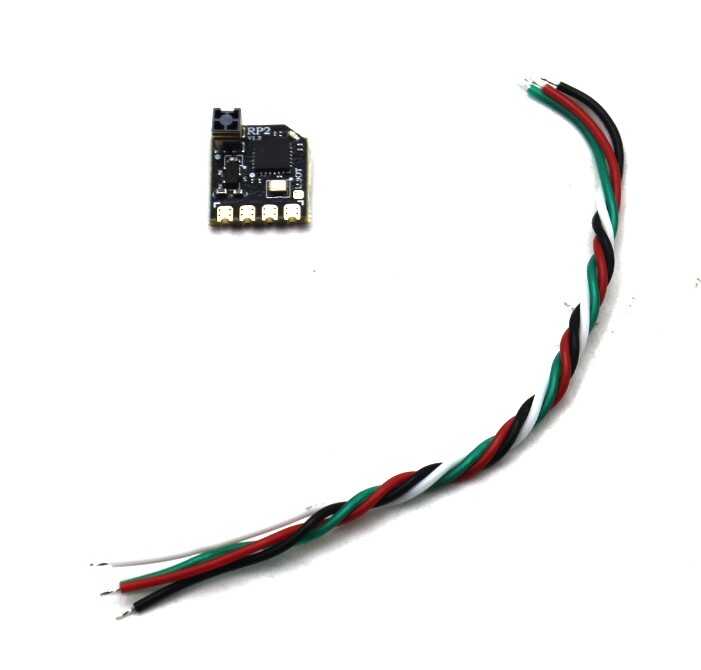

1 x RP2 ExpressLRS 2.4ghz Nano Receiver
1 x User Manual

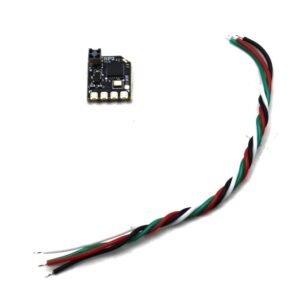

1 x CRSF wire
RadioMaster RP2 V2 ExpressLRS 2.4ghz Nano Receiver Overview
The RadioMaster RP2 V2 ExpressLRS 2.4 GHz Nano Receiver is a compact ISM-band RX designed for FPV drones and RC models that demand ultra-low latency and reliable links. Featuring an ESP8285 MCU, SX1281 RF chip and integrated TCXO, it delivers stable signal reception in challenging flight conditions.
Key Features of RadioMaster RP2 V2 ExpressLRS 2.4ghz Nano Receiver
- ExpressLRS Open-Source: Fully compatible with ExpressLRS firmware for precise, low-latency control.
- SEMTECH SX1281 RF Chip: High-performance transceiver covering 2.404–2.479 GHz with clean signal handling.
- ESP8285 MCU & TCXO: Temperature-compensated oscillator ensures consistent frequency stability.
- On-Board SMT Antenna: Integrated ceramic antenna for a sleek nano form factor without external mounts.
- 10 mW Telemetry Power: Bidirectional link supports real-time telemetry data back to the transmitter.
- Fast Shipping from Zbotic: Genuine stock shipped within 24 hours across India.
Applications and Use Cases
- FPV racing quads and micro drones where minimal size and weight matter.
- Freestyle and long-range drones leveraging ExpressLRS reliability.
- Indoor micro drone builds in tight spaces.
- RC airplanes and multirotors requiring real-time telemetry.
- Custom DIY drone projects using open-source control protocols.
How to Use RadioMaster RP2 V2 ExpressLRS 2.4ghz Nano Receiver
Wire the RP2 V2’s signal, 5 V power (from your flight controller BEC) and ground pins to your FC, then press the onboard bind button until the LED flashes. Launch the ExpressLRS Lua binding script on your compatible transmitter, wait for the LED to turn solid, and secure the nano receiver in your frame using foam tape or zip ties.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I bind the RadioMaster RP2 V2 to my ExpressLRS transmitter?
Press and hold the bind button on the receiver until the LED flashes, then run the ExpressLRS binding script on your transmitter. The LED will turn solid once binding is complete, indicating a successful link.
What frequency range does the RP2 V2 Nano Receiver support?
The RP2 V2 operates within the 2.404–2.479 GHz ISM band, fully compatible with standard 2.4 GHz ExpressLRS modules and transmitters.
Does the RP2 V2 include an external antenna or built-in antenna?
The RP2 V2 features an integrated ceramic SMT antenna for a compact nano design without the need for an external antenna.
