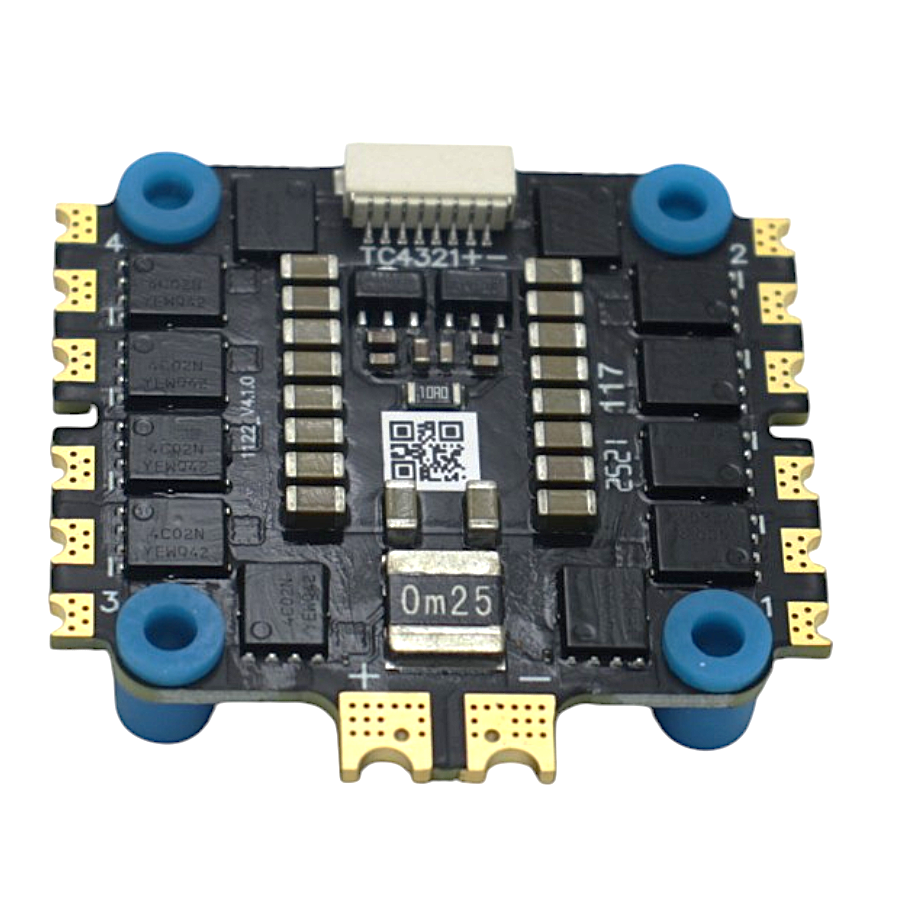

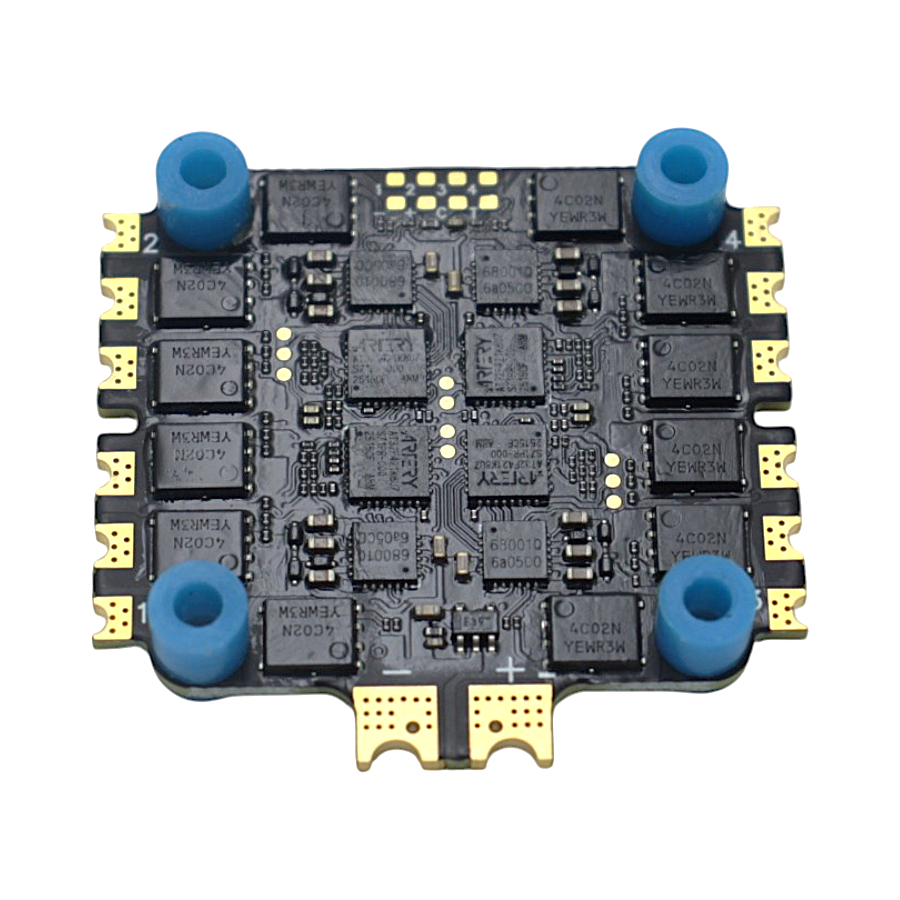

TheHobbywing XRotor FPV G2 ESC 4in1 65A(Hobbywing XRotor FPV G2 ESC 4in1 65A-(AM32 FIRMWARE) is a sophisticated electronic speed controller tailored for FPV (First Person View) racing drones. It’s a high-performance unit that manages the drone’s motor speed and power distribution, ensuring fluid and accurate control during flight. It features a high-performance 32-bit microprocessor with a running frequency of up to 120MHz. The third-generation BLHeli_32 firmware supports PWM output frequencies up to 128KHz, making it compatible with a broader range of motors. It employs damped light mode for regenerative braking, resulting in rapid motor deceleration and active freewheeling.
The firmware includes features to prevent synchronization loss, with adjustable parameters for optimal performance in demanding conditions, though the default settings are sufficient for standard operations. It accepts standard 1-2ms pulse width input and supports Oneshot125 (125-250us), Oneshot42 (41.7-83.3us), Multishot (5-25us), and Dshot signaling up to Dshot1200. The ESC automatically detects the input signal upon power-up.
Features:
High-performance 32-bit microprocessor with a running frequency of up to 120MHz for excellent performance.
The third generation BLHeli_32 code can support up to 128KHz PWM output frequency, which can be compatible with more motors.
All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
The code supports features to prevent sync loss. There are tunable parameters that can make the code run well even in the most demanding situations, although default settings will work excellently in normal operating environments.
The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us), and Multishot (5-25us).
Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power-up.
The code also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttles. This can be very useful for finding lost crafts.
The Hobbywing XRotor FPV G2 ESC 4in1 65A(Hobbywing XRotor FPV G2 ESC 4in1 65A-(AM32 FIRMWARE ) is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
Controlling motor speed in a quadcopter
Replacing a burnt ESC after a short
Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
