Looking for P80 Motor 494196? T Motor P80Ⅲ Pin KV120 is available at Zbotic with fast shipping across India.

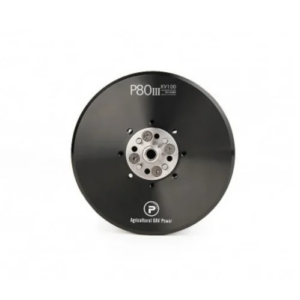

T Motor P80Ⅲ Pin KV120
“The T Motor P80Ⅲ Pin with a KV of 120 offers high-performance propulsion for aerial applications. Engineered with precision, this motor delivers optimal efficiency and power, making it ideal for a variety of drone configurations. With its advanced design and reliable performance, the P80Ⅲ Pin ensures smooth and stable flight experiences, catering to the demands of professional and recreational drone enthusiasts alike.”
Features:
- High efficiency and thrust performance among the comparable motors
- Stable and reliable with long service life
- A waterproof, dust-resistant, anti-corrosion and temperature resistant motor
- Precision design with durable feature
Specification:
| Model | KV120 |
|---|---|
| Rated Voltage (V): | (lipo), 6-12S |
| Peak Current (A) | 70 (180s) |
| Configuration | 36N42P |
| Lead Wire | 14AWG Silicone wire |
| Shaft Diameter (mm) | 15mm |
| Current Rating (A): | <2.0A (at 10V) |
| Maximum Power (W) | 3600W (180s) |
| Internal Resistance(mΩ) | 36-41mQ |
| Length (mm): | 91.6 |
| Width (mm): | 43 |
| Weight (g): | (Incl. Cable), 649 |
Packages Includes:
1 x T Motor P80Ⅲ Pin KV120
T Motor P80Ⅲ Pin KV120 Overview

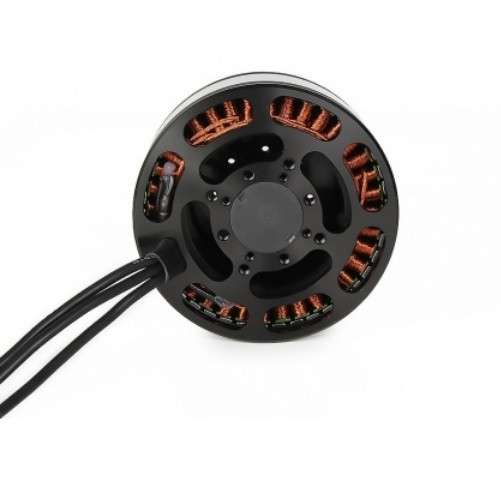

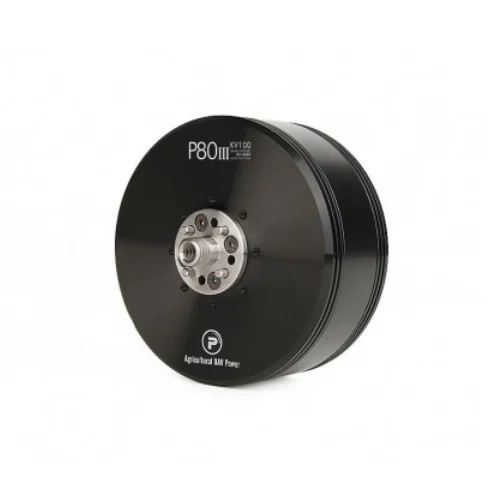

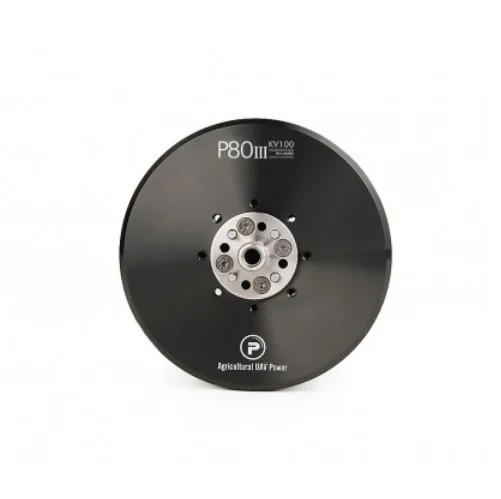

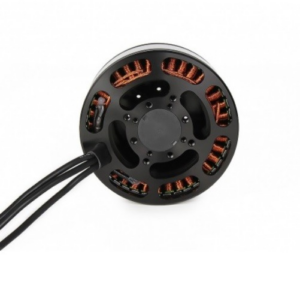

The T Motor P80Ⅲ Pin KV120 is a brushless outrunner motor engineered for high-efficiency propulsion in 80 mm-class drones. With a KV rating of 120, it delivers smooth, stable thrust and is optimized for applications requiring reliable performance on 6–12 S LiPo power systems.
Key Features of T Motor P80Ⅲ Pin KV120
- High thrust-to-weight ratio and efficiency among comparable 80 mm motors
- Robust 36N42P stator design for precise electromagnetic balance
- Waterproof, dust-resistant, anti-corrosion and temperature-resistant housing
- Supports 6 S to 12 S LiPo batteries; peak current 70 A for 180 s bursts
- Long service life with precision-engineered bearings and durable windings
- Genuine T Motor product with fast shipping across India from Zbotic
Applications and Use Cases
- Heavy-lift industrial drones for aerial surveying, inspection and mapping
- Long-range FPV racing and exploration craft requiring steady cruise efficiency
- Cinematography UAVs needing ultra-smooth throttle response for stable shots
- Research and development platforms testing high-voltage powertrains
- Commercial delivery drones operating on multi-cell LiPo packs
How to Use T Motor P80Ⅲ Pin KV120
Mount the P80Ⅲ Pin KV120 onto your drone’s 80 mm motor mount plate, secure with the appropriate screws and thread-locker, then solder or bullet-connect to an ESC rated for at least 80 A continuous and 12 S LiPo support. Perform a brief break-in by running at low throttle under no-load, then gradually ramp up to full power. Balance your props and ensure adequate cooling airflow for peak efficiency and longevity.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What battery voltage range does the P80Ⅲ Pin KV120 support?
This motor is rated for 6 S to 12 S LiPo batteries, providing optimal power and efficiency across that voltage range.
Can I use the P80Ⅲ Pin KV120 in wet or dusty conditions?
Yes. The motor’s housing is waterproof and dust-resistant, with anti-corrosion and high-temperature-resistant coatings to withstand challenging environments.
Which ESC is recommended for the P80Ⅲ Pin KV120?
Pair this motor with an ESC rated for at least 80 A continuous current and 12 S LiPo support to handle its peak current of 70 A for 180 s and ensure reliable full-throttle performance.
12V Servo Motor for Heavy Robotics: DS3225 & DS5160 Guide
Standard hobby servos — the SG90s and MG996Rs that fill every Arduino starter kit — operate on 4.8–6...
Read More →
Stepper Motor Datasheet Reading: Understanding Phase, Current & Steps
Table of Contents Why Reading the Datasheet Matters Step 1: Identify the Motor Type Step 2: Step Angle...
Read More →
test
test
Read More →Technical Specifications
| Model | P80 |
|---|---|
| SKU | AI5594 |
| Weight | 1.144 kg |
| Availability | In Stock |
Applications & Use Cases
The T Motor P80Ⅲ Pin KV120 is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
