Hobbywing Quicrun 1:10 1/8 Wp Crawler Borstel Geborsteld 80A ESC
The combination of reliable hardware and powerful software, featuring a range of programmable parameters such as start force and drag brake rate, provides an ideal power solution for 1/10th and 1/8th scale rock crawlers. The WP-Crawler-Brushed’s waterproof and dust-proof design ensures it can operate in all weather conditions without damage to the ESC from water or dust. Hobbywing’s innovative, adjustable drag brake rate and brake force significantly enhance the drag brake, offering users superior braking performance. The WP-Crawler-Brushed, with its 15 programmable parameters, is suitable for a variety of vehicles and tracks. It comes with a standard, dedicated LED program box, making it easy for users to program the ESC.
Features:
- Special Design for 1/10th, 1/8th Crawlers
- Adjustable PWM Frequency & Advanced DEO/Freewheeling Technology
- Applicable to All Weather Conditions
- Excellent Braking Performance
- Super Internal BEC
- Separate Programming/Fan Port
- 15 Programmable Parameters
- LED Program Box is Included
Specification:
- Scale: 1/8th & 1/10th
- Waterproof: YES
- Motor Connector Type No Connector
- Input Wires: Red-14AWG-200mm*1 / Black-14AWG-200mm*1
- Output Wires: Blue-14AWG-200mm*1 / Yellow-14AWG-200mm*1
- Max Nimh Volt Rating 10.8v / 9 cell
- Max Lipo Volt Rating 11.1v / 3s
- ESC Type For Brushed Motors

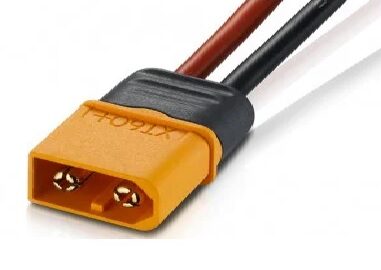

- Input Connectors: XT60 Connectors
- Output Connectors: No
- ESC Programing via
Package Includes :
1 x Hobbywing QuickRun Crawler Borstel Geborsteld
Hobbywing Quicrun 1:10 1/8 Wp Crawler Borstel Geborsteld Overview
The Hobbywing Quicrun 1:10 1/8 WP Crawler Borstel Geborsteld 80A ESC is a brushed electronic speed controller designed for 1/10th and 1/8th scale rock crawlers. It delivers up to 80A continuous current and features a waterproof, dust-proof housing for reliable performance in harsh off-road conditions. Programmable drag brake and multiple tuning options make it ideal for precise crawling control.
Key Features of Hobbywing Quicrun 1:10 1/8 Wp Crawler Borstel Geborsteld
- 80A continuous and 400A peak current support for stable power delivery
- Waterproof and dust-proof construction to withstand wet and muddy terrain
- 15 programmable parameters including adjustable drag brake rate and brake force
- Compatible with 2–3S LiPo or 5–9 cell NiMH batteries, XT60 connector included
- Switch-mode BEC output selectable between 6V/7.4V at 3A for steering servos
- Includes LED program box for easy on-board configuration
- Fast shipping from Zbotic ensures quick delivery to your doorstep
Applications and Use Cases
- Rock crawling competitions where precise throttle and braking control is critical
- Trail runs on muddy or sandy tracks thanks to its waterproof design
- Custom RC crawler builds requiring reliable brushed ESC performance
- Outdoor bashing sessions under varied weather conditions
- Educational projects in robotics clubs focusing on motor control
How to Use Hobbywing Quicrun 1:10 1/8 Wp Crawler Borstel Geborsteld
Install the ESC in your crawler’s chassis, connect the motor leads to the ESC’s brushed outputs, and attach your battery pack via the XT60 connector. Use the included LED program box to adjust start force, drag brake rate, and other parameters. Finally, connect your receiver to the ESC’s signal port and power on to enjoy tuned throttle response and enhanced braking performance.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is the Quicrun ESC suitable for both 1/10 and 1/8 scale crawlers?
Yes, the Quicrun 80A brushed ESC is designed specifically to handle the power requirements and tuning needs of both 1/10th and 1/8th scale rock crawlers.
How do I program the drag brake and other settings?
Use the included LED program box to navigate through 15 programmable parameters. Simply connect the box to the ESC port, select your desired setting, and confirm adjustments to customize brake force, drag brake rate, start force, and more.
What battery types can I use with this ESC?
The ESC supports 2–3S LiPo and 5–9 cell NiMH battery packs through its XT60 connector. Ensure your battery is within these voltage ranges for optimal performance.
