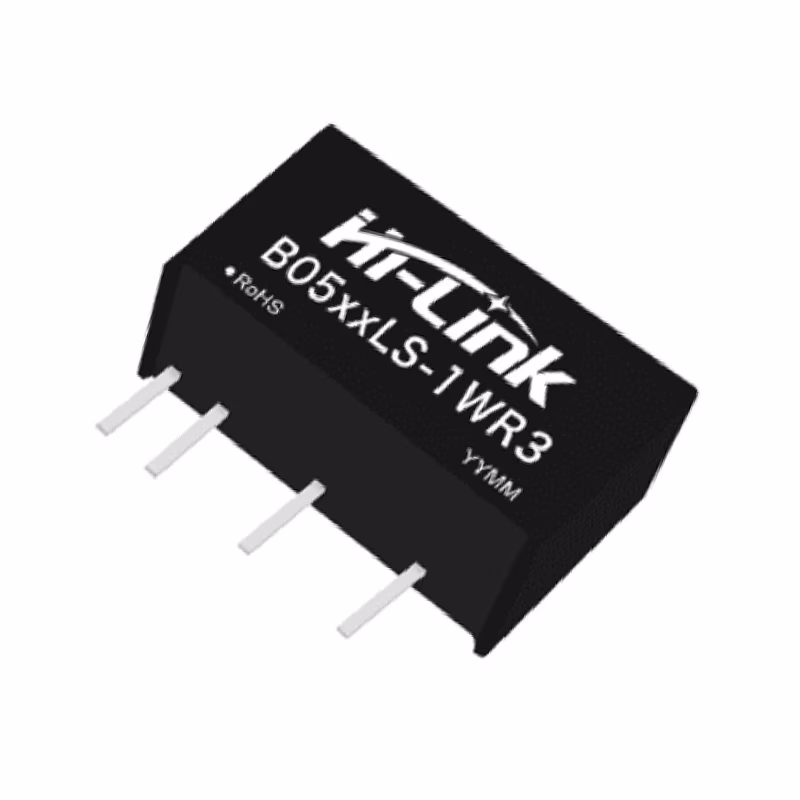

Hi-Link Stabilized Single output 5V to 5V 1W 200mA DC to DC Power module HLK-B0505LS-1WR3
Description :
Hi-Link Stabilized Single output 5V to 5V 1W 200mA DC to DC Power module IB0505LS-1WR3 is a 5V to 5V DC-DC Power Module with a stabilized single output. With a power capacity of 1W and a current handling capability of 200mA, it efficiently converts the input voltage to a stable 5V output. This compact and reliable module is designed for applications requiring precise and regulated power supply in a 5V environment.
Features:
- Fixed voltage input, isolated and regulated output, power 1W
- isolation voltage≤1500VDC
- Low static current and high conversion efficiency
- Low ripple, low noise
- output short-circuit protection： Sustainable short circuit protection, automatic recovery
- Small SIP package， plastic shell
- High reliability and long life design, continuous working time MTBF≥3.5 million hours (3500000Hrs)
Specifications:
- Model: IB0505LS-1WR3
- Input Voltage: 5V
- Output Voltage: 5V
- Power Capacity: 1W
- Current Handling: 200mA
- isolation voltage: ≤1500VDC
- Length: 19mm
- Width: 9mm
- Height: 5mm
Package Includes:
Hi-Link Stabilized Single output 5V to 5V 1W 200mA DC to DC Power module IB0505LS-1WR3
Technical Specifications
| Brand | Hi-Link |
|---|---|
| Operating Voltage | 5V |
| Current Rating | 200mA |
| Power Rating | 1W |
| SKU | AI4851 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Hi-Link Stabilized Single output 5V to 5V 1W 200mA DC to DC Power module HLK-B0505LS-1WR3 is a versatile hi-link power supply module used across a wide range of applications including electronics workbench, LED lighting, industrial equipment, embedded system power, and CCTV installations.
Common use cases:
- Powering a development board or test setup
- Driving LED strip installations
- Providing regulated DC power to equipment
This product is ideal for electronics labs, makers, and system integrators.
Technical Tip: Ensure output voltage and current match your load requirements. Switching power supplies are more efficient but may introduce noise; consider linear for sensitive analog circuits.
