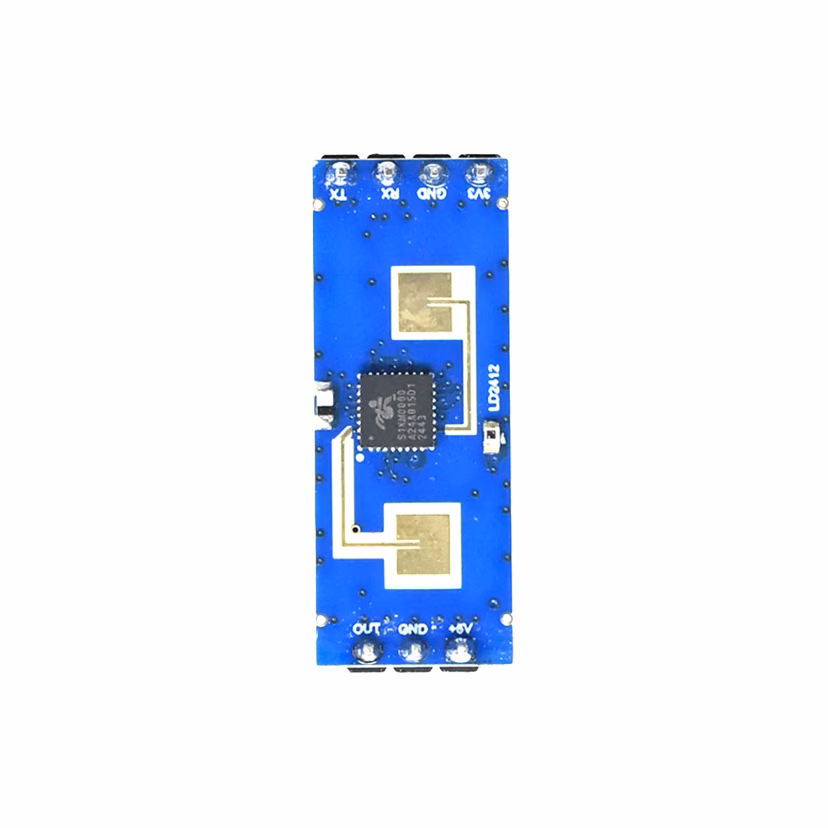

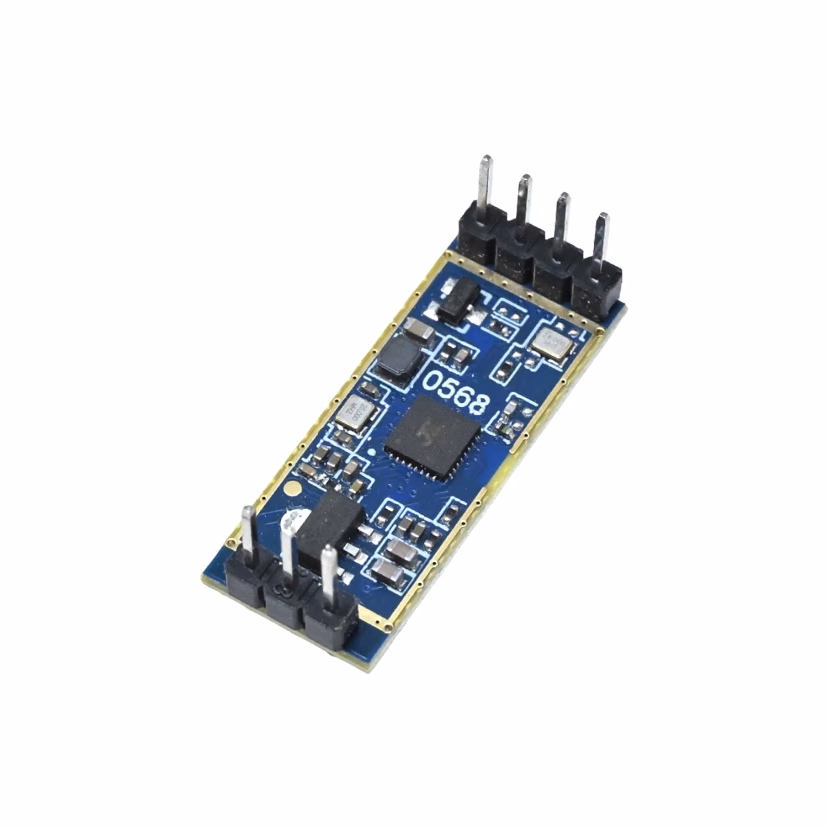

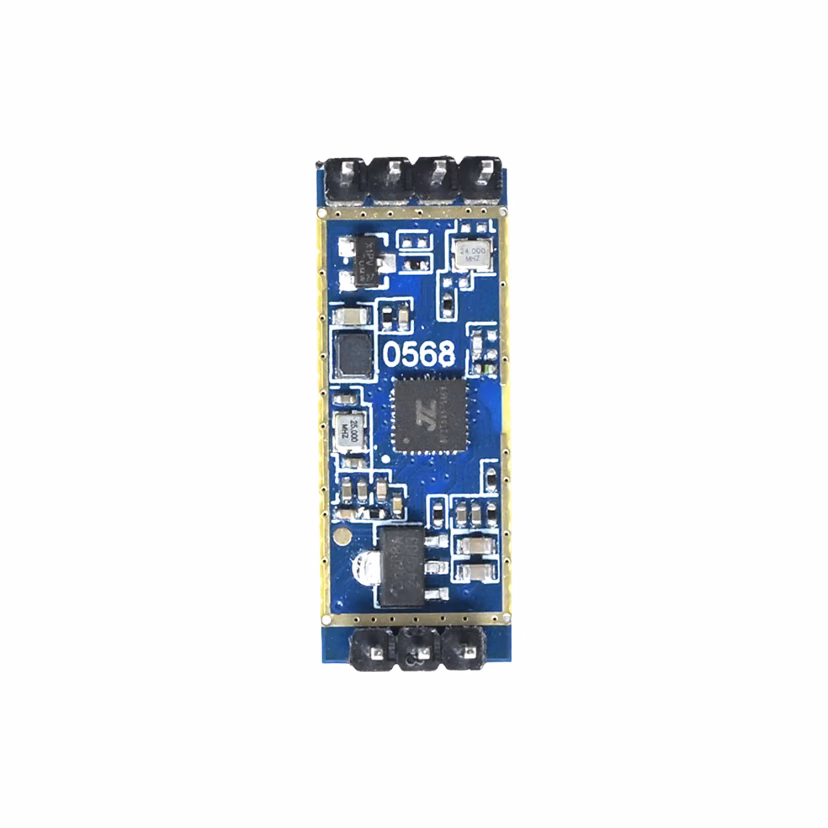

Hi-Link HLK-LD2412, 24GHz Human Presence Radar Sensor
Description:
LD2412 is a high sensitivity 24GHz human presence sensing module developed by Hi-Link. Its working principle is to use FMCW FM continuous wave to detect the human body target in the set space, combined with radar signal processing and accurate human body sensing algorithm, to achieve highly sensitive human presence state sensing, can identify the human body in motion and static state, and can calculate the distance of the target and other auxiliary information. This product is mainly used in indoor scenes, sensing whether there is movement or micro movement of the human body in the area, real-time output of detection results. The maximum sensing distance can reach 9 meters, and the distance resolution is 0.75m. Provide visual configuration tools, which can easily configure the induction distance range, induction sensitivity of different intervals and unmanned delay time, etc., to adapt to different specific application requirements. Support GPIO and UART output, plug and play, can be flexibly applied to different intelligent scenarios and end products.
Specification:
| Manufacturer: | Hi-Link |
| Model No. / Name: | HLK LD2412 |
Features:
- Plug and play, easy assembly
- Accurately identify within the interval, supports the division of the sensing range, and shield the interference outside the interval
- Multi-level intelligent parameter adjustment to meet the needs of changing scenes
Package Includes:
1 x Hi-Link HLK-LD2412, 24GHz Human Presence Radar Sensor
Encoder Module: Position and Speed Measurement with Arduino
A rotary encoder converts the angular position and rotation speed of a shaft into electrical signals that Arduino...
Read More →
Colour Sensor TCS3200: Sorting Machine Project with Arduino
The TCS3200 colour sensor detects the colour of objects by shining white LEDs onto a surface and measuring...
Read More →
Load Cell and HX711 Advanced: Multi-Channel Weighing Systems
Building a precise multi-channel weighing system using load cells and the HX711 24-bit ADC amplifier is one of...
Read More →Technical Specifications
| Brand | Hi-Link |
|---|---|
| Model | HLK-LD2412 |
| Interface / Protocol | 4G |
| Frequency | 24GHz |
| SKU | AI4890 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Hi-Link HLK-LD2412, 24GHz Human Presence Radar Sensor is a versatile sensor modules used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
