This is the 16mm variant of the HI-LINK HLK-LD2410C-P SMD,22x16mm Sensor Modules ROHS in Sensor Modules. Available at ₹1.64 (₹1.39 + GST) with free shipping across India.

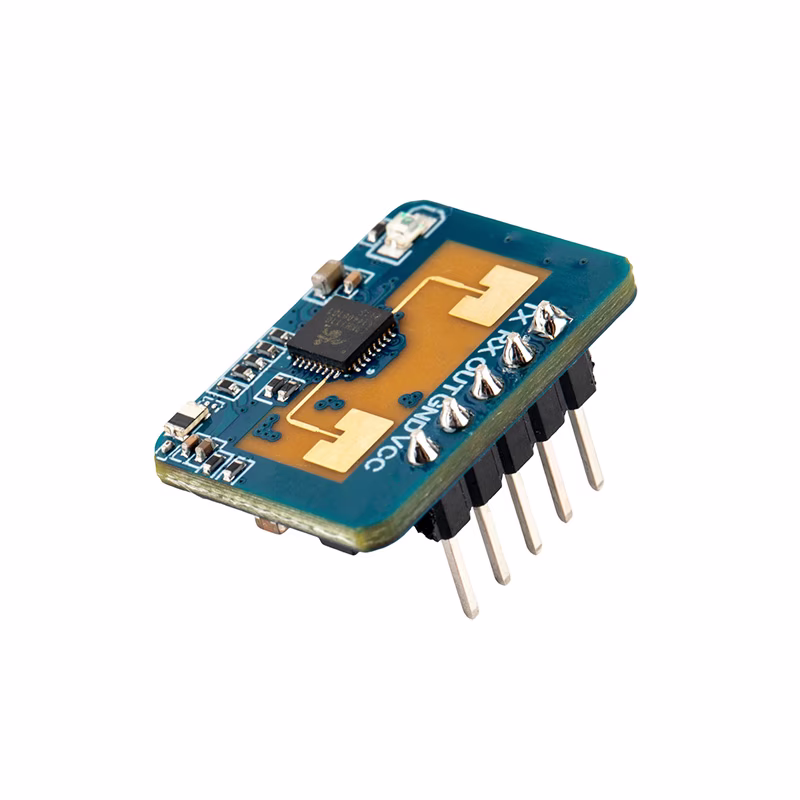

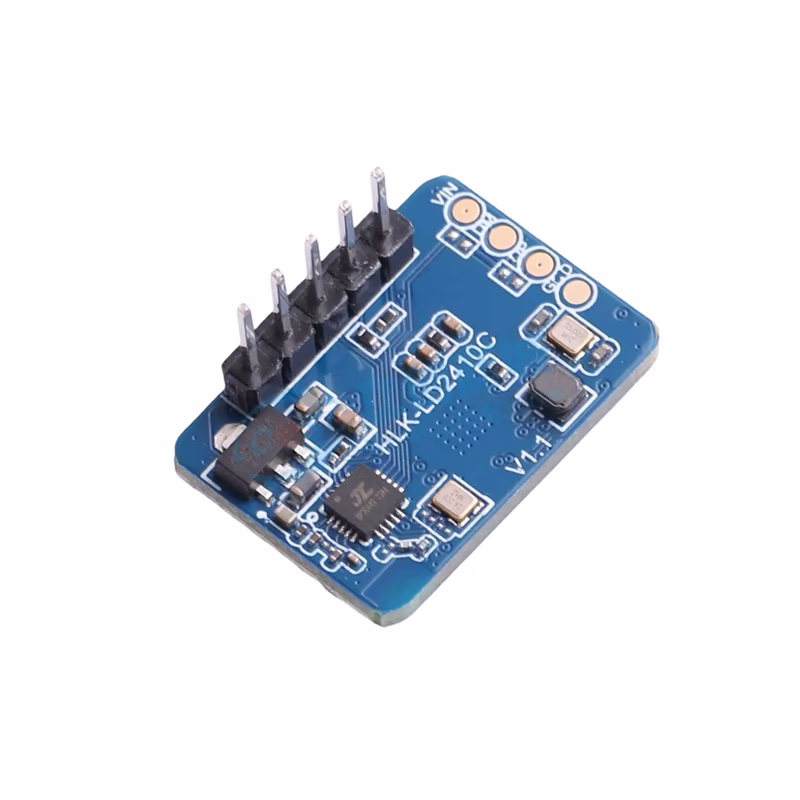

HI-LINK HLK-LD2410C-P SMD,22x16mm Sensor Modules ROHS
Description:
LD2410C is a high-sensitivity 24GHz human presence status sensing module developed by Hilink Electronics. Its working principle is to use FMCW frequency-modulated continuous wave to detect human targets in the set space. Combined with radar signal processing and accurate homebody sensing algorithms, it realizes high-sensitivity human presence status sensing, and can identify human bodies in motion and stationary states. And auxiliary information such as the distance of the target can be calculated.
This product is mainly used in indoor scenes to sense whether there is a moving or micro- moving human body in the area, and output the detection results in real time. The farthest sensing distance can reach 5 meters, and the distance resolution is 0.75m. Provides a visual configuration tool, which can easily configure the sensing distance range, sensing sensitivity in different intervals and unmanned delay time, etc., to adapt to different specific application needs. Support GPIO and UART output, plug and play, and can be flexibly applied to different smart scenarios and terminal products.
Specification:
| Item Type: | Sensor Module |
| Model No. / Name: | HLK LD2410C |
| Detection Angle | ±60° |
| Display Resolution (pixel) | 1280×800 |
Features:
- Plug and play, easy assembly
- The longest sensing distance is up to 5 meters
- Large detection angle, coverage up to ±60 degrees
- Accurate identification within the interval, support the division of the sensing range, and shield interference outside the interval
- Multi-level intelligent parameter adjustment can be realized through Bluetooth or serial port to meet the needs of scene changes
- Visual debugging and configuration tools
- Supports various installation methods such as ceiling hanging and wall hanging
- 24GHz ISM band, can be certified by FCC and CE spectrum regulations
Package Include:
1 x HI-LINK HLK-LD2410C-P SMD,22x16mm Sensor Modules ROHS
Tilt Sensor Comparison: SW-520D vs MPU6050 vs ADXL345 — Which Should You Use?
Tilt sensing is one of those fundamental requirements that appears in projects ranging from anti-theft systems to gesture-controlled...
Read More →
Vibration Sensor SW-420 & Piezo: Tutorial for Arduino Projects
Vibration sensing is a core capability in modern electronics — from earthquake detection and industrial machine health monitoring...
Read More →
Ultrasonic Sensor HC-SR04 vs JSN-SR04T: Which to Buy?
Ultrasonic distance sensors are among the most popular components in any maker's toolkit. Whether you are building an...
Read More →Technical Specifications
| Brand | Hi-Link |
|---|---|
| Dimensions | 22x16mm |
| Package Quantity | 16 pcs |
| SKU | AI4848 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The HI-LINK HLK-LD2410C-P SMD,22x16mm Sensor Modules ROHS is a versatile sensor modules used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine Hi-Link product sourced from authorized channels
