Hi-Link HLK 5M05 5V/5W Switch Power Supply Module
Description:

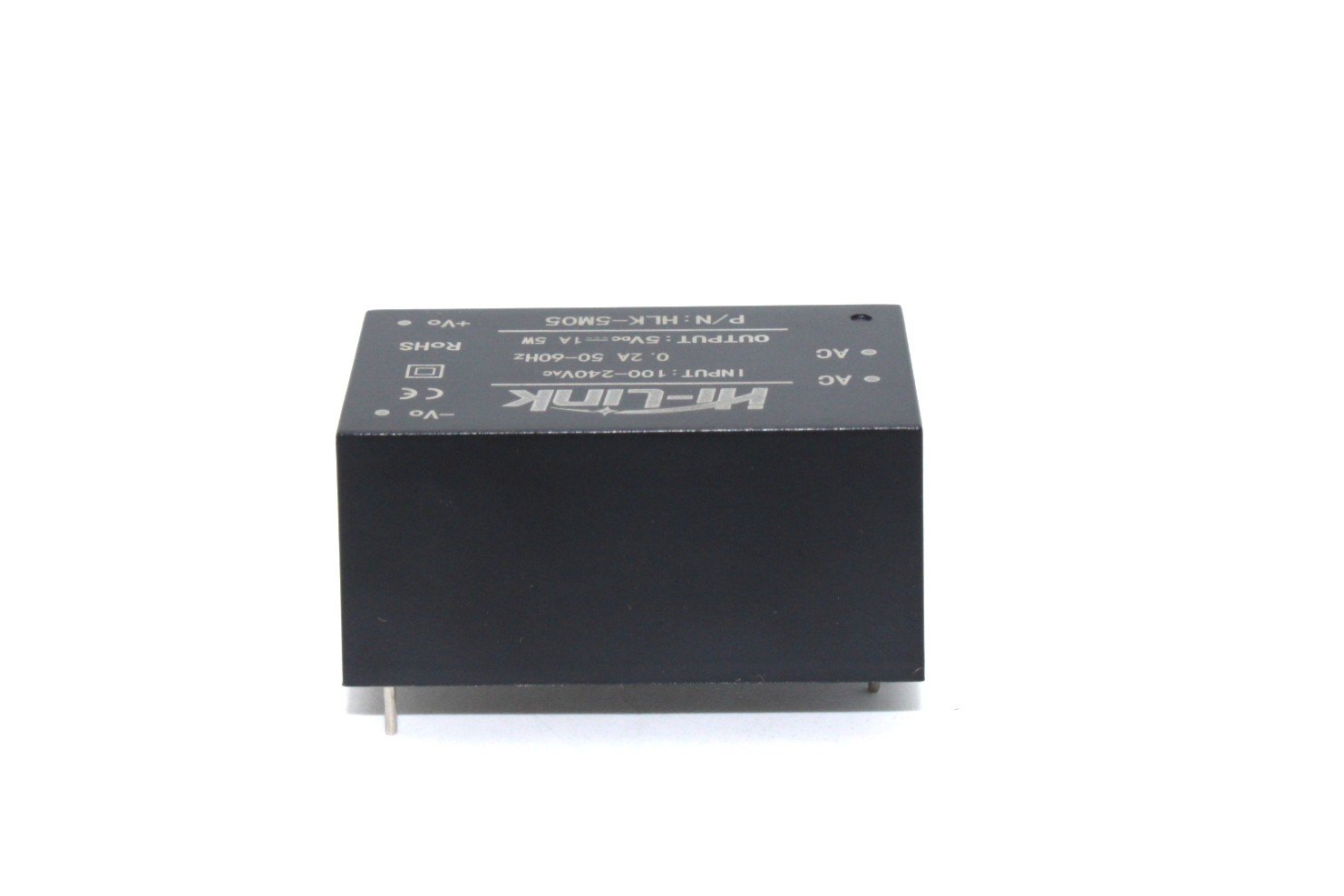

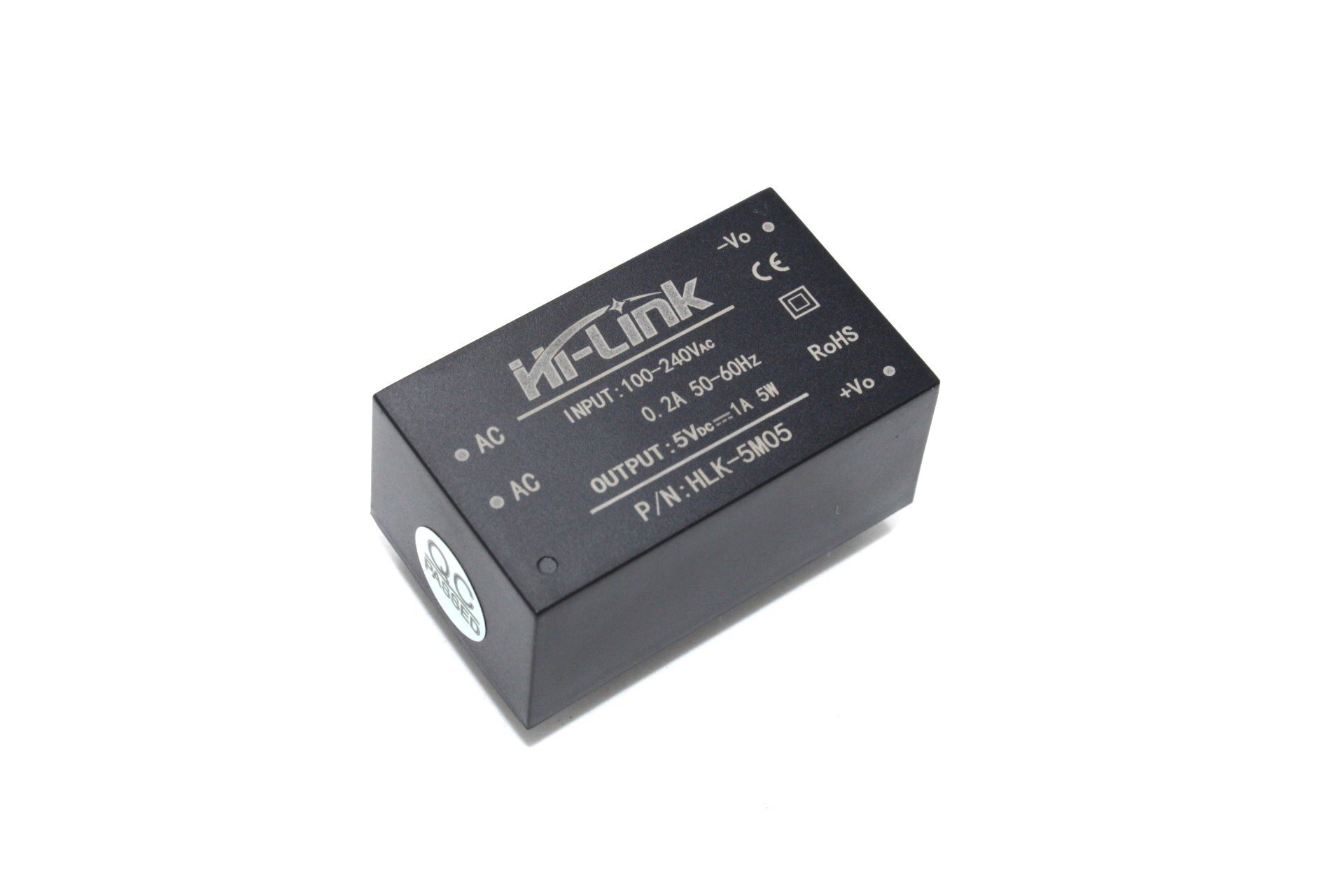

The HLK-5M05 is a compact, plastic-encased power supply module designed for PCB mounting. This isolated switching step-down power supply efficiently converts 120V AC to 230V AC into a stable 5V DC output with a power rating of 5 Watts, making it ideal for small projects requiring a reliable 5V source from mains power.
By replacing traditional components like diodes, voltage regulators, and transformers, this module offers numerous advantages, including minimal heat generation, low power consumption, high efficiency, excellent reliability, and robust electrical isolation.
As a switching power source, the HLK-5M05 ensures consistent voltage output despite fluctuations in the power grid. It is specifically designed for easy PCB integration and is widely used in smart home systems, automation and control applications, communication equipment, instrumentation, and various other industries.
Environmental Conditions
- Technical indicators: Single bit
- Working temperature: – 20-60 +degree
- Storage temperature: + 80-40 -degree
- Relative humidity: 5-95%
- The cooling way: Natural cooling
- The atmospheric pressure: 80-106Kpa
- The altitude: 2000M or less.
Specifications:
- Rated input voltage 100-240 VAc
- Input voltage range 90-264 VAc
- Maximum input current ≤0.2A
- Input current surge ≤10 A
- maximum input voltage ≤270 VAc
- Enter slow start ≤50 mS
- Input Low Voltage Efficiency Vin=110VAc，Output full-load≥ 69%
- Input High Voltage Efficiency Vin=220VAc，output full-load≥ 70 %
- Long-term reliability MTBF≥100，000 h
- Load rated output voltage 5±0.1 VDc
- Full rated output voltage 5±0.2 VDc
- Short-term maximum output current ≥1200 mA
- The maximum output current for a long time ≥1000 mA
- Voltage Regulation ±0.2%
- Load Regulation ±0.5%
- Output ripple and noise (mVp-p) ≤70 mV
- Rated input voltage, full load. Using 20MHz of bandwidth,The load side 10uF and 0.1uF capacitor to be tested.
- Switch overshoot amplitude (Rated input voltage and output load plus 10%)≤ 5%VO
- Output over-current protection 150-200% of the output maximum load
- Output short circuit protection Direct short circuit at the normal output, automatically resume normal operation after a short circuit removal
Datasheet:
Package Includes:
- 1 x HLK-5M05 5V/5W Switch Power Supply Module
Hi-Link HLK 5M05 5V/5W Switch Power Supply Module Overview
The Hi-Link HLK 5M05 is a compact, plastic-encased switching power supply module designed for direct PCB mounting. It converts a wide AC input range (90–264V) into a stable 5V DC output at up to 5W, ideal for small electronics projects that require a reliable low-voltage source from mains power.
Key Features of Hi-Link HLK 5M05 5V/5W Switch Power Supply Module
- Input Voltage: 90–264V AC wide-range compatibility
- Output: Regulated 5V DC at 1A (5W) with low ripple and low noise
- Built-in protection: Overload and short-circuit shutdown
- Ultra-thin, ultra-small plastic package for compact PCB designs
- Meets UL and CE safety standards, designed for EMC compliance
- No-load power consumption <0.1W, high efficiency and low heat generation
- Genuine product, fast shipping from Zbotic
Applications and Use Cases
- Power supply for Arduino, ESP8266/ESP32 or other microcontroller boards
- Embedded control modules in home automation appliances
- 5V LED strips or indicator lighting in small enclosures
- Low-power routers, switches, or network modules
- Battery charging circuits and sensor interface boards
- Portable test and measurement equipment
How to Use Hi-Link HLK 5M05 5V/5W Switch Power Supply Module
Solder the HLK-5M05 module onto your project’s PCB following the marked AC input and DC output pads. Connect the mains AC supply (90–264V) to the input pins, ensure proper insulation around the module, then power up to obtain a regulated 5V DC output. Mount in a well-ventilated area to maintain optimal performance and safety.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the input voltage range for the HLK-5M05?
The module accepts a wide AC input from 90V to 264V, making it suitable for both 120V and 230V mains supplies without additional adjustments.
Does the HLK-5M05 include protection features?
Yes, it has built-in overload and short-circuit protection. In case of a fault, the module will shut down output and automatically attempt restart once conditions normalize.
How do I mount this module on my PCB?

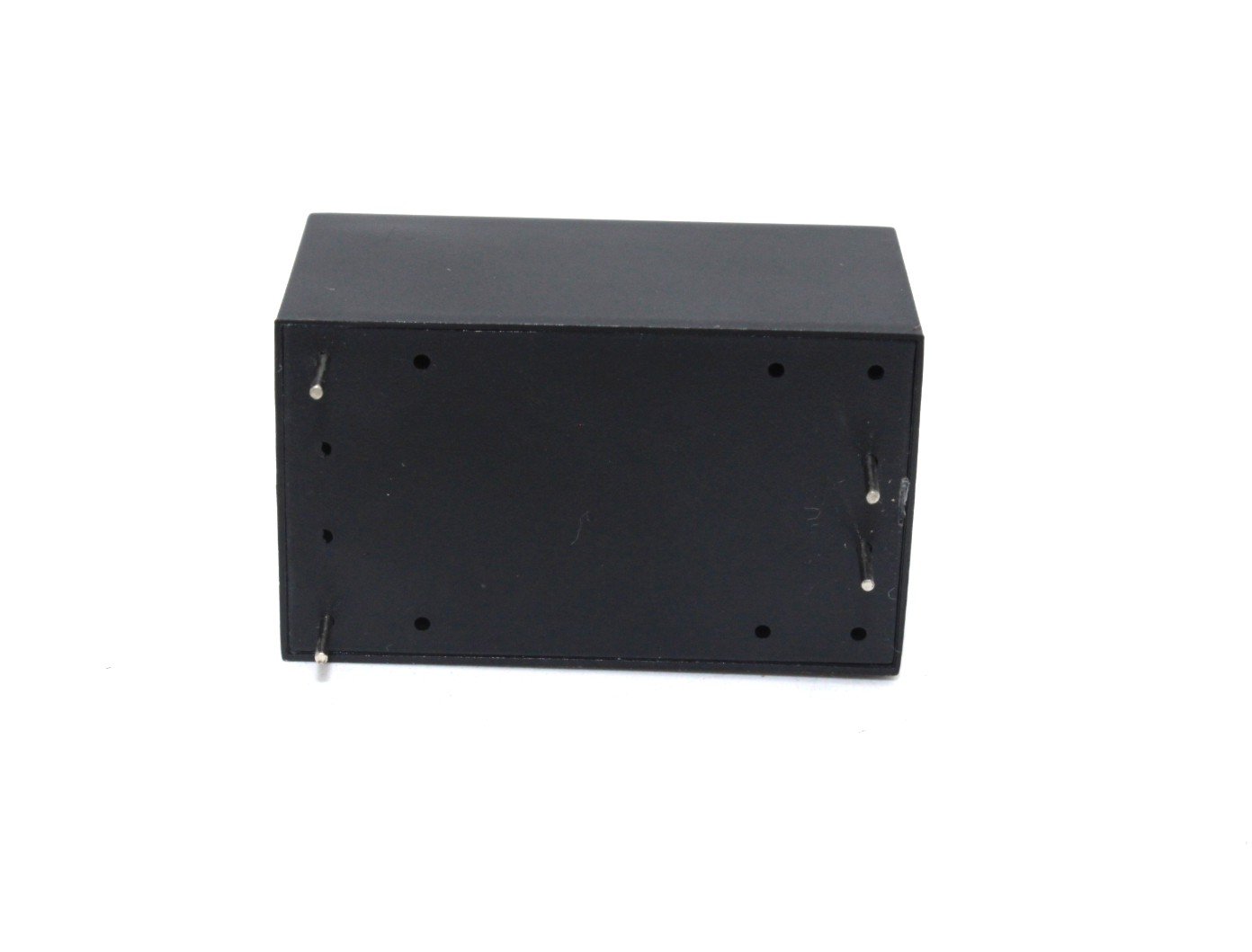

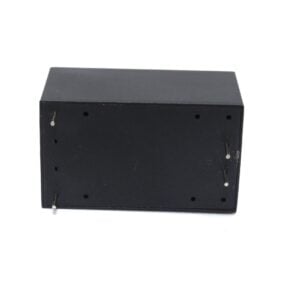

Solder the four through-hole pins (two for AC input, two for DC output) onto your PCB according to the silkscreen. Ensure there’s enough clearance and insulation around the module to meet safety requirements.
Technical Specifications
| Brand | Hi-Link |
|---|---|
| Operating Voltage | 5V |
| Power Rating | 5W |
| SKU | AI0280 |
| Weight | 0.02925 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Hi-Link HLK 5M05 5V/5W Switch Power Supply Module is a versatile hi-link power supply module used across a wide range of applications including electronics workbench, LED lighting, industrial equipment, embedded system power, and CCTV installations.
Common use cases:
- Powering a development board or test setup
- Driving LED strip installations
- Providing regulated DC power to equipment
This product is ideal for electronics labs, makers, and system integrators.
Technical Tip: Ensure output voltage and current match your load requirements. Switching power supplies are more efficient but may introduce noise; consider linear for sensitive analog circuits.
