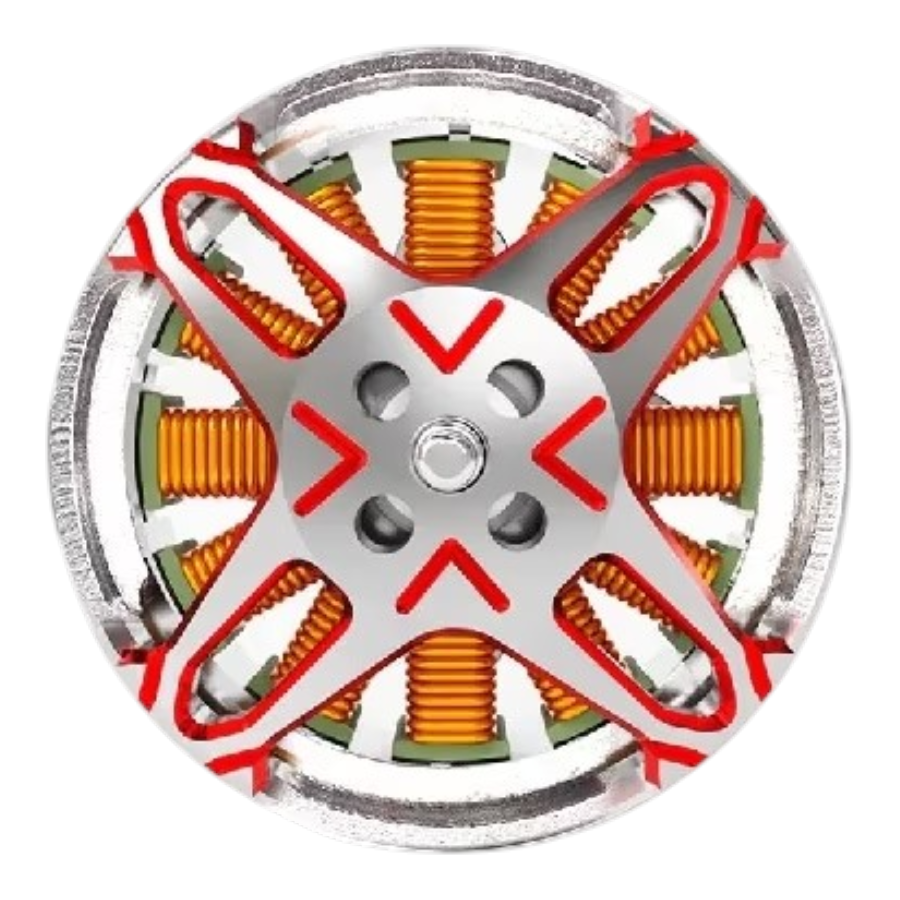

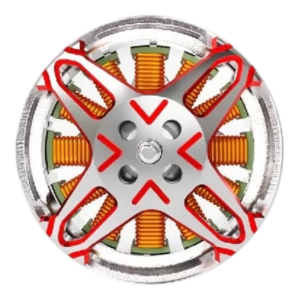

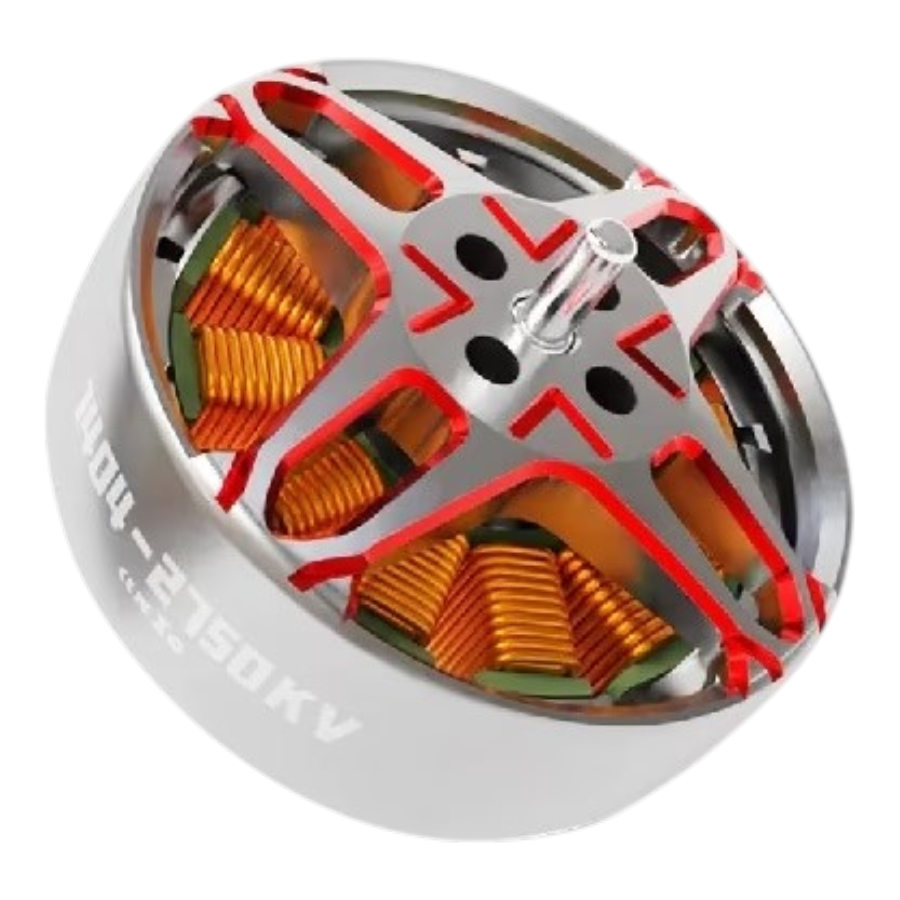

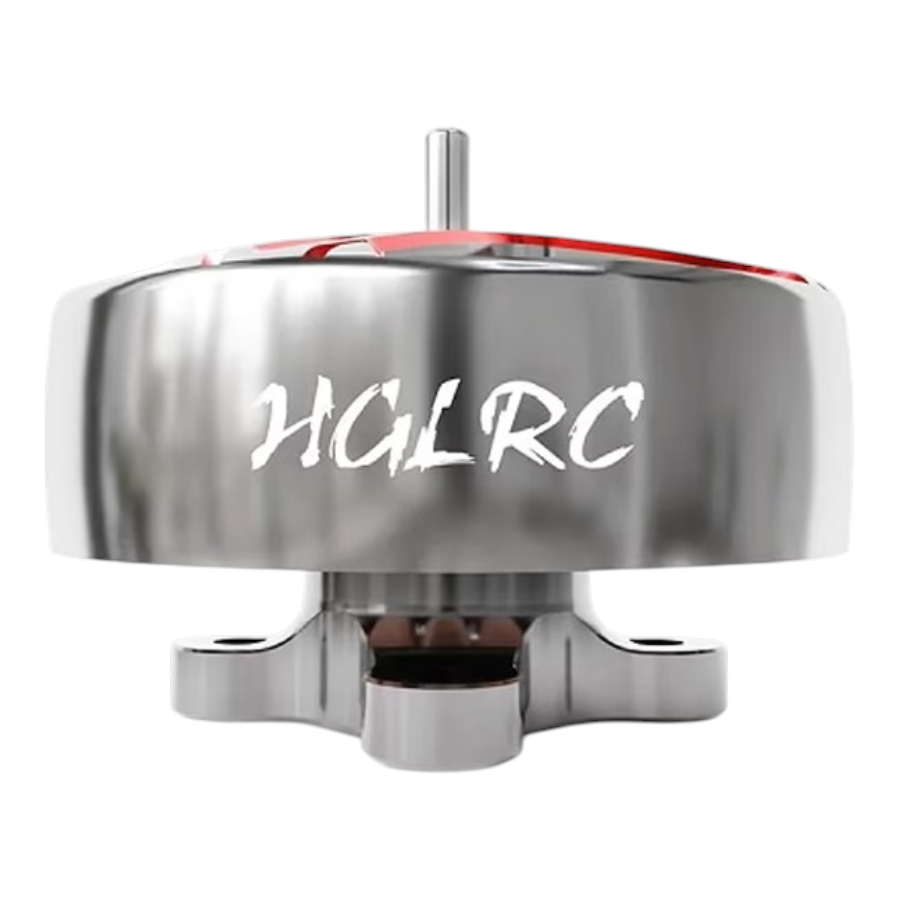

HGLRC SPECTER 1404 2750KV Brushless Motor
Description:
SPECTER 1404 2750KV Brushless Motor is a compact and potent brushless motor crafted for micro drones and quadcopters. Its high 2750KV rating guarantees rapid rotations and impressive thrust, ideal for agile maneuvers and acrobatics. The motor’s 1404 size ensures a lightweight build without sacrificing power. SPECTER 1404 motor stands as a favored option among drone enthusiasts aiming for exceptional speed and responsiveness in their small-scale aerial machines.
Features:
- Brand new rotor appearance design, an anodized two-color process
- 7075 aviation aluminum material, high-strength one-piece rotor
- Customized N52H curved magnetic steel, strong magnetism, high torque
- Super high temperature resistant 200° copper wire winding, the motor runs more stably
- Imported Kawasaki silicon steel sheets, low loss stator, reduce heat generation and improve efficiency
- New and optimized tuning, maintain high torque at low speed, linear power output when the throttle changes rapidly, and precise and fast response when turning
- Alloy Steel Outlet Shaft, high strength and reduce the weight of the fuselage
- Suitable for 2-inch Tiny drone or 4-inch toothpick drone
- ESC:> 15A
- Recommended propeller: 2-4 inches
- Motor size: Φ19.13mx 12.25mm
Specification:
| Motor KV (RPM/V): | 2750 |
| Motor Type: | Brushless Motor |
| Continuous Current (A): | 6.9 |
| Max. Power (W) | 155 |
| Input Voltage (V): | 4-6s |
| Mounting holes | 4*M2-∅9 |
Package Includes:
1 x 1404 2750KV motor 5 x M2x6mm screws 2 x M2x7mm screws
Motor Driver PWM Frequency: Impact on Performance & Efficiency
Table of ContentsIntroductionPWM Basics for Motor ControlHow PWM Frequency Affects Motor BehaviourAudible Noise and the 20 kHz RuleDriver...
Read More →
Drone Winch System: Pick and Place Payload Delivery UAV
Drone Winch System: Pick and Place Payload Delivery UAV The idea of drones that can autonomously pick up...
Read More →
GPS Rescue Mode Setup: Return-to-Home Safety Feature in Betaflight
GPS Rescue Mode in Betaflight: Complete Setup Guide for Return-to-Home Safety Losing your FPV quad in a tree,...
Read More →Technical Specifications
| Brand | HGLRC |
|---|---|
| KV Rating | 2750KV |
| SKU | AI8192 |

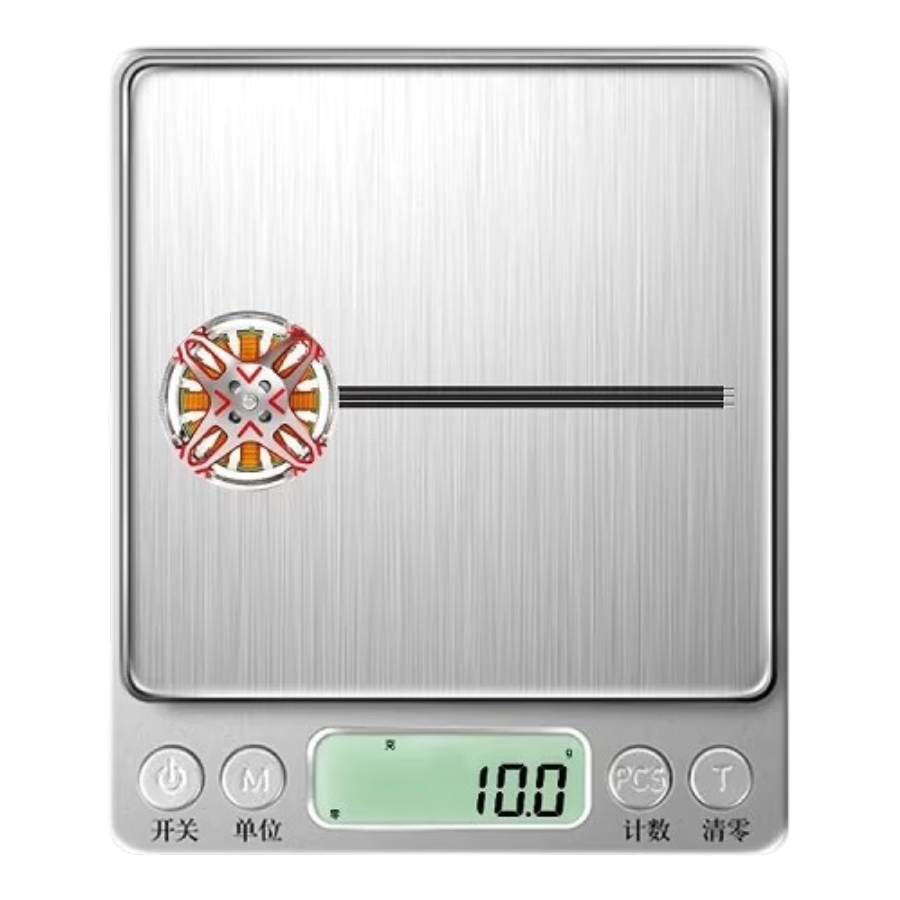

| Weight | 0.0780 kg |
| Availability | Out of Stock |
Applications & Use Cases
The HGLRC SPECTER 1404 2750KV Brushless Motor is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
