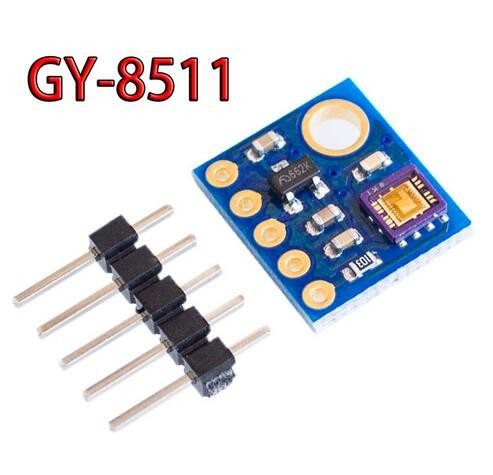

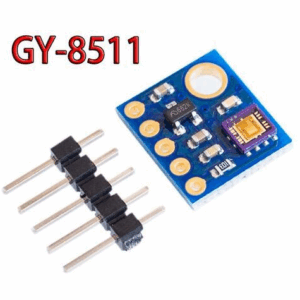

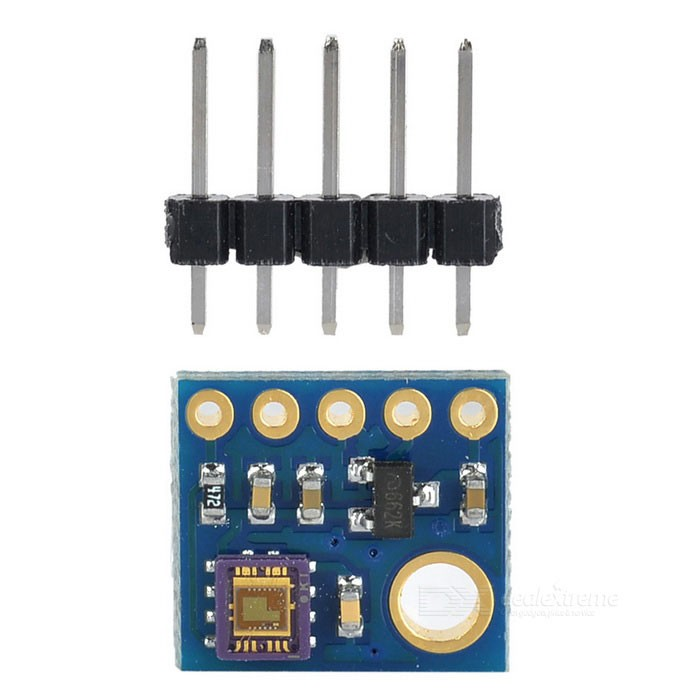

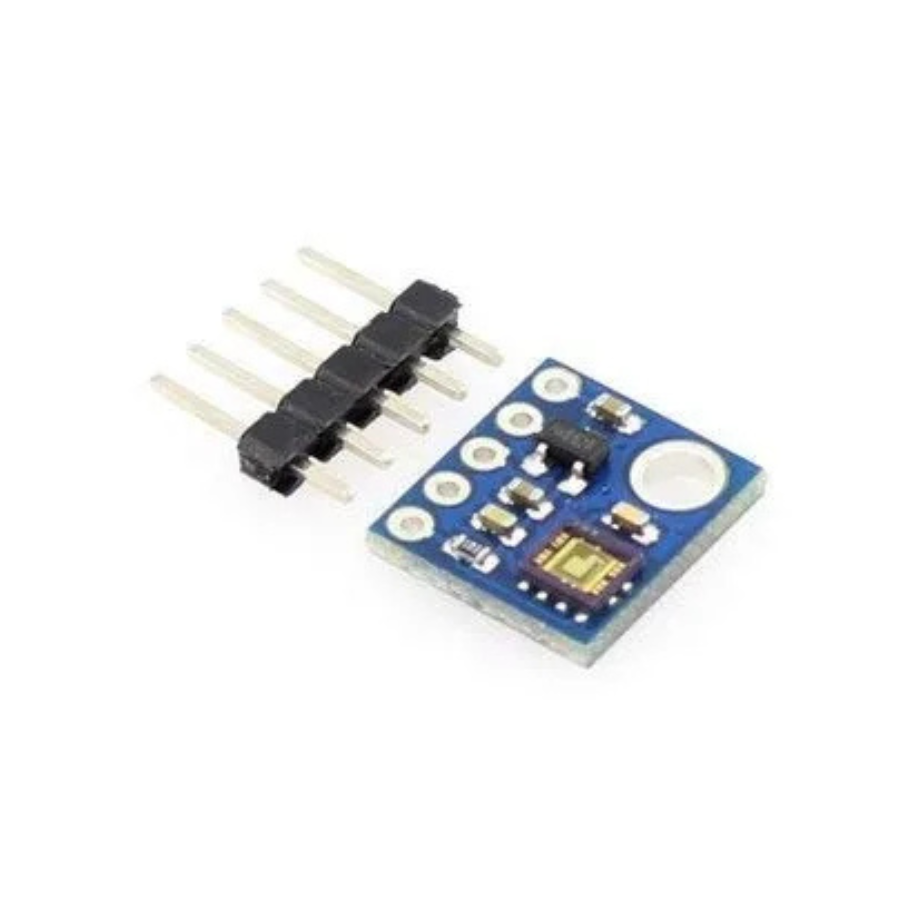

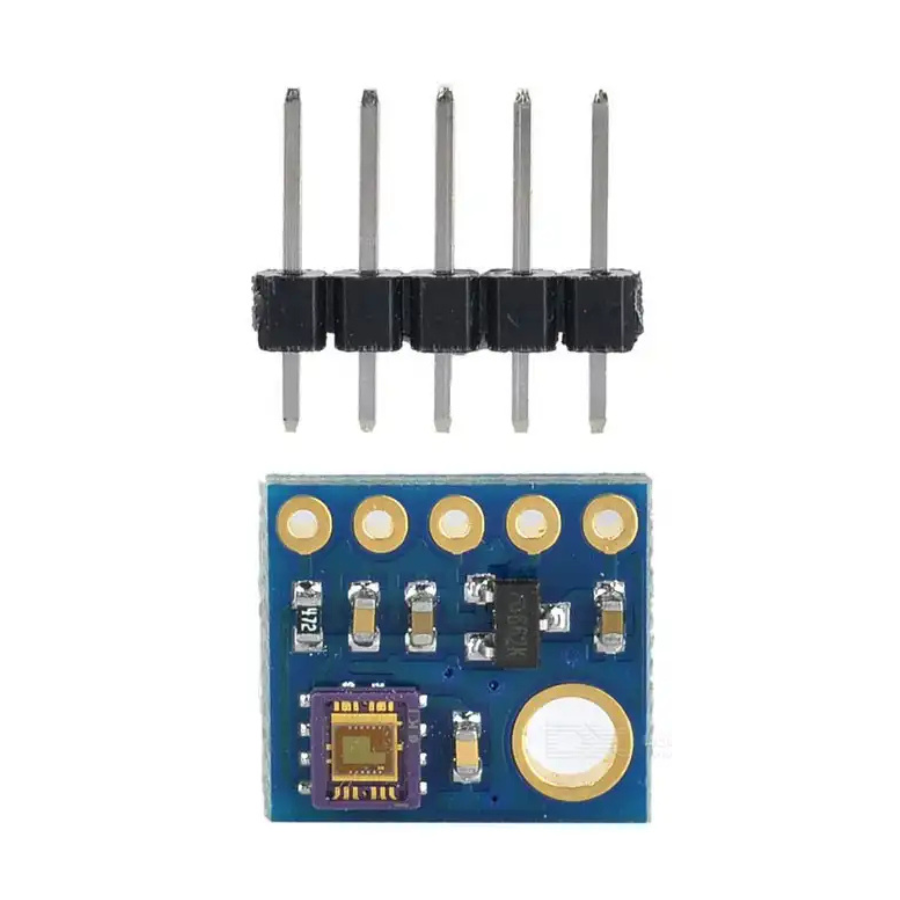

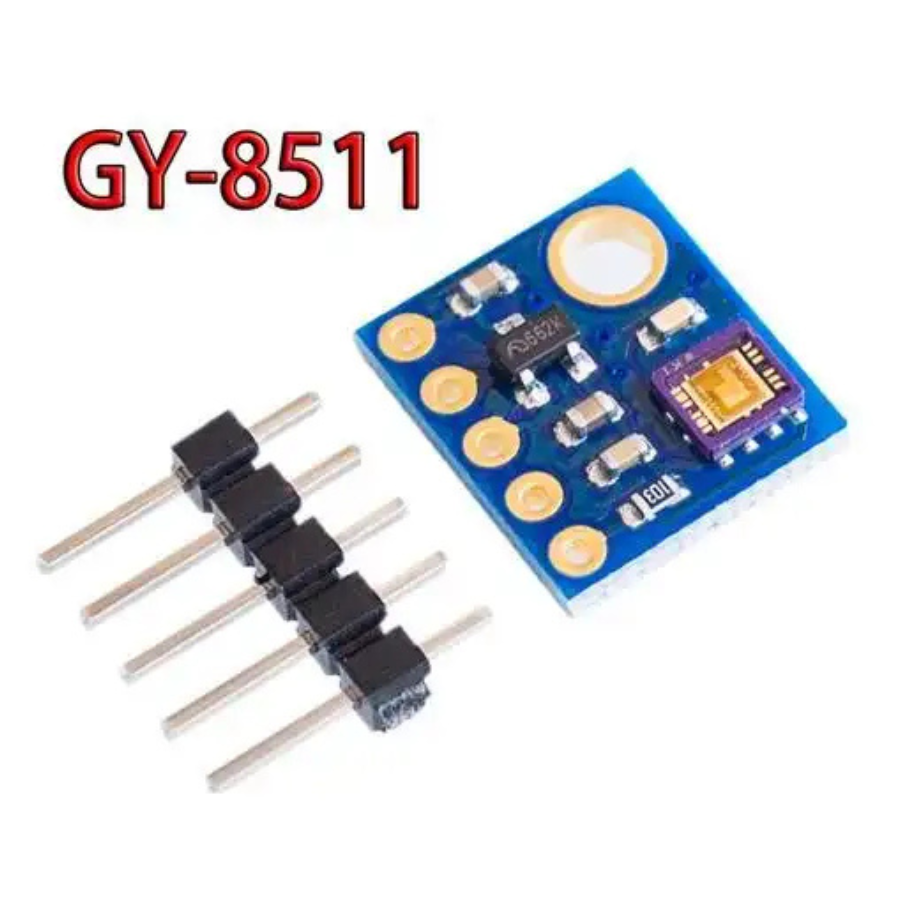

GYML8511 Analog Output Ultra-Violet Light Sensor Module
The GYML8511 Analog Output Ultra-Violet Light Sensor Module is a user-friendly UV light sensor that outputs an analog signal based on the detected UV light levels.
This module is particularly useful for creating devices that alert users about sunburn risks or monitor the UV index in relation to weather conditions. It effectively detects light in the 280-390 nm range, covering most of the UVB (burning rays) spectrum and part of the UVA (tanning rays) spectrum. The output voltage is linearly correlated to the measured UV intensity (mW/cm²).
To use the sensor, simply connect its output to an ADC channel on your microcontroller to monitor UV light intensity.

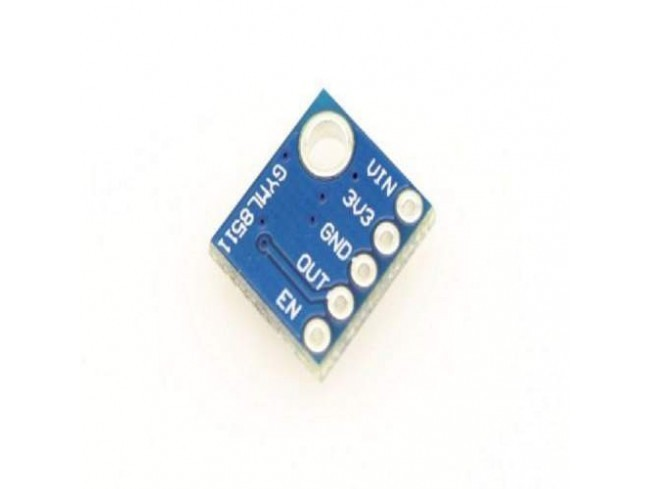

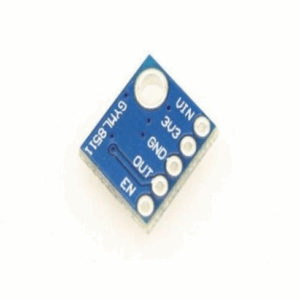

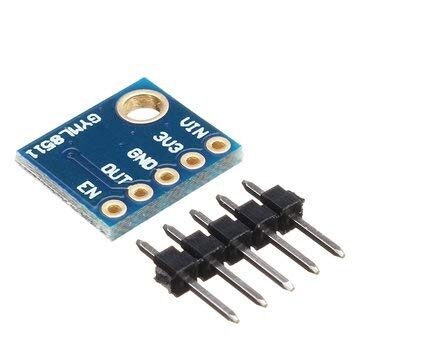

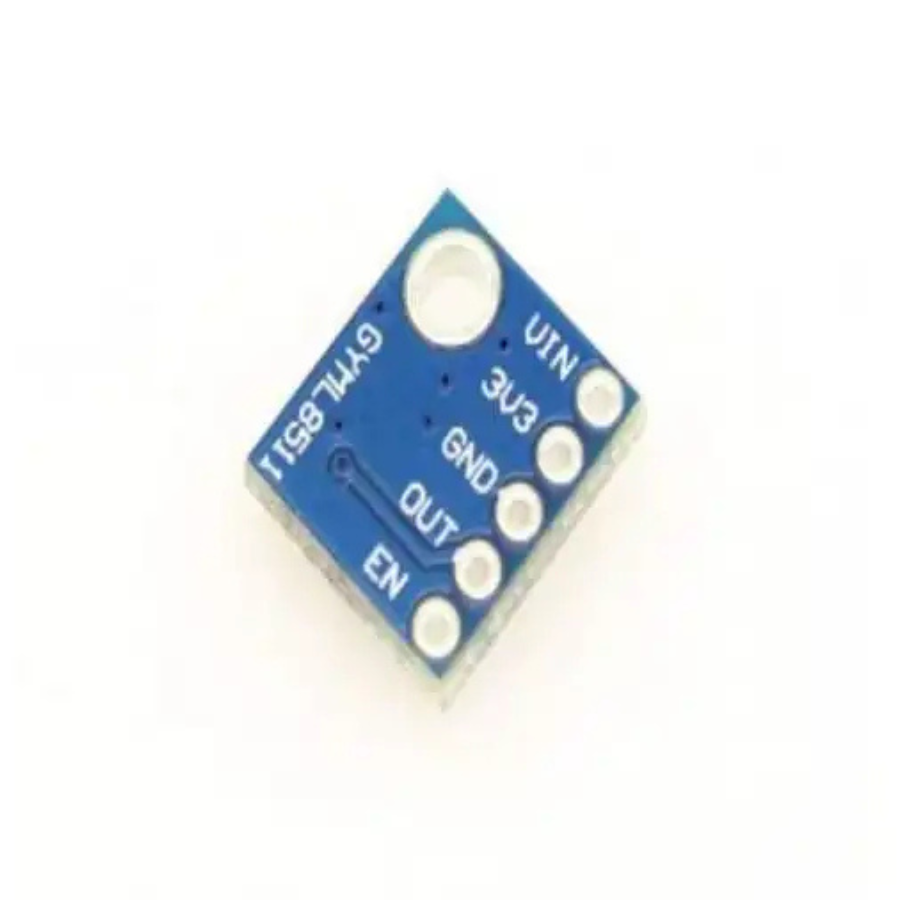

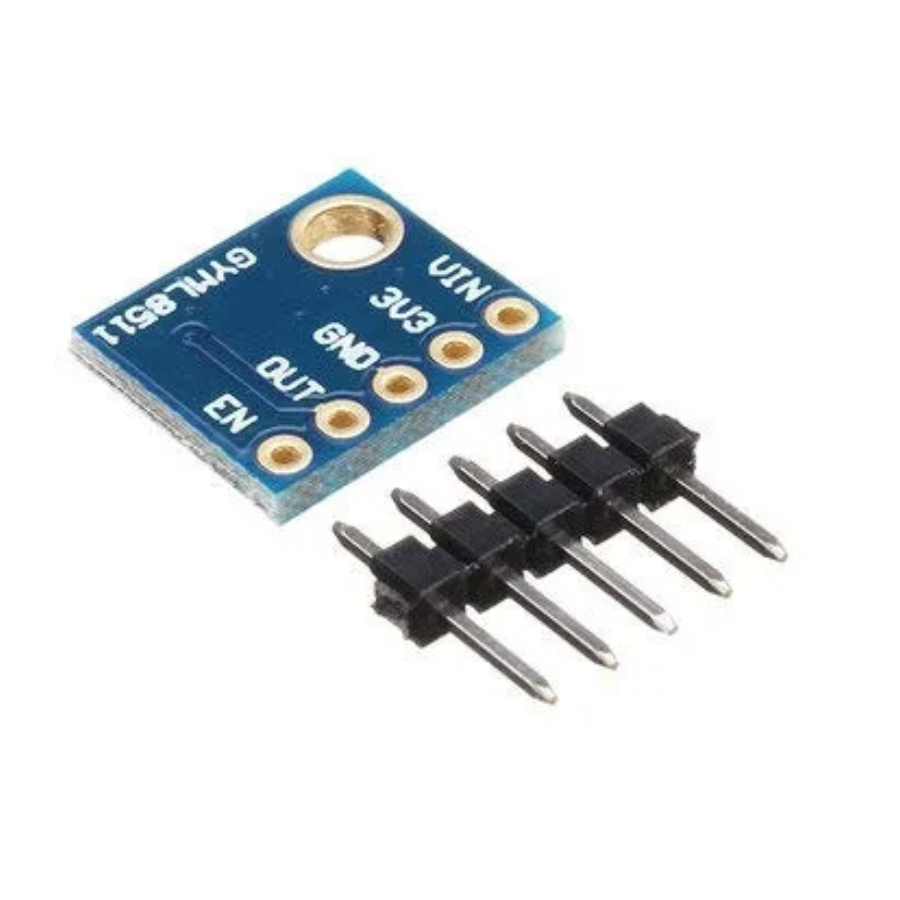

Pinouts
VIN:Power Connection (3V – 5V) 3.3V:Output of the onboard regulator GND:Ground OUT:Analog Output EN:Enable Input
Applications
Sunburn detectors
Controlled UV Exposure chambers
UV Detectors for the safety of Humans, and animals.
Features :
Photodiode sensitive to UV-A and UV-B
Embedded operational amplifier
Analog voltage output
Low supply current (300uA type) and low standby current (0.1uA type)
Specifications:
Model
GY-ML8511
Operating Voltage (VDC):
3 ~ 5
Max. Operating Current (mA)
0.19
Operating Temperature (°C)
-40 to 90
Detection Wavelength Band
280nm to 390nm
Peak Wavelength
365nm
PCB Size ( L x W ) mm
13 x 12
Package Includes :
1 x ML8511 Analog Output Ultra-Violet Light Sensor Module
GYML8511 Analog Output Ultra-Violet Light Sensor Module Overview
The GYML8511 Analog Output Ultra-Violet Light Sensor Module is a compact UV light detector that outputs an analog voltage proportional to the intensity of UV-A and UV-B radiation. Ideal for integration into sunburn alerts, UV index monitors, and other projects requiring real-time UV measurement.
Key Features of GYML8511 Analog Output Ultra-Violet Light Sensor Module
Supply voltage range: 3 V to 5 V DC with ultra-low standby current (0.1 μA)
Low operating current: 120 μA typical, 190 μA maximum
Photodiode sensitive to UV-A and UV-B wavelengths (280–390 nm)
Embedded operational amplifier for stable and amplified analog output
Output voltage linearly correlated to UV intensity (mW/cm²)
Fast shipping across India from Zbotic
Applications and Use Cases
UV index monitoring in home or outdoor weather stations
Sunburn warning devices and wearable UV exposure badges
Smart agriculture systems tracking crop UV exposure
Poolside or beach UV exposure tracking gadgets
Monitoring UV curing processes in 3D printing and manufacturing
How to Use GYML8511 Analog Output Ultra-Violet Light Sensor Module
Connect VCC to a 3–5 V supply, GND to system ground, and the OUT pin to an analog input on your microcontroller. The module’s onboard amplifier provides a voltage output directly proportional to UV intensity; read the ADC value and convert it using the sensor’s transfer function to obtain UV levels in mW/cm².
Why Buy from Zbotic?
Genuine Products: All items sourced from authorized distributors
Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
Free Shipping: Free delivery on qualifying orders
COD Available: Cash on Delivery, UPI, cards, net banking
Technical Support: Expert help for setup and troubleshooting
Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What UV wavelength range does the GYML8511 detect?
The GYML8511 sensor covers the 280–390 nm range, capturing most UV-B (burning rays) and part of UV-A (tanning rays).
What is the typical operating current at 5 V supply?
At a 5 V supply, the module draws about 120 μA in active mode, with a maximum of 190 μA, ensuring minimal power consumption for battery-powered projects.
How do I calibrate the analog output for UV intensity?
Measure the output voltage with a known UV source and refer to the module’s transfer curve (mV per mW/cm²) to derive a calibration factor. Apply this factor in your code to convert ADC readings into UV intensity.
The GYML8511 Analog Output Ultra-Violet Light Sensor Module is a versatile light/color sensor used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
Integrating into a custom electronics project
Learning and experimenting with circuits
Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
