PRODUCT DESCRIPTION

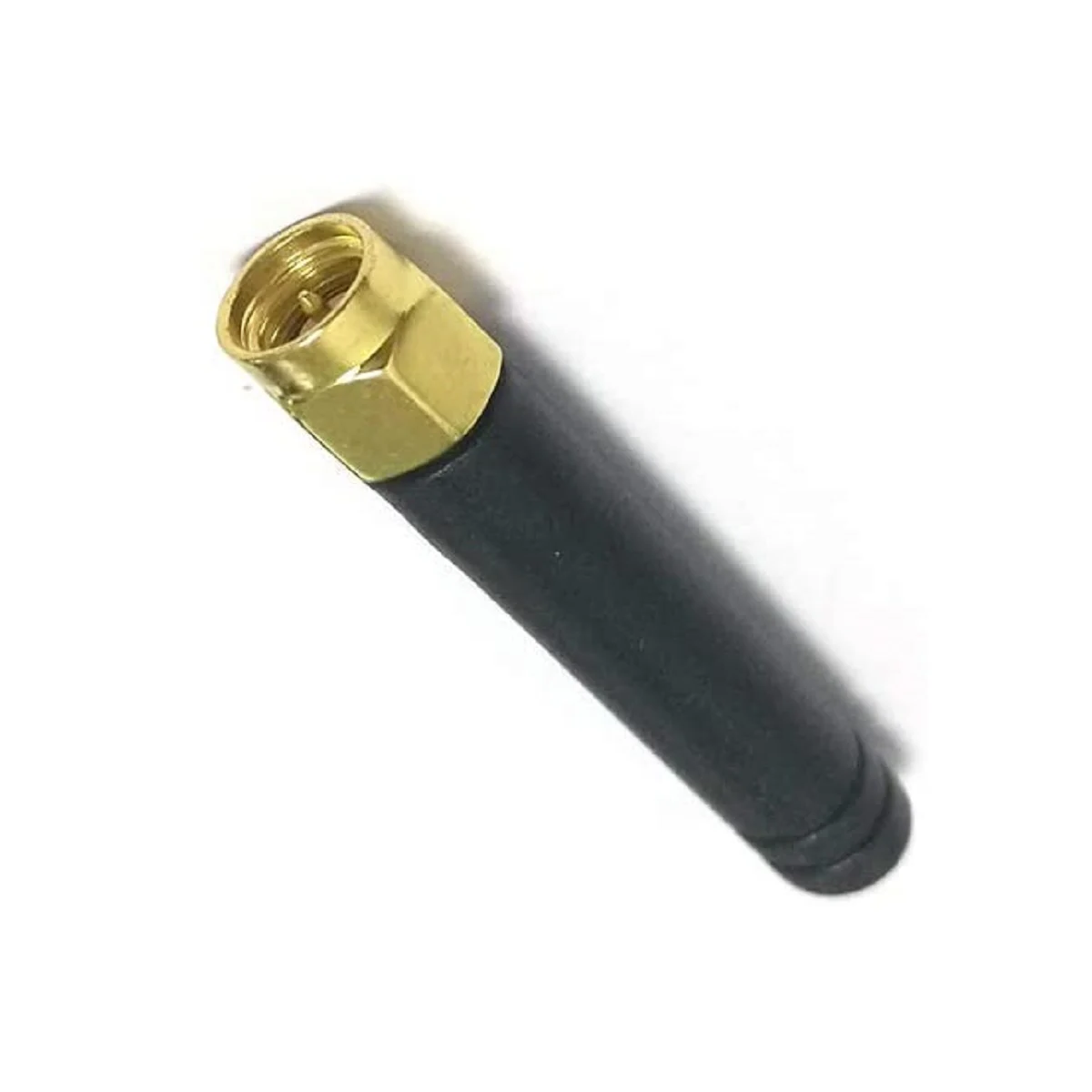

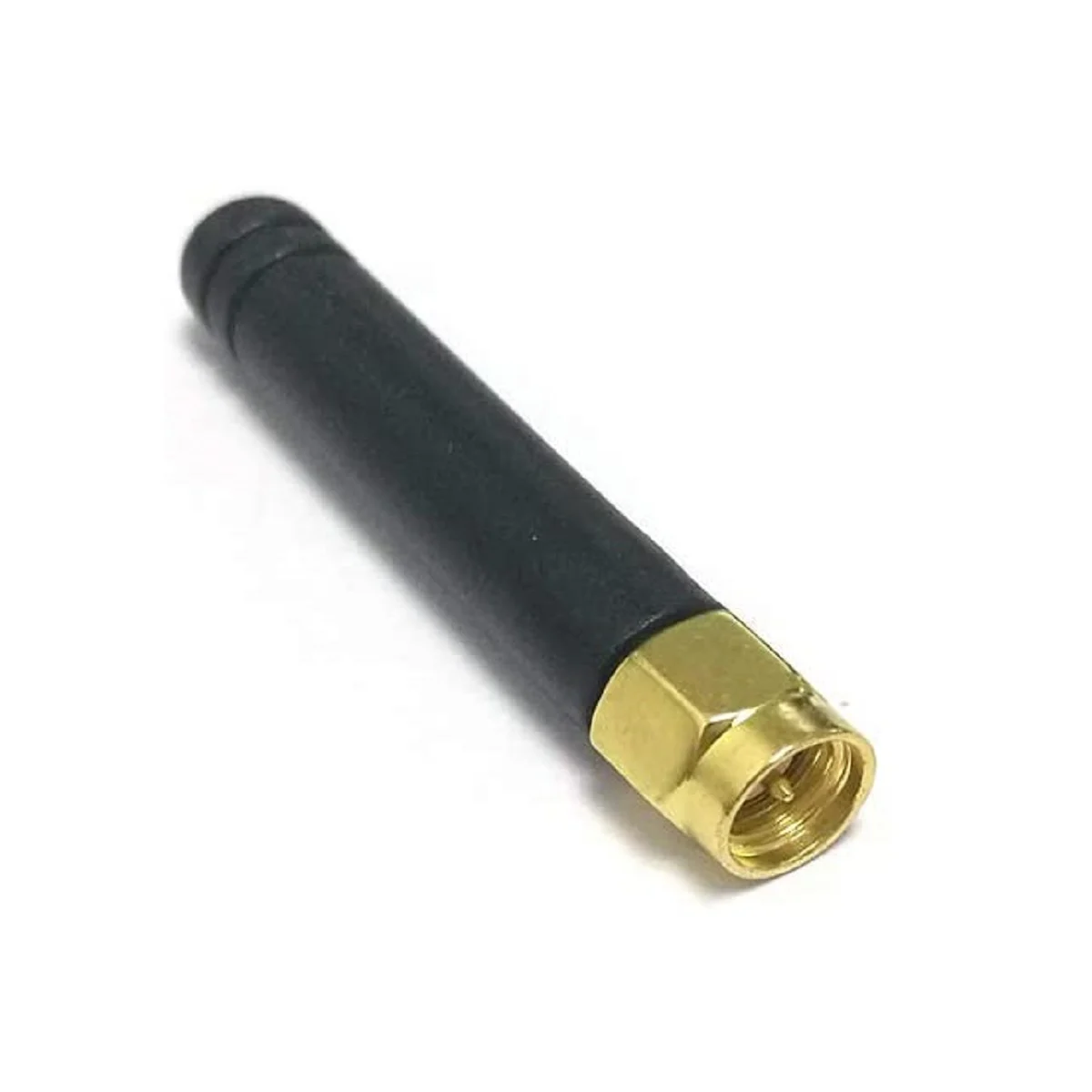

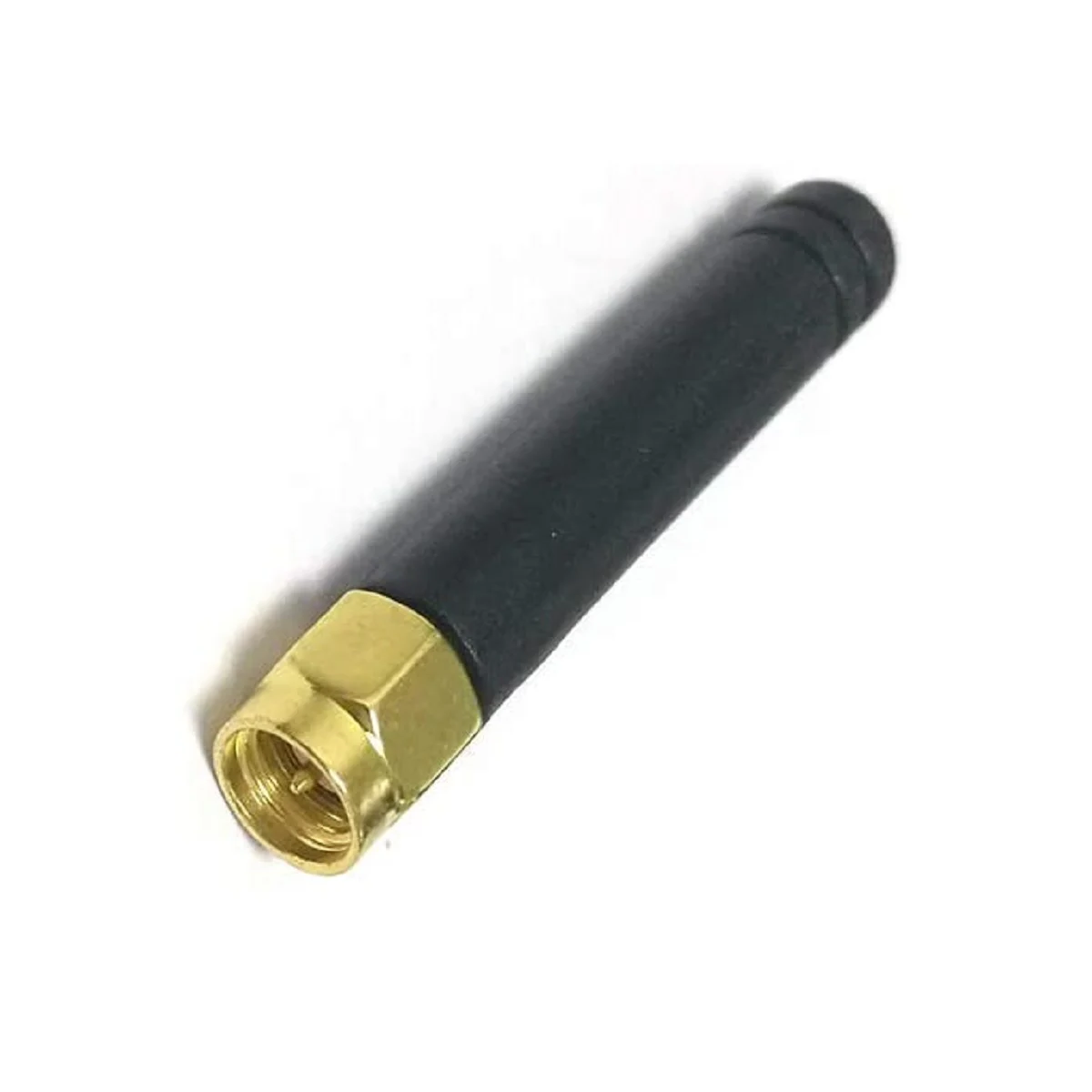

The GSM Antenna is a dual-band 3G/4G LTE antenna designed for optimal performance, with a 2dBi gain and operating on the 900MHz and 1800MHz frequency bands. Featuring an SMA-Male connector, it provides an omnidirectional radiation pattern, ensuring broad signal coverage. The antenna’s coaxial sleeve design, often referred to as a “rubber duck” style, contributes to its extended range and reliable performance.
This antenna supports transmission on the 900MHz band with a maximum power output of 25 watts, making it compatible with modern mobile communication standards, including 3G and 4G LTE networks.
The antenna’s STUB design allows for a direct attachment to the SMA connector, eliminating the need for a coaxial cable. This design reduces connection losses and results in a cleaner, more efficient antenna setup. With a straight SMA connector, it can be positioned either vertically or at a right angle, making it a versatile replacement for RF antennas on devices that use SMA connectors. It is suitable for a variety of applications, including mobile phones, wireless payphones, commercial phones, PCMCIA cards, navigation systems, and vehicle communication devices.
Applications:
- GSM/GPRS antennas are mainly applied to the follows
- Indoor signal coverage system,
- Security system,
- Wireless data collection system,
- Wireless electric power communication
- Wireless public payphone system
Features:
- Compact Size
- Low Cost
- Low power consumption
- omnidirectional antenna
- A highly optimal design for direct mounting
Specification:
| Product Type | GSM Antenna |
|---|---|
| Frequency Range | 900MHz – 1800MHz |
| Max Power Output (W) | 50W |
| Antenna type | SMA male straight GSM GPRS Antenna |
| Material | Metal, Plastic |
| Nominal impedance | 50 ohms |
| Color: | Black |
| Operating Temperature Range (°C): | Operation -30°C to +70°C |
| Connector | SMA-m |
| polarization | Linear vertical |
| Length (mm): | 5cm |
| Shipping Weight | 0.008 kg |
| Shipping Dimensions | 8 × 5 × 1 cm |
Package Includes:
1 x GSM Antenna SMA 5cm 900M 1800mhz.
