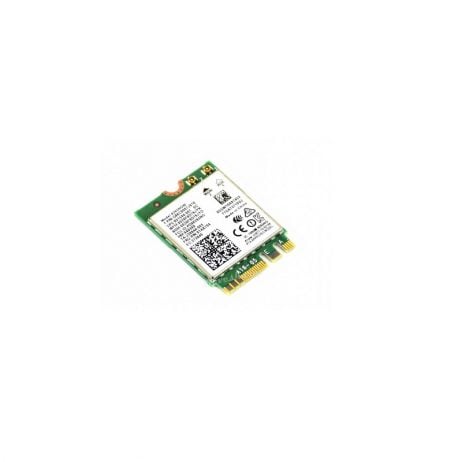

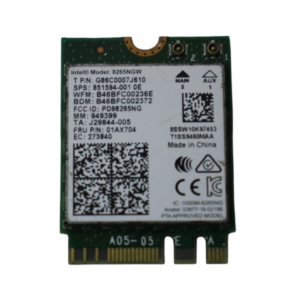

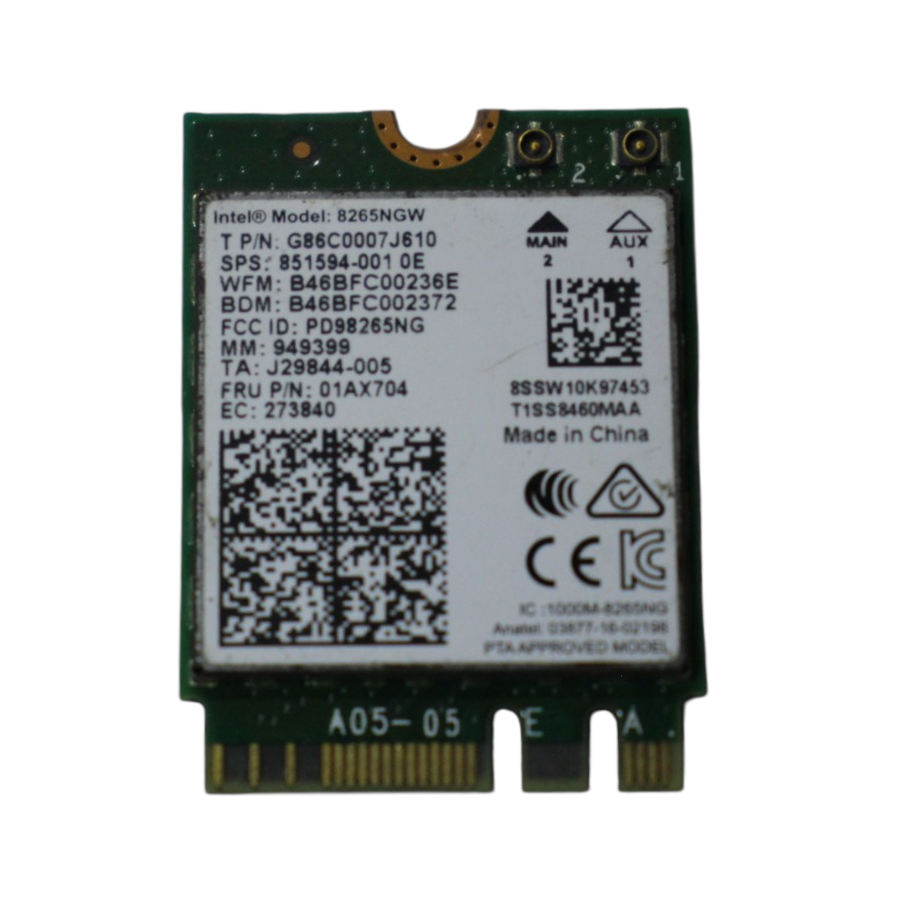

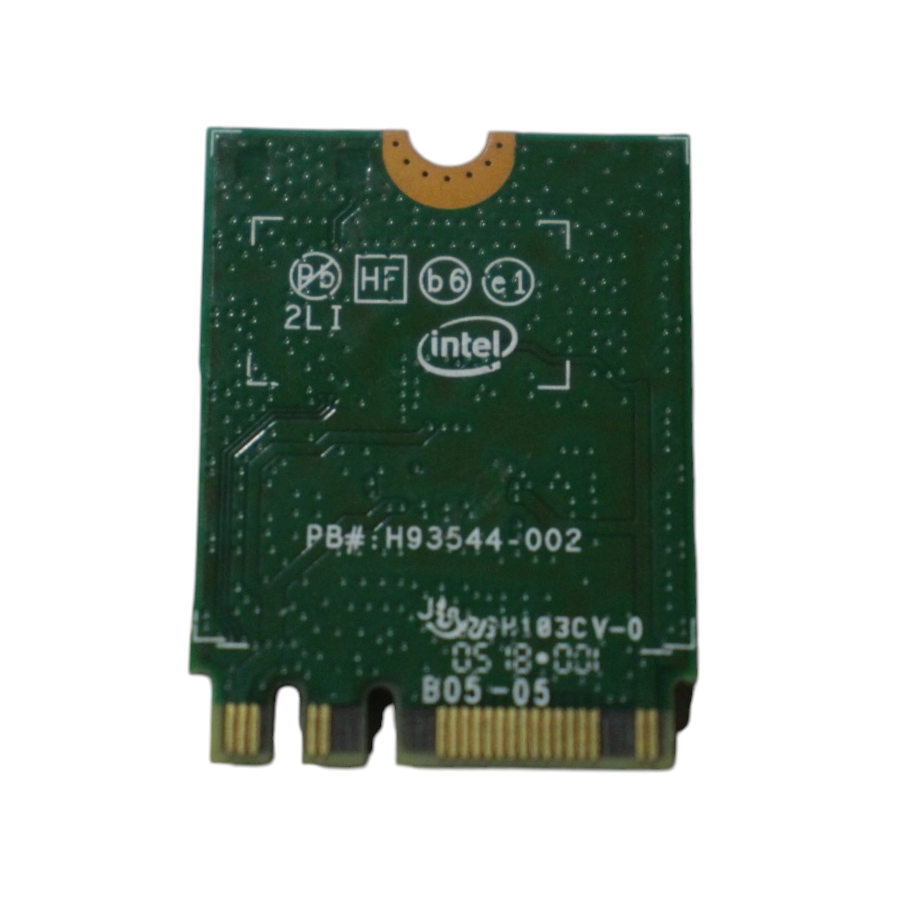

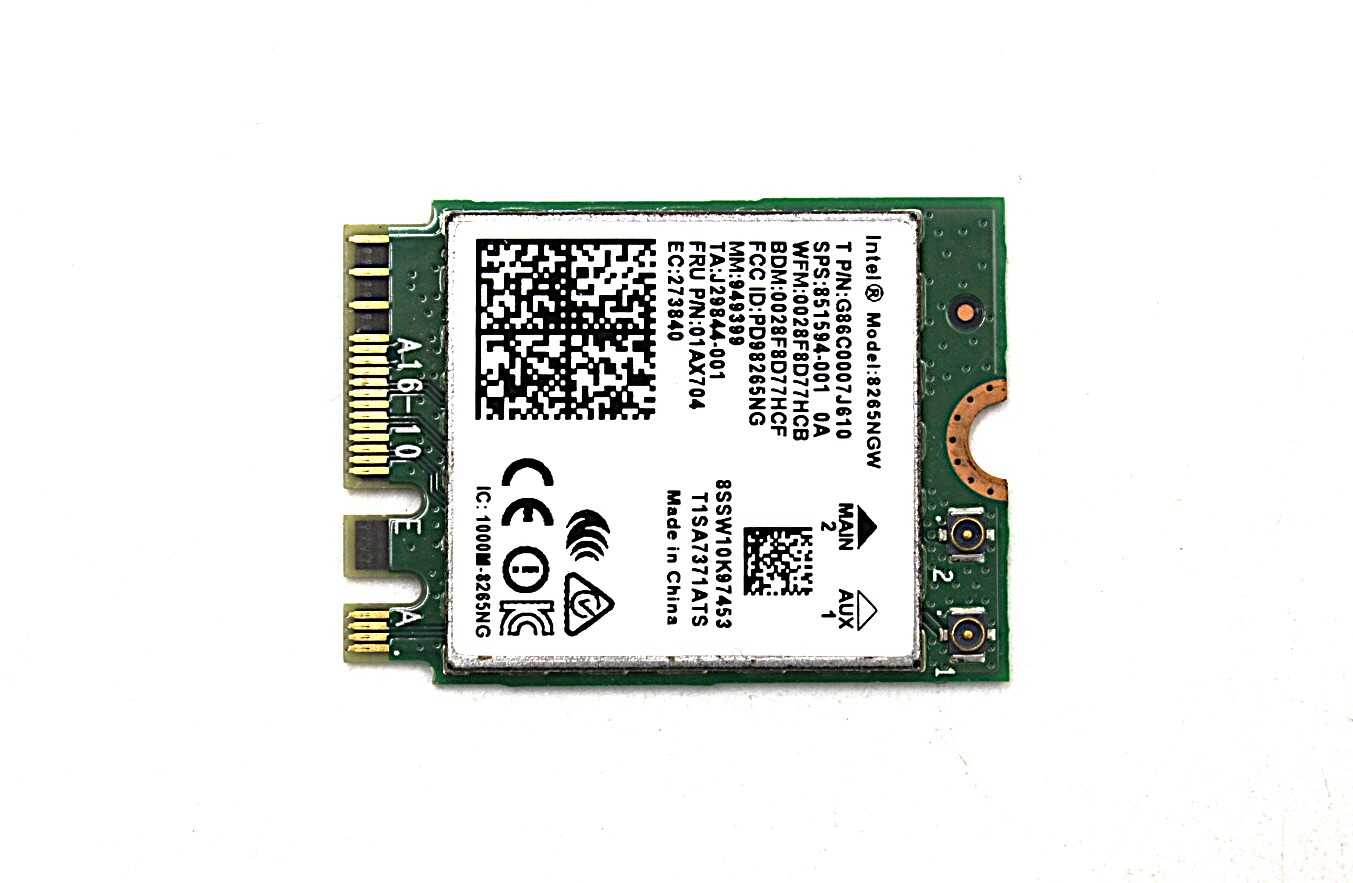

AC8265 Wireless NIC for Jetson Nano WiFi / Bluetooth
Introducing the AC8265 Wireless NIC for Jetson Nano, providing both WiFi and Bluetooth connectivity. This module enables seamless communication by receiving signals through the Network Interface Controller (NIC), supporting both wired and wireless connections. The NIC facilitates local area network (LAN) communication between computers and also supports large-scale network connections via Internet Protocol (IP), ensuring versatile and reliable connectivity for your Jetson Nano projects.
How to use:
- Remove the two screws on Jetson Nano, detach the Jetson Nano
- Connect the extension cable to Wireless-AC8265 on the IPEX connector, tighten the nut and washer to each SMA connector
- Remove the NIC screw onboard, insert the Wireless-AC8265 into the M.2 socket, screw it tightly
- Insert the Jetson Nano into the socket and screw it again, connect the antennas
Features and Specifications:
- Chip: Intel 8265AC
- Bands: 2.4GHz / 5GHz
- Speed: 300Mbps / 867Mbps
- WiFi protocol: 802.11ac
- Bluetooth version: 4.2
- NIC interface: NGFF (M.2)
- Antenna interface: IPEX connector
- Supported OS: Linux, Windows 10/8.1/8/7
Package Includes:

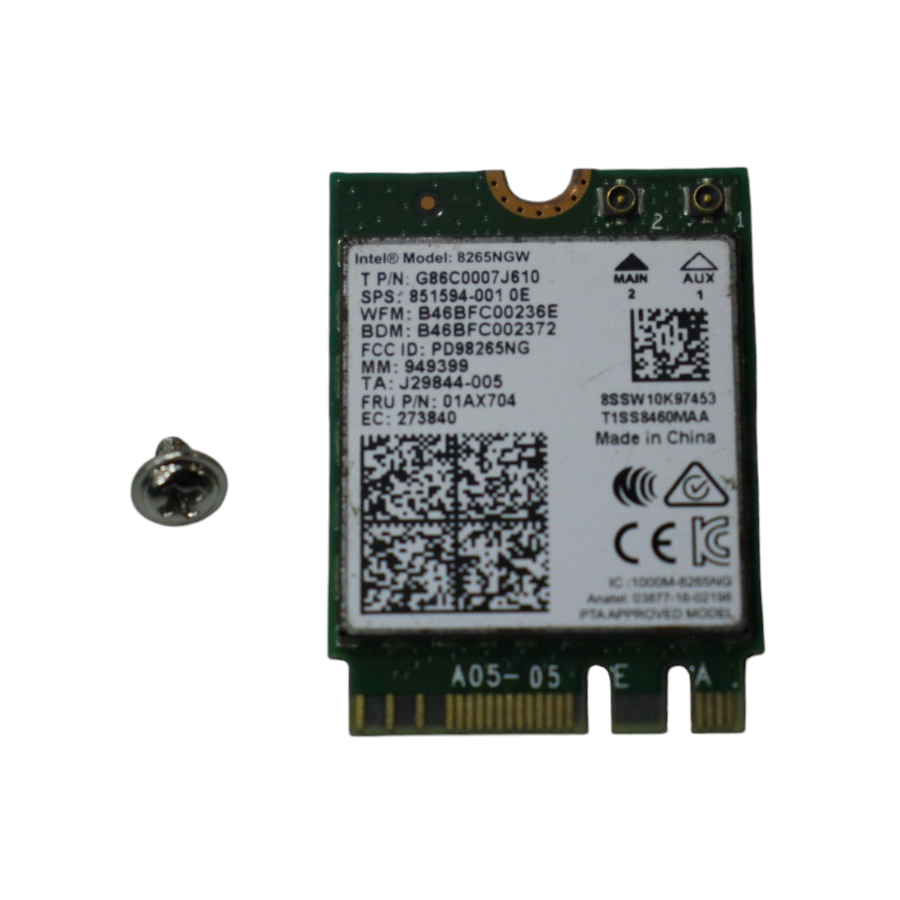

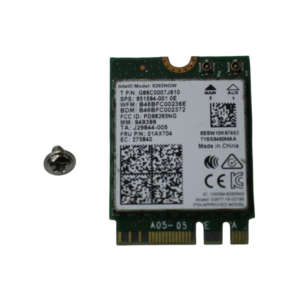

1 x AC8265 Wireless NIC for Jetson Nano, WiFi / Bluetooth
