This is the Green variant of the Green SN04-P PNP DC10-30V, Inductive Proximity Sensor, Switch in Other Proximity Sensor & Modules. Available at ₹187.62 (₹159.00 + GST) with free shipping across India.
PRODUCT DESCRIPTION

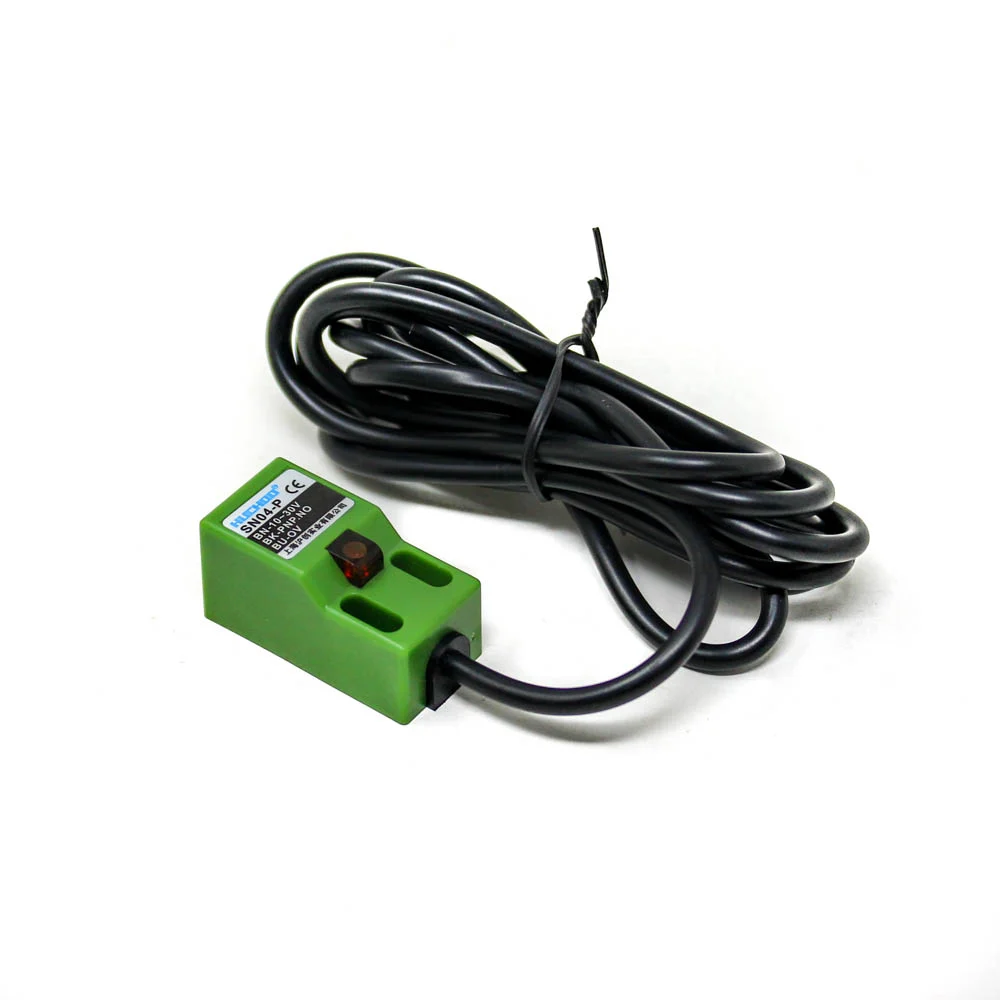

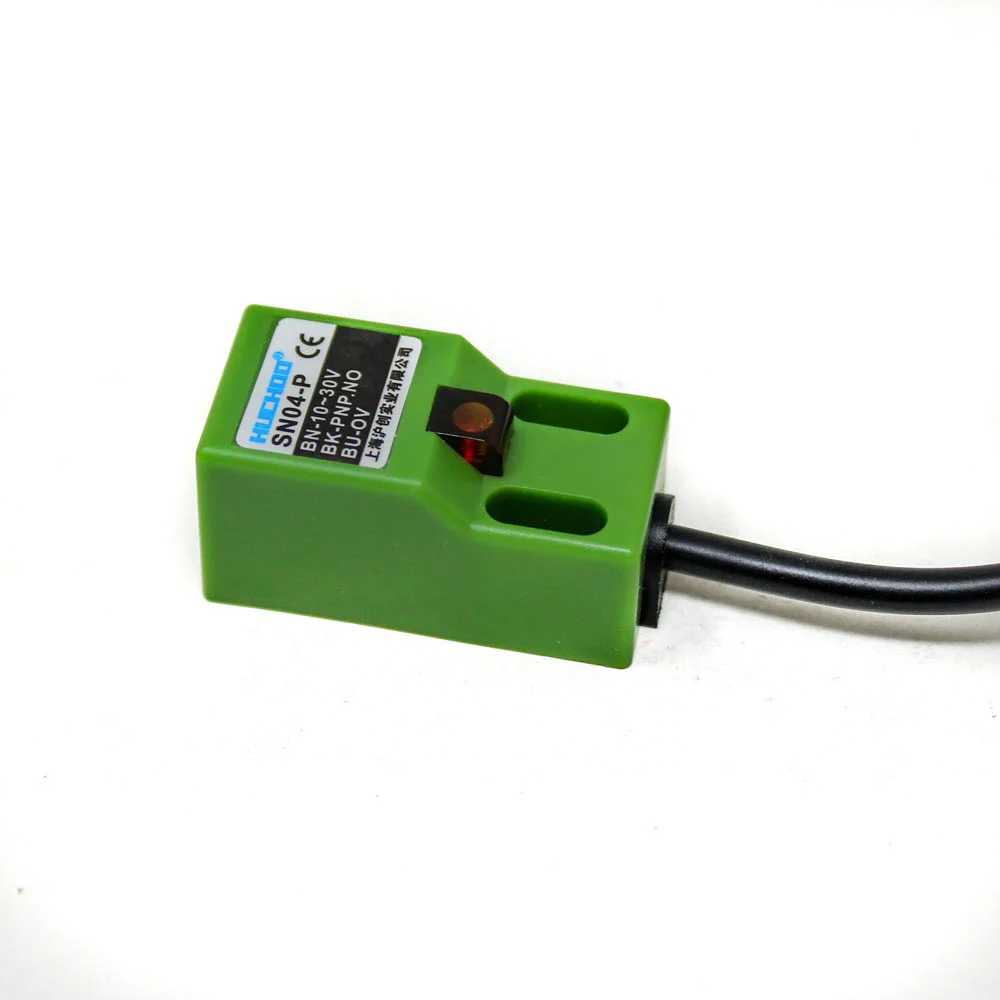

The SN04-P PNP DC10-30V Distance Detector Proximity Sensor Switch Module is designed to detect metal objects within a 4mm range of its surface. Capable of operating through thin, non-metallic barriers, it features an LED indicator that signals both its active status and object detection. The detection range may vary slightly based on the shape, size, and type of the metal object being detected.
Wire Connections:
- Brown wire: 10 ~ 30 VDC (Ve).
- Blue wire: 0 V (GND).
- Black wire: signal.
Features:
The proximity sensor’s state is indicated by a red LED
The sensor has high positioning accuracy and switching frequency.
It can operate in a wide voltage range and resist vibration, dust, water, and oil.
It has reverse power protection, short circuit protection, and can connect directly with PLC.
It can serve as an alternative to small switches and limit switches.
Specification:
| Model | SN04-P |
|---|---|
| Operating Voltage(V) | 10 ~30 V |
| Current Consumption Max | 5 mA |
| Detection distance(mm) | 5 mm |
| Cable Length (cm) | 150 |
| Response Frequency | 500Hz Max |
| Protection class | IP 67 |
| Shipping Weight | 0.044 kg |
| Shipping Dimensions | 10 × 7 × 1 cm |
Package Includes:
1 x Green SN04-P PNP DC10-30V Inductive Proximity Sensor Switch
Conductivity Sensor: Measure TDS and Water Quality DIY
Electrical conductivity (EC) measurement is the backbone of water quality monitoring. Whether you are testing drinking water purity,...
Read More →
Force Sensitive Resistor FSR: Measure Pressure and Touch
Force Sensitive Resistors (FSRs) are thin, flexible sensors that change their electrical resistance in response to applied pressure...
Read More →
LiDAR Sensor Guide: How It Works, Best Modules, and Interfacing with Arduino
A LiDAR sensor (Light Detection And Ranging) uses laser pulses and time-of-flight measurement to determine distance with millimetre-level...
Read More →Technical Specifications
| Model | SN04-P |
|---|---|
| Color | Green |
| SKU | AI3395 |
| Weight | 0.05 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Green SN04-P PNP DC10-30V, Inductive Proximity Sensor, Switch is a versatile other proximity sensor & modules used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
