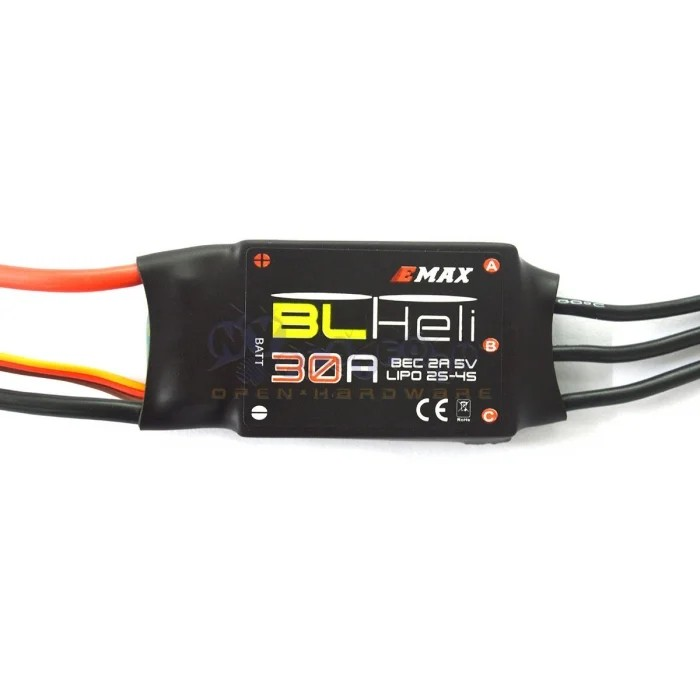

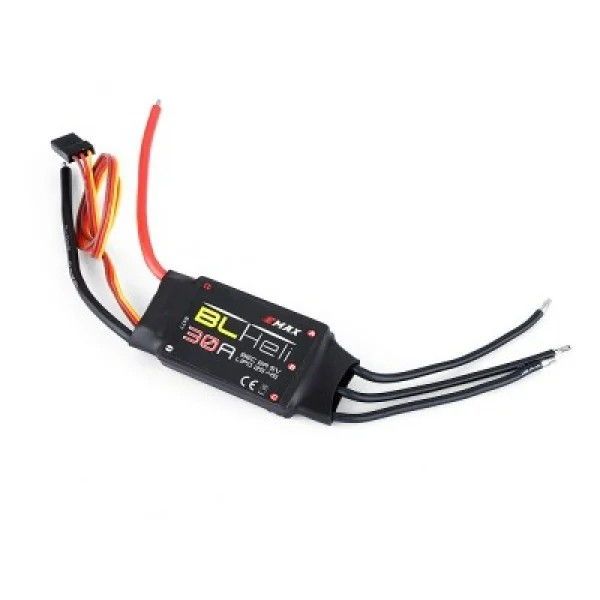

Original Emax BLHeli Series 30A ESC with Oneshot (Original)

Emax’s BLHeli Series 30A ESC with Oneshot is designed specifically for FPV racing. The Emax series is a line of high-performance and low-cost ESCs for drone motors. Emax’s ESC’S are 100% guaranteed original and genuine products for the beginner who wants to learn how to build a drone.

EMAX BLHELI SERIES 30A ESC  is a brushless dc motor speed controller. The low output resistance greatly enhances power stability because The ESC is adapting a 2-4S Lipo battery which improves good battery life. The EMAX BLHELI ESC is programmed to start the brushless dc motor. This ESC has a greater current handling capacity which is 30A continuous and the peak current is 40A for the last 10 seconds only.

If you are wandering to build a drone and don’t know what will be the best ESC for you then worry no more, we have got your back. At Zbotic, we have everything for you to get started with your drone project.

Features :

1. Based on BLHeli firmware, further optimized to the perfect drive performance.
2. Low-voltage protection, over-heat protection, and throttle signal loss protection.
3. Separate power supply for MCU and BEC, enhancing the ESC’s ability to eliminate magnetic interference.
4. Parameters of the ESC can be set via a program card or transmitter.
5. Throttle range can be set to be compatible with different receivers.
6. Equipped with built-in linear BEC or switch BEC.
7. Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.

Specification

Package Includes :

1 x Emax BLHeli Series 30A ESC with Oneshot (Original)

User Manual

Emax Blheli ESC Normal Startup Instructions

Original Emax BLHeli Series 30A ESC with Oneshot Overview

The Original Emax BLHeli Series 30A ESC with Oneshot is a brushless DC motor speed controller designed specifically for FPV racing drones. It delivers up to 30A continuous current and supports Oneshot communication for ultra-fast throttle response.

Key Features of Original Emax BLHeli Series 30A ESC with Oneshot

• Continuous current handling of 30A for smooth, reliable motor control
• Burst current rating up to 40A for 10 seconds to manage sharp throttle spikes
• Supports 2S–4S LiPo batteries (up to 16V input)
• Built-in 5V/2A BEC to power your flight controller and receiver
• Oneshot protocol support for minimal latency in FPV racing
• 100% genuine Emax product with fast shipping from Zbotic

Applications and Use Cases

• FPV racing quads that demand rapid throttle changes
• Freestyle drones requiring low-latency ESC performance
• Beginner builds learning BLHeli firmware configuration
• Lightweight aerial photography rigs on 3S LiPo setups
• Prototype multirotors using 4S voltage for extra power

How to Use Original Emax BLHeli Series 30A ESC with Oneshot

Solder the three motor output wires of the ESC to your brushless motor and connect the power leads to a 2–4S LiPo battery (max 16V). Plug the signal and ground wires into the corresponding ESC port on your flight controller. Perform a throttle range calibration by powering on with the throttle stick at maximum until you hear beeps, then at minimum. Finally, open your flight controller’s configuration software and select the Oneshot protocol to complete setup.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Which battery configurations work with this ESC?

This ESC supports 2S to 4S LiPo batteries up to 16V input, making it compatible with both 3S and 4S FPV drone builds.

What is the burst current capability of the Emax 30A ESC?

The ESC delivers a peak current of 40A for up to 10 seconds, ideal for sudden throttle surges during aggressive flight maneuvers.

How do I activate Oneshot protocol on the ESC?

The ESC comes with the Oneshot protocol enabled by default in the BLHeli firmware. Simply connect it to your flight controller and choose Oneshot (or Multishot) in your controller’s ESC settings menu.
