GEPRC TAKER F722 BT 8Bit 65A STACK
Description:

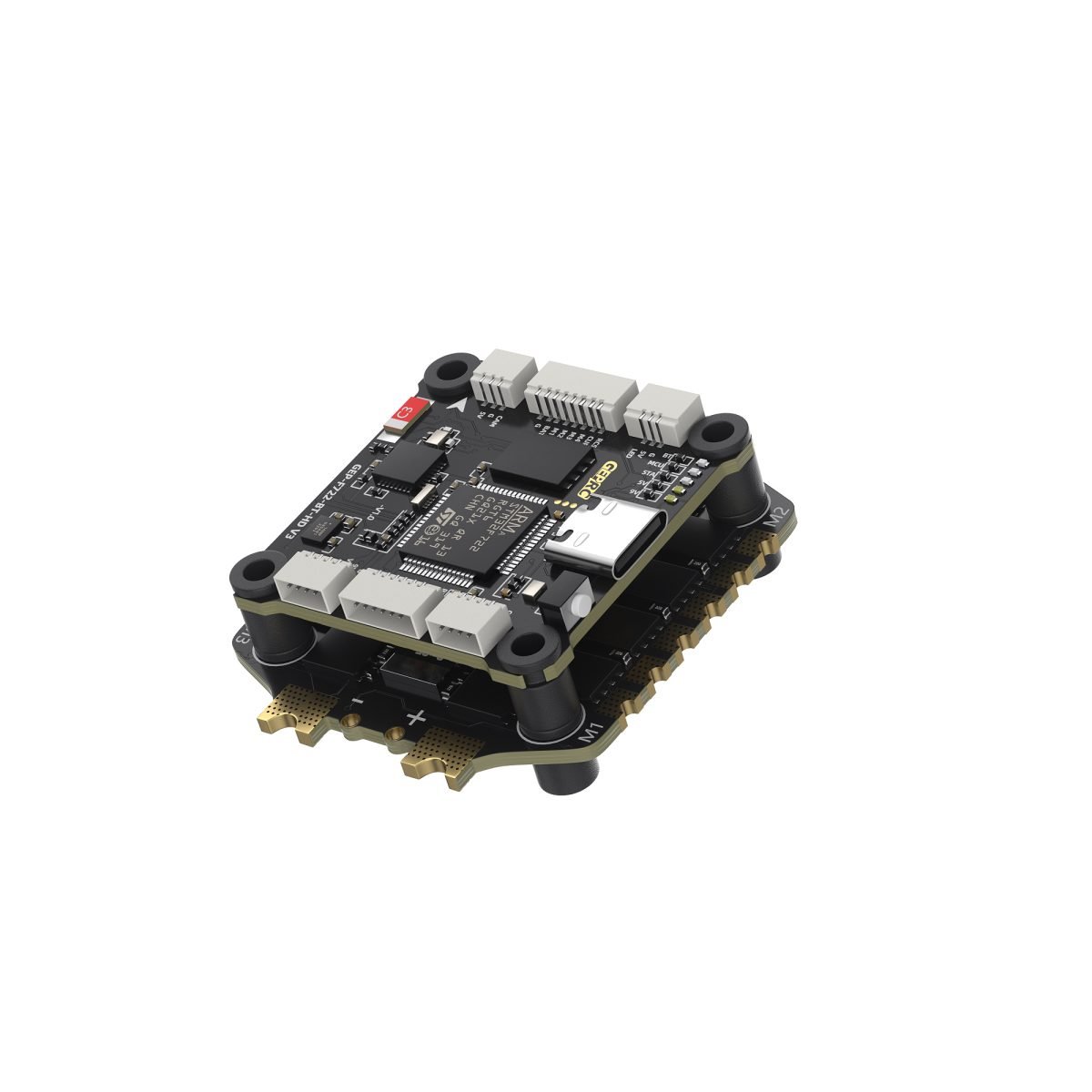

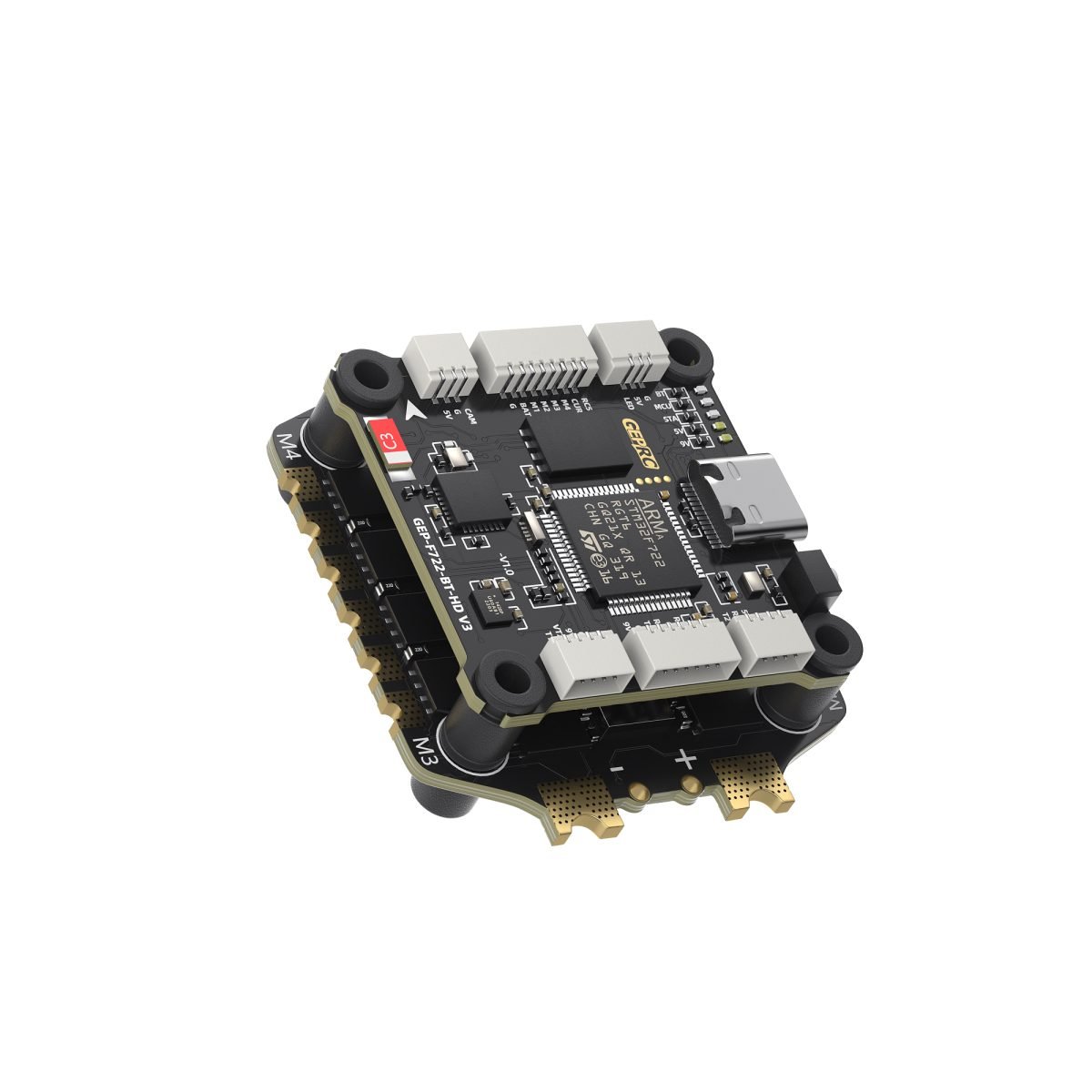

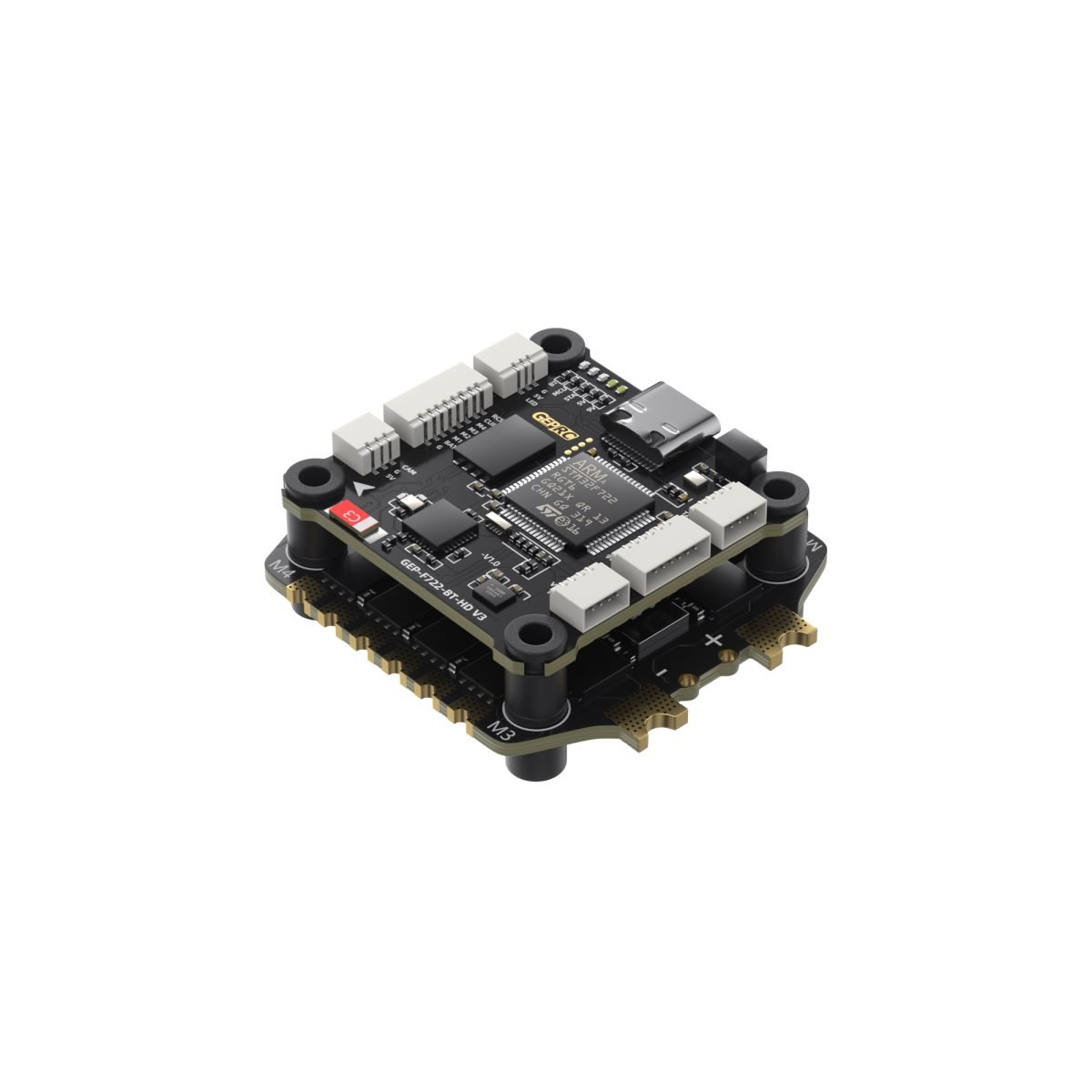

The GEPRC TAKER F722 BT 8Bit 65A Stack is a high-performance flight controller and ESC stack designed for FPV racing, freestyle, and other demanding drone builds. It combines an F722 flight controller with a 65A 8-bit ESC for responsive flight control and reliable motor power management.
Feature
- Use mainstream STM32F722 chip
- Equipped with the latest 42688-P gyroscope
- 512M black box storage
- Support Bluetooth parameter tuning
- Integrated LC filter
- Upgrade type-C USB interface
- With TAKER H65_8S_BLS 65A 4IN1 ESC, silky flight
- Directly plugs into the DJI Air Unit
- Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
- Integrated Barometer
- [email protected] + 5V@3A dual independent BEC
Specifications

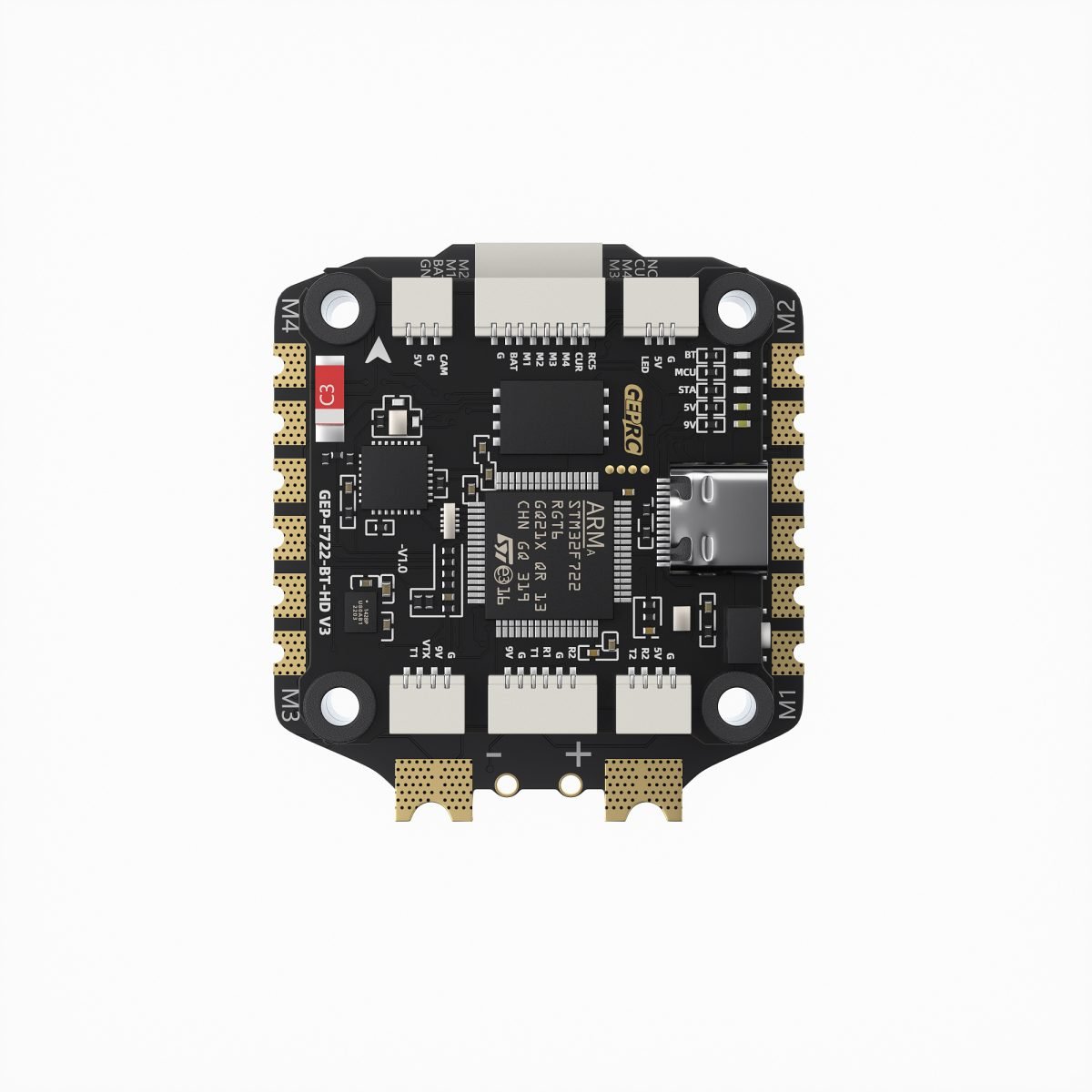

GEP-F722-BT-HD V3 Flight Controller
- MCU: STM32F722
- IMU：ICM42688-P(SPI)
- Air Unit Connection: Directly plugs into the DJI Air Unit
- Black Box: 512M onboard
- Bluetooth: Supported
- Barometer: Supported
- USB Interface: Type-C
- OSD: BetaFlight OSD w/ AT7456E chip
- BEC: 5V@3A, [email protected] dual BEC
- Firmware Target: GEPRCF722_BT_HD_V3
- Size: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
- Input Voltage: 3-6S LiPo
- UART: 5 groups (UART4 fixed for Bluetooth)
- Power Filter: Integrated LC filter
- Weight: 8.2g

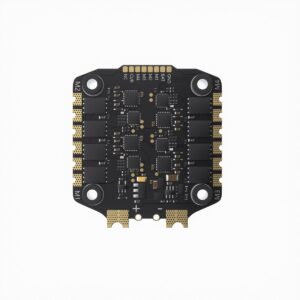

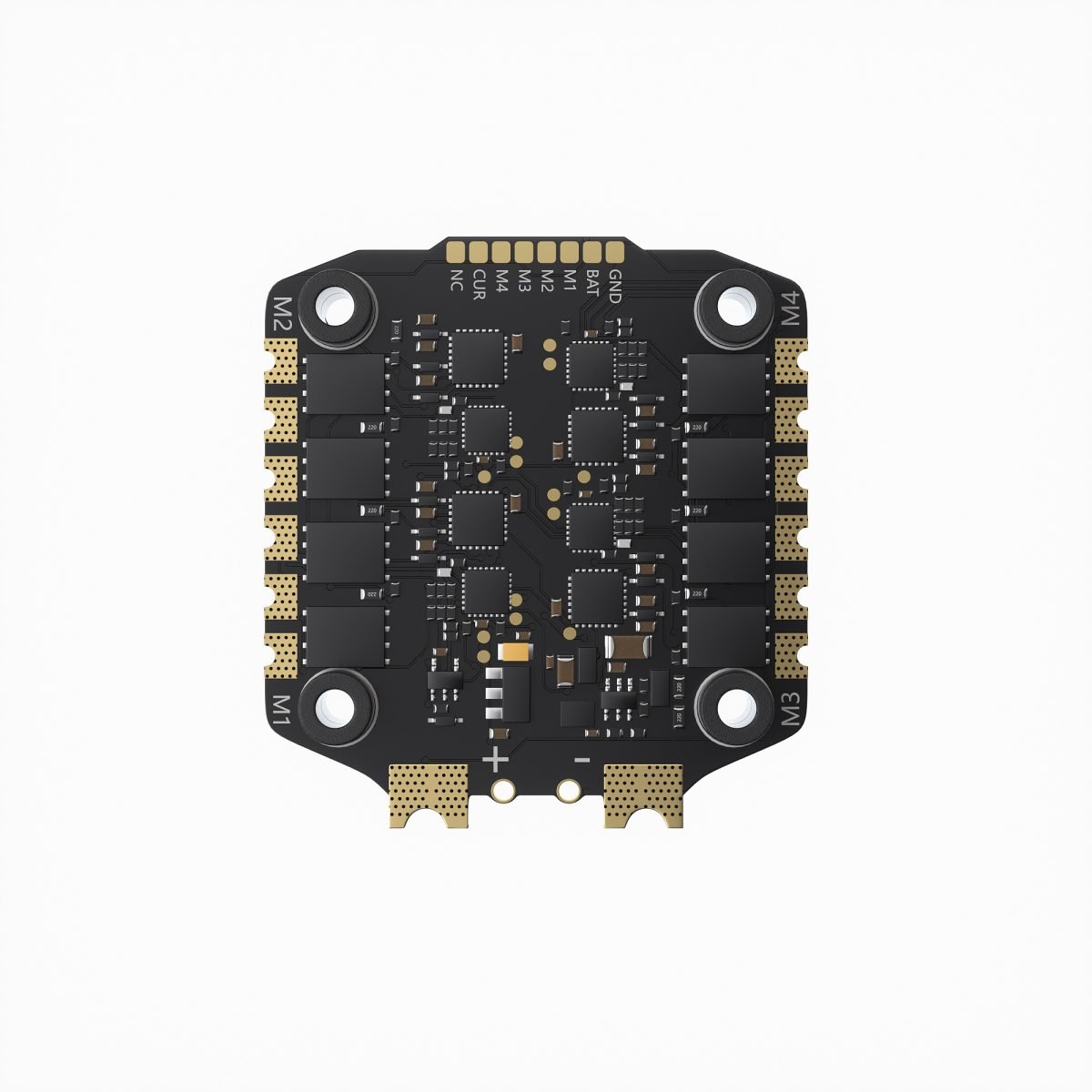

TAKER H65_8S_BLS 65A 4IN1 ESC
- Input Voltage: 3-8S Lipo
- Ammeter: Support
- Continue Current：65A
- Burst Current: 70A (5 second)
- Support Protocol: Dshot 150/300/600
- Size: 42×45.7mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring
- Weight: 14.9g
- Target: B_X_30
Package Includes:
1 x FC board
1 x ESC board
1 x Capacitor
1 x O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x XT60 power cable
4 x M3*30 screws
4 x M3*25 screws
8 x Nylon nuts
12 x Silicone anti-shake pads
Drone Light Show: Synchronized LED Flight Formation
Table of Contents Understanding Drone Light Show Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
Betaflight RPM Filter: Eliminate Motor Noise for Smooth FPV Flying
Table of ContentsWhat Is the Betaflight RPM Filter?Why Motor Noise Ruins Your FPV ExperienceHardware Requirements for RPM FilterEnabling...
Read More →
How to Build a Long Range FPV Wing (DIY Guide India)
How to Build a Long Range FPV Wing (DIY Guide India) Long range FPV fixed wing flying is...
Read More →Technical Specifications
| Brand | GEPRC |
|---|---|
| Current Rating | 65A |
| SKU | AI5012 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GEPRC TAKER F722 BT 8Bit 65A STACK is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine GEPRC product sourced from authorized channels
