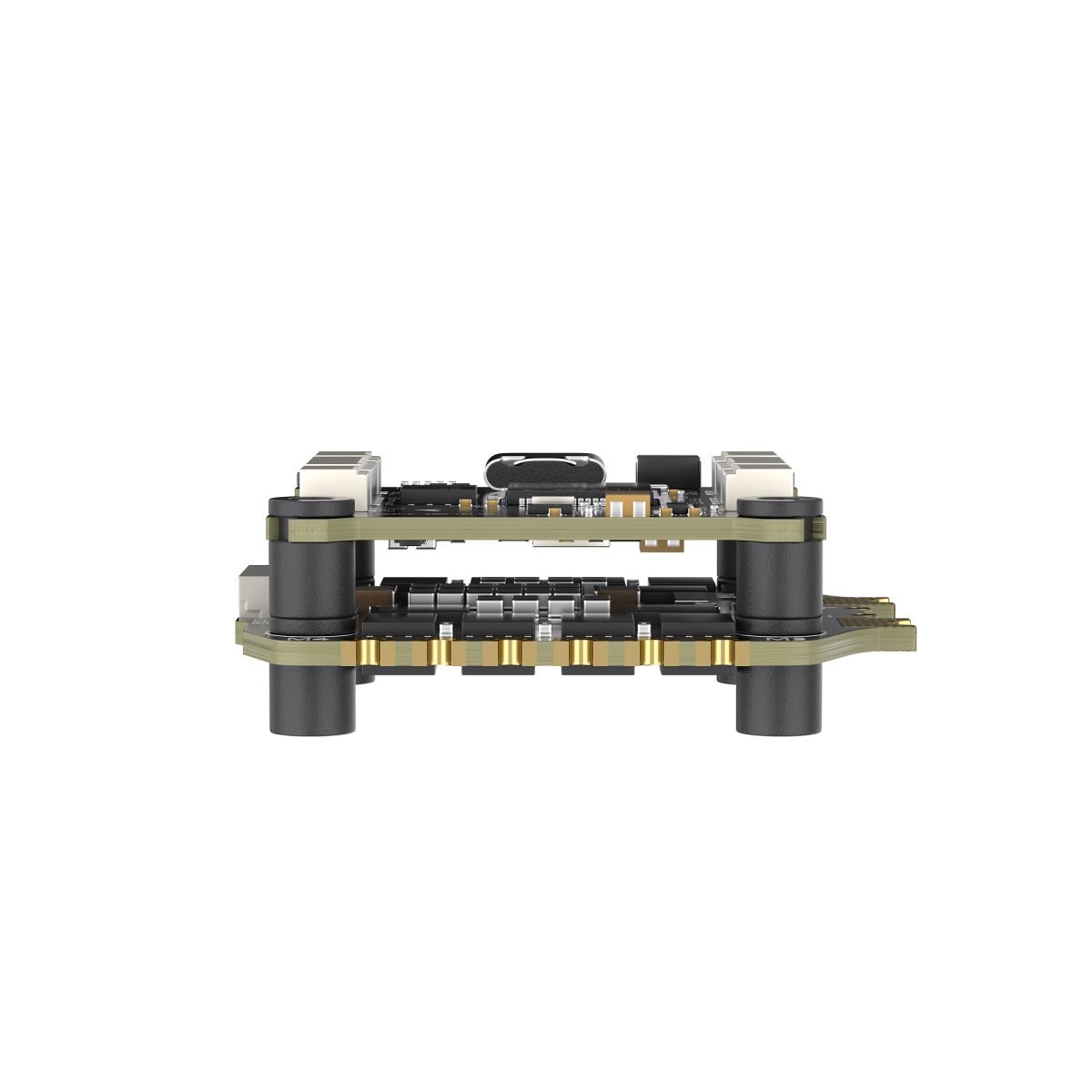

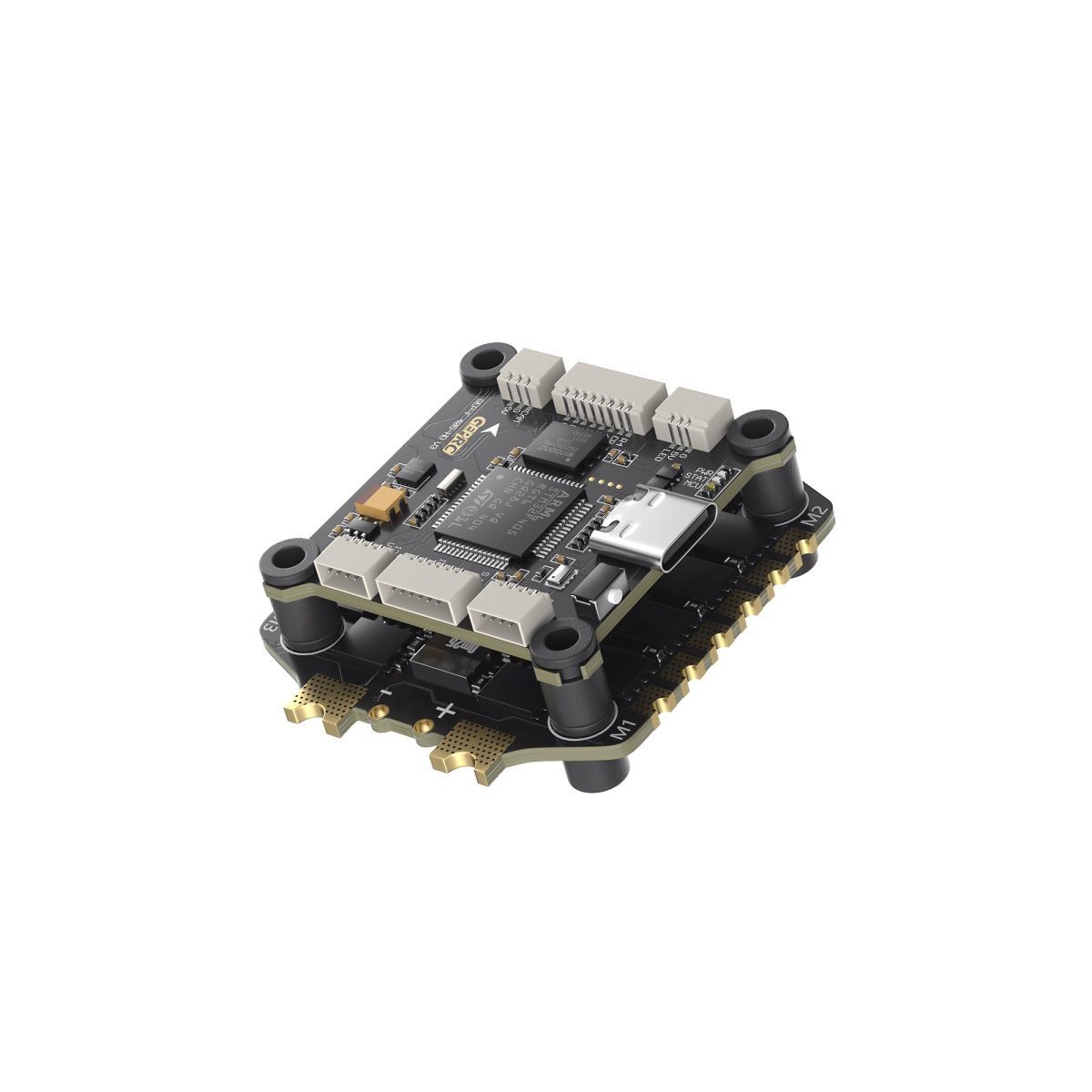

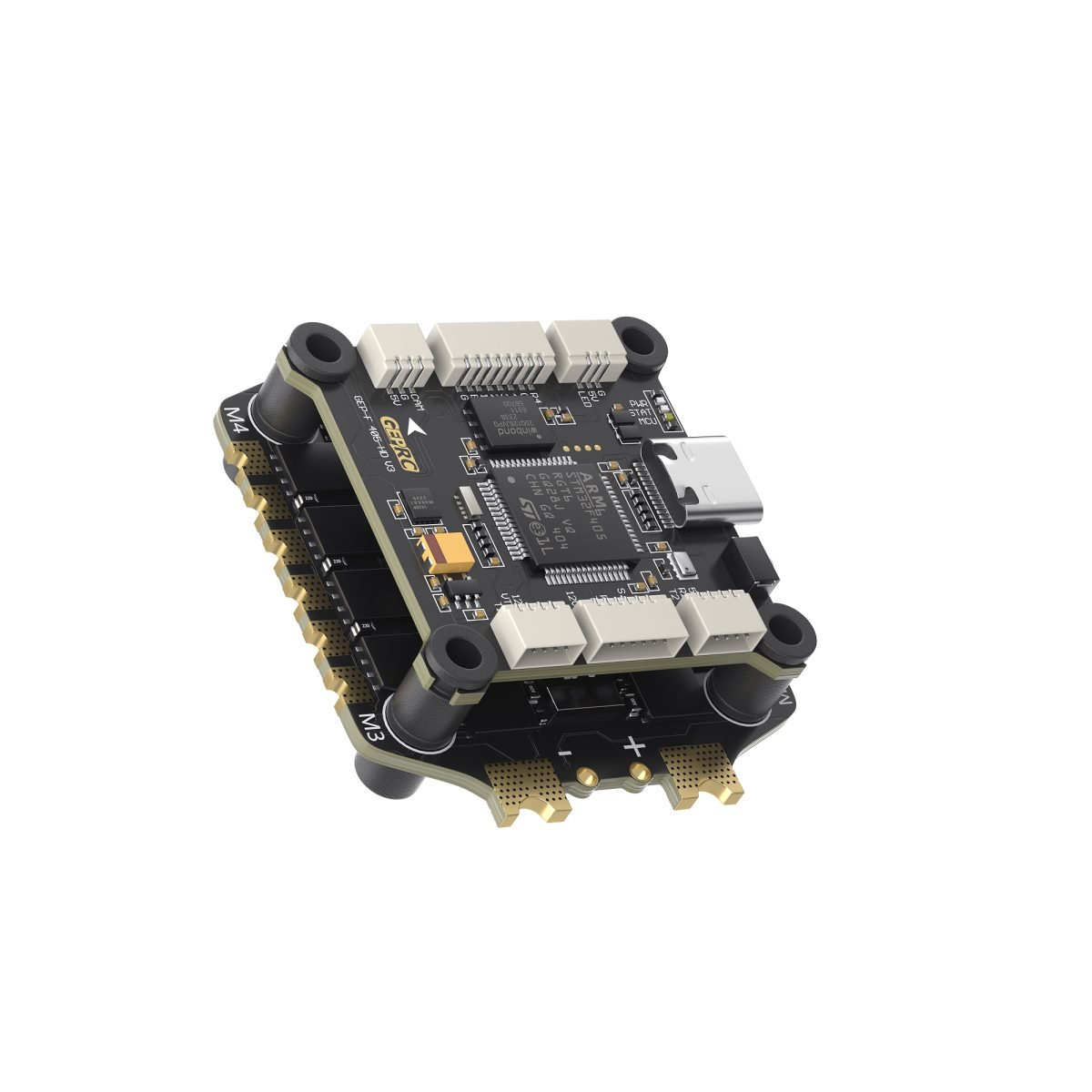

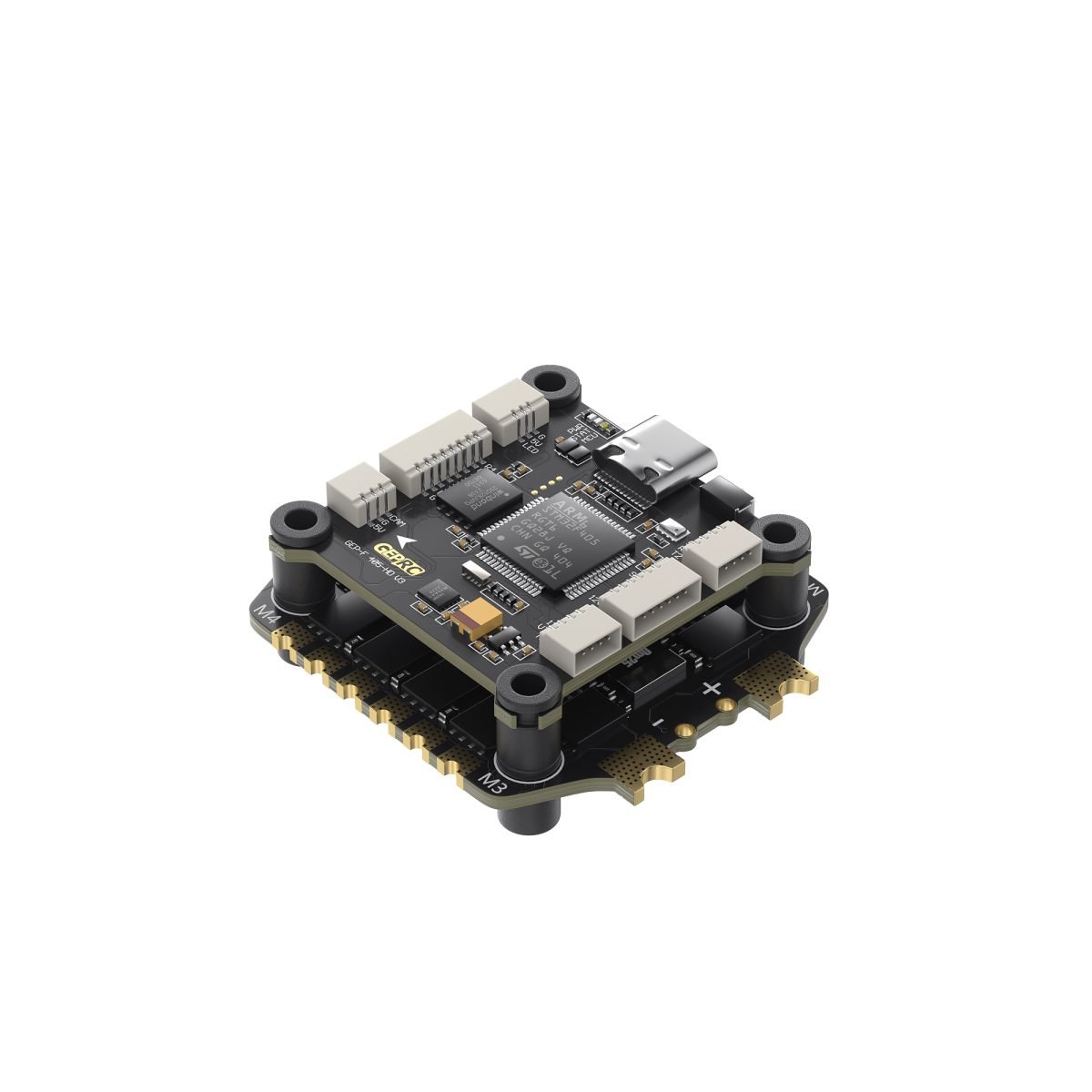

GEPRC TAKER F405 BLS 60A V2 STACK
Description:
The GEPRC TAKER F405 BLS 60A V2 Stack is a compact and high-performance flight controller and ESC stack designed for FPV racing and freestyle drones. It combines an F405 32-bit flight controller with a 60A BLS ESC, providing responsive flight control and reliable motor performance.
The V2 stack offers a practical integrated design for performance-focused FPV builds, helping simplify installation while providing dependable power handling for compatible motors and components
Features
- Use mainstream STM32F405 chip
- Equipped with the latest 42688-P gyroscope
- 16M black box storage
- Integrated LC filter
- Upgrade type-C USB interface
- Directly plugged into the DJI Air Unit
- With TAKER H60_BLS 60A 4IN1 ESC, the flying feel is silky
- Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
- [email protected] + 5V@3A dual independent BEC
Specifications:

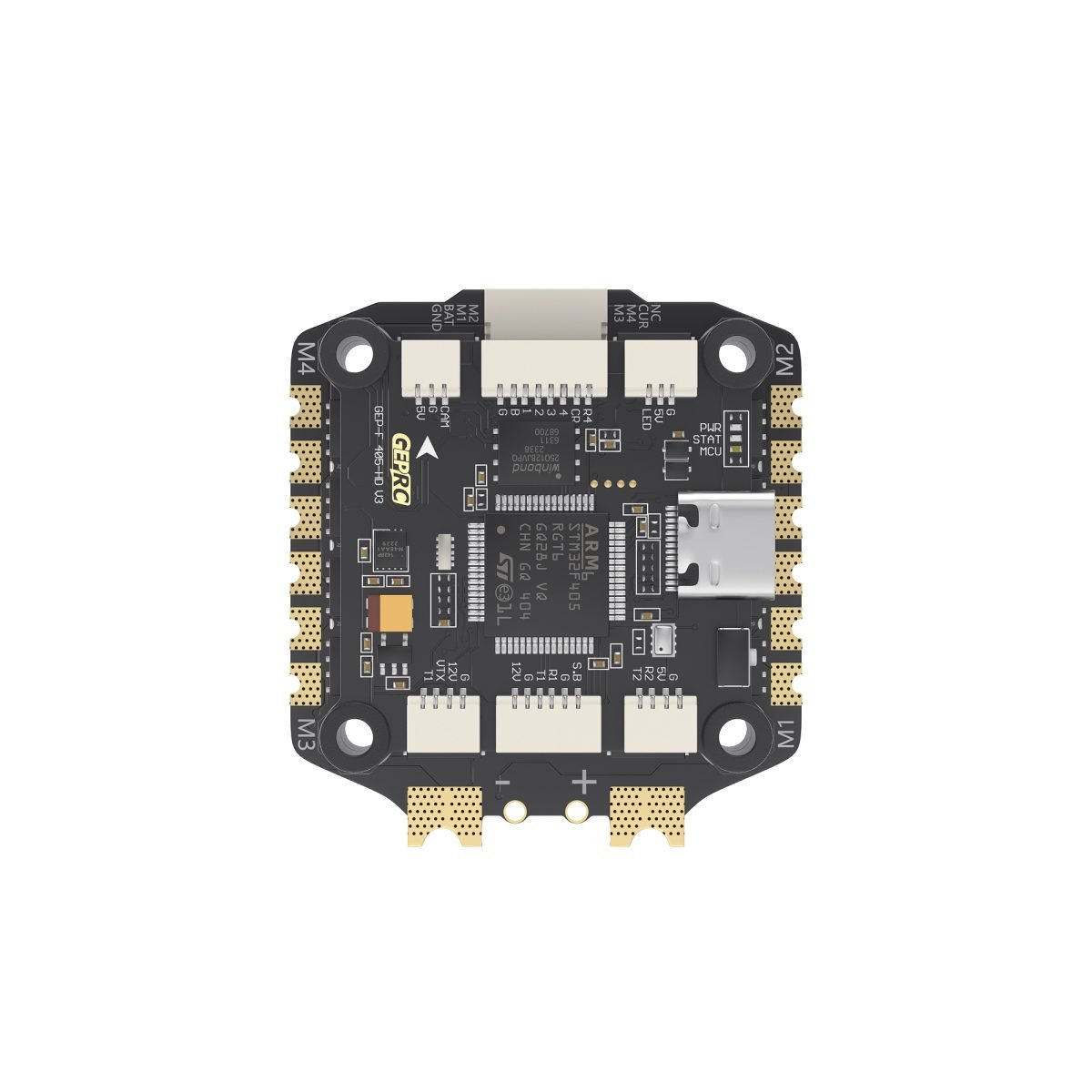

GEP-F405-HD V3 Flight Controller
- MCU：STM32F405
- IMU：ICM42688-P(SPI)
- Air Unit Connection：Direct plugging into DJI Air Unit
- Black Box：16M onboard
- Barometer: BMP280
- Motor outputs：M1-M6
- USB Interface：Type-C
- OSD：BetaFlight OSD w/ AT7456E chip
- BEC：5V@3A,[email protected] dual BEC
- Firmware Target：GEPRCF405
- Mounting: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
- Input Voltage：3-6S LiPo
- UART：6 UARTs
- Power Filter：Integrated LC filter
- Weight：7.3g

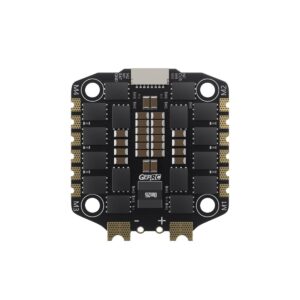

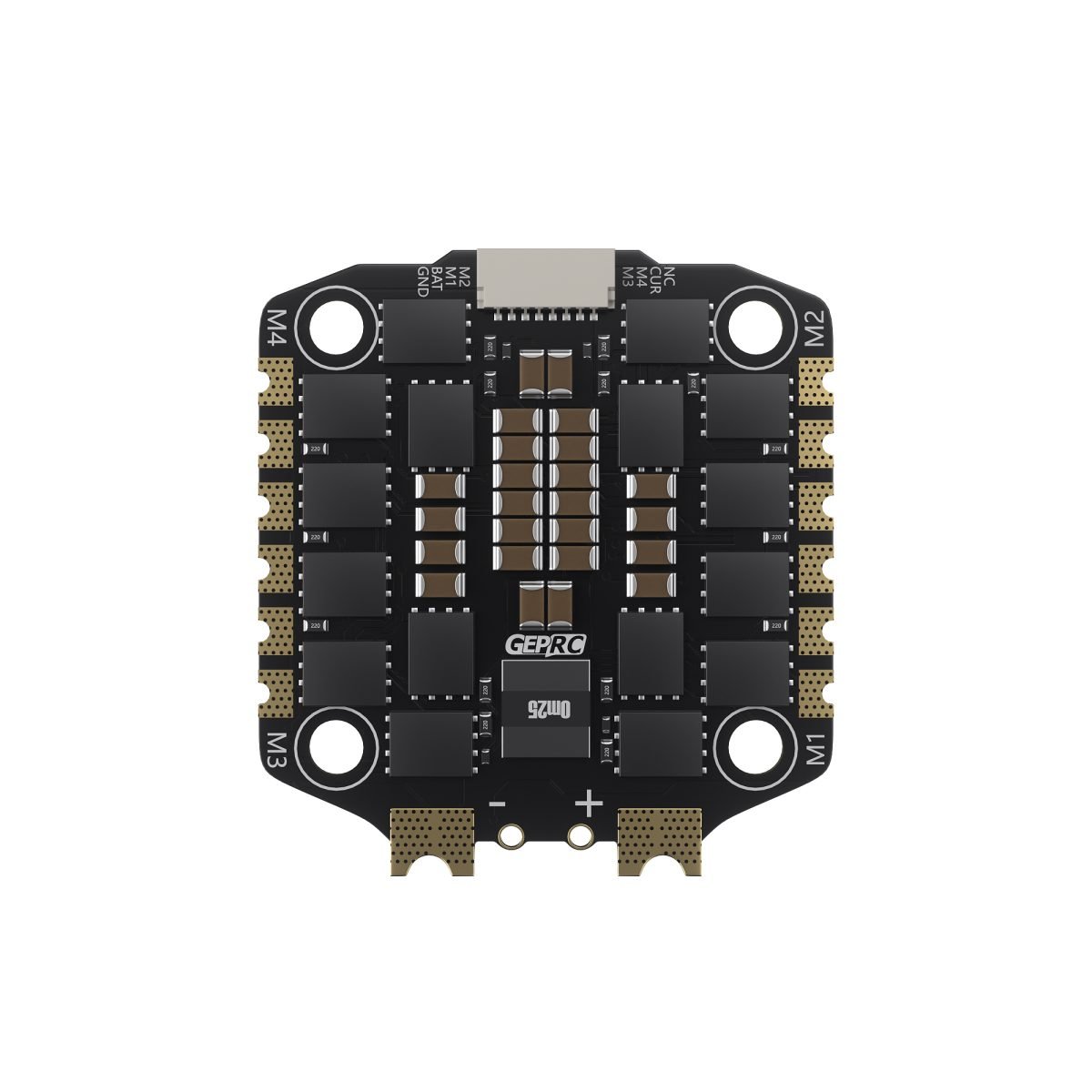

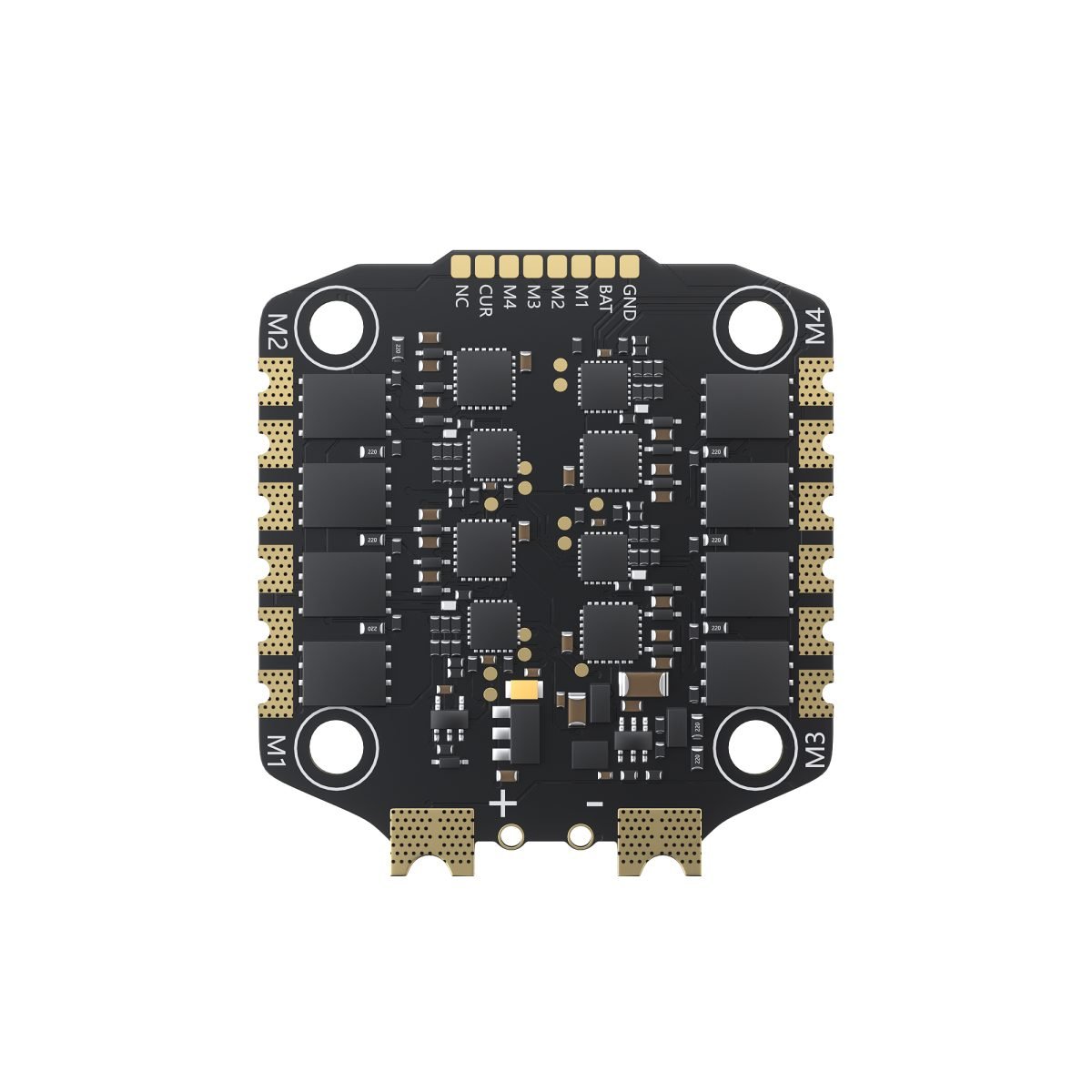

TAKER H60_BLS 60A 4IN1 ESC
- Input Voltage: 3-6S Lipo
- Ammeter: Support
- Continue Current：60A
- Burst Current：65A（5 second）
- Support Protocol: Dshot 150/300/600
- Size：42×45.7mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
- Weight: 14.9g
- Target: B_X_30
Package Includes:
1 x Flight Controller
1 x ESC
1 x Capacitor
1 x DJI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
1 x XT60 Power cable
4 x M3*30 Screws
4 x M3*25 Screws
8 x Nylon nuts
8 x Silicone grommets
2 x sh1.0 4pinsilicone cable
1 x Camera connection cable
