GEPRC TAKER F722 BLS 65A V2 STACK
Description:
The GEPRC TAKER F745 BT 8Bit 60A Stack is a high-performance FC and ESC stack designed for demanding FPV drone applications. It combines an F745 32-bit flight controller with a 60A 8Bit ESC, providing responsive flight control and reliable motor performance.
The integrated stack design helps simplify installation while keeping the drone’s electronics compact and organized. It is suitable for FPV racing, freestyle, and other high-performance multirotor builds.
Features
- Uses the mainstream STM32F722 chip
- Equipped with the latest 42688-P gyroscope
- 16M onboard black box storage
- Integrated LC filter
- Upgraded Type-C USB interface
- Directly plugs into the DJI Air Unit
- Paired with the TAKER H65_8S_BLS 65A 4IN1 ESC, providing a smooth flying experience
- Simple and efficient installation method with shock absorbers for stable gyroscope performance
- Dual independent BECs: [email protected] and 5V@3A
- Specifications:

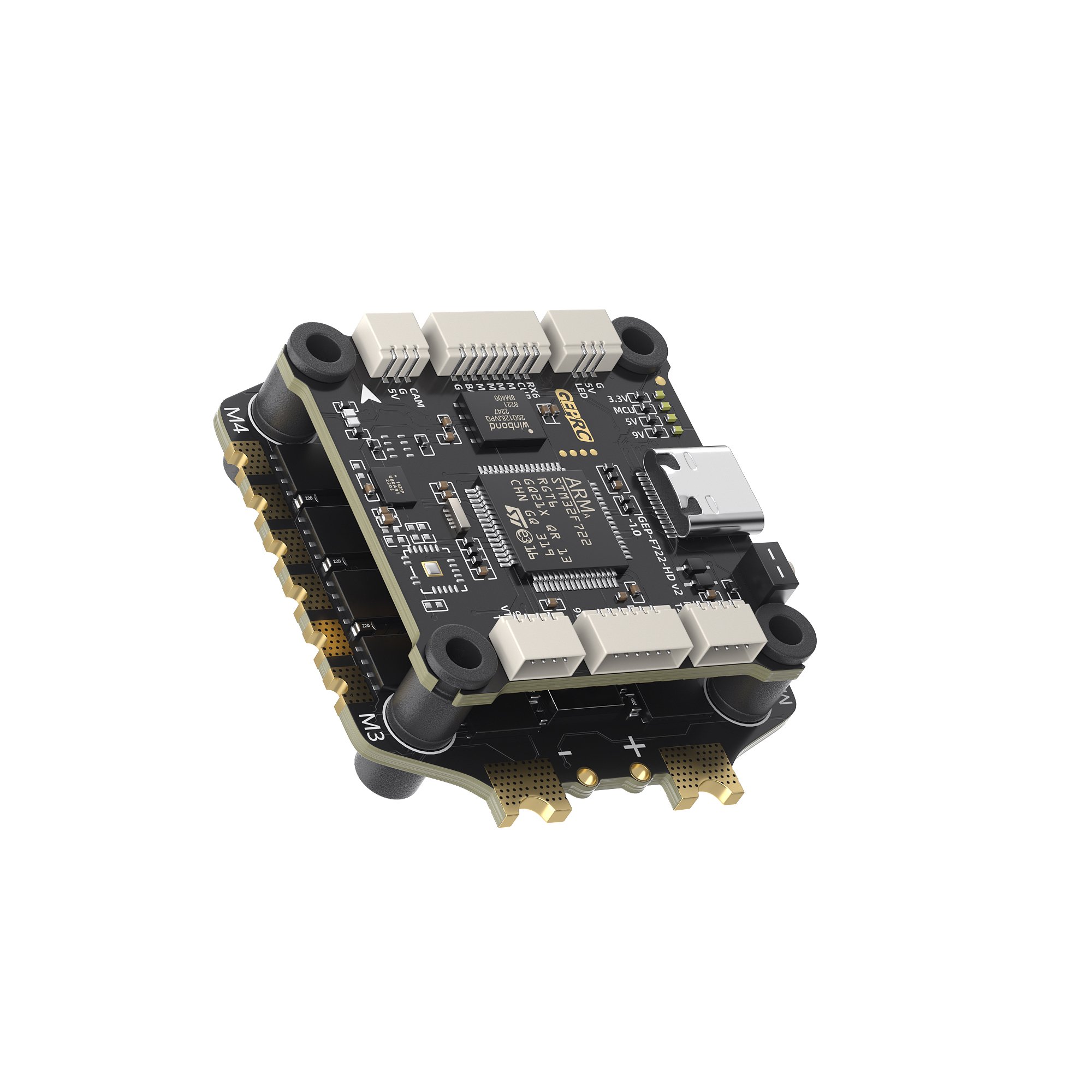

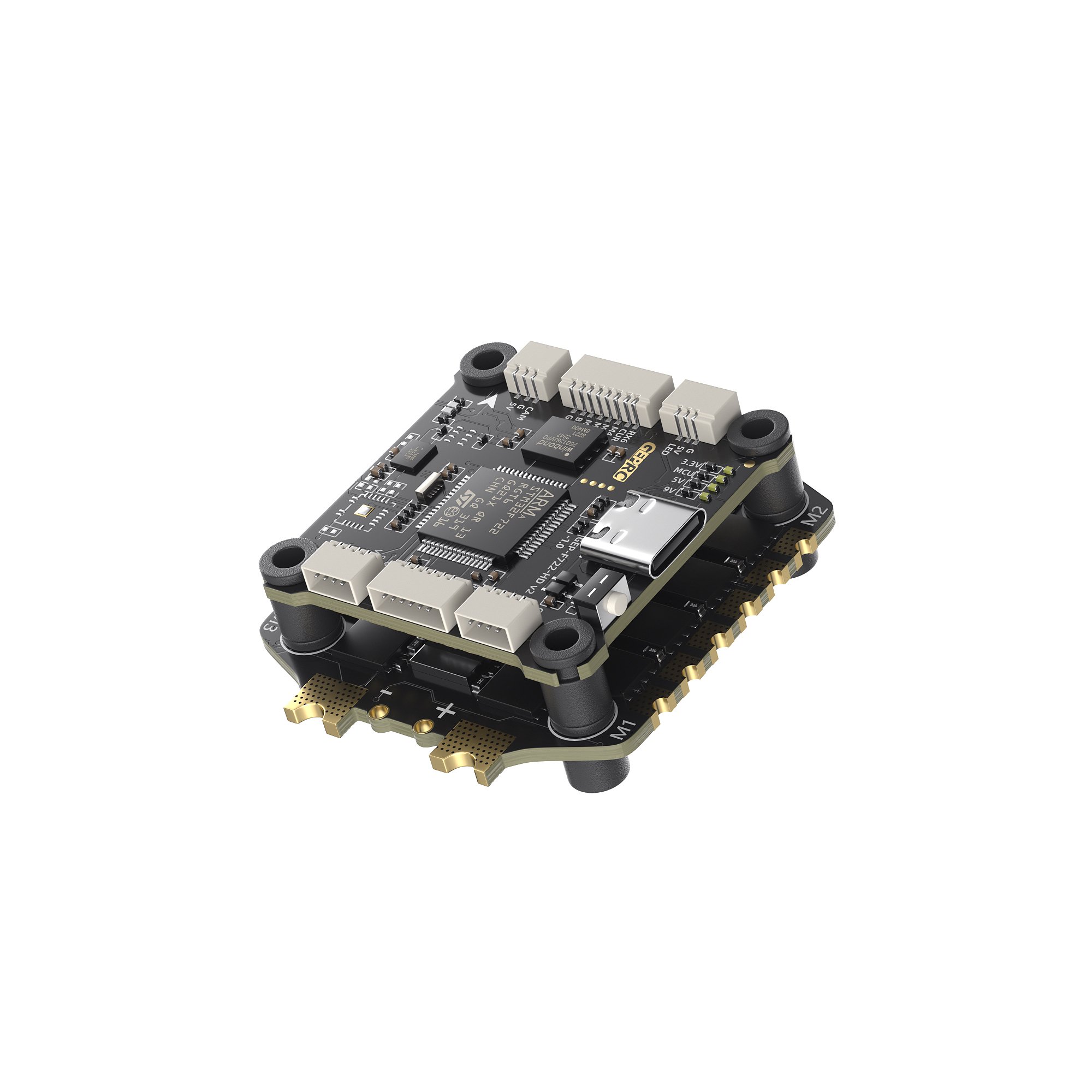

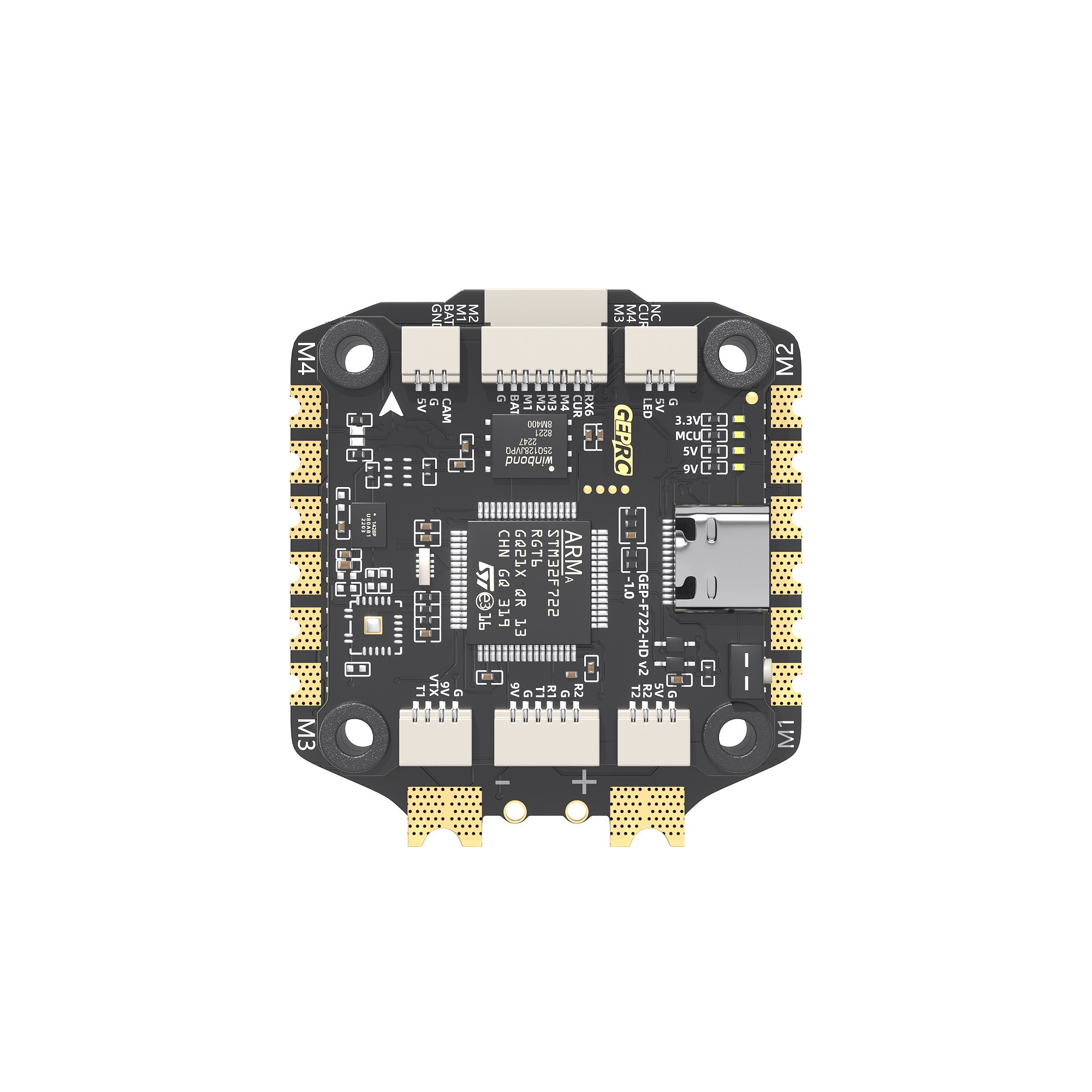

GEP-F722-HD v2 Flight Controller
- MCU: STM32F722
- IMU: ICM42688-P(SPI)
- Air Unit Connection: Direct plug-in to DJI Air Unit
- Black Box:16M onboard
- USB Interface: Type-C
- Barometer: supported
- OSD: BetaFlight OSD w/ AT7456E chip
- BEC: 5V@3A,[email protected] dual BEC
- Firmware Target: GEPRCF722
- Dimension: 36.85×36.85mm, mounting hole size 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
- Input Voltage: 3-6S LiPo
- UART: 5
- Power Filter: Integrated LC filter
- Weight: 8.1g

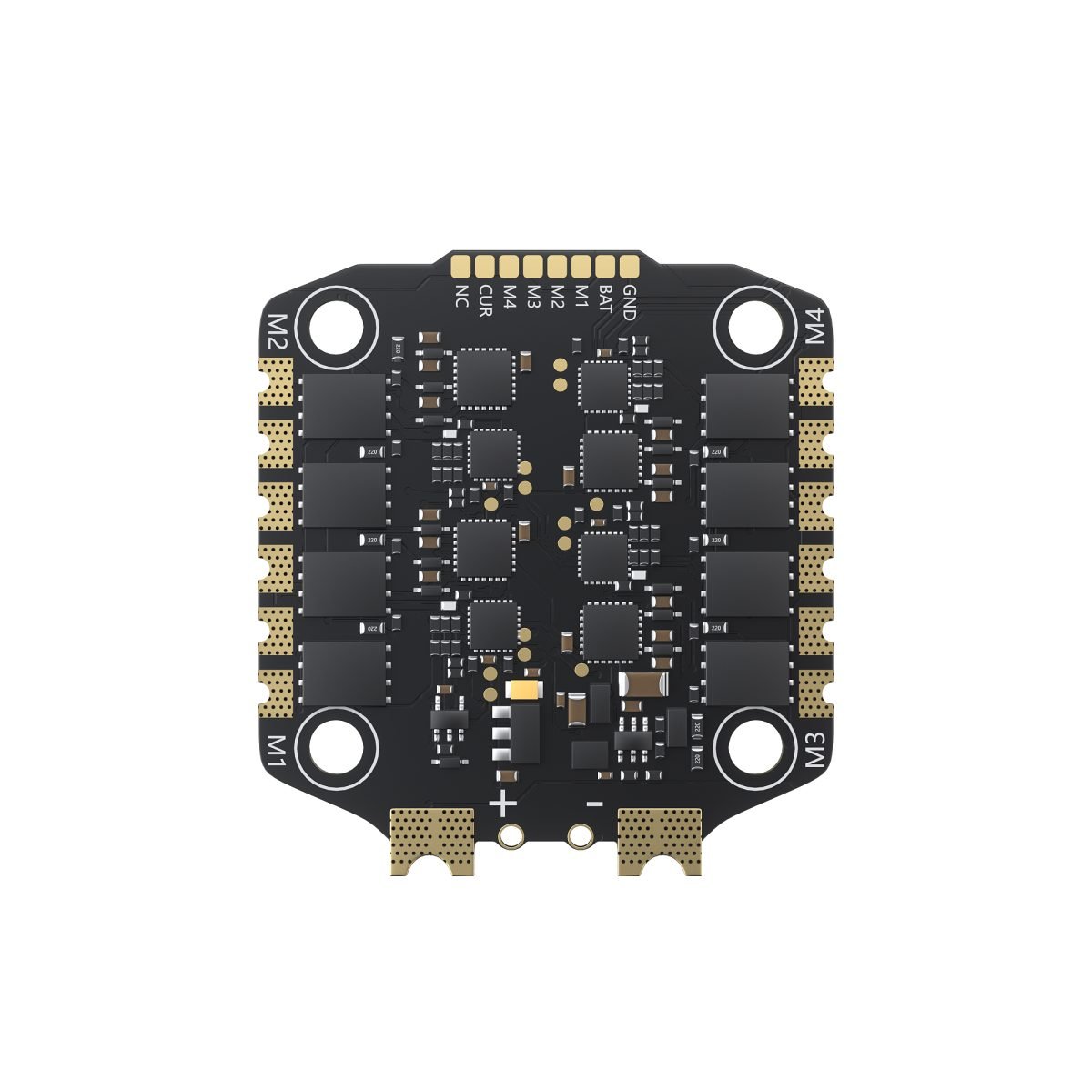

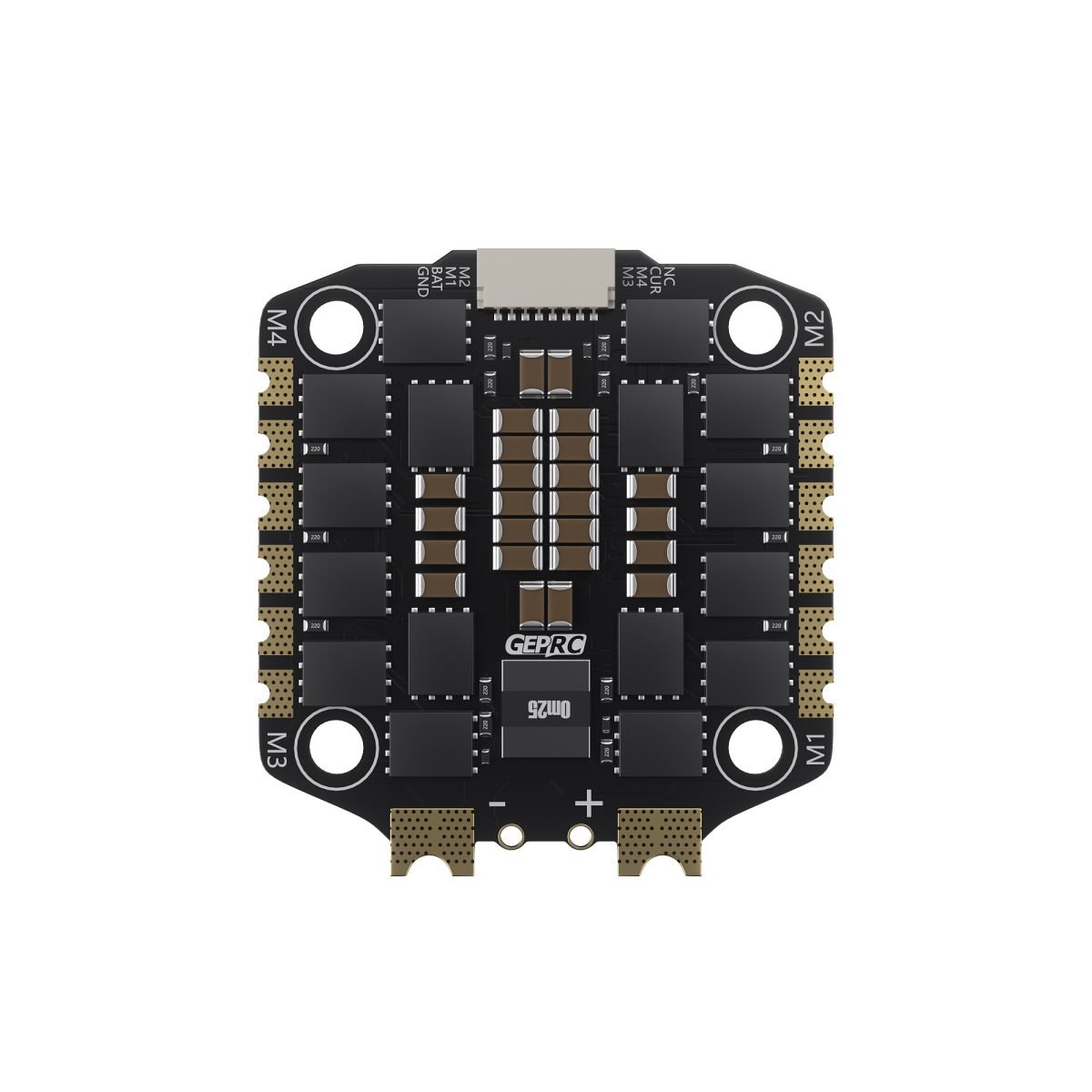

TAKER H65_8S_BLS 65A 4IN1 ESC
- Input Voltage: 3-8S Lipo
- Ammeter: Supported
- Continuous Current：65A
- Burst Current：70A（5 seconds）
- Support Protocol: Dshot 150/300/600
- Dimension：42×45.7mm,mounting hole size30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
- Weight: 14.9g
- Firmware Target: B_X_30
Package Includes :
1 x FC board
1 x ESC board
1 x Capacitor
1 x DJI Air Unit adapter cable
1 x Flight controller adapter cable
1 x XT60 power cable
4 x M3*30 screws
4 x M3*25 screws
8 x Nylon nuts
8 x Silicone anti-shake pads
2 x sh1.0 4pin silicone cable
1 x Camera connection cable
iNAV vs Betaflight: Best Firmware for Fixed Wing & Planes
iNAV vs Betaflight: Best Firmware for Fixed Wing & Planes If you've spent any time in the FPV...
Read More →
Tiny Whoop Build: 65mm Indoor FPV Drone Guide
Table of Contents Understanding Tiny Whoop Build Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
FPV Goggles Buying Guide India: Analog vs Digital
Table of Contents Understanding FPV Goggles Buying Guide India Key Components and Requirements Step-by-Step Setup Guide Configuration and...
Read More →Technical Specifications
| Brand | GEPRC |
|---|---|
| Current Rating | 65A |
| SKU | AI5016 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GEPRC TAKER F722 BLS 65A V2 STACK is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
