GEPRC SPAN F405 HD 32bit 50A BEC F405 Flight Controller Stack

GEPRC SPAN F405 HD 32bit 50A BEC F405 Flight Controller Stack

Description:

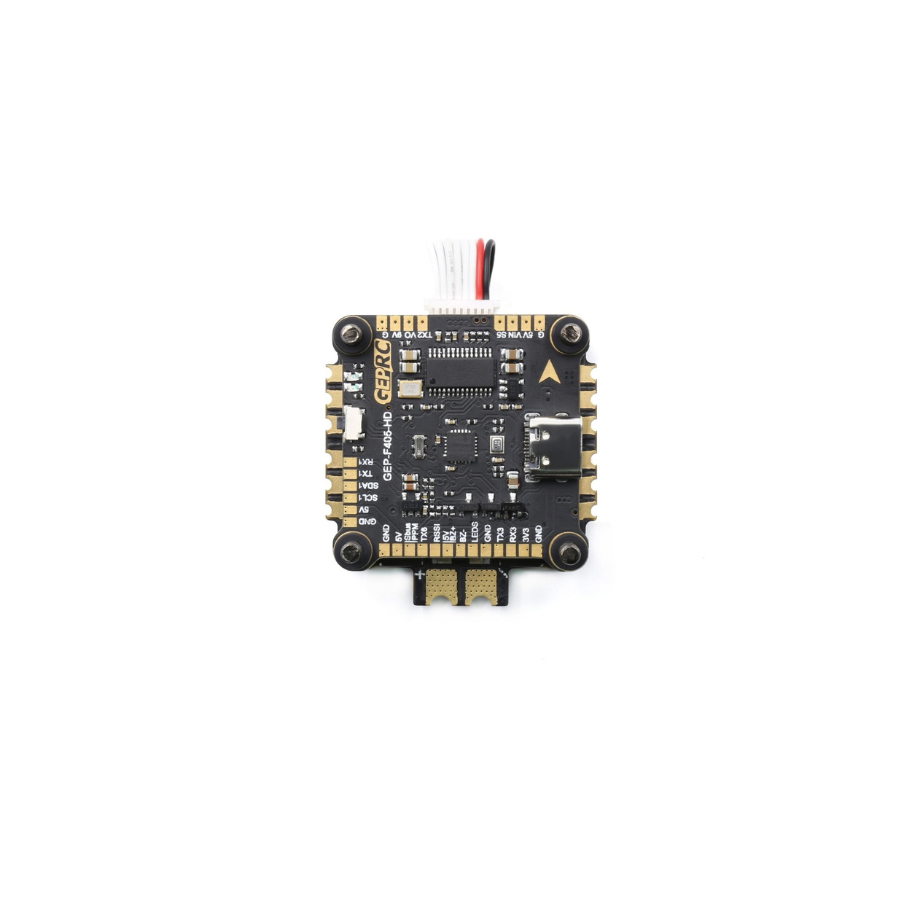

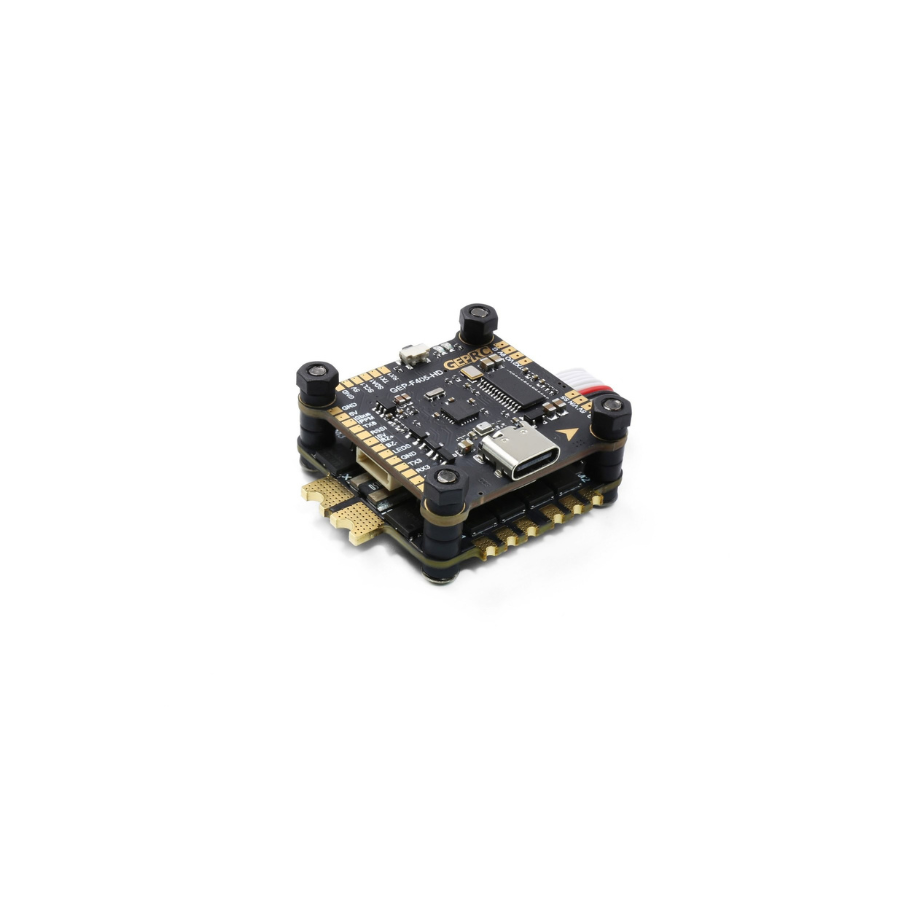

GEP-F405-HD is a plug-and-play flight controller with F405 chip and a tower flight system with BLheli_32 50A 4 and 1 32-bit electrical modulation. It integrates 16Mb black box, MPU6000 gyroscope and barometer for a more delicate hand experience.

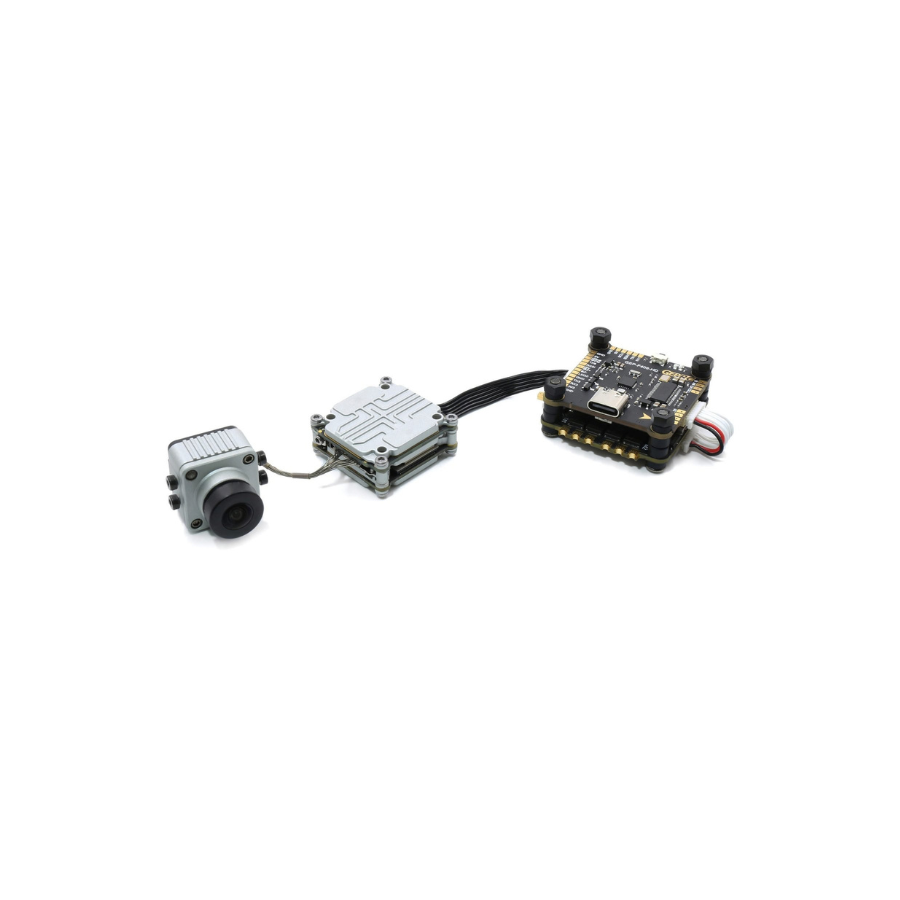

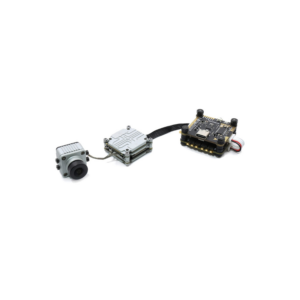

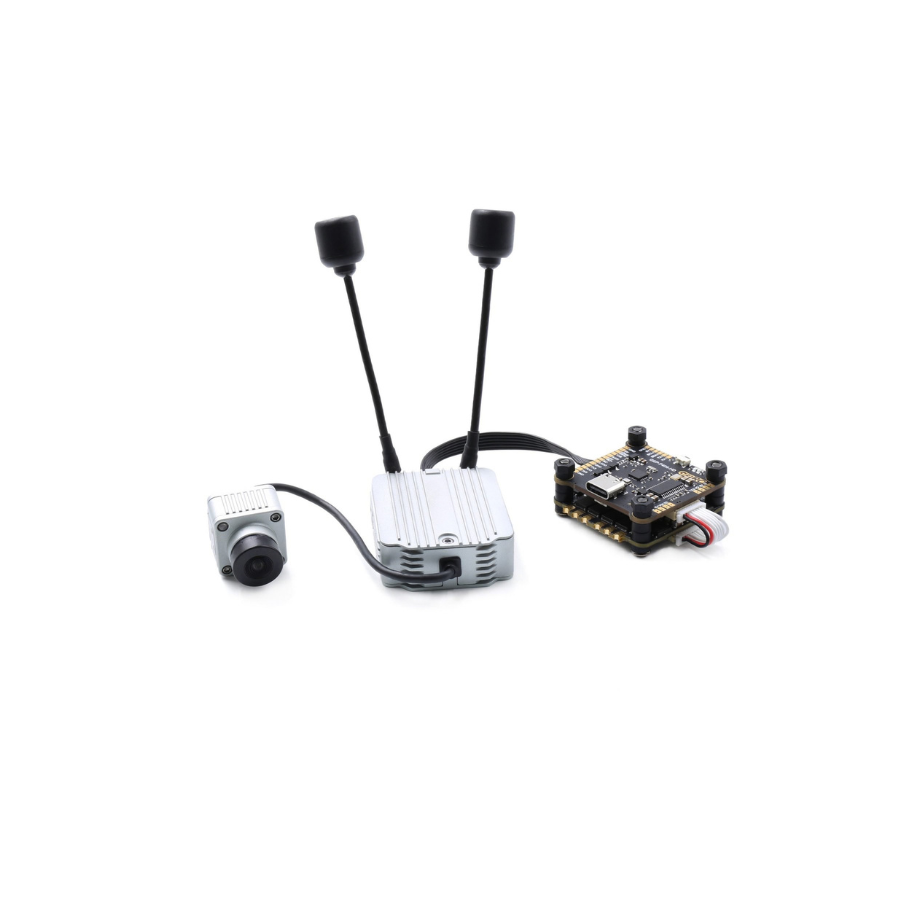

GEP-F405-HD supports direct insertion into DJI Digital FPV System, which can avoid the trouble of welding.Upgrade the USB interface of Type-C, greatly improve the life of the socket and reduce the risk of bad contact.

GEP-F405-HD can be used together with GEP-G50A-4IN1 for perfect flight effect.

GEP-F405-HD supports all kinds of receivers, including Sbus,PPM,CRSF,DSMX,iBus, DUMD and so on.

Main Feature:

• MCU: STM32F405
• IMU: MPU6000(SPI)
• BlackBox: 16Mb onboard Flash
• Integrated LC Filter
• Type-C USB interface
• The directly connected DJI Digital FPV System
• BLheli_32 50A ESC 4in1
• Simple installation method, compact space
• Support:Sbus,PPM,CRSF,DSMX,iBus

Specifications:

• MCU: STM32F405
• IMU: MPU6000(SPI)
• DJI FPV Air Unit Supported.
• BlackBox: 16Mb onboard Flash
• Type-C USB interface
• OSD: BetaFlight OSD w/ AT7456E chip
• Baro：BMP280
• BEC Output: 5V,9V BEC
• Integrated LC Filter
• Firmware target:GEPRCF405
• Size: 36x36mm board, φ4mm with Grommets φ3mm
• Power input: 3-6S LiPo
• 6x UART

BL32 50A ESC 4IN1:

• MCU: STM32F051K86(32bit 48mHz)
• Continuous Current: 50A
• Peak Current: 55A (5S)
• Current sensor: YES
• Telemetry：Supported
• Support DSHOT1200/DSHOT600, PWM, Multishot, OneShot
• Firmware Version:GEPRC-BL32-4IN1
• Input Voltage: 3-6S Lipo

Receiver Support:

1. Frsky XM/XM+/R-XSR
2. Futaba Receiver
3. DSM/DSMX
4. FlySky Receive
5. TBS Crossfire Receiver
6. AC900
7. Most receivers that support SBUS
