This is the Silver variant of the MAD CO AMPX 60A (5-14S) Drone ESC Silver V2.0 in (ESC) Drone Speed Controller. Available at ₹18,375.50 (₹15,572.46 + GST) with free shipping across India.

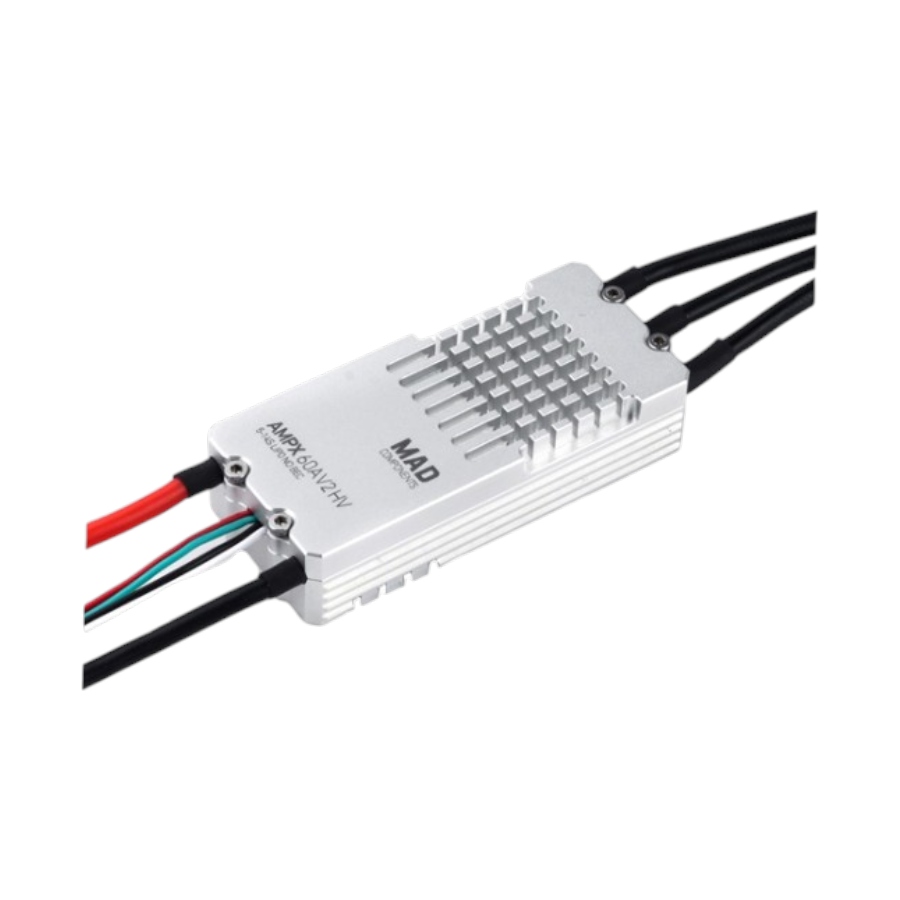

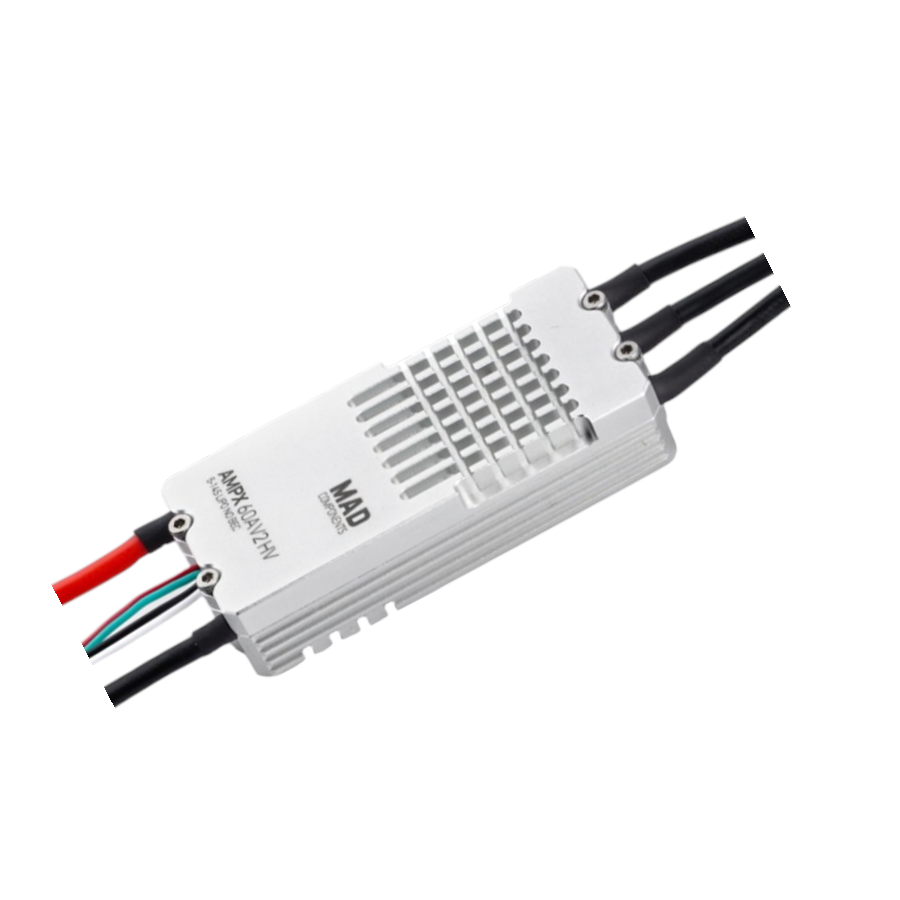

MAD CO AMPX 60A (5-14S) Drone ESC Silver V2.0
Description:
The MAD AMPX 60A (5-14S) Drone ESC Silver V2.0 is built for demanding drone applications where power, reliability, and control are essential. Supporting 5–14S LiPo (16V–64V), this ESC offers dual throttle control via RPM and CAN for smoother and more precise flight performance. The V2.0 also supports real-time data transmission through DroneCAN or CyphalCAN, giving flight controllers instant feedback on voltage, current, and temperature.
It features firmware upgrades, automatic restart on overload, and exceptional build quality, making it ideal for professional multirotor systems used in mapping, surveying, and industrial drone missions.
Features:
- Wide voltage range: Supports 5–14S (16V–64V) input.
- Dual throttle control: RPM + CAN support.
- Overload protection with automatic restart.
- Real-time telemetry via CAN: voltage, current, and temperature.
- Firmware is upgradeable for future enhancements.
- Compatible with DroneCAN & CyphalCAN protocols.
- Designed for heavy-duty, professional drone applications.
Specifications:
| Item Type: | Drone ESC |
|---|---|
| Firmware: | Upgradeable / V2.0 |
| Voltage Rating: | 16V to 64V |
| Continuous Current (A): | 60 |
| Constant Current (A) | 60 |
| Burst Current (A) | Up to 80 |
| Cells (LiPo) | 5S to 14S |
| BEC (Y/N): | NO |
| ESC Programming | Yes |
| Frequency (Hz) | Up to 400 |
| Input Voltage (V): | 16 to 64 |
| Motor Type: | Brushless Motor |
| Operating Current (A): | 60 |
| Operating Voltage | 16V to 64V |
| Max. Output Current (A) | 80 |
| Length (mm): | 12 |
| Width (mm): | 80 |
| Height (mm): | 65 |
| Weight (g): | 253 |
Package Includes:
1 x MAD CO AMPX 60A (5-14S) Drone ESC Silver V2.0
ExpressLRS 3.0: New Features and Upgrade Guide
Table of Contents Understanding ExpressLRS 3.0 Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical Tips...
Read More →
Drone Gimbal Guide: 2-Axis vs 3-Axis for Aerial Photography
Drone Gimbal Guide: 2-Axis vs 3-Axis for Aerial Photography If you have ever watched buttery-smooth aerial footage from...
Read More →
AI Vision Drone with Waveshare Camera Module
Building an AI vision drone with a Waveshare camera module opens up possibilities that were unimaginable just a...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| Current Rating | 60A |
| Package Quantity | 60 pcs |
| Color | Silver |
| SKU | AI8142 |
| Weight | 0.253 kg |
| Availability | In Stock |
Applications & Use Cases
The MAD CO AMPX 60A (5-14S) Drone ESC Silver V2.0 is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
